R853

R853

The walking excavator R853 2WD is an innovative machine. Its external design guarantees a 360° view. Its main feature is a Kubota engine of 3800 (cc) with 115 hp (particulate filter Tier 3 B included). Its hydraulic system has a great performance and a secondary pump only for the traction in a close circuit. The electronic management is simple to fix and doesn't need a complex maintenance. This walking excavator has a great lift capacity and can use heavy accessories that require high oil flow. Its symmetric framework has four steering big wheels and has a limited width of 2000 mm.

OPTIONAL
  • 4WD version, with four motor wheels;
  • All models can have rear steering wheels.
Kubota V3800 Tier 3 B with antiparticulate filter
Engine:
Kubota
Model: Kubota V3800 Tier 3 B with antiparticulate filter
Technical features
Operative weight
from 9000 Kg (2WD Version A) to 9800 Kg (4WD version D)
Engine's model
Kubota V3800 Tier 3 B with antiparticulate filter
Engine's type
Water cooled 4 strokes turbo diesel, Intercooler
Engine size
3769 (cc)
Max power
115 Cv (85 KW)
Potential difference
12 V

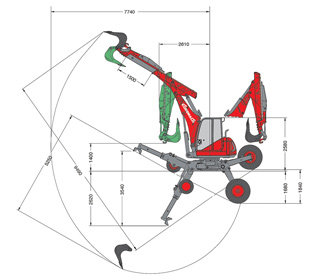

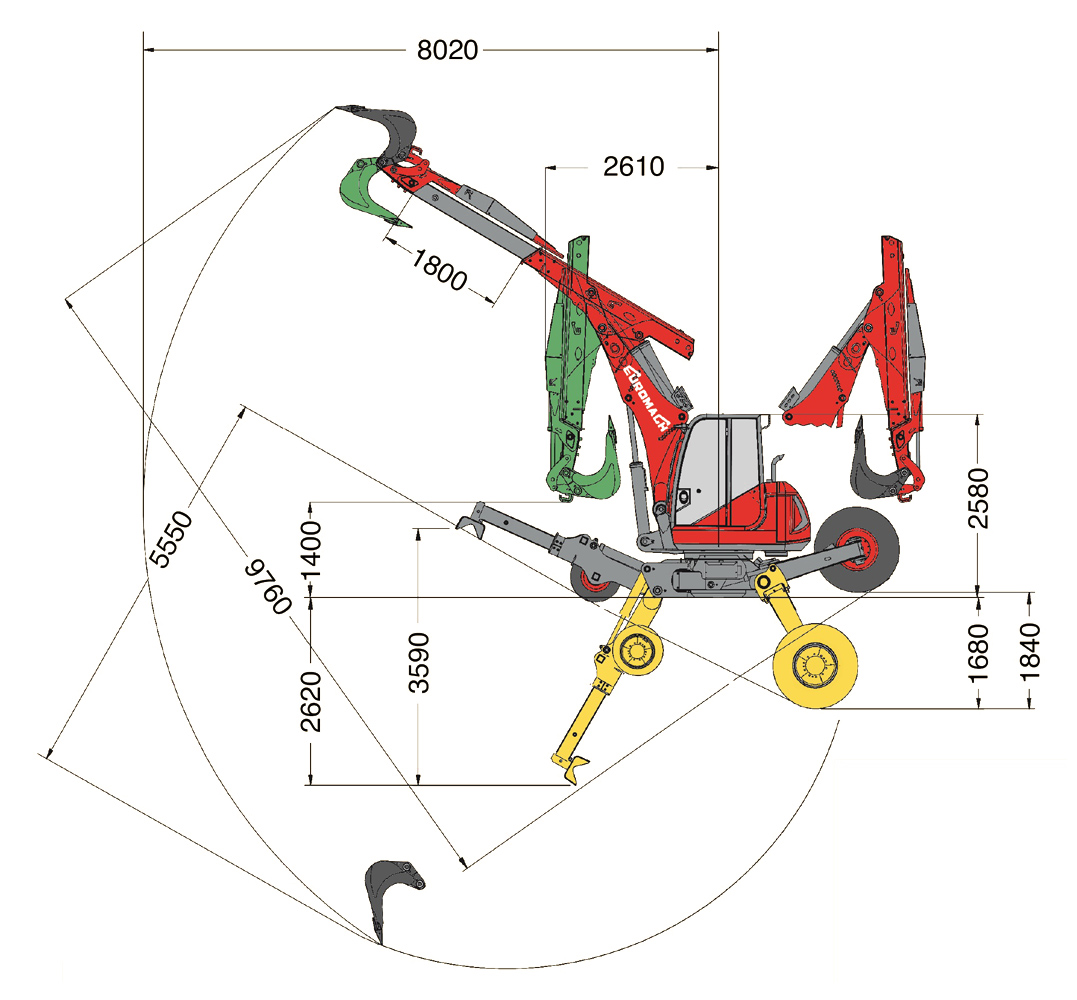

Max arm extension
4 different versions (A,B,C,D): from 7750 mm (A) to 8450 mm (D)
Total pumps flow
100 + 110 + 112 + 32 + 22 = 386 l/min
Penetration force
65 KN
Break off force
110 KN

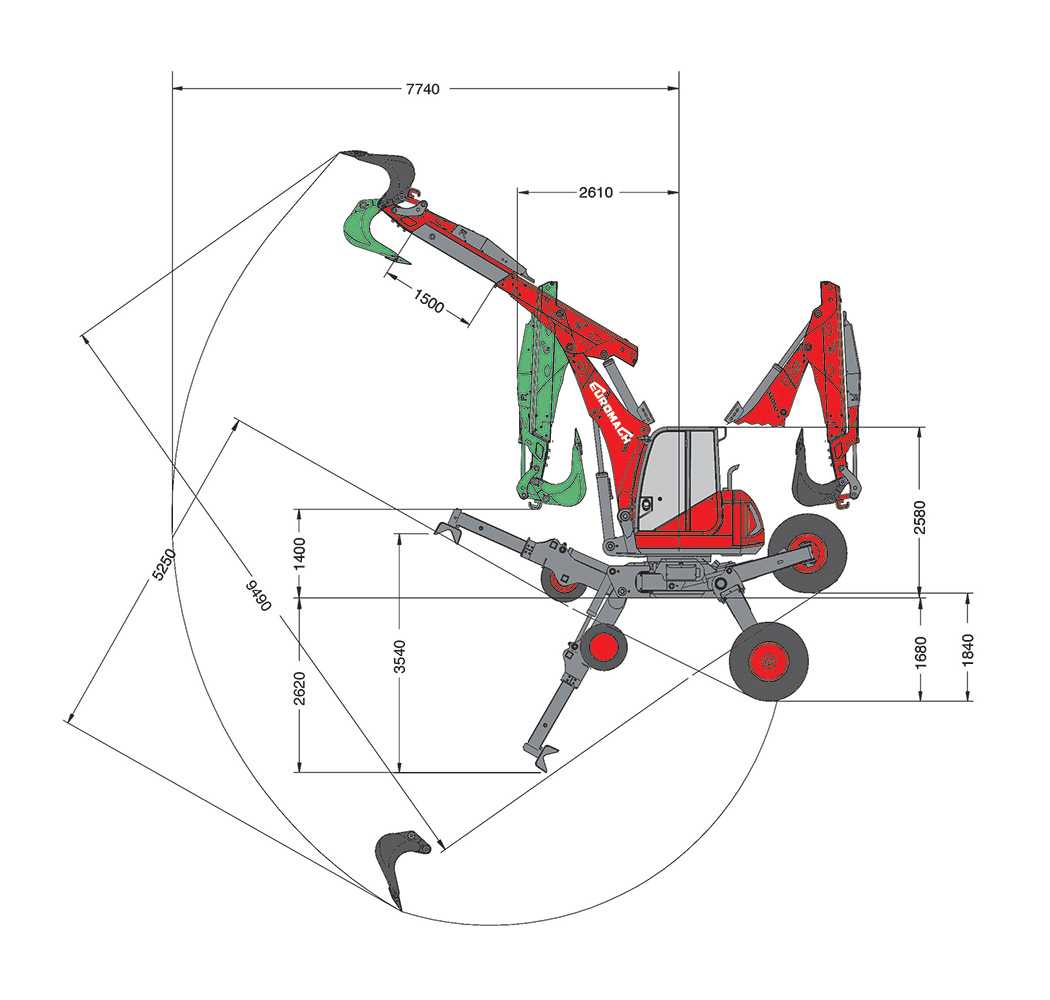

Version A
Short boom with extension of 1,5 m
R853 - Version A

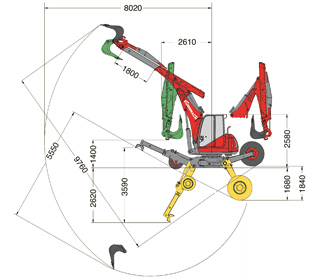

Version B
Short boom with extension of 1,8 m
R853 - Version B
Version C
Long boom with extension of 1,5 m
R853 - Version C
Version D
Long boom with extension of 1,8 m
R853 - Version D
Not stearing framework
Basic configuration for all versions
R853 - Not stearing framework

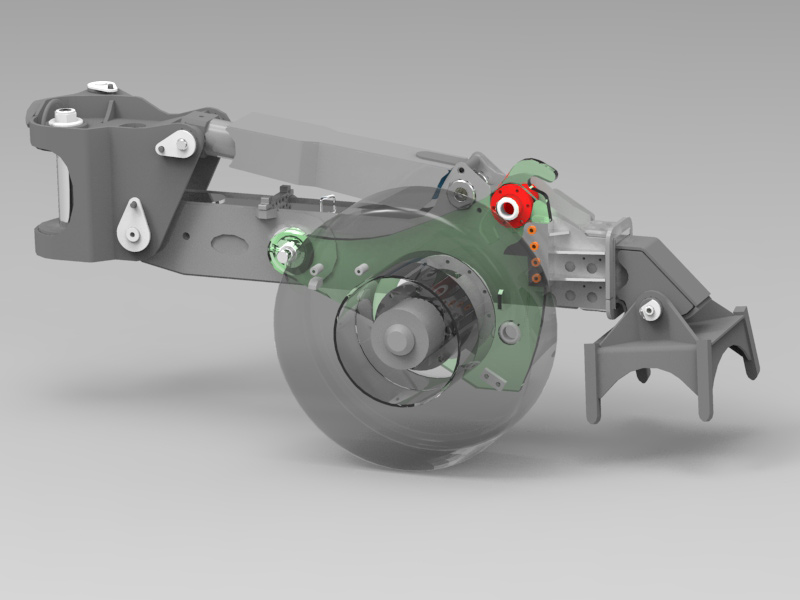

Steering wheels
Optional available for all versions
R853 - Steering wheels
Details (All images can be enlarged)

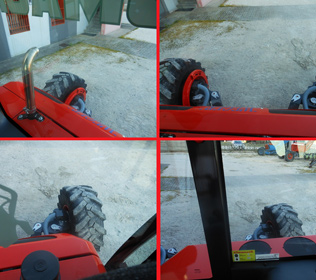

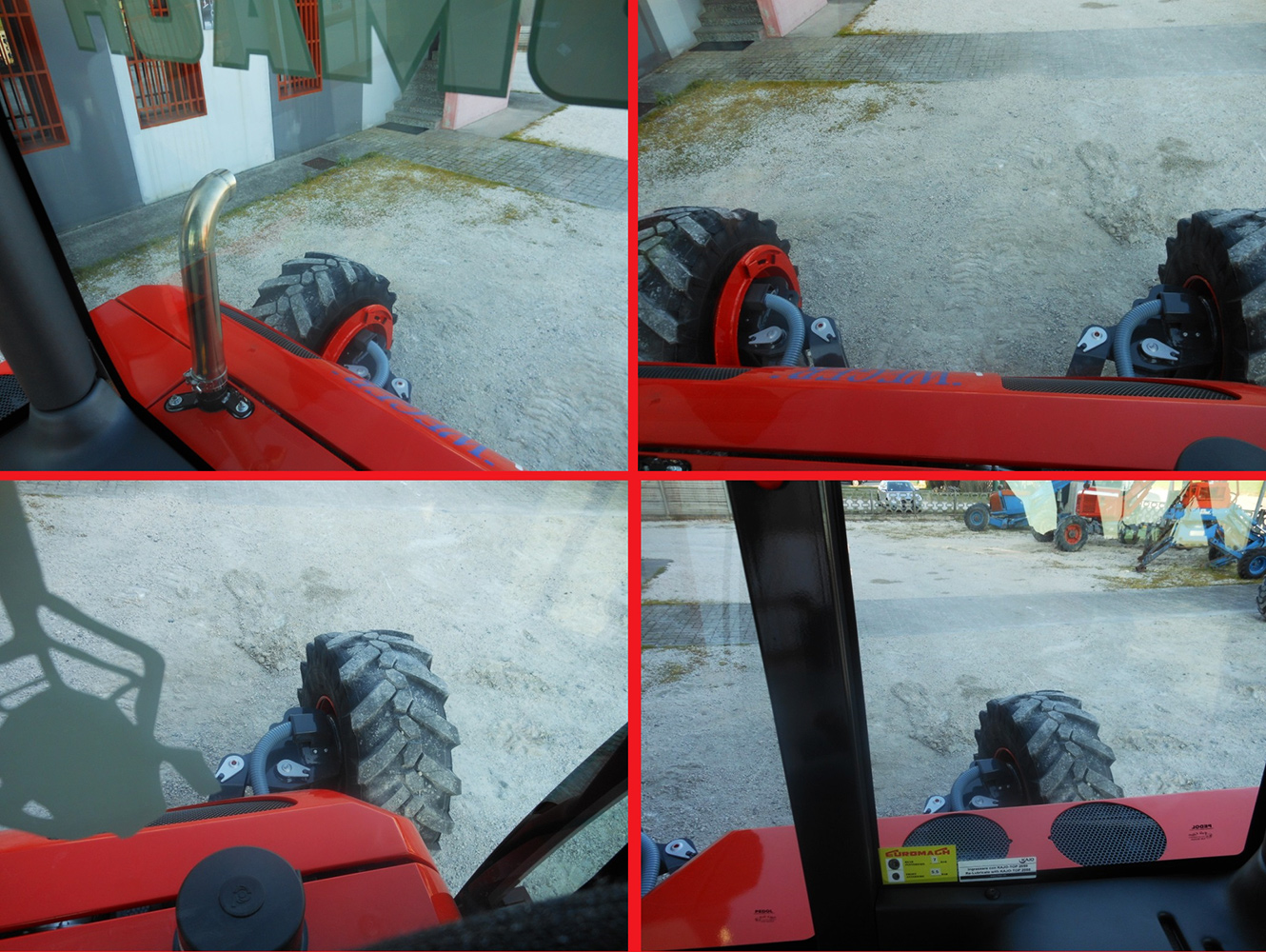

R853 - Visibility from inside the cabin
Visibility from inside the cabin

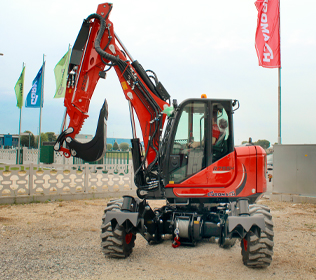

R853 - Outside the cabin
Outside the cabin
R853 - Inside the cabin
Inside the cabin

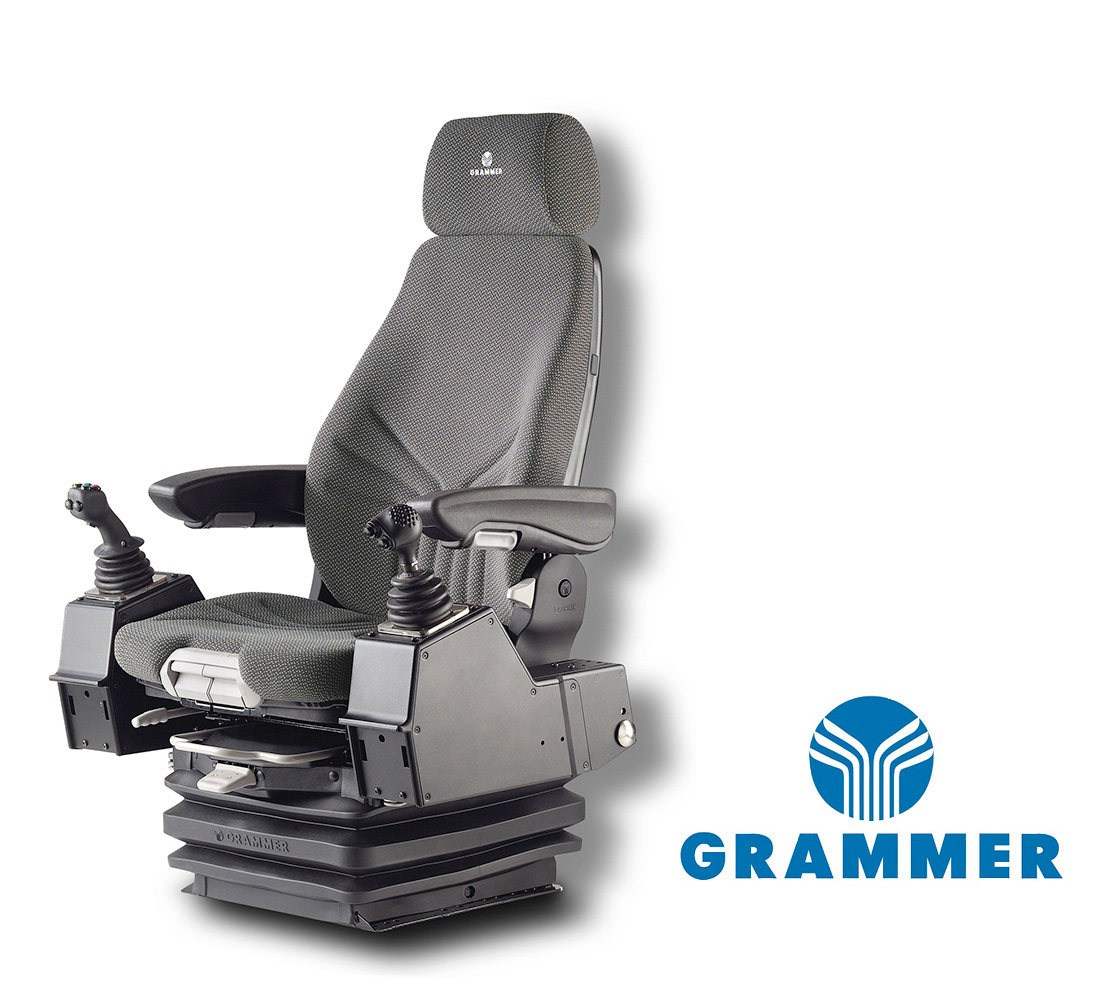

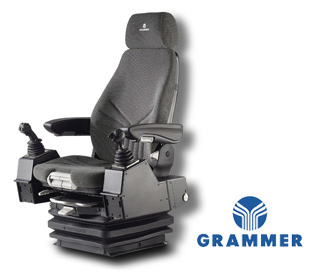

R853 - Grammer seat
Grammer seat

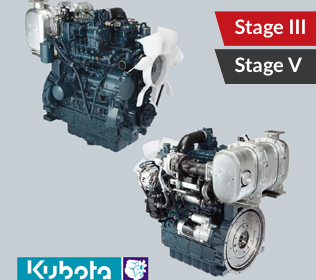

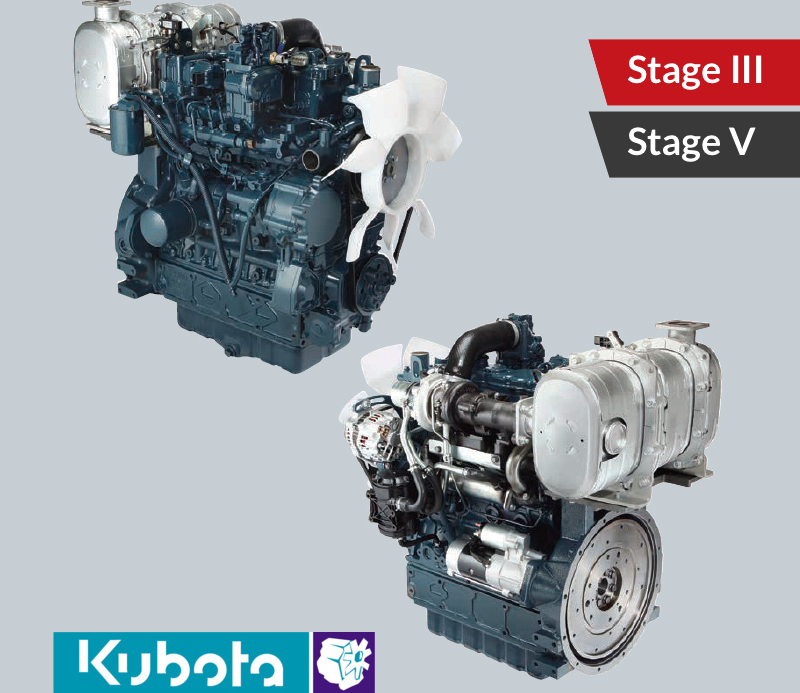

R853 - Kubota V3800 Tier 3 B Motor
Kubota V3800 Tier 3 B Motor

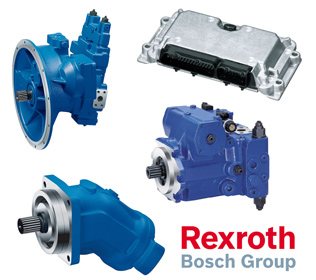

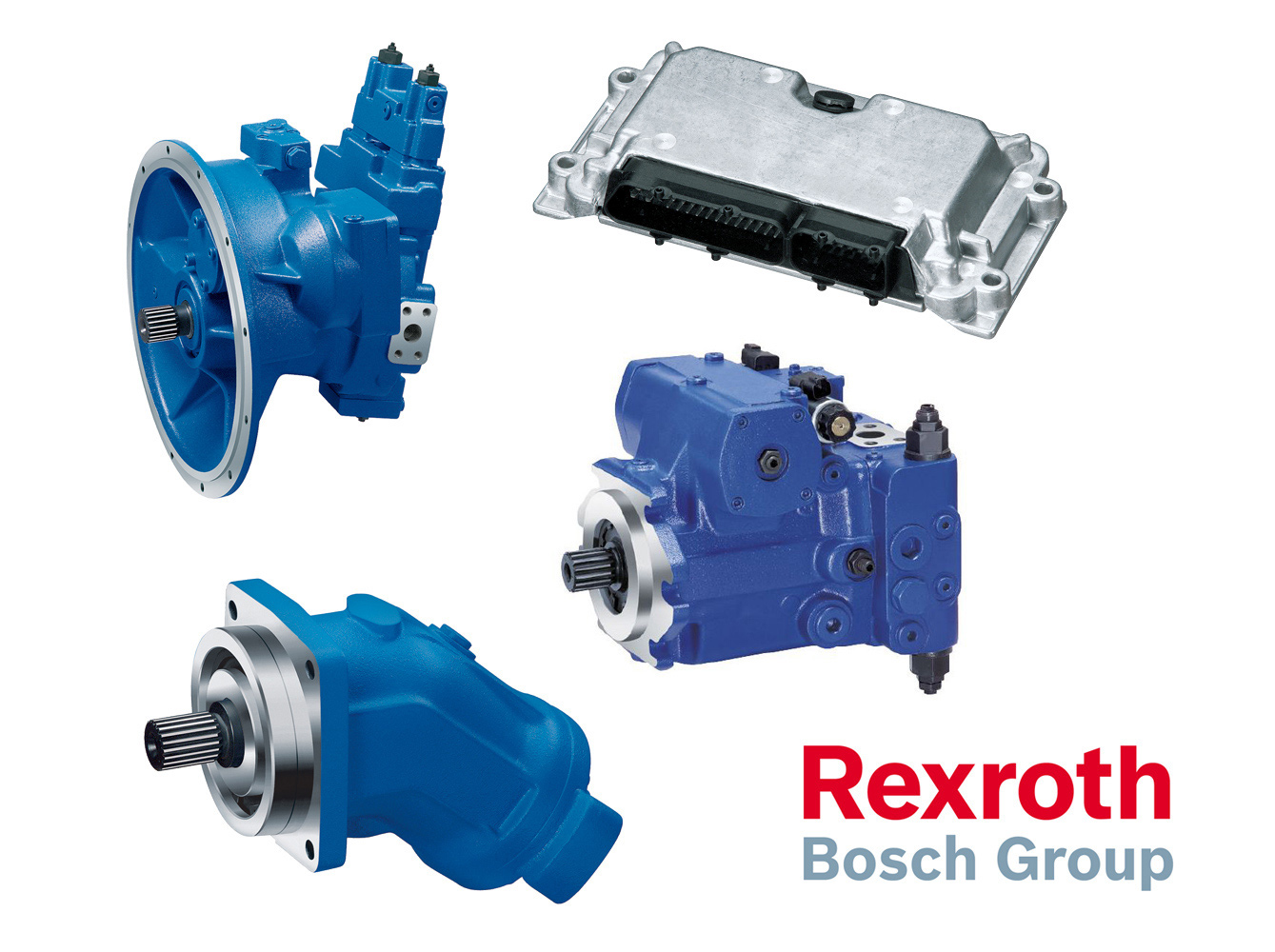

R853 - Rexroth components
Rexroth components

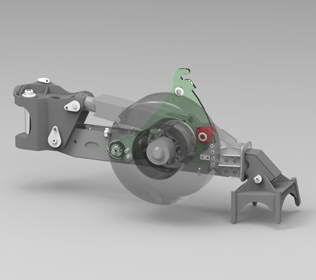

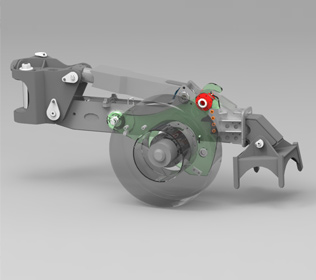

R853 - Rexroth Gear locking device
Rexroth Gear locking device
R853 - Joystick
Joystick

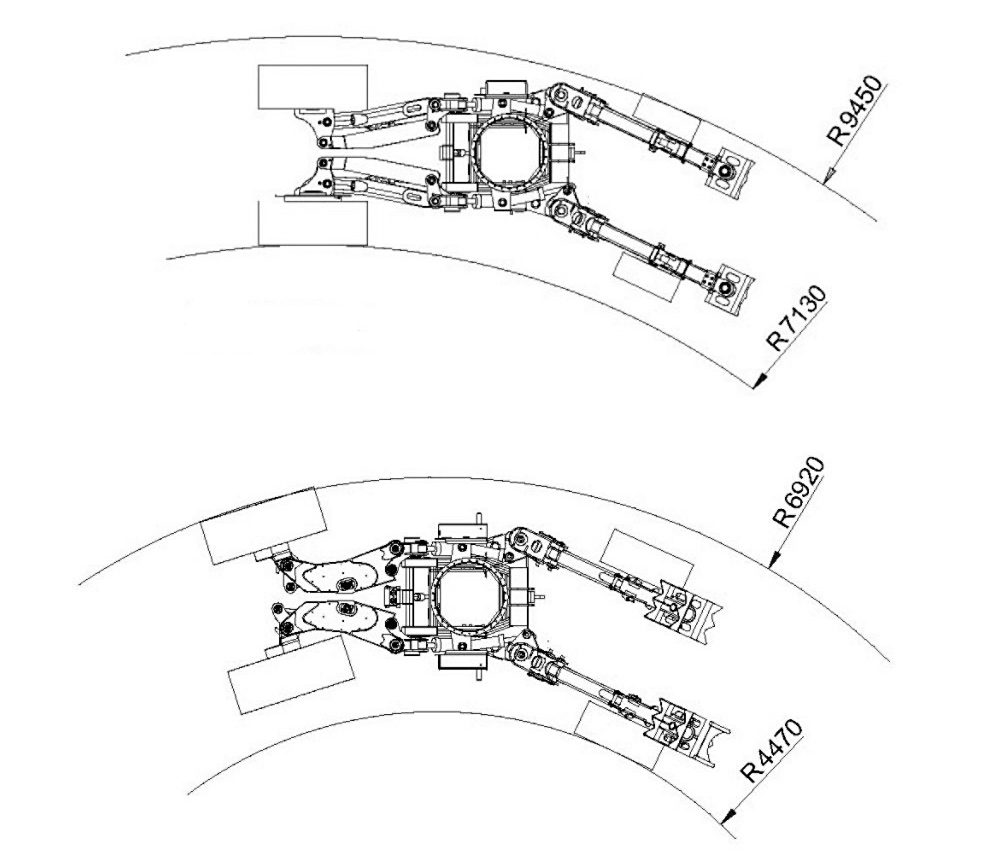

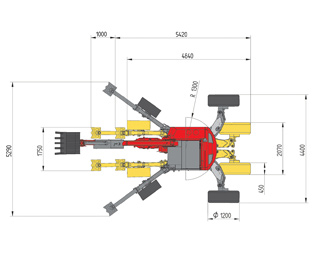

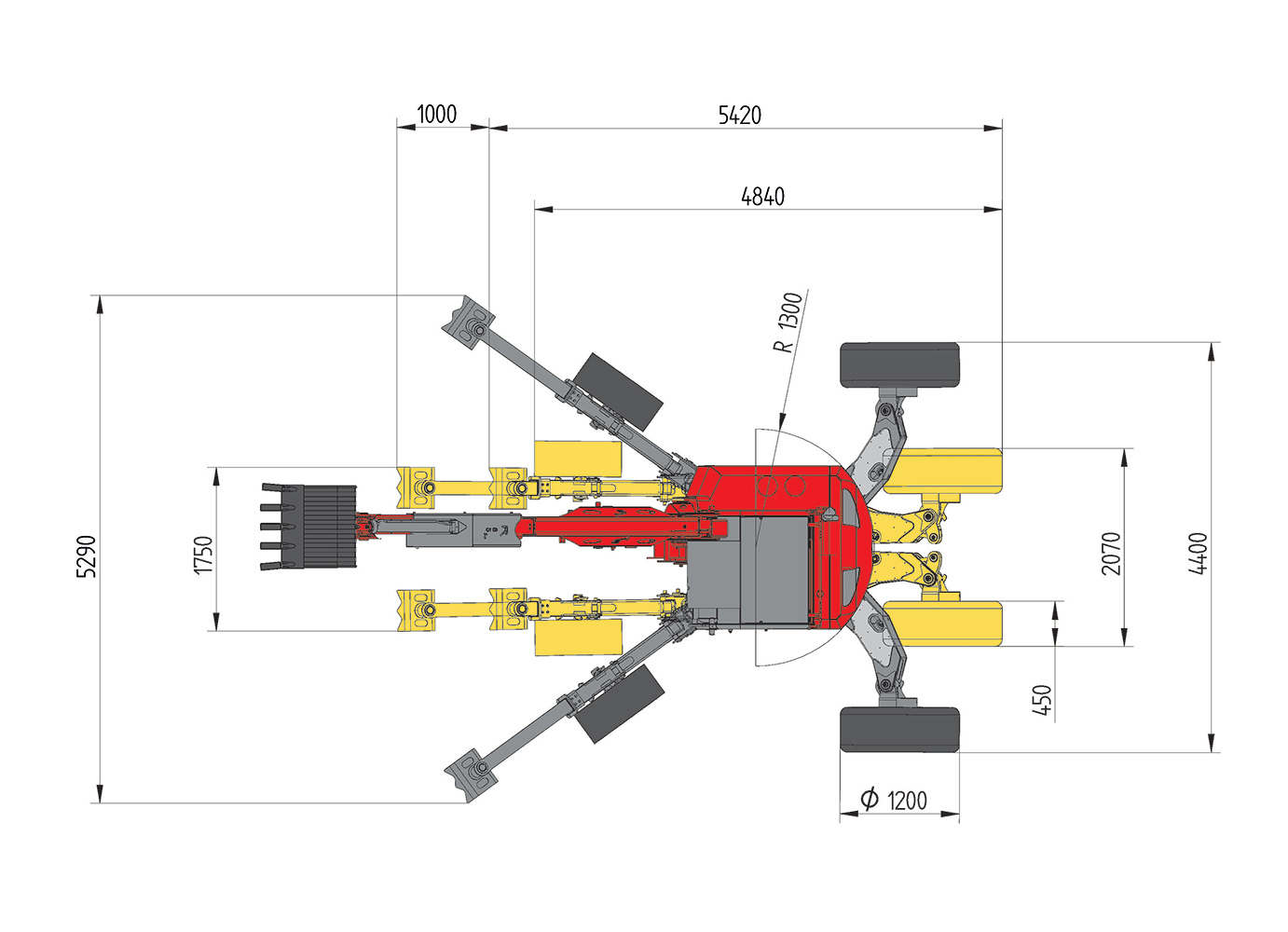

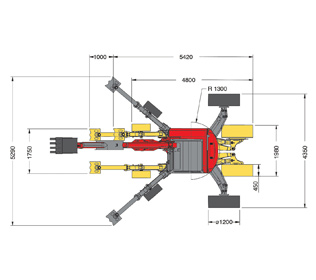

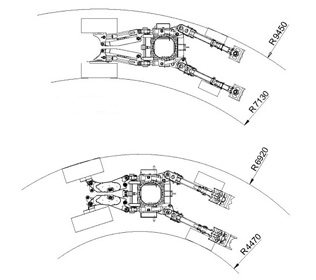

R853 - Bending radius with and without steering wheels
Bending radius with and without steering wheels
Download the brochures with all the technical features
