R955 Super
R955 Super
R955 Super 2WD model is an upgrade of R853 2WD model. The R955 2WD shares many features with the old one. There are two engine types that can be chosen: Deutz V3600 Stage V / Stage III. With a powerful hydraulic system and a huge lift force, this excavator can work with heavy accessories that need a great hydraulic power. Important to notice is the compact framework, that allows this machine to move through narrow street and along mountain paths.
OPTIONAL
OPTIONAL
- 4WD version, with four motor wheels;
- All models can have rear steering wheels.
Engine:
Model: Deutz Stage III / V with AP filter
Click on the drawing to enlarge the image
Technical features
Operative weight
from 10300 Kg (2WD Version A) to 11300 Kg (4WD version C)
Engine's model
Stage III > Deutz 3600 10Kw (142 Hp)
Stage V > Deutz 3600 10Kw (142 Hp)
Stage V > Deutz 3600 10Kw (142 Hp)
Engine's type
Water cooled 4 strokes turbo diesel, Intercooler
Engine size
3769 (cc)
Max power
115 Cv (85 KW)
Potential difference
12 V
Max arm extension
3 different versions (A,B,C): from 7750 mm (A) to 8170 mm (D)
Total pumps flow
130 + 130 + 130 + 30 + 20 = 440 l/min
Penetration force
65 KN
Break off force
110 KN
Details (All images can be enlarged)
Visibility from inside the cabin
Inside the cabin
Grammer seat

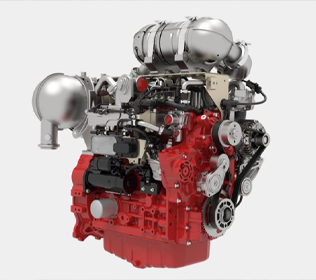

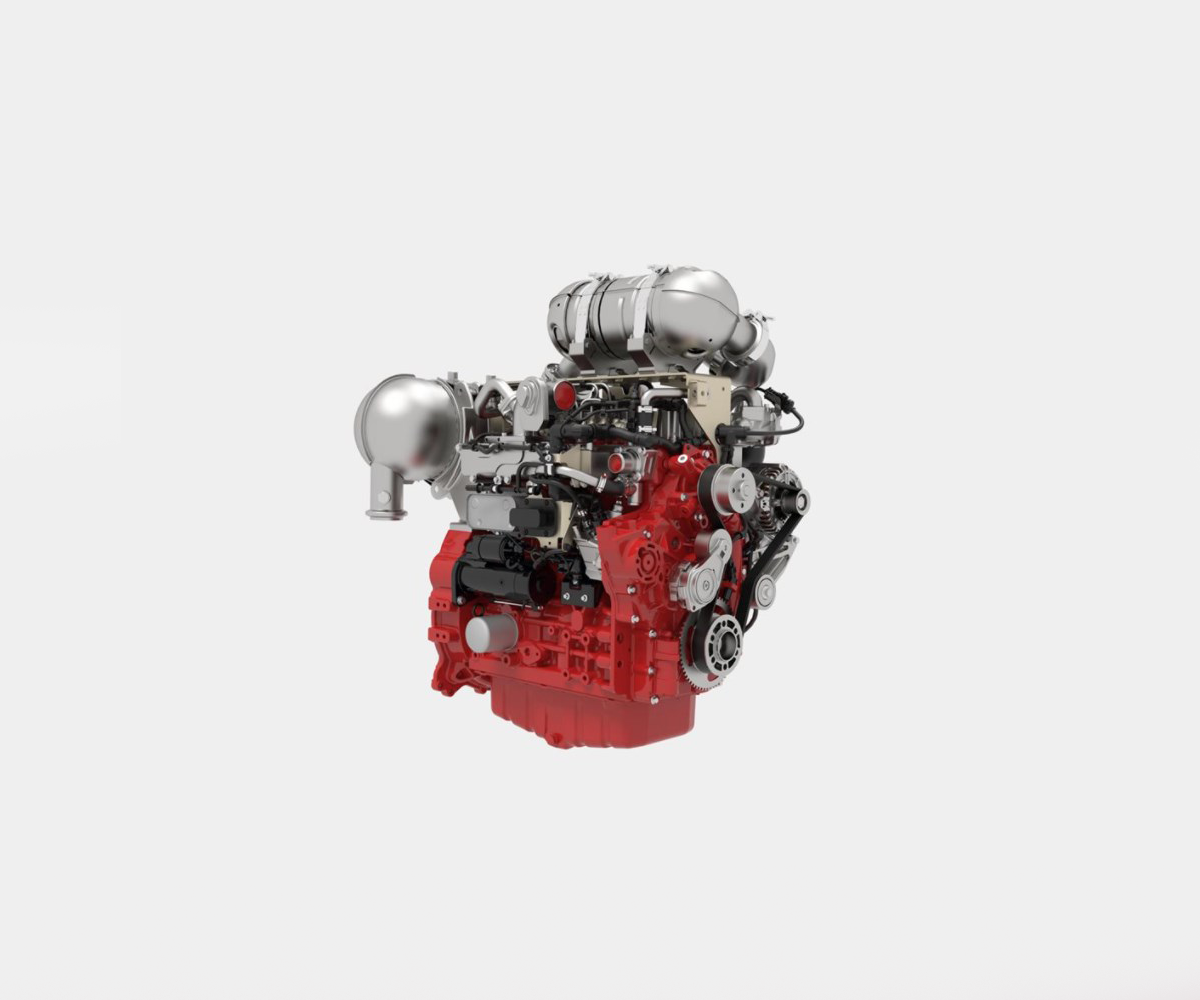

Deutz V3600 Stage III / V Motor
Hydraulic system of arm Rexroth/Poclain
Traction system Rexroth
Automatic pouring
Control of motor’s acceleration (1), control of traction’s speed (2), control of cylinders’ force (3)
Memorization of four accessories’ flow (4), three controls of motor’s power (5), electric lift of cabin (6)
Bending radius with and without steering wheels
Download the brochures with all the technical features

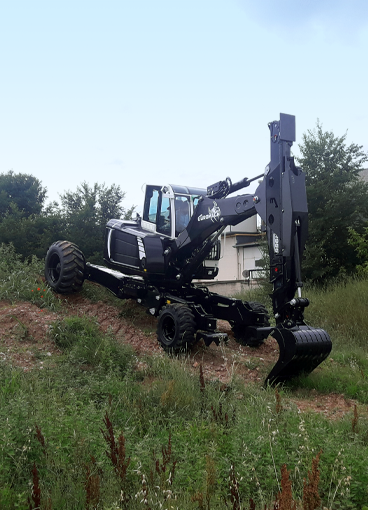

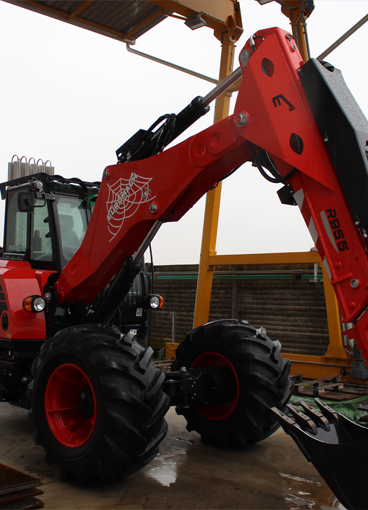

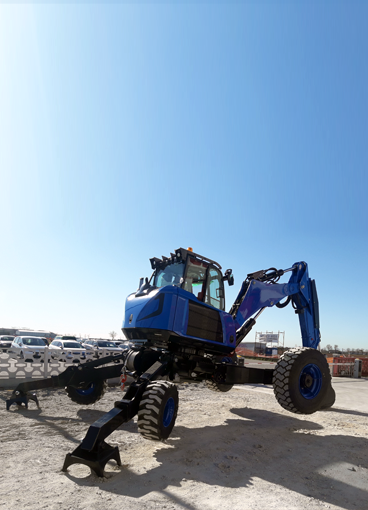

Photogallery (All images can be enlarged)
