R555H
R555H

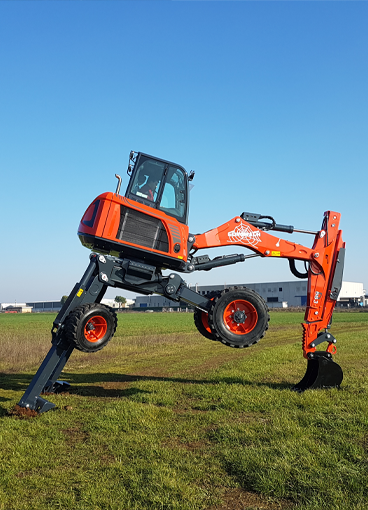

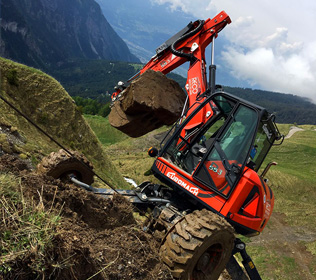

The R555H spider digger has a limited obstacle (max width of 1800 mm) and a great view; the external design and cabin's inners have been reshaped to optimize the functionality and the aesthetics. Despite his dimensions, it has a very solid structure and a high stroke of front and rear legs that allows the machine to work also in presence of great slopes. The engine's power of 75 Hp permits to install any optional existing on the market. The motor has a particulate filter Stage III / Stage V and so the machine can be sold both inside and outside EU.
Engine:
Model: Kubota 3307 Stage III / Stage V with antiparticulate filter

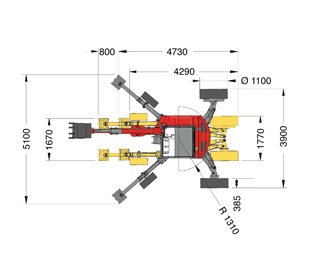

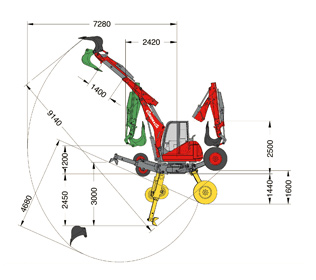

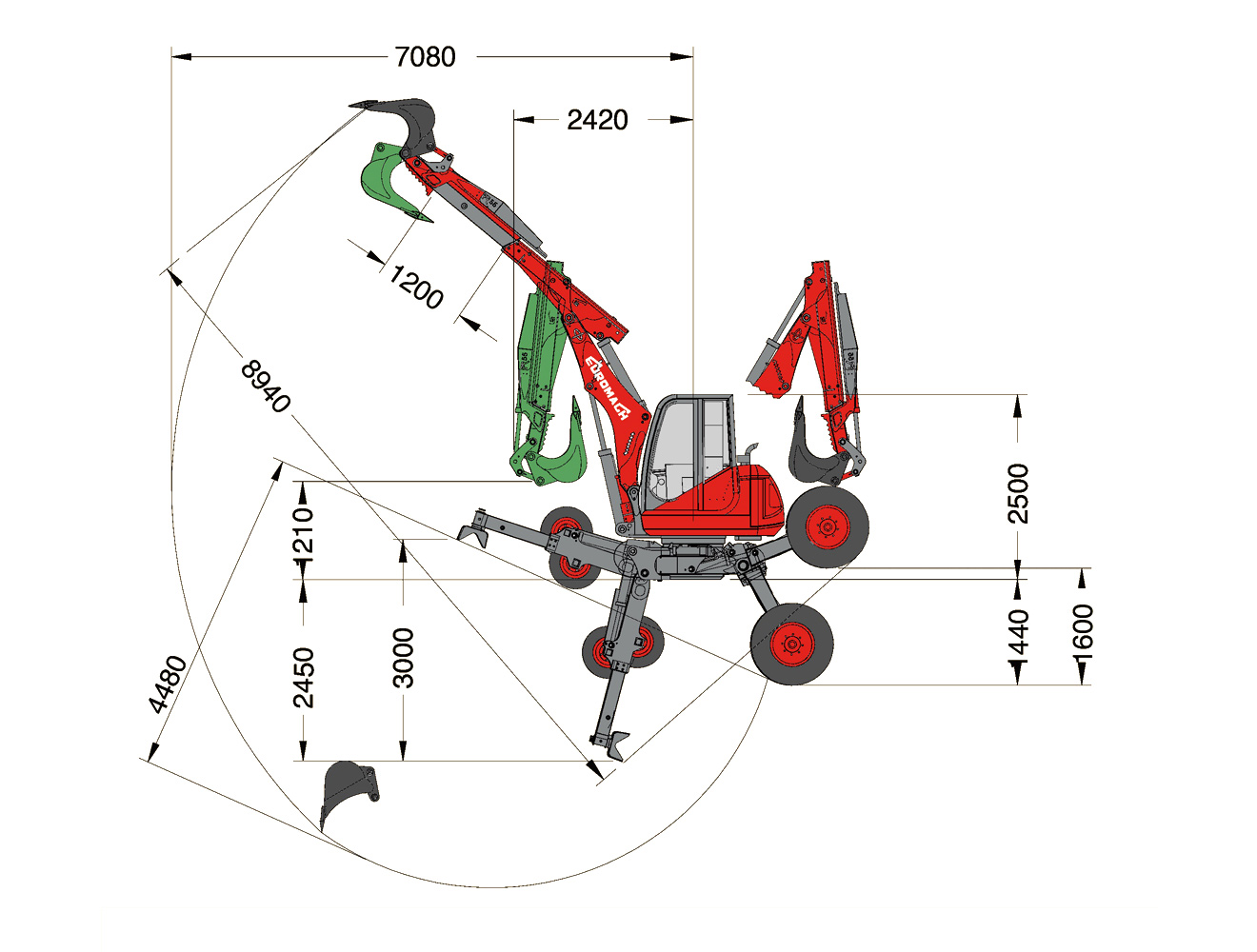

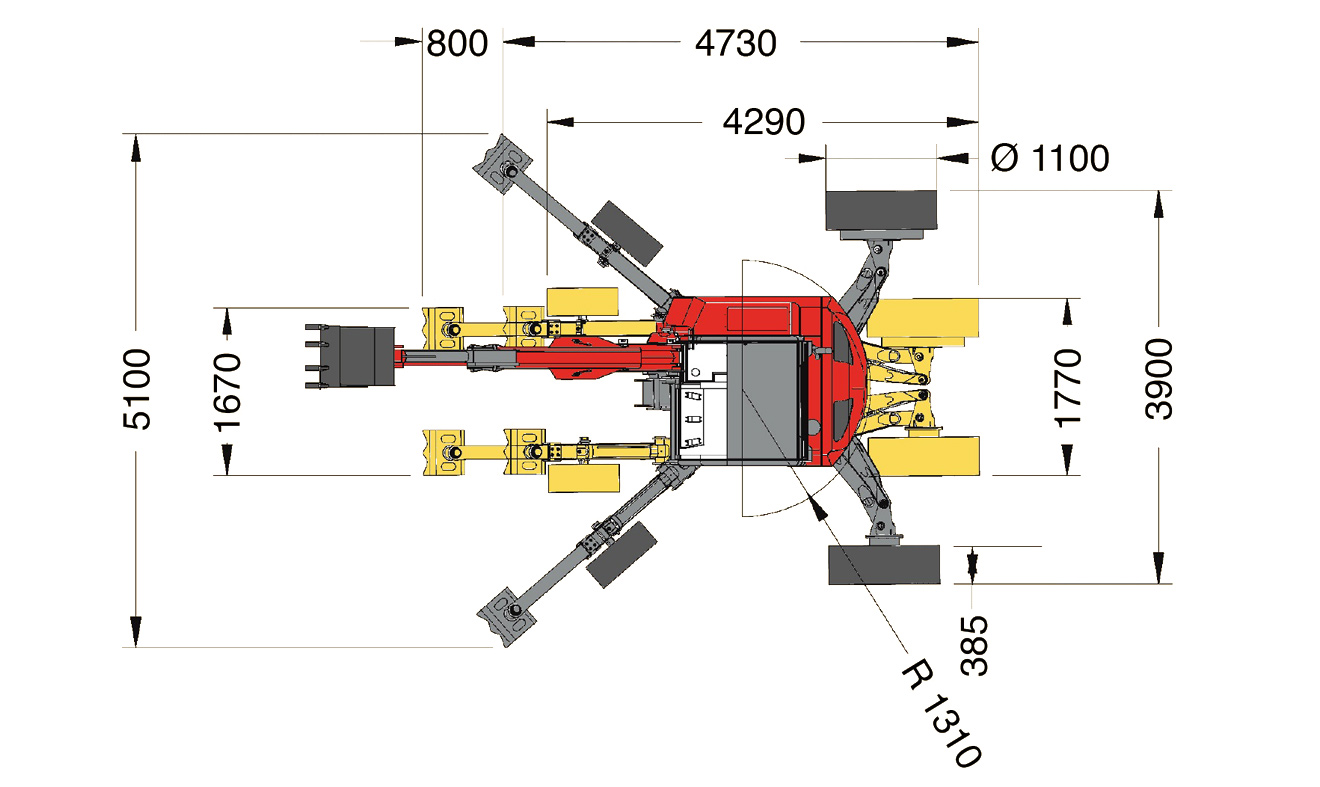

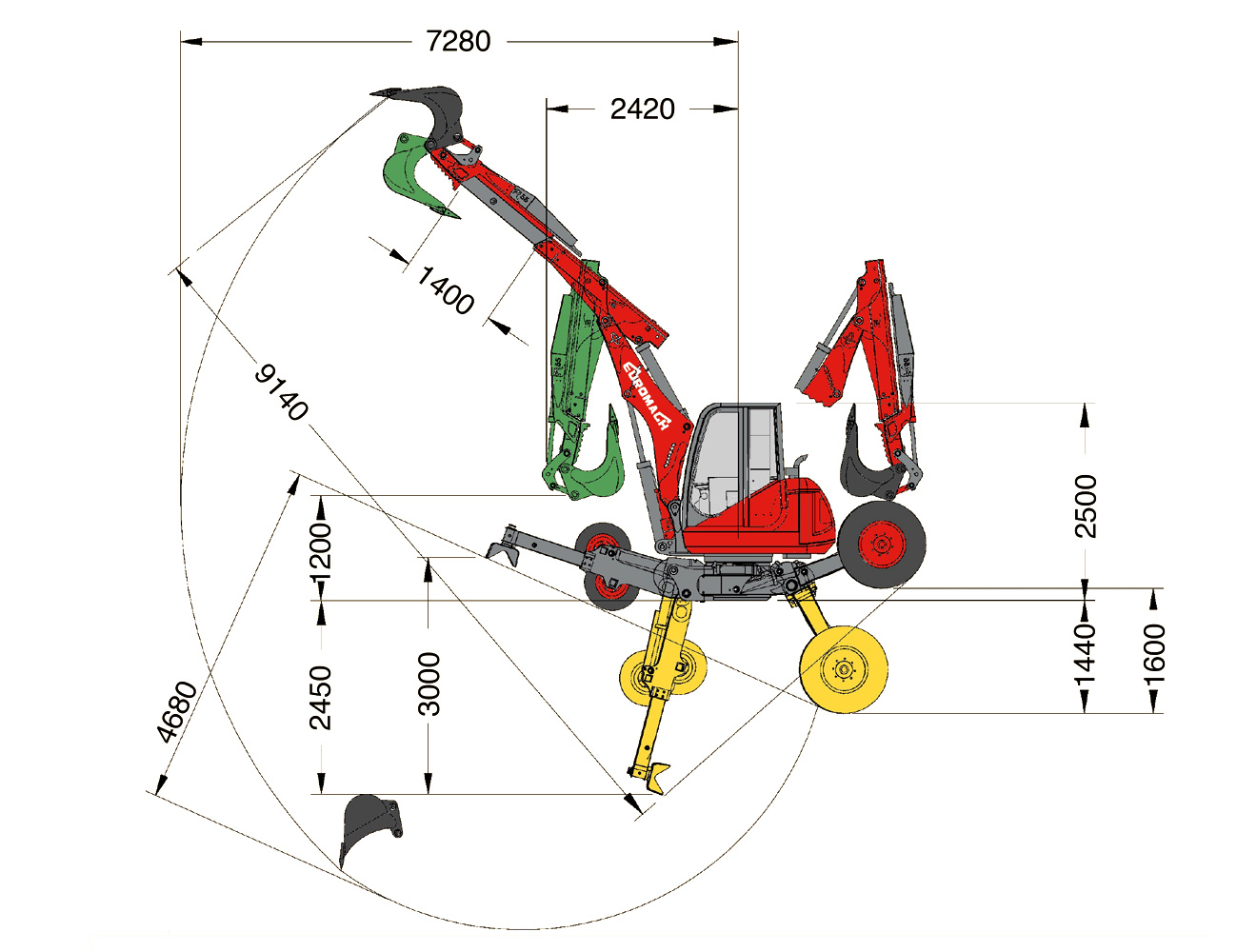

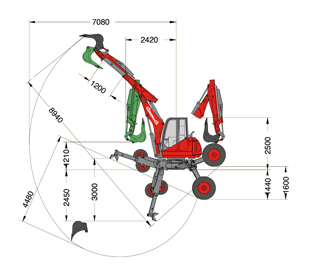

Click on the drawing to enlarge the image
Technical features
Operative weight
7000 Kg
Engine's model
Kubota 3307 Stage III / Stage V with antiparticulate filter
Engine's type
Water cooled 4 strokes turbo diesel
Engine size
3331 (cc)

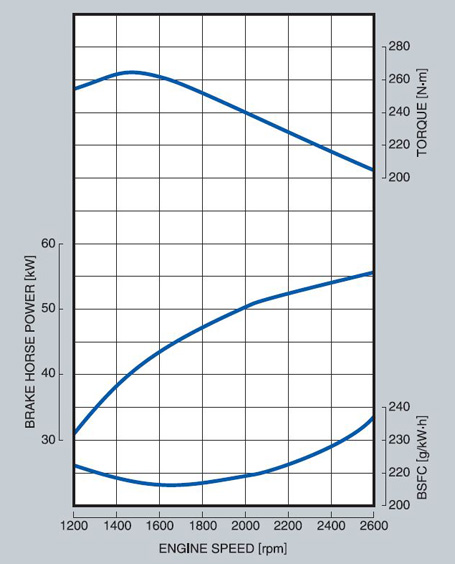

Max power
55.4 kW (75.3 Cv)
Potential difference
12 V
Max arm extension
from 7080 mm (version A) to 7280 mm (version B)
Total pumps flow
260 lit/min
Penetration force
47 KN
Break off force
67 KN

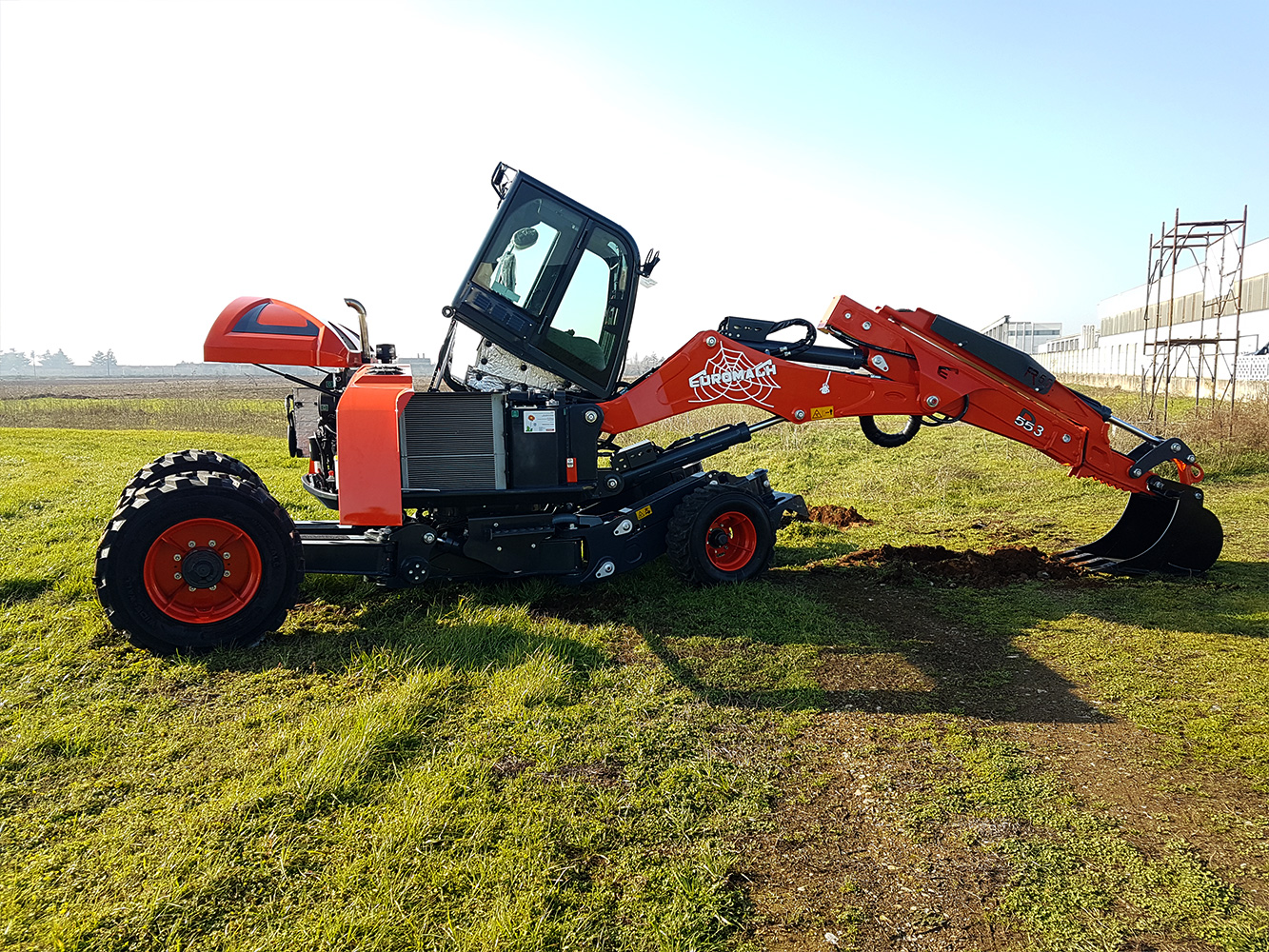

Details (All images can be enlarged)

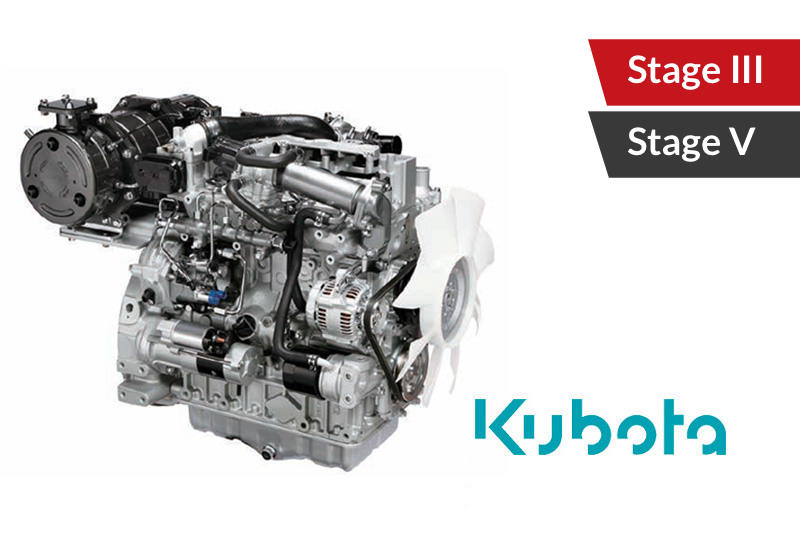

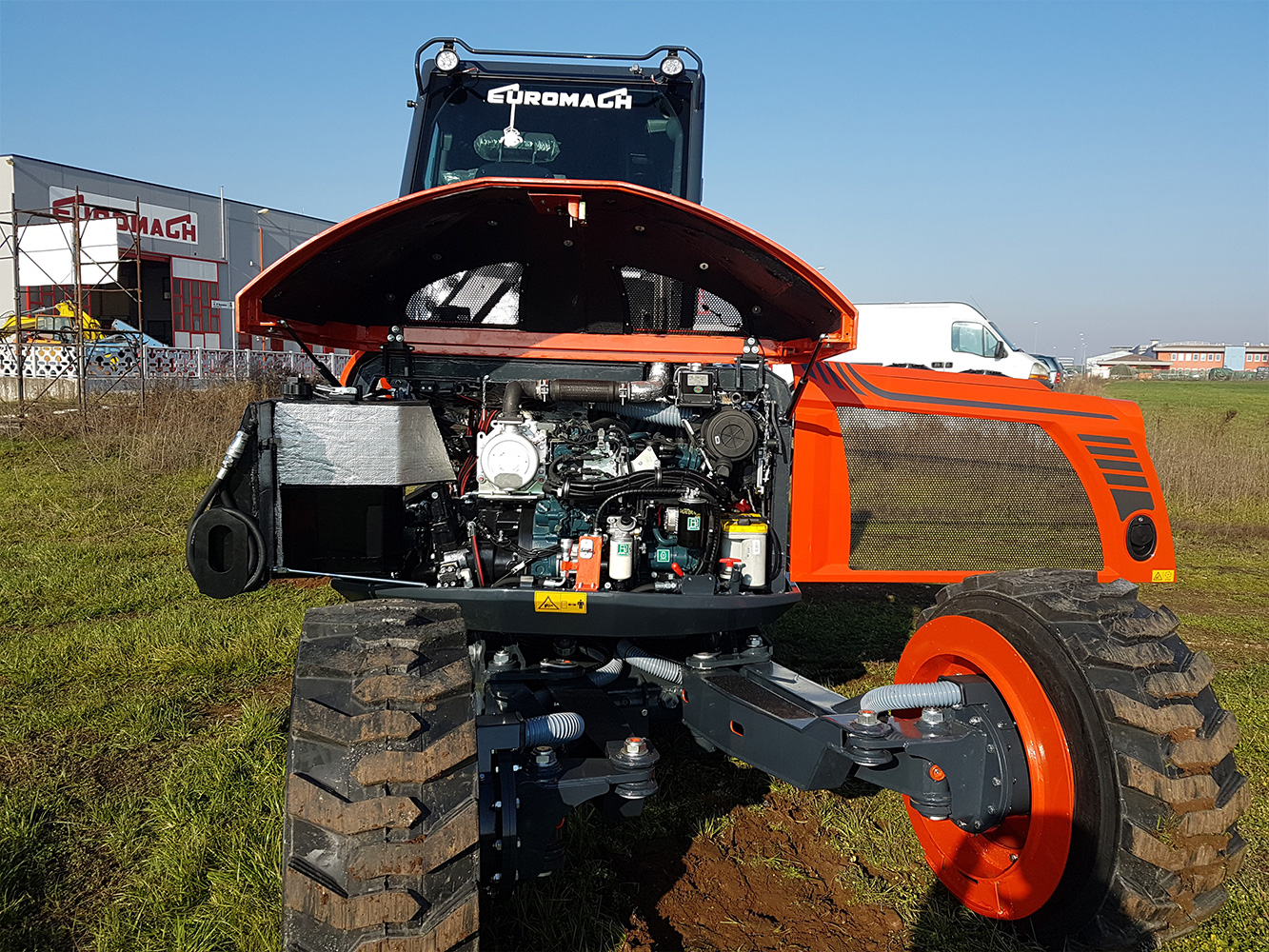

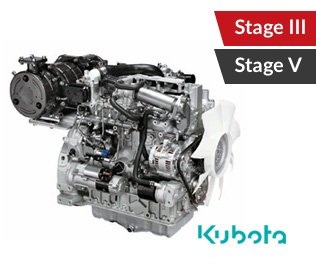

Kubota 3307 Stage III / Stage V with antiparticulate filter

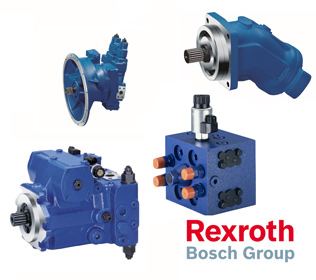

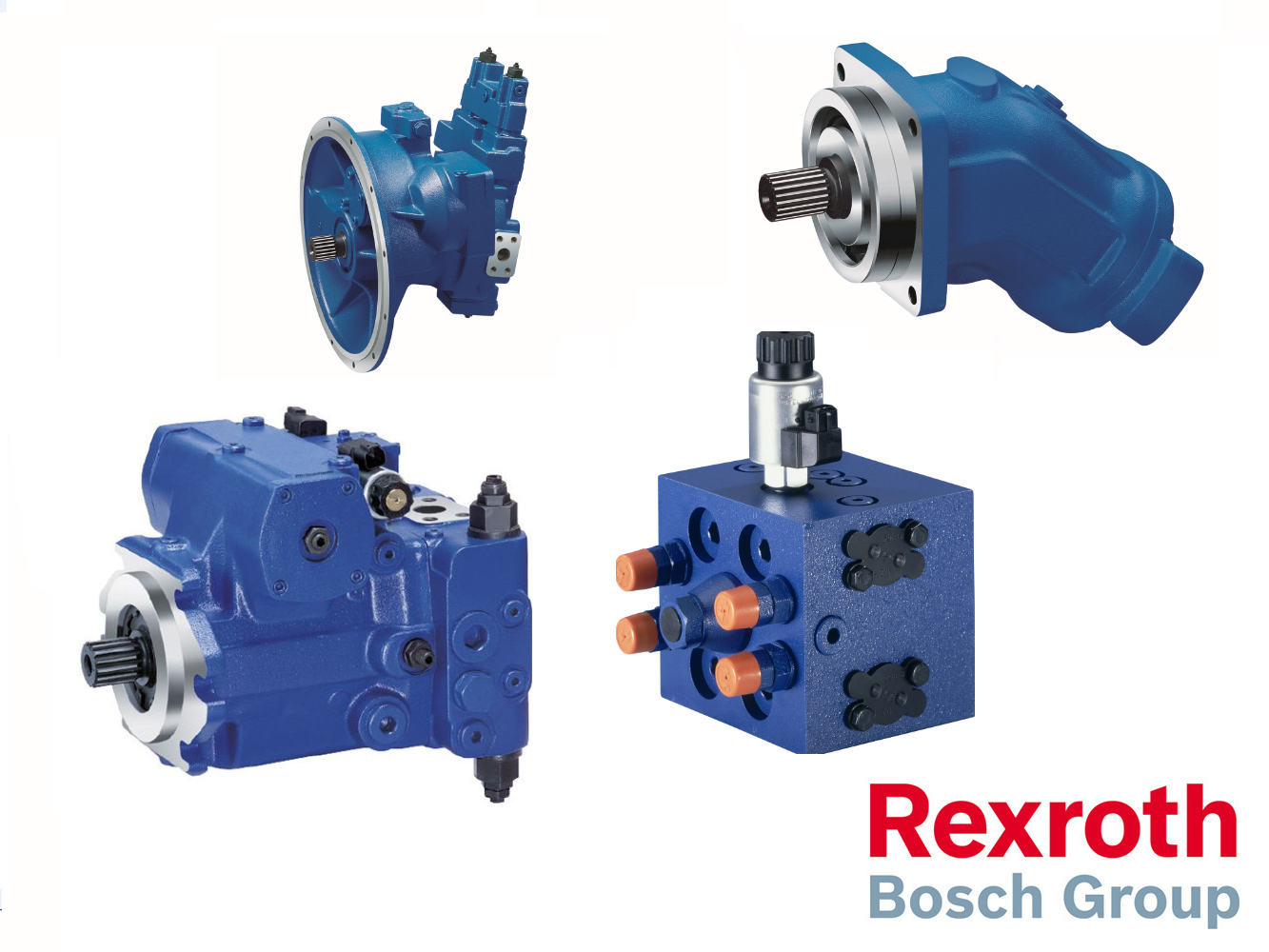

Rexroth pumps
New engine homologated to Stage III / Stage V
ROPS and FOPS certified cabin

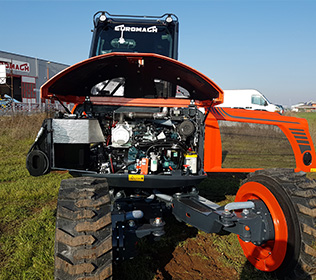

Easy maintenance

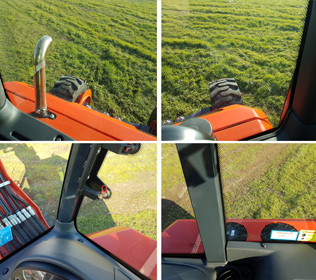

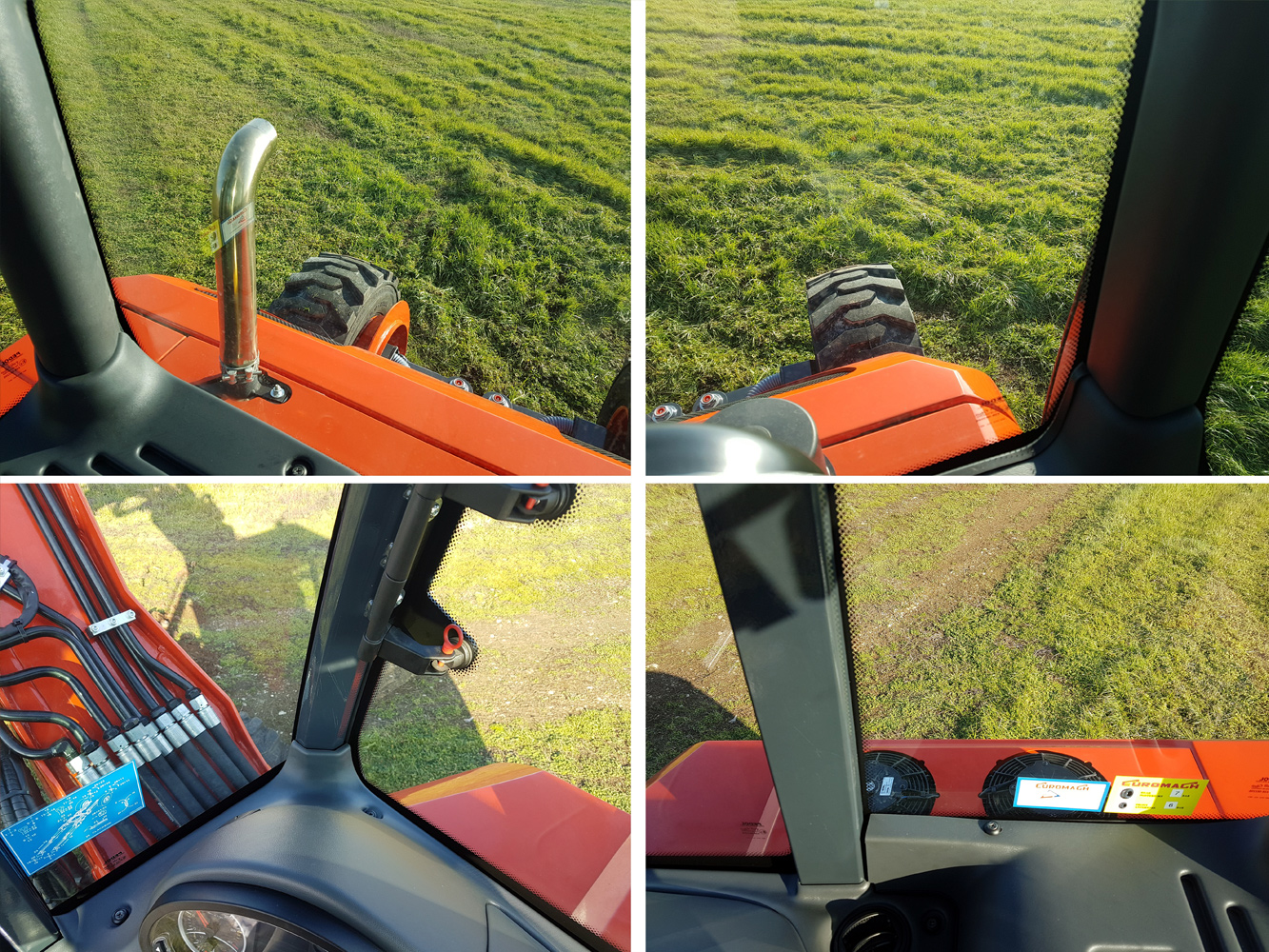

Great view

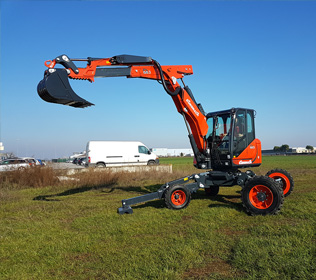

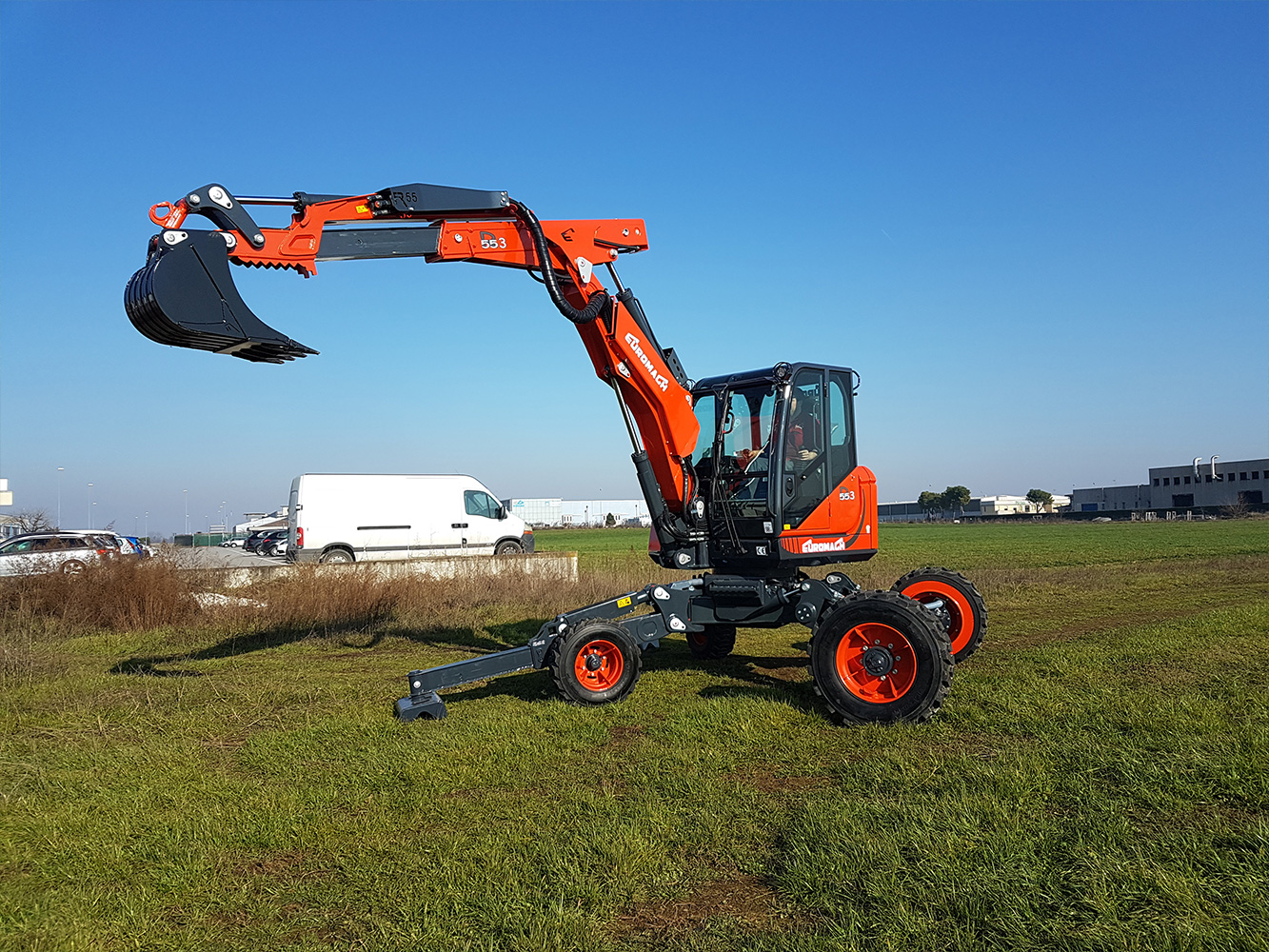

Boom'extension of 1,2/1,4 m

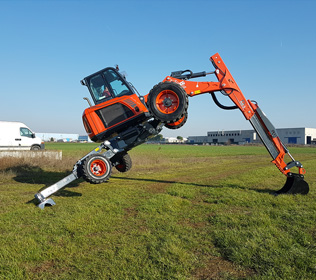

Telescopic legs of 0,8 m
Boom's pipes on the left
Download the brochures with all the technical features

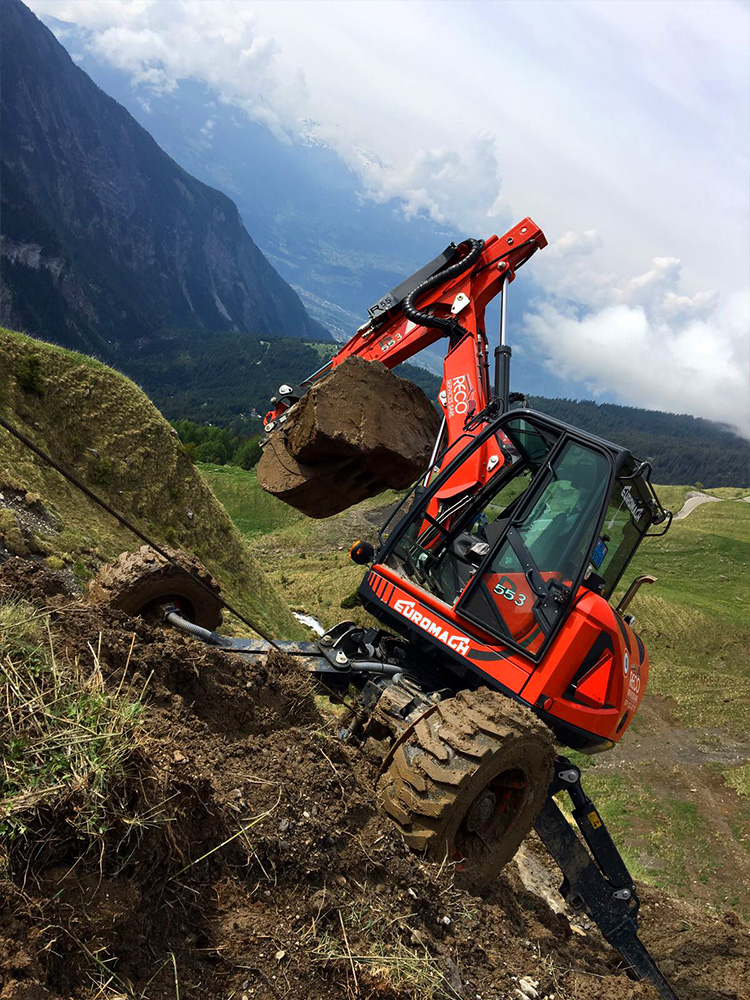

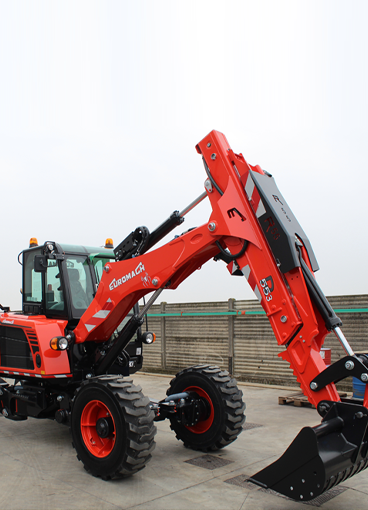

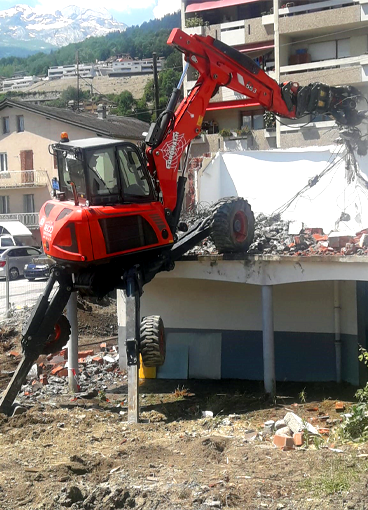

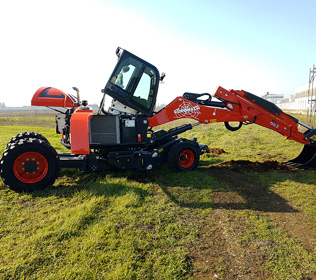

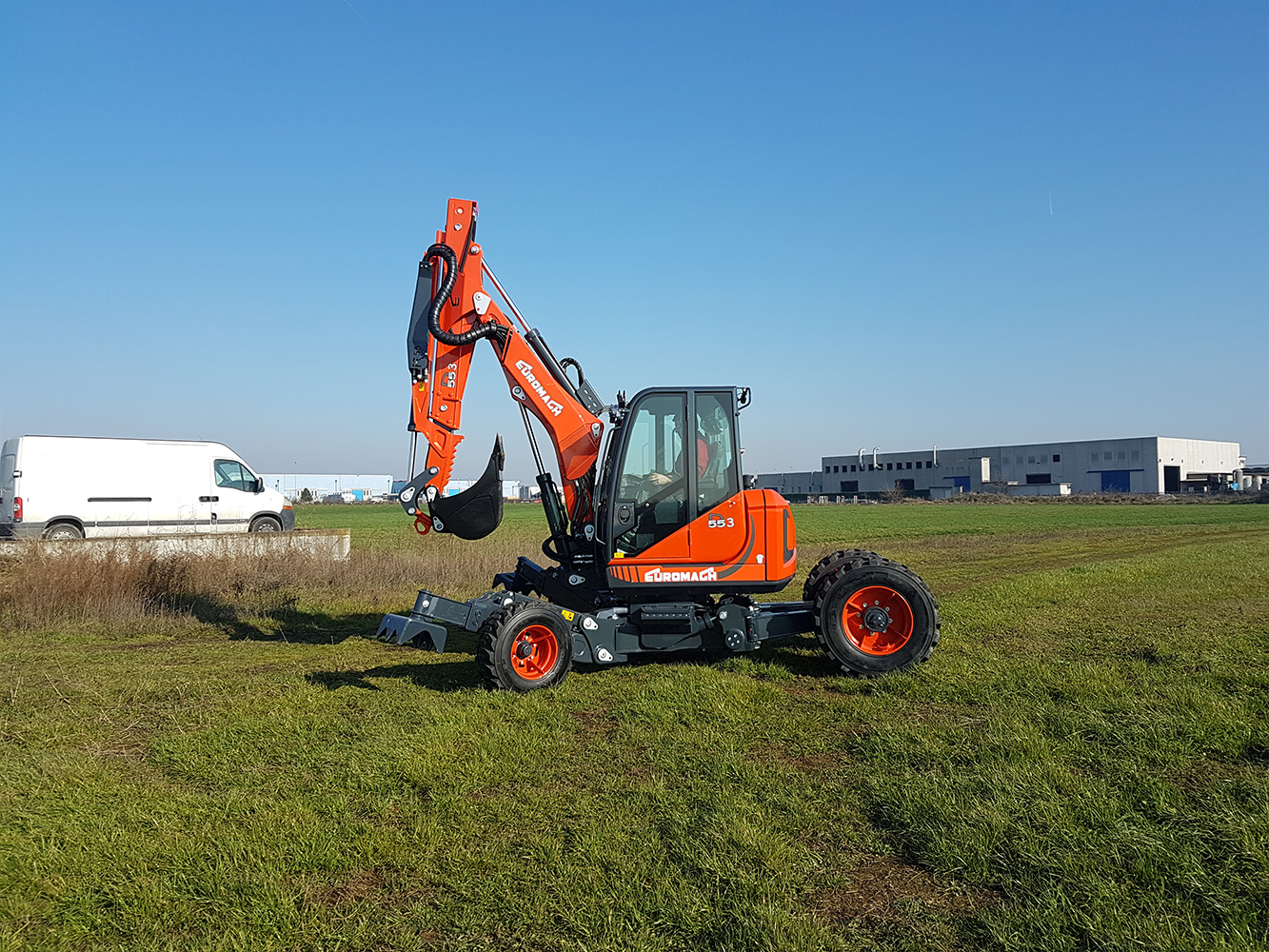

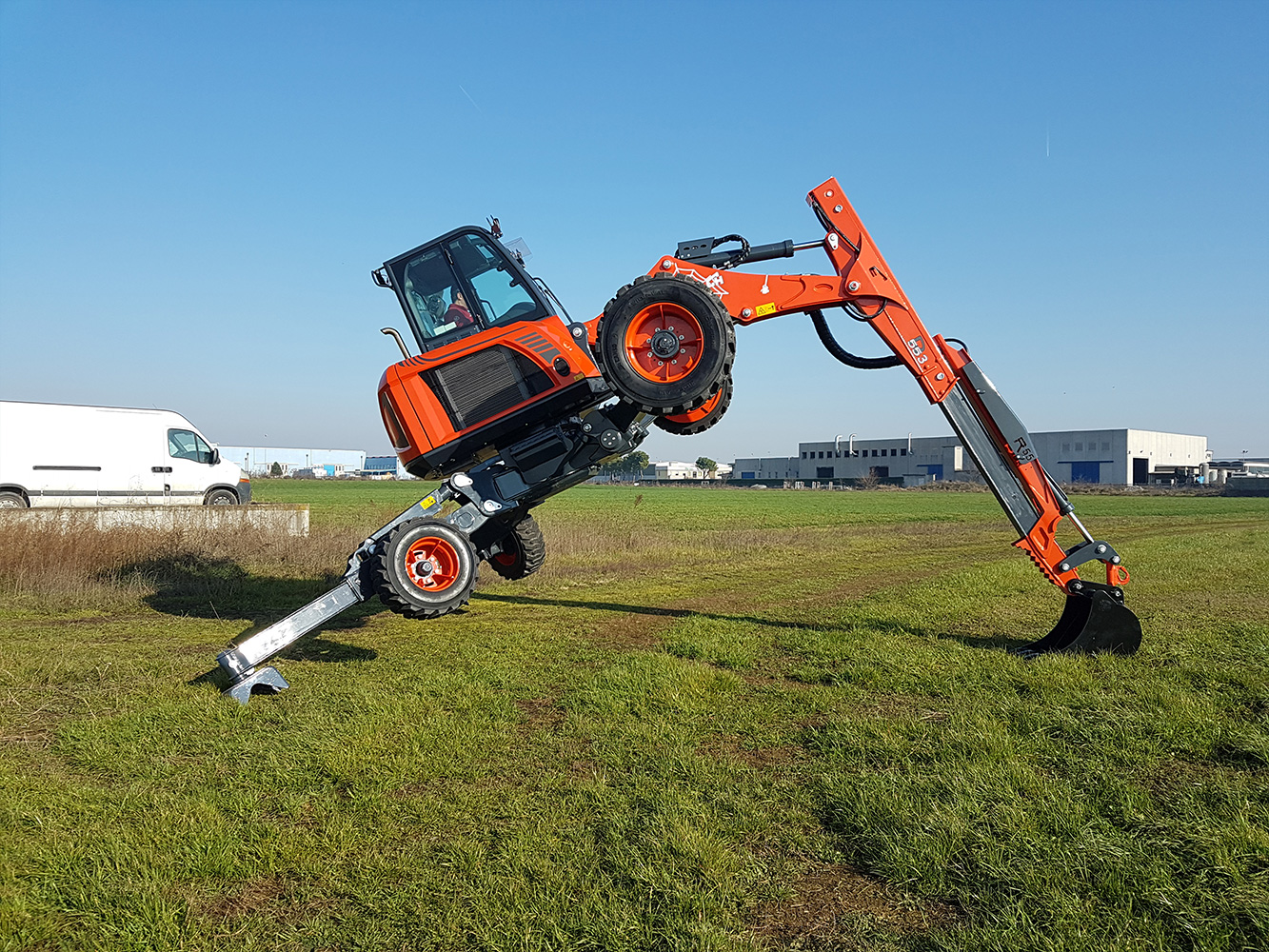

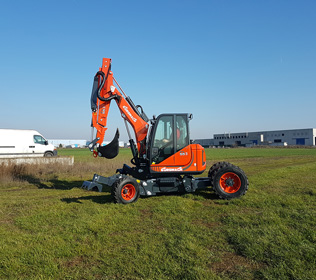

Photogallery (All images can be enlarged)
