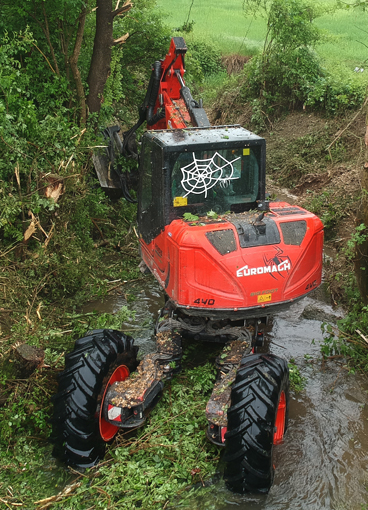

R855 Big Foot - Forester
R855 Big Foot - Forester

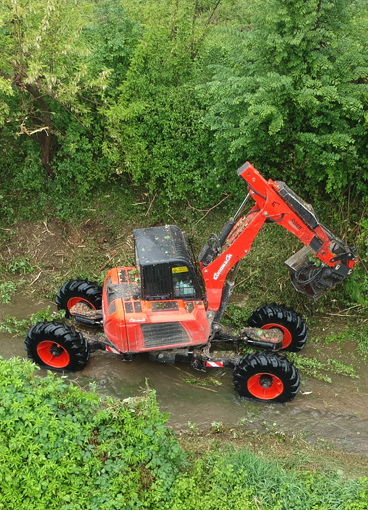

The R855 Big Foot - Forester model is an innovative spider excavator, which features a recently updated hood aesthetics, able to guarantee excellent 360 ° visibility. The beating heart of the machine is a 3800 cm³ Kubota engine; 115 hp (85Kw, 74Kw in the IIIA version). It has an extremely high-performance hydraulic system derived from the R955 model, all this, combined with a lightened frame, makes the machine fluid and quick in its movements. The frame, derived from the R555 model, allows access to otherwise unattainable areas thanks to its extreme compactness. In fact, it is enclosed within 1700 mm making it therefore also suitable for moving in very narrow streets.
Engine:
Model: Kubota Stage III / V

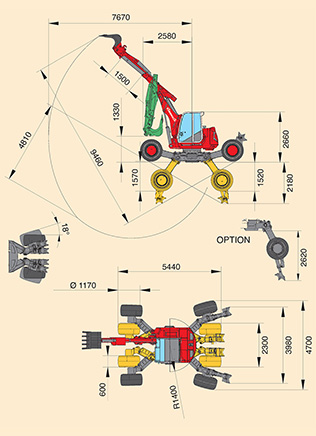

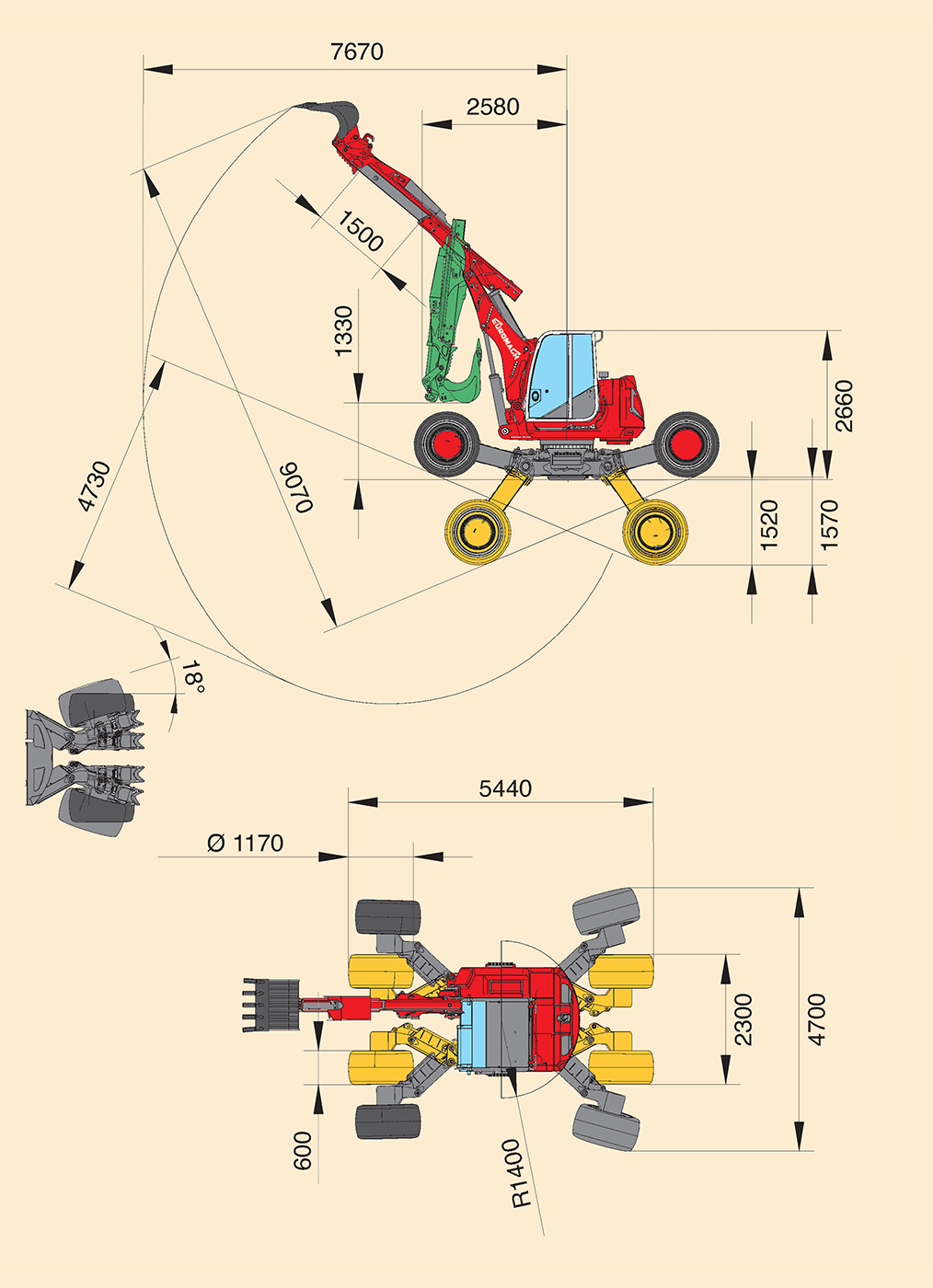

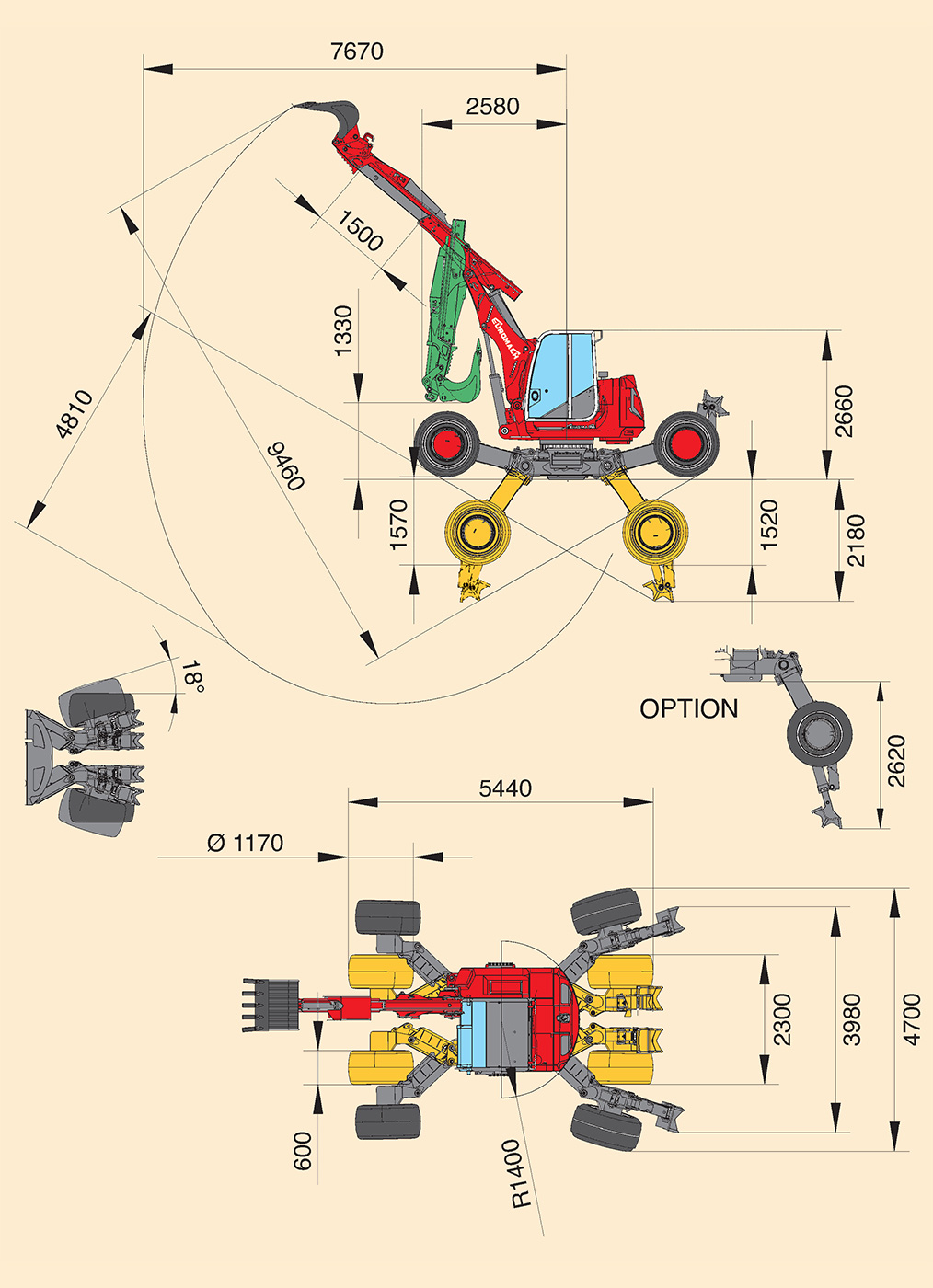

Click on the drawing to enlarge the image
Technical features
Operative weight
Big Foot: 10.000 KgForester: 11.500 Kg
Engine's model
Stage III > Kubota 3800 74Kw (100 Hp)
Stage V > Kubota 3800 85 Kw (115 Hp)
Stage V > Kubota 3800 85 Kw (115 Hp)
Engine's type
Water cooled 4 strokes turbo diesel, Intercooler
Engine size
3769 (cc)
Max power
Stage III > 100 Hp (74 KW)
Stage V > 115 Hp (85 KW)
Stage V > 115 Hp (85 KW)
Potential difference
12 V
Max arm extension
7500 mm
Total pumps flow
420 lit/min
Penetration force
52 KN
Break off force
75 KN
Details (All images can be enlarged)
Kubota Stage III / V

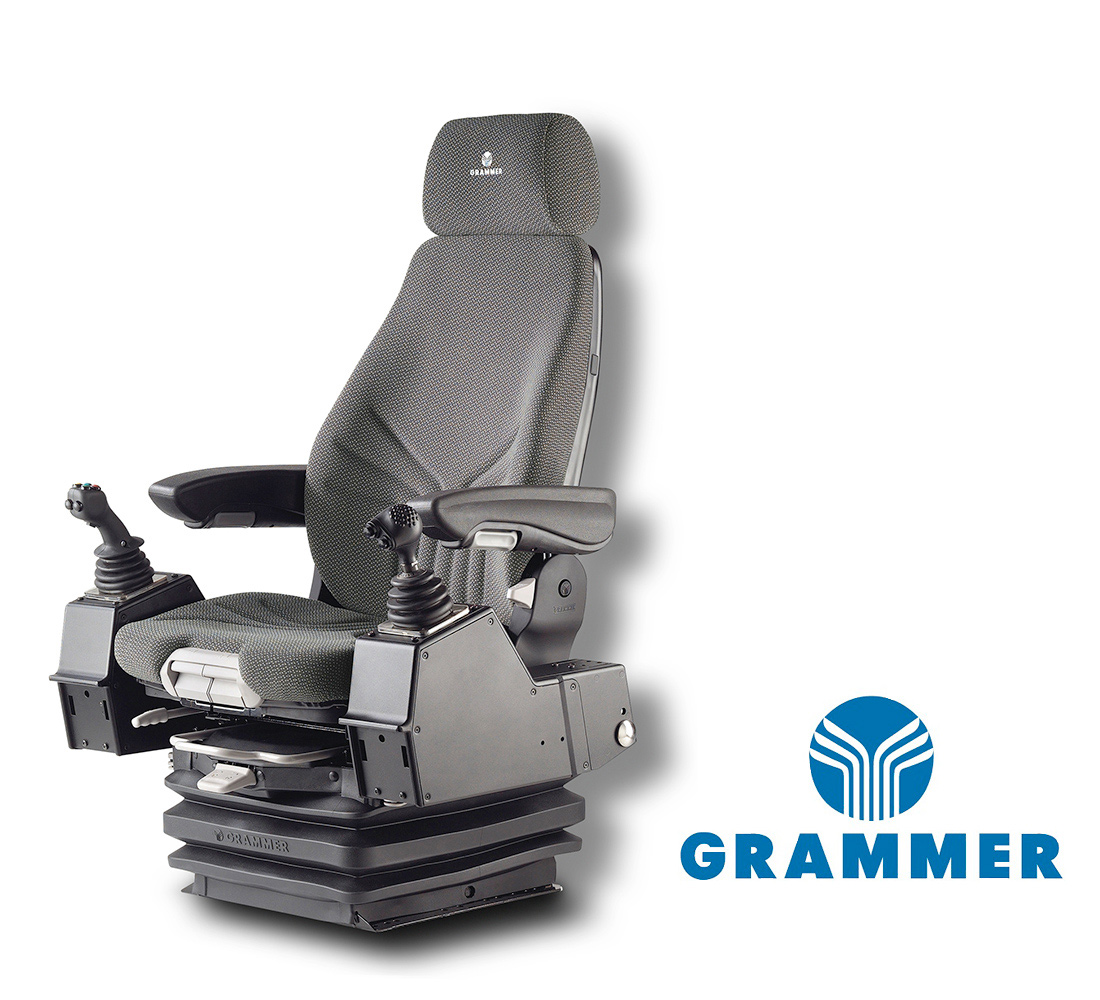

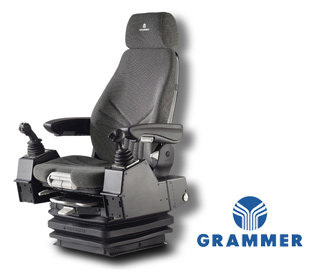

Grammer seat

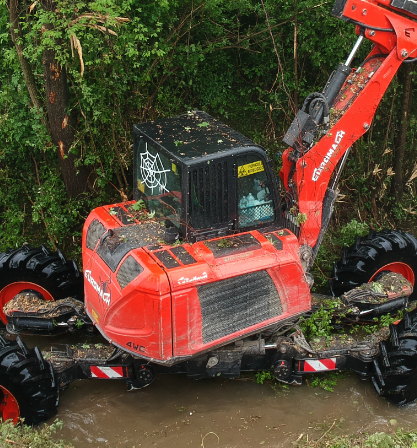

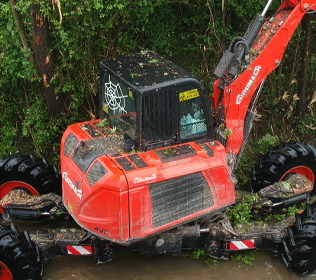

ROPS and FOPS certified cabin

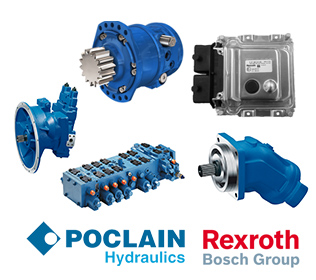

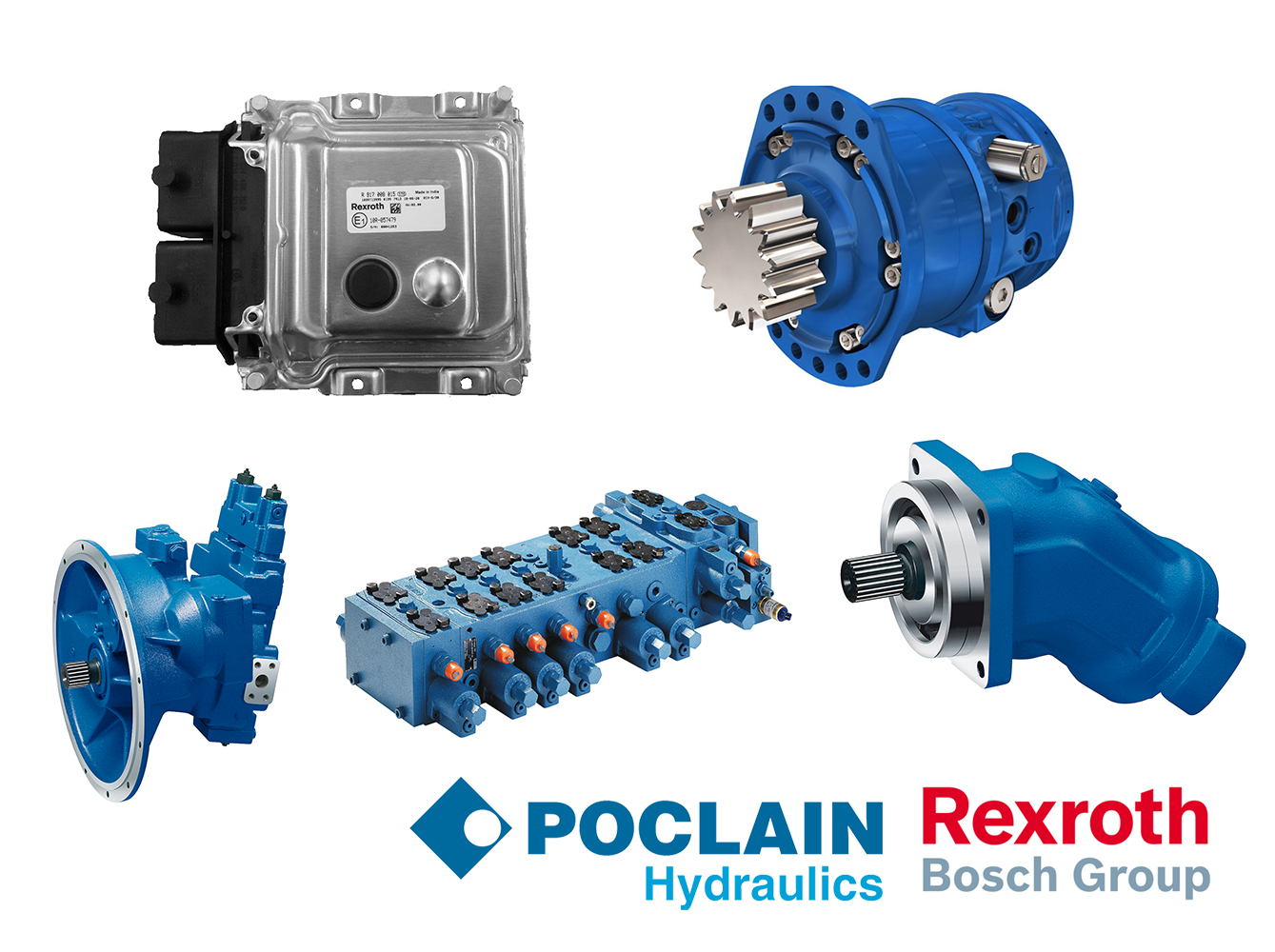

Hydraulic system of arm Rexroth/Poclain

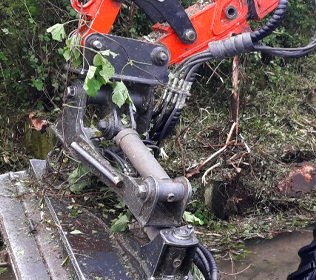

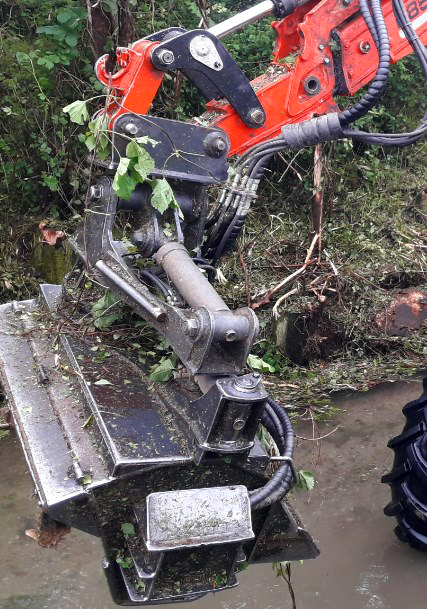

Possibility to install many accessories

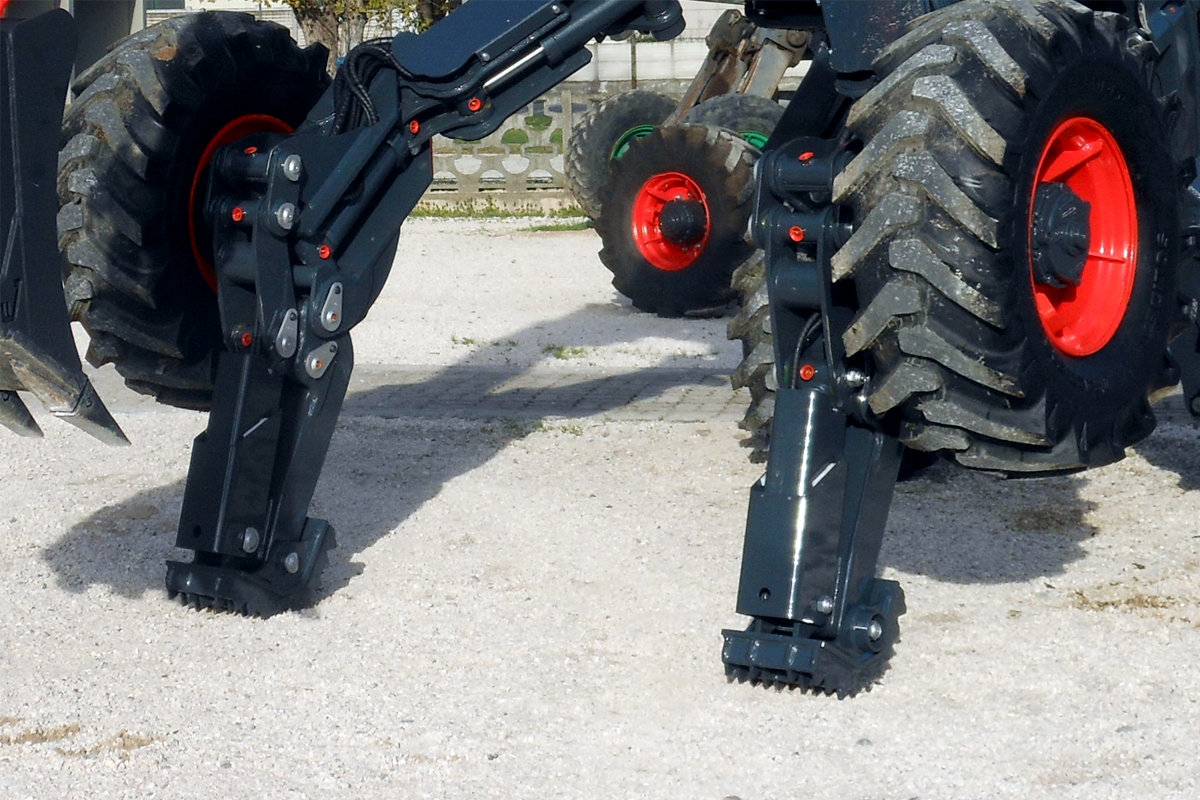

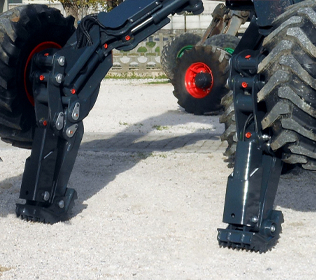

Forest feet
Download the brochures with all the technical features

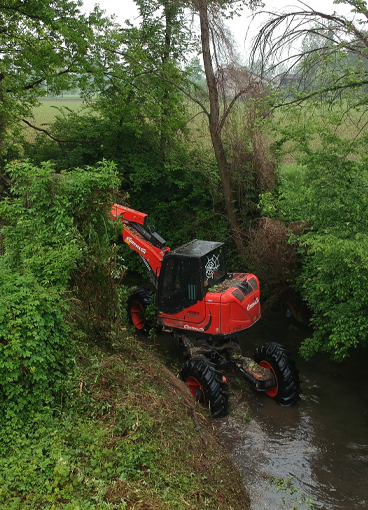

Photogallery (All images can be enlarged)
