R145 Big Foot - Forester

R145 Big Foot - Forester

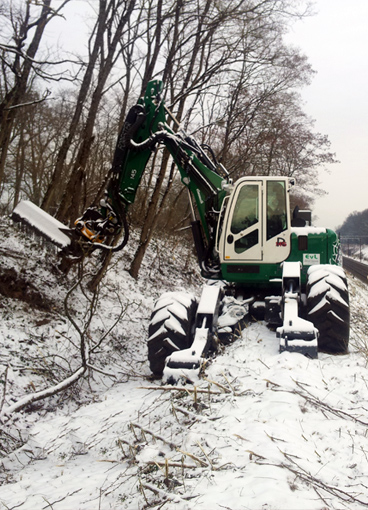

The model R145 Big Foot - Forester is today the most powerful walking excavator in the world. With its 266 Hp and with the possibility to install three variable size pumps (one for the motion, one for the boom and one for accessory) it's able to comply with many hard applications, mainly in the forestry field. The new framework is developed to work in hard conditions. The R145 Big Foot - Forester has four increased gearbox. These hydraulic components can install tyres with a diameter of 1600 mm. This configuration allows the excavator to work also on muddy and soft terrains.
John Deere
Engine:
John Deere
Model: John Deere 6068HF485 Tier 3 A
Technical features
Operative weight
16000 Kg (Big Foot); 17500 Kg (Forester)
Engine's model
John Deere 6068HF485 Tier 3 A
Engine's type
Diesel four strokes water cooled
Engine size
6800 (cc)
Max power
198 kW (266 HP)
Potential difference
24 V
Max arm extension
8930 mm
Total pumps flow
508 lit/min
Penetration force
83 KN
Break off force
133 KN

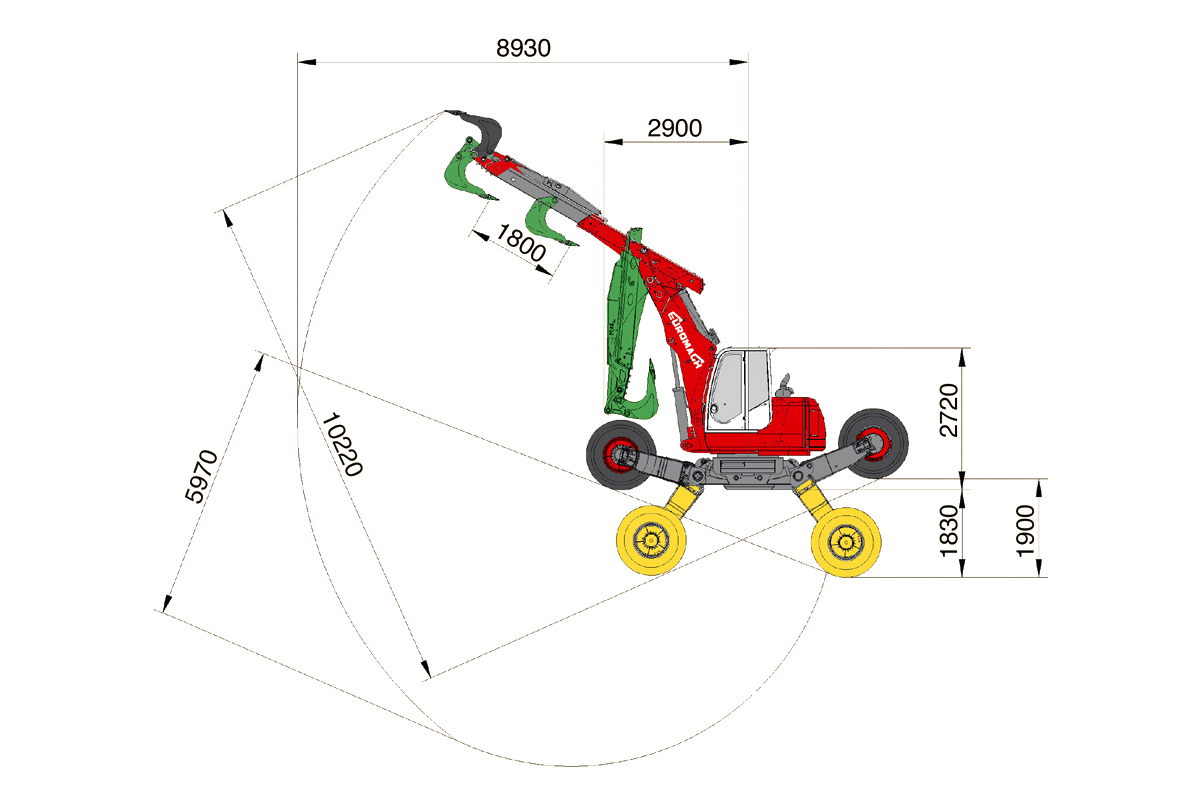

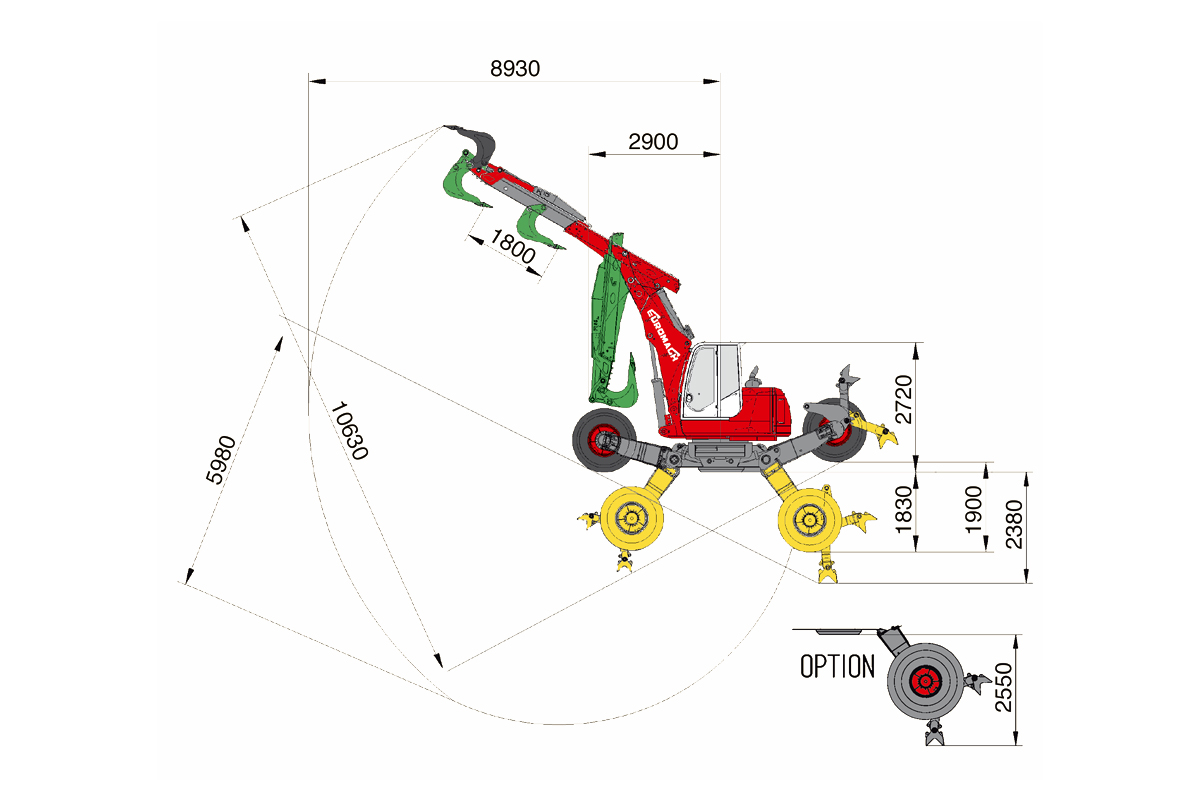

R145 Big Foot - Side view
Extension of 1,8 m
R145 Big Foot - Side view

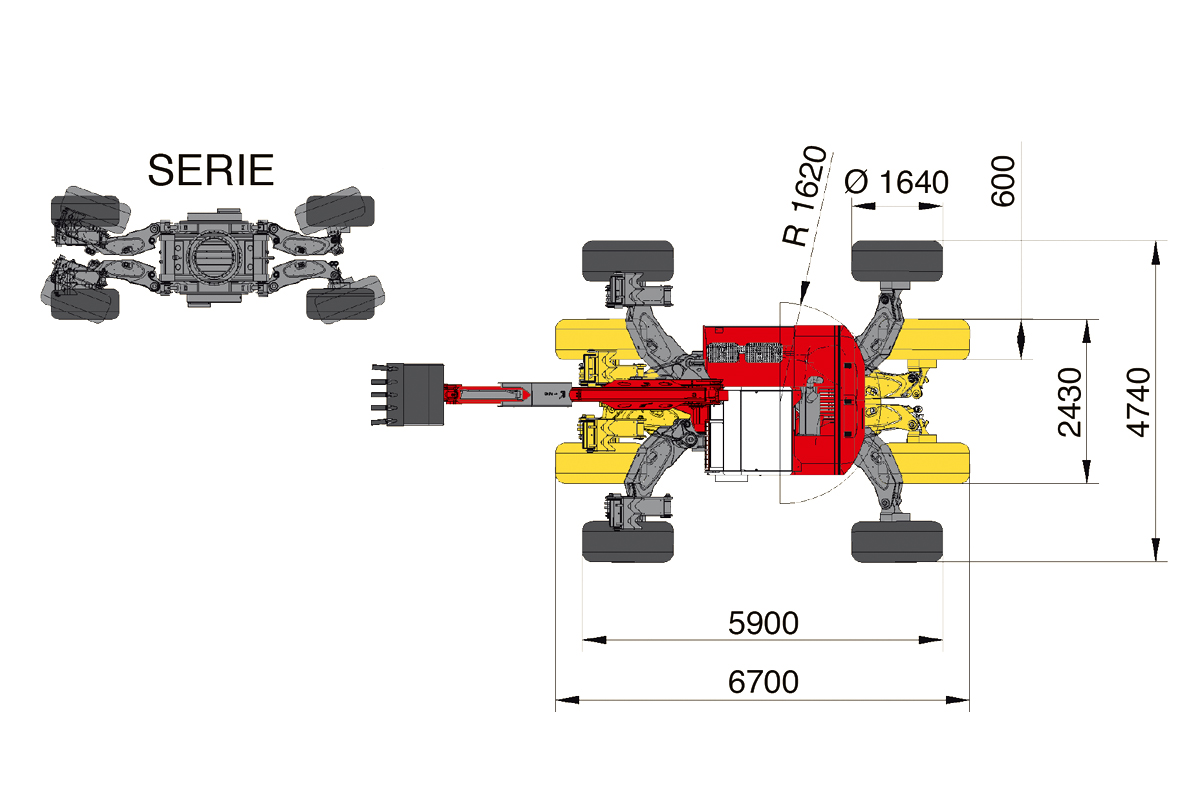

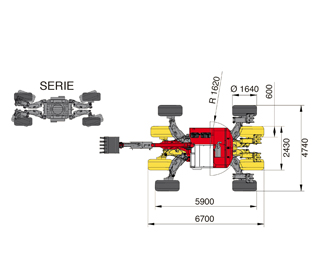

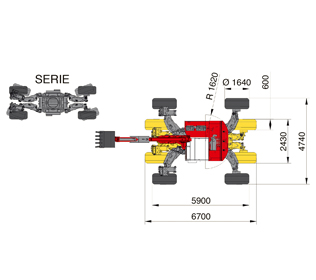

R145 Big Foot - Upper view
Steering wheels
R145 Big Foot - Upper view

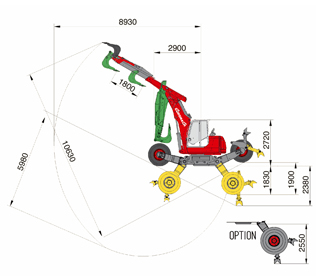

R145 Forester - Side view
Extension of 1,8 m
R145 Forester - Side view

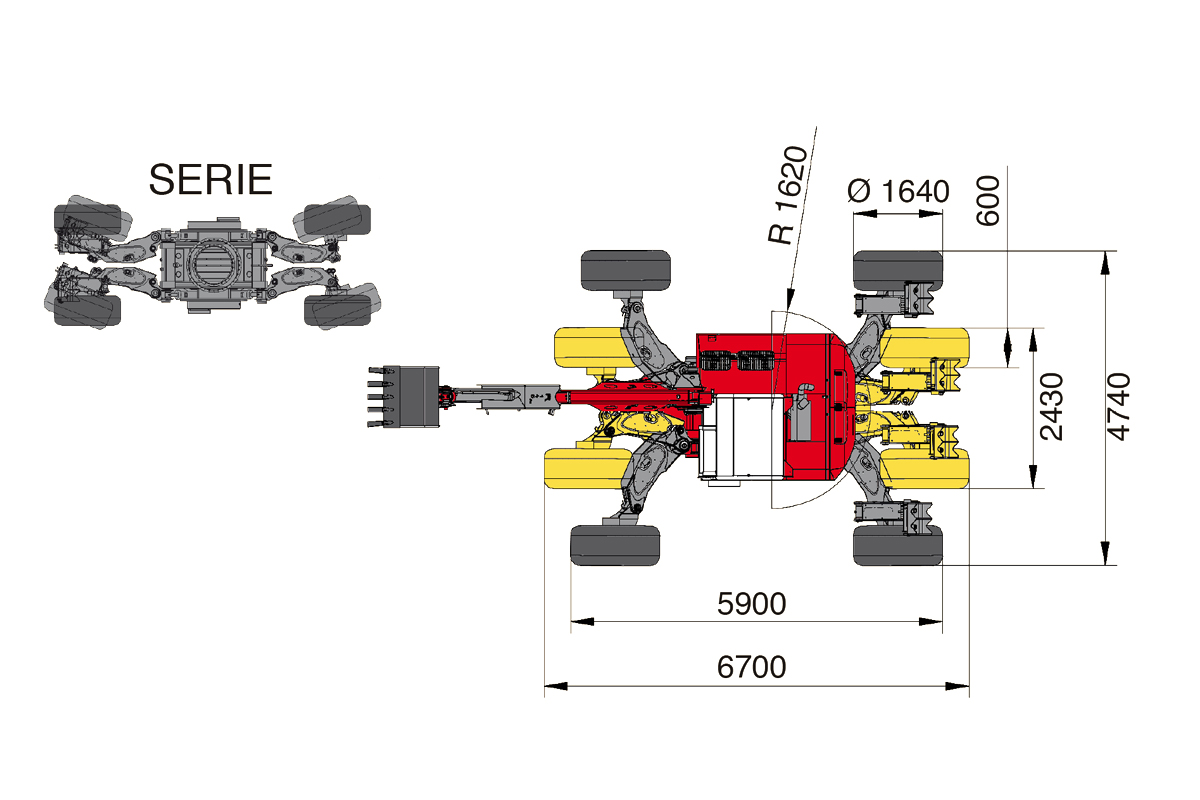

R145 Forester - Upper view
Steering wheels
R145 Forester - Upper view

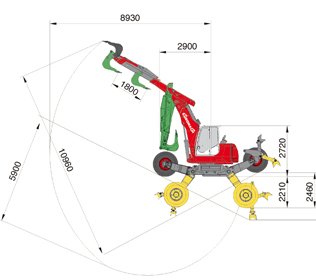

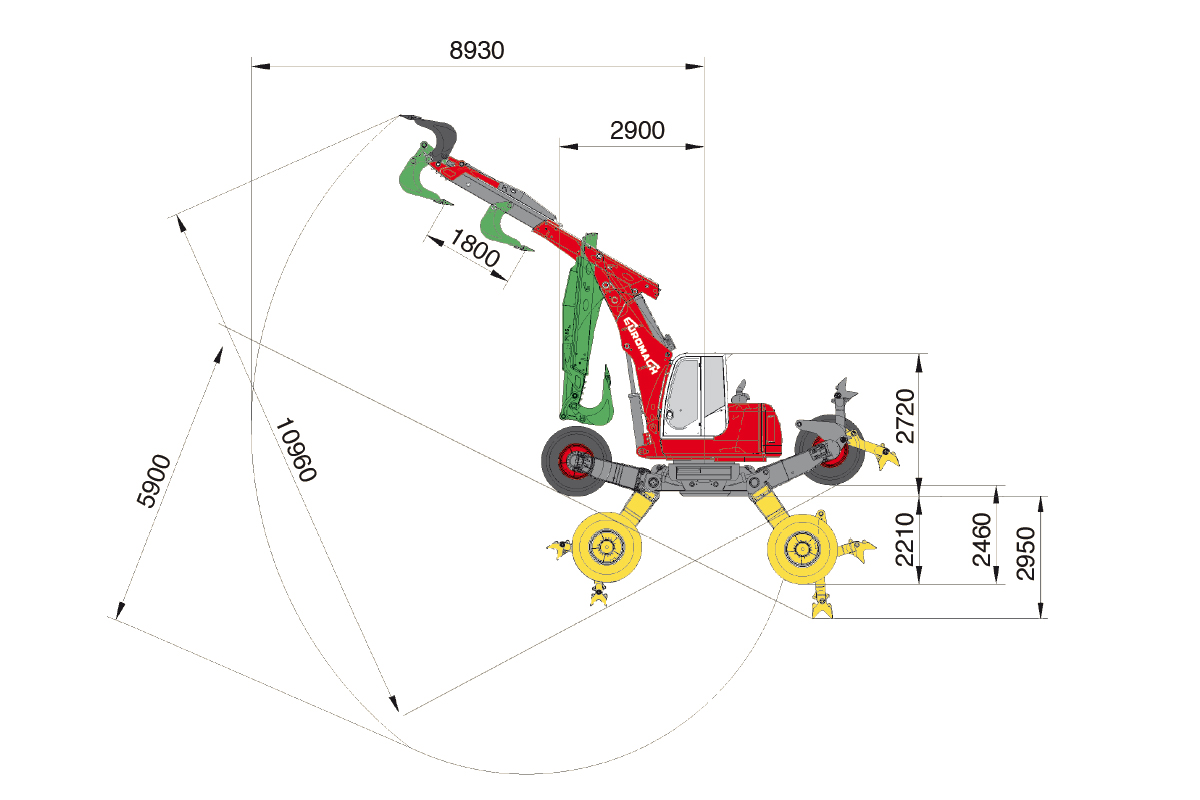

R145 Forester Long - Side view
-
R145 Forester Long - Side view

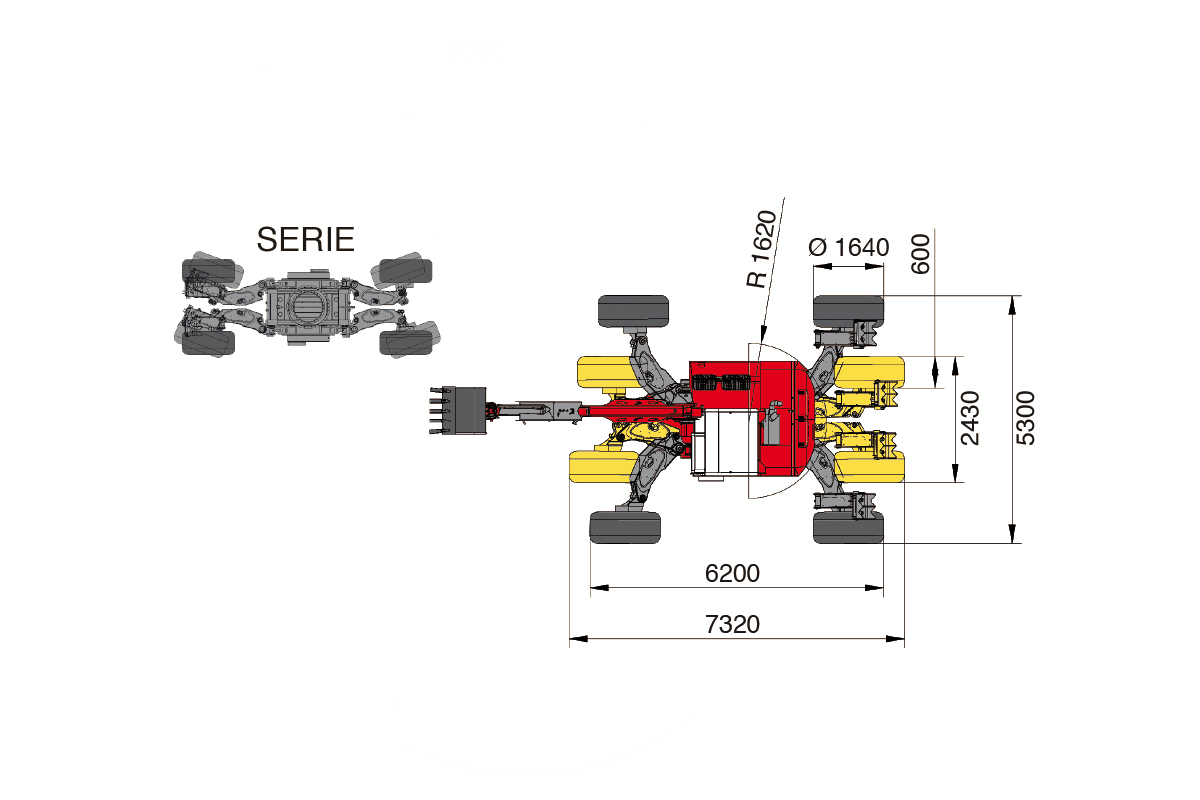

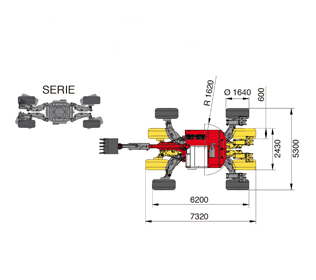

R145 Forester Long - Upper view
-
R145 Forester Long - Upper view
Details (All images can be enlarged)

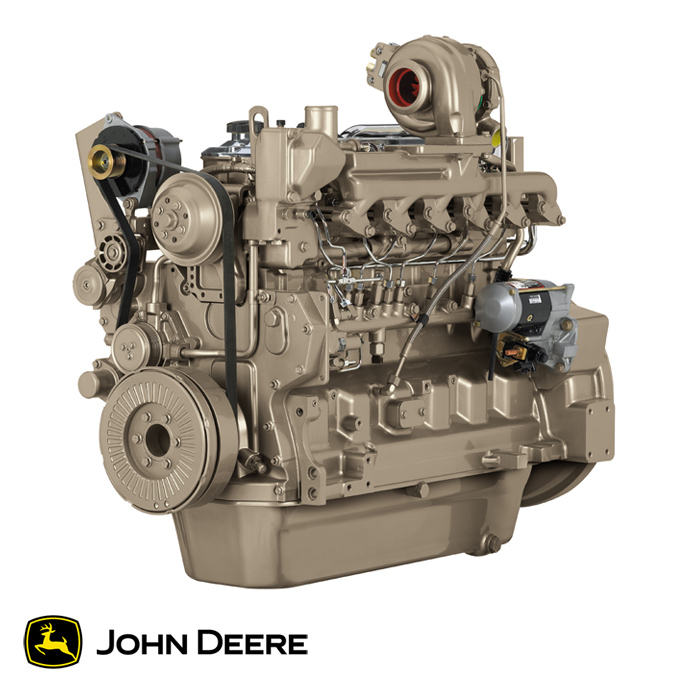

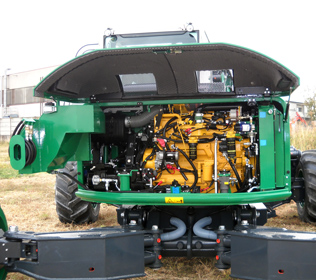

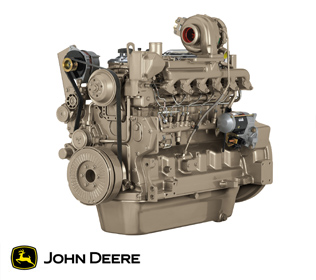

R145 Big Foot Forester - John Deere 6068HF485 Tier 3 A
John Deere 6068HF485 Tier 3 A

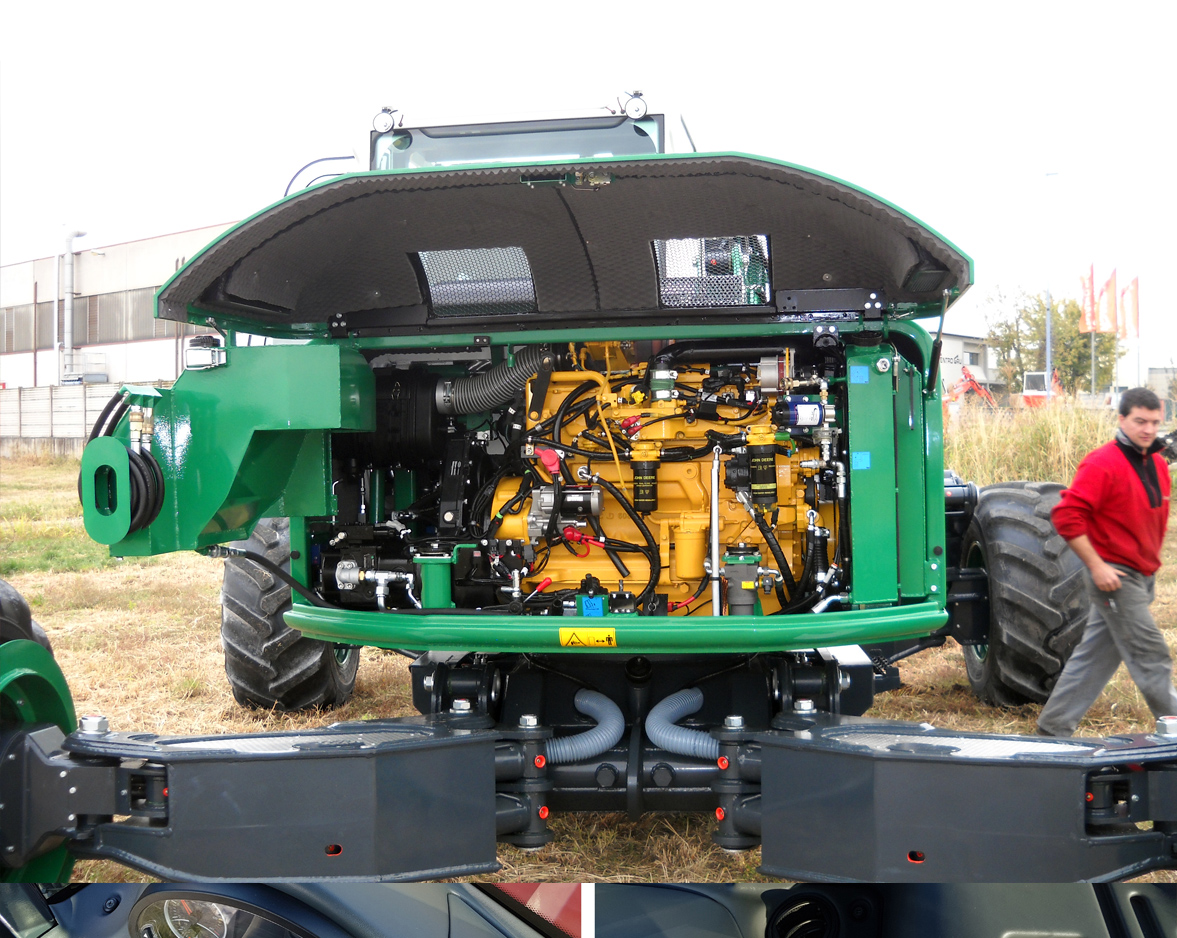

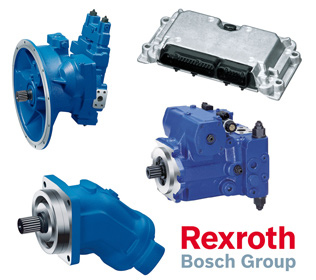

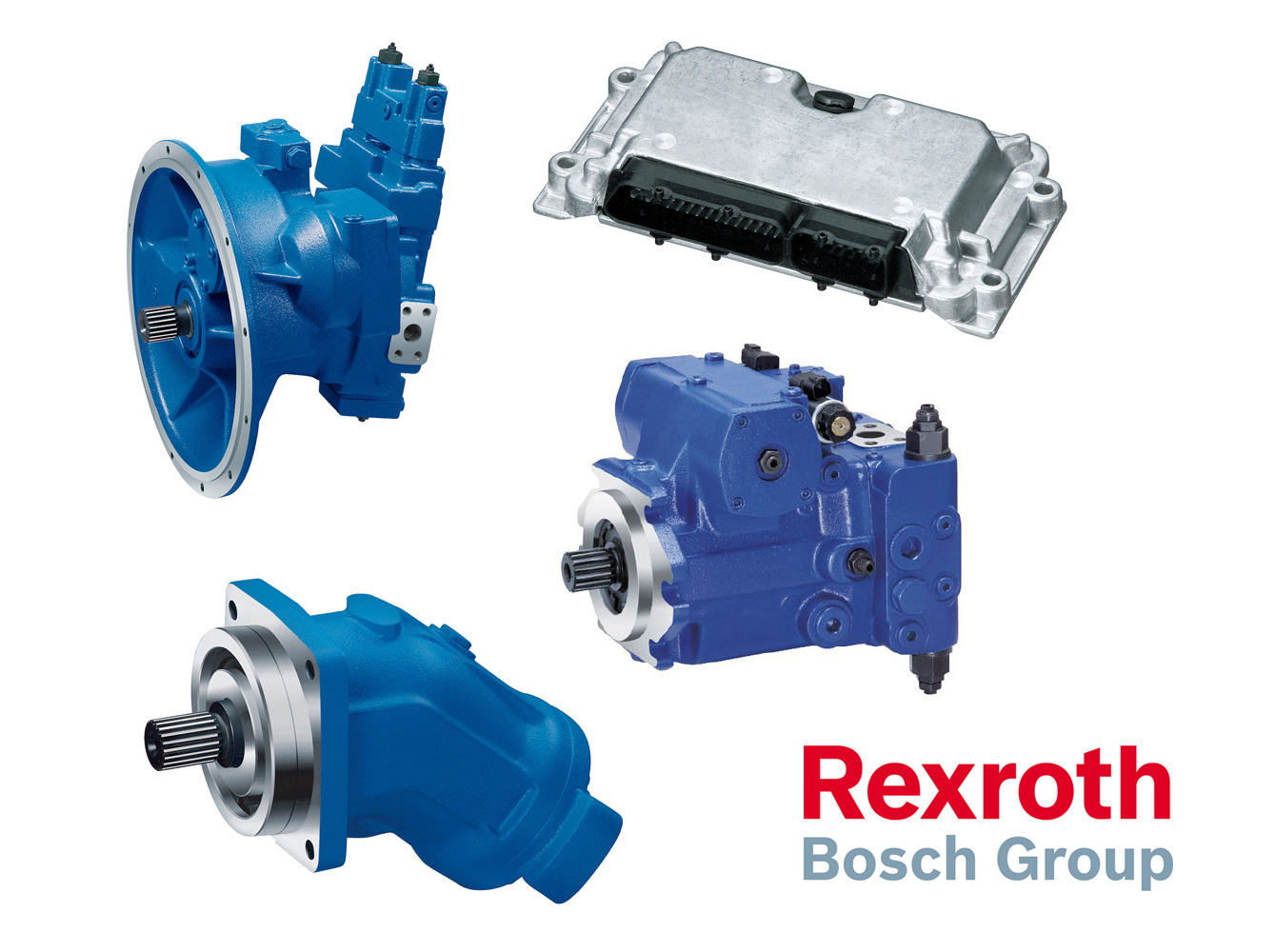

Rexroth components
Rexroth components
R145 Big Foot Forester - ROPS and FOPS certified cabin
ROPS and FOPS certified cabin

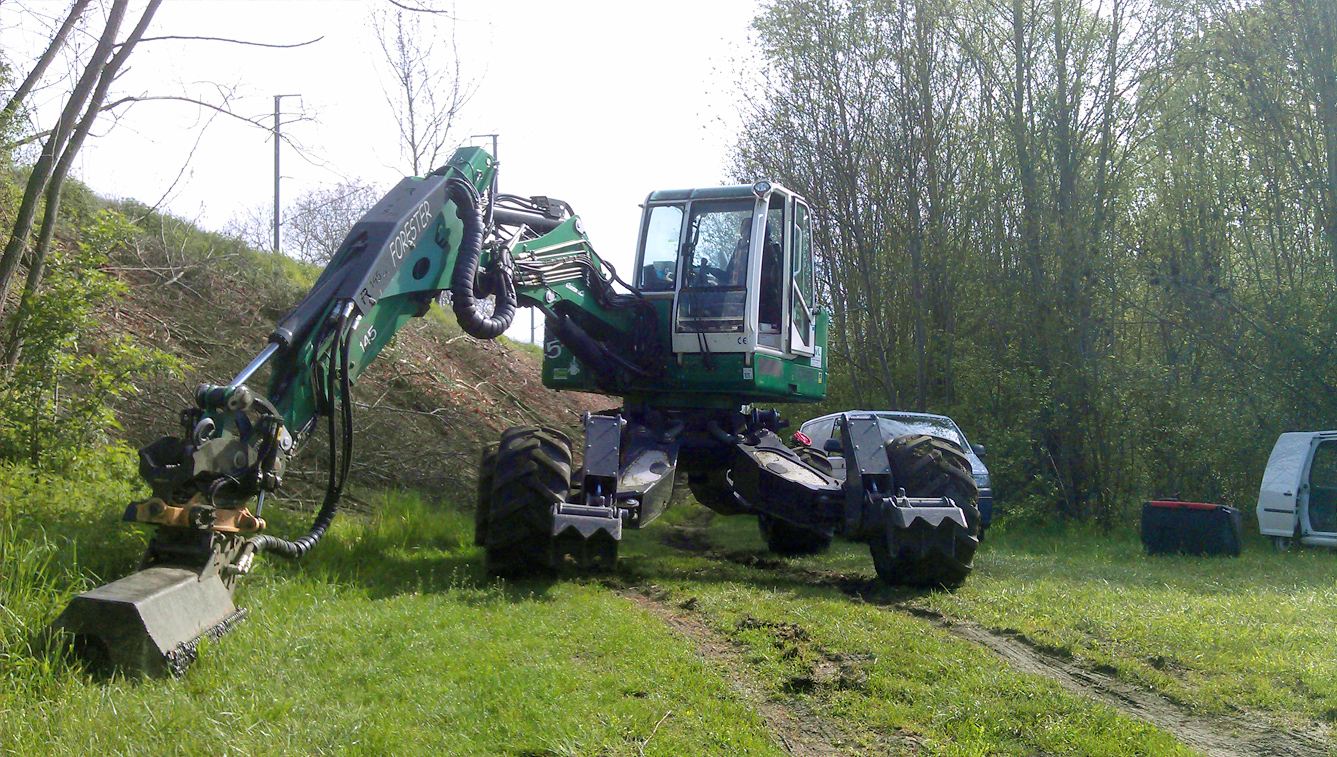

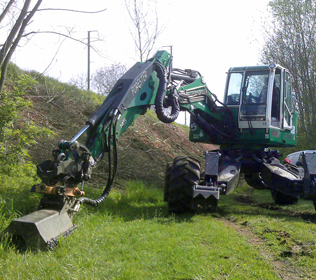

R145 Big Foot Forester - Possibility to install many accessories
Possibility to install many accessories
R145 Big Foot Forester - Possibility to install three pumps
Possibility to install three pumps

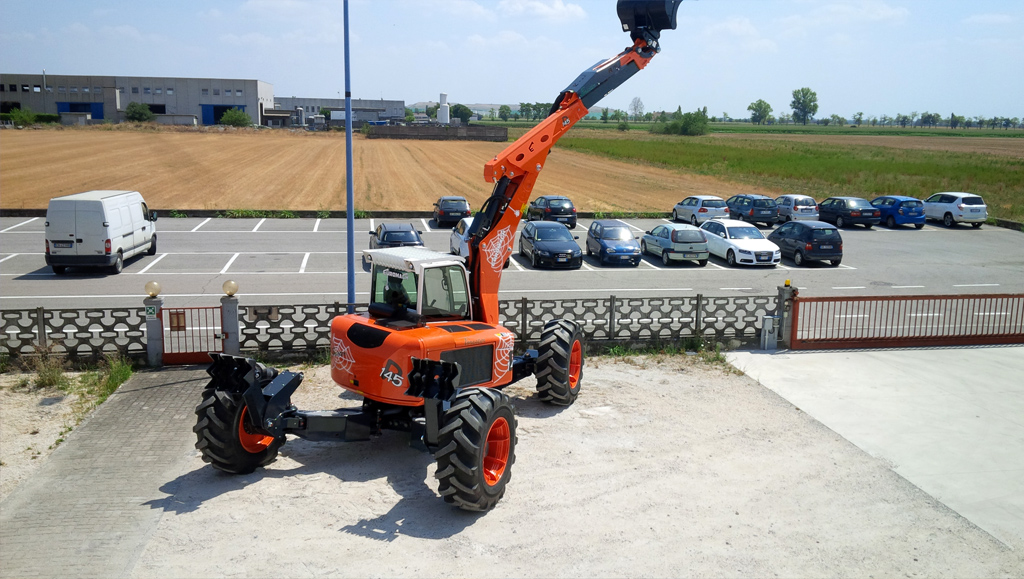

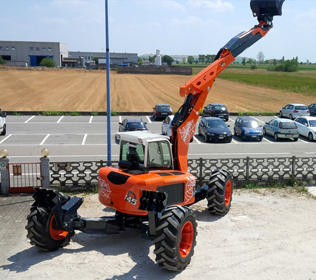

R145 Big Foot Forester - Lengthened boom with an extension of 1.8m
Lengthened boom with an extension of 1.8m

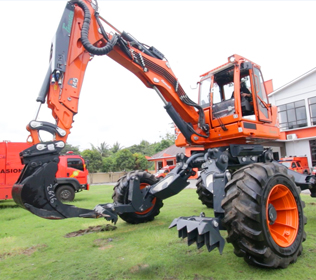

R145 Big Foot Forester - Hydraulic front legs
Hydraulic front paws

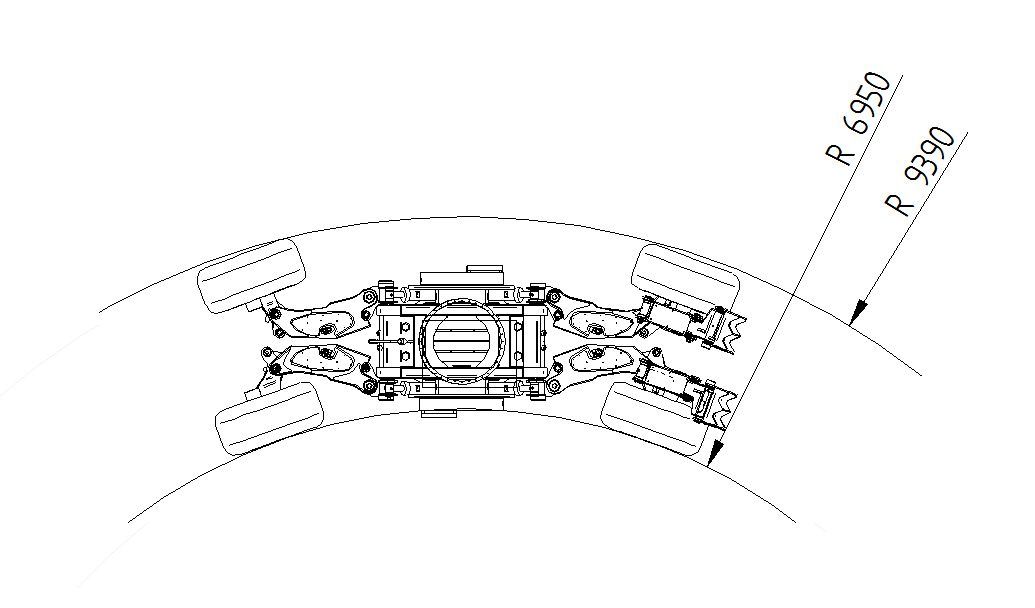

R145 Big Foot Forester - Bending radius
Bending radius

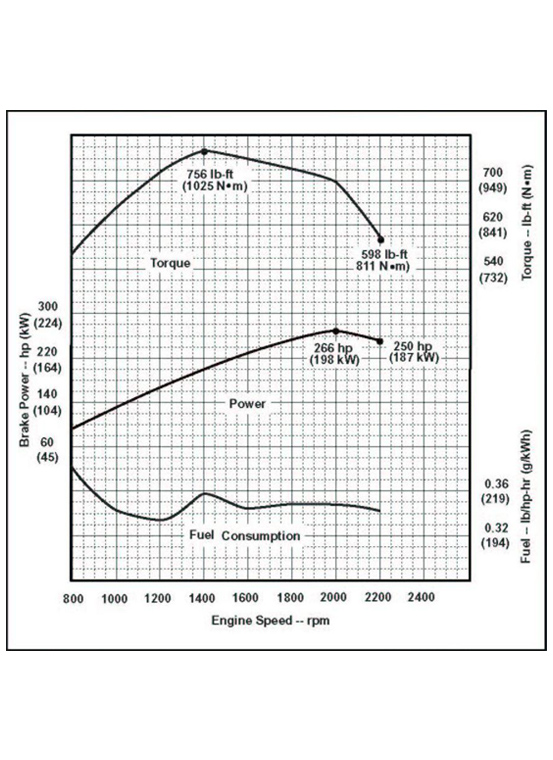

Power comparable with no other competitor's machines
Power comparable with no other competitor's machines
Download the brochures with all the technical features

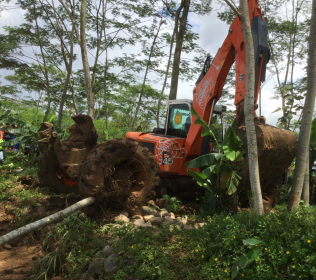

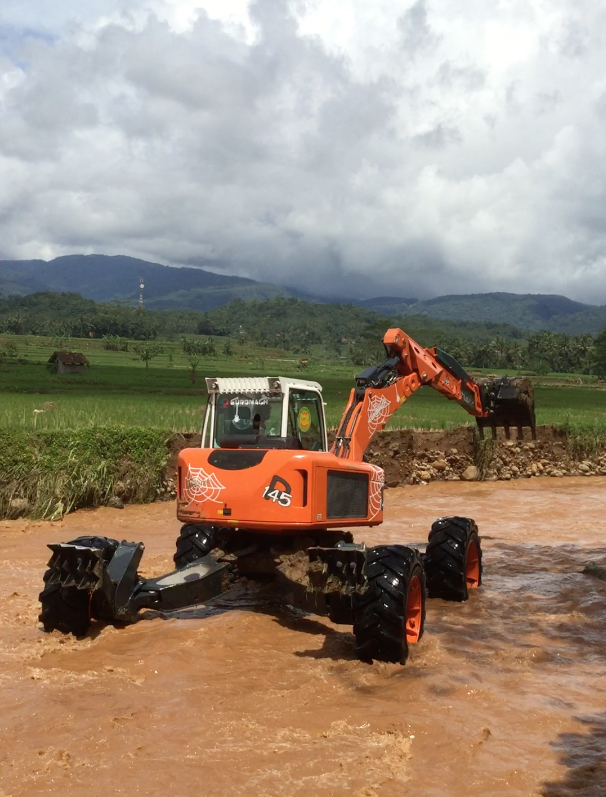

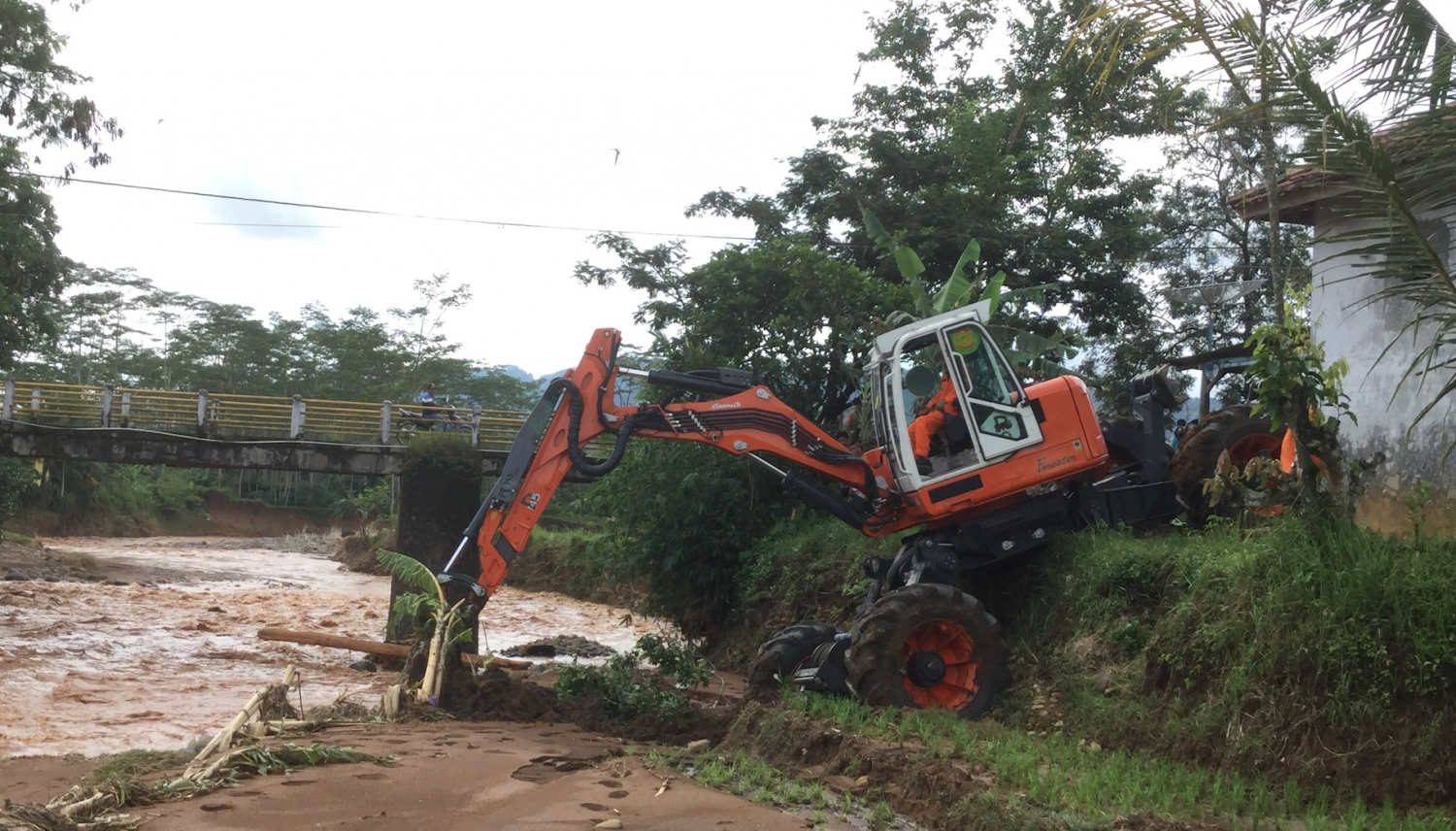

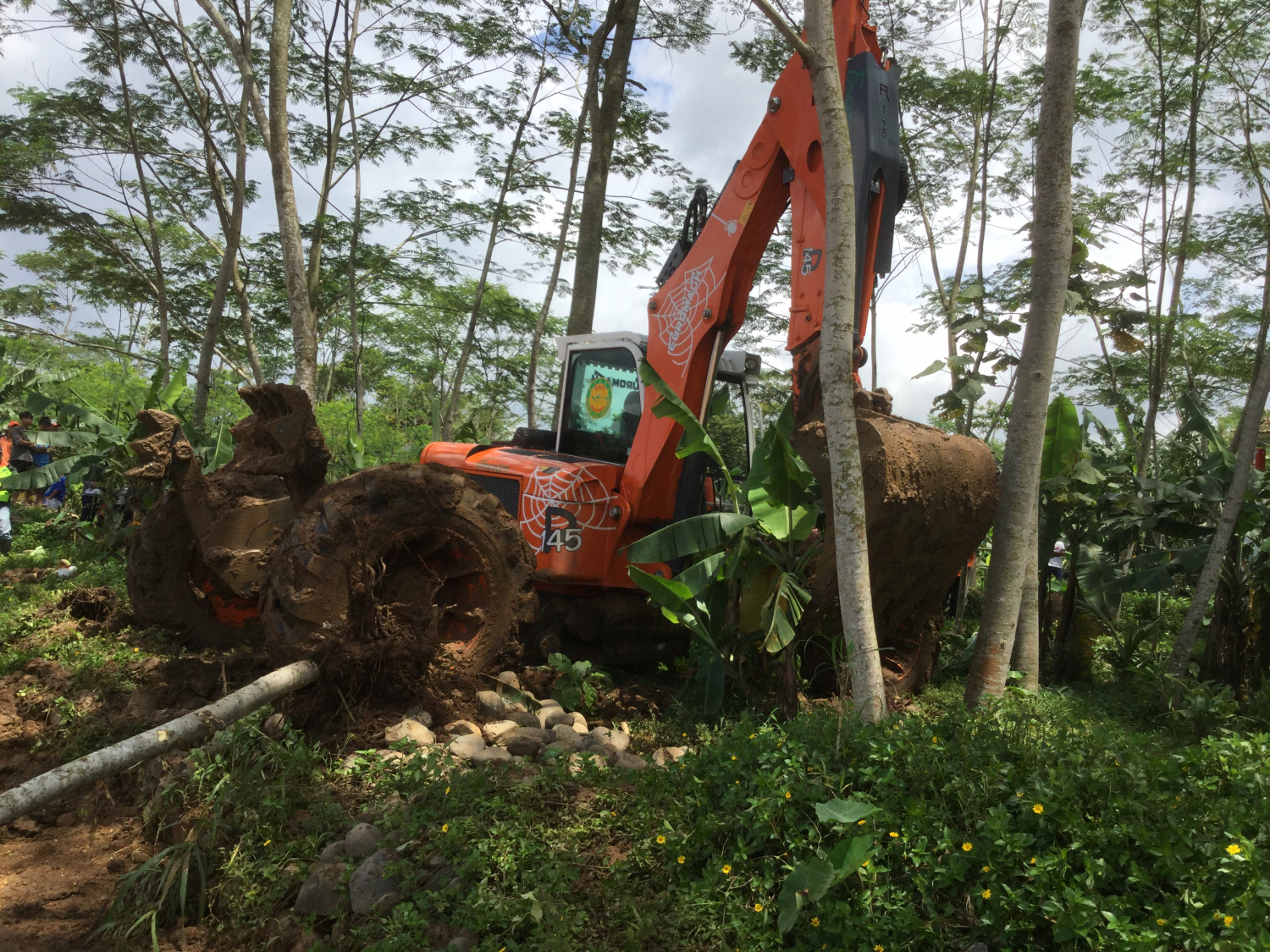

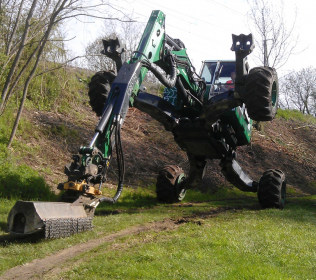

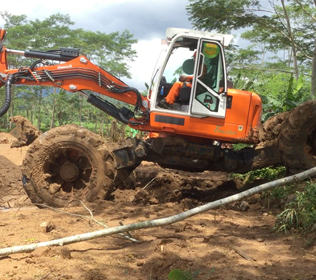

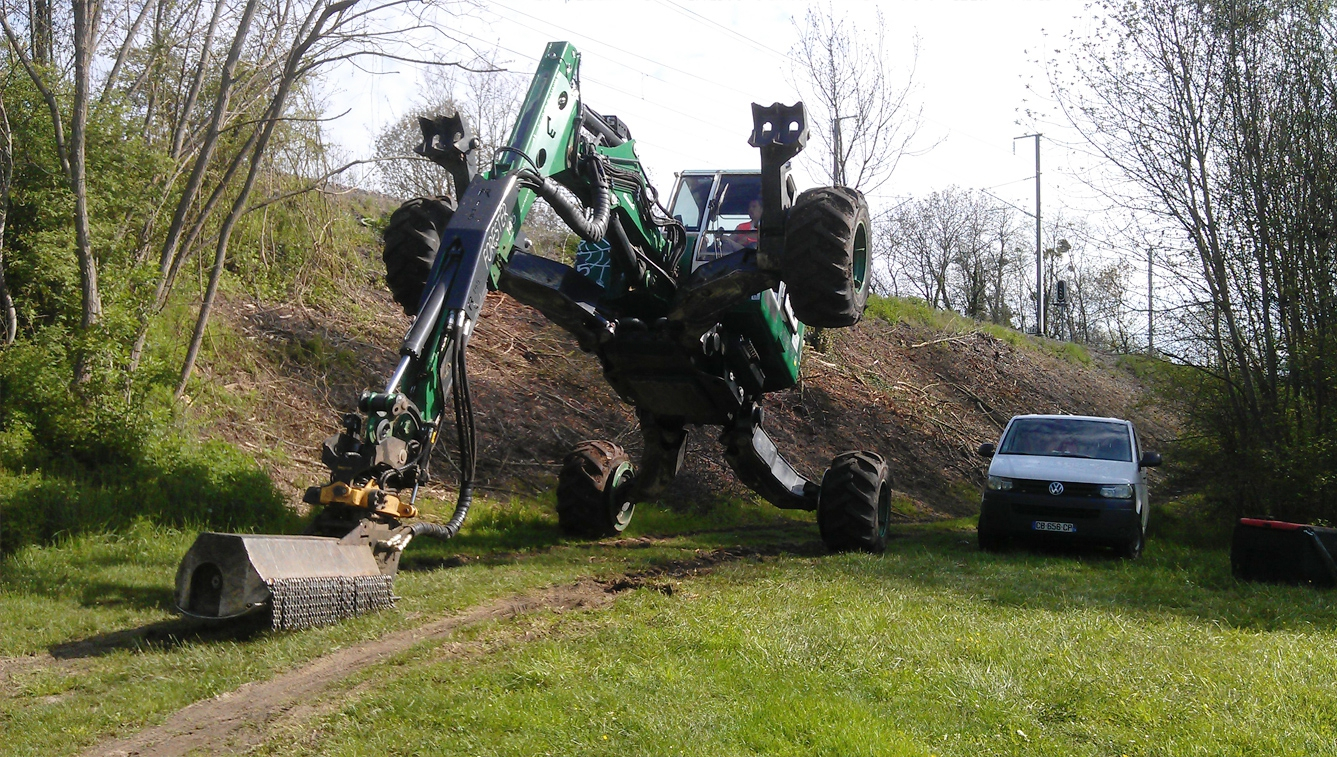

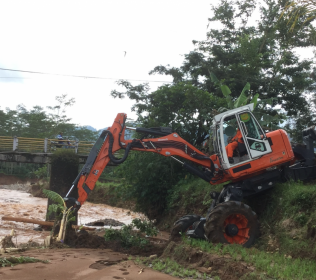

Photogallery (All images can be enlarged)
