R955 2WD model is an upgrade of R853 2WD model. The R955 2WD shares many features with the old one. There are two engine types that can be chosen: Kubota V3800 Stage 3B and V3800 Stage IV, both have a power of 115 hp. V3800 Stage IV is a technical evolution of V3800 Stage IIIB and its aim is to comply with the severe European rules about air pollution. With a powerful hydraulic system and a huge lift force, this excavator can work with heavy accessories that need a great hydraulic power. Important to notice is the compact framework, that allows this machine to move through narrow street and along mountain paths.

OPTIONAL
  • 4WD version, with four motor wheels;
  • All models can have rear steering wheels.
Kubota V3800 Stage 3B with antiparticulate filter
Engine:
Kubota
Model: Kubota V3800 Stage 3B with antiparticulate filter
Kubota V3800 Stage 4 with antiparticulate filter
Technical features
Operative weight
from 10300 Kg (2WD Version A) to 11300 Kg (4WD version C)
Engine's model
Kubota V3800 Stage 3B with antiparticulate filter
Kubota V3800 Stage 4 with antiparticulate filter
Engine's type
Water cooled 4 strokes turbo diesel, Intercooler
Engine size
3769 (cc)
Max power
115 Cv (85 KW)
Potential difference
12 V
Max arm extension
3 different versions (A,B,C): from 7750 mm (A) to 8170 mm (D)
Total pumps flow
130 + 130 + 130 + 30 + 20 = 440 l/min
Penetration force
65 KN
Break off force
110 KN

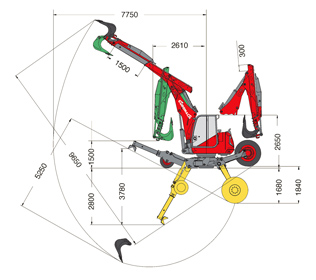

Version A
Short boom with extension of 1,5 m

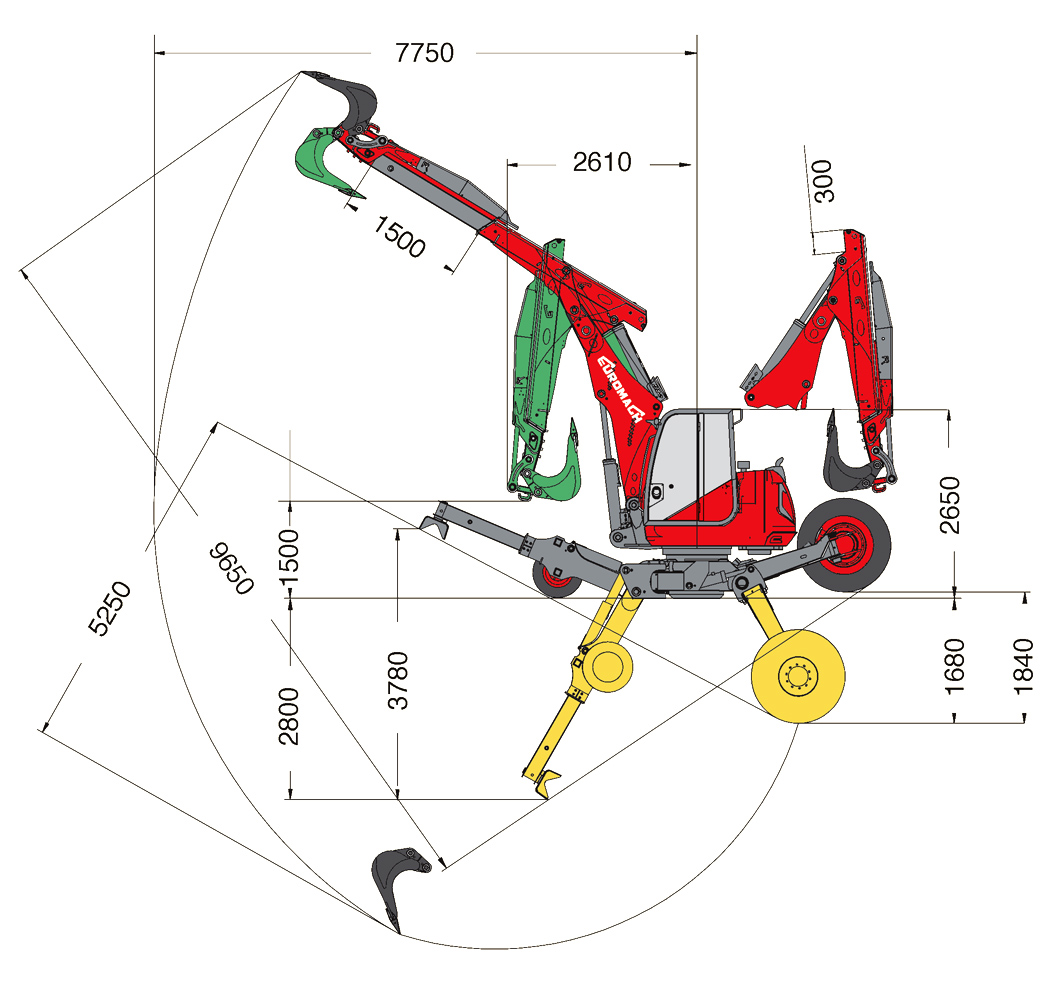

R955 - Version A

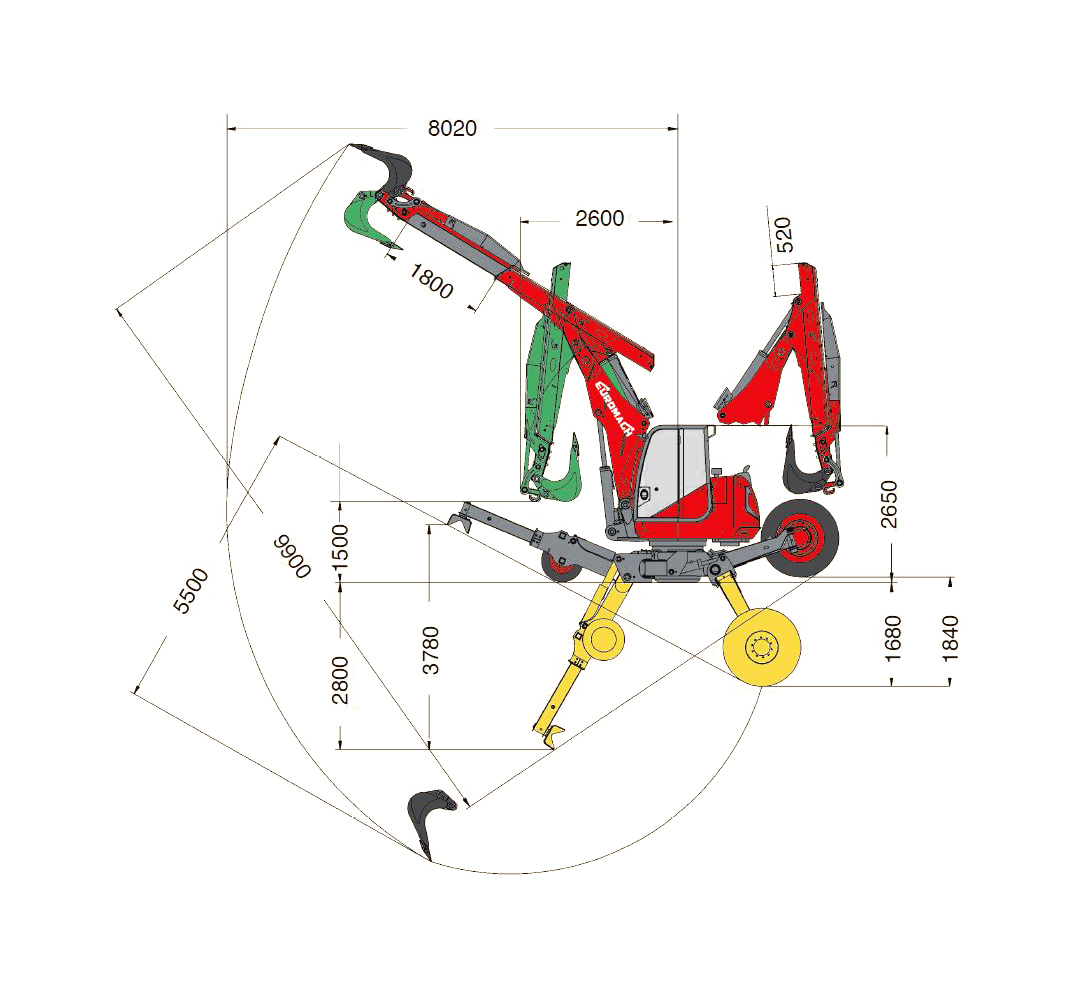

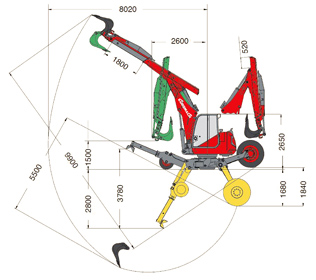

Version B
Short boom with extension of 1,8 m
R955 - Version B

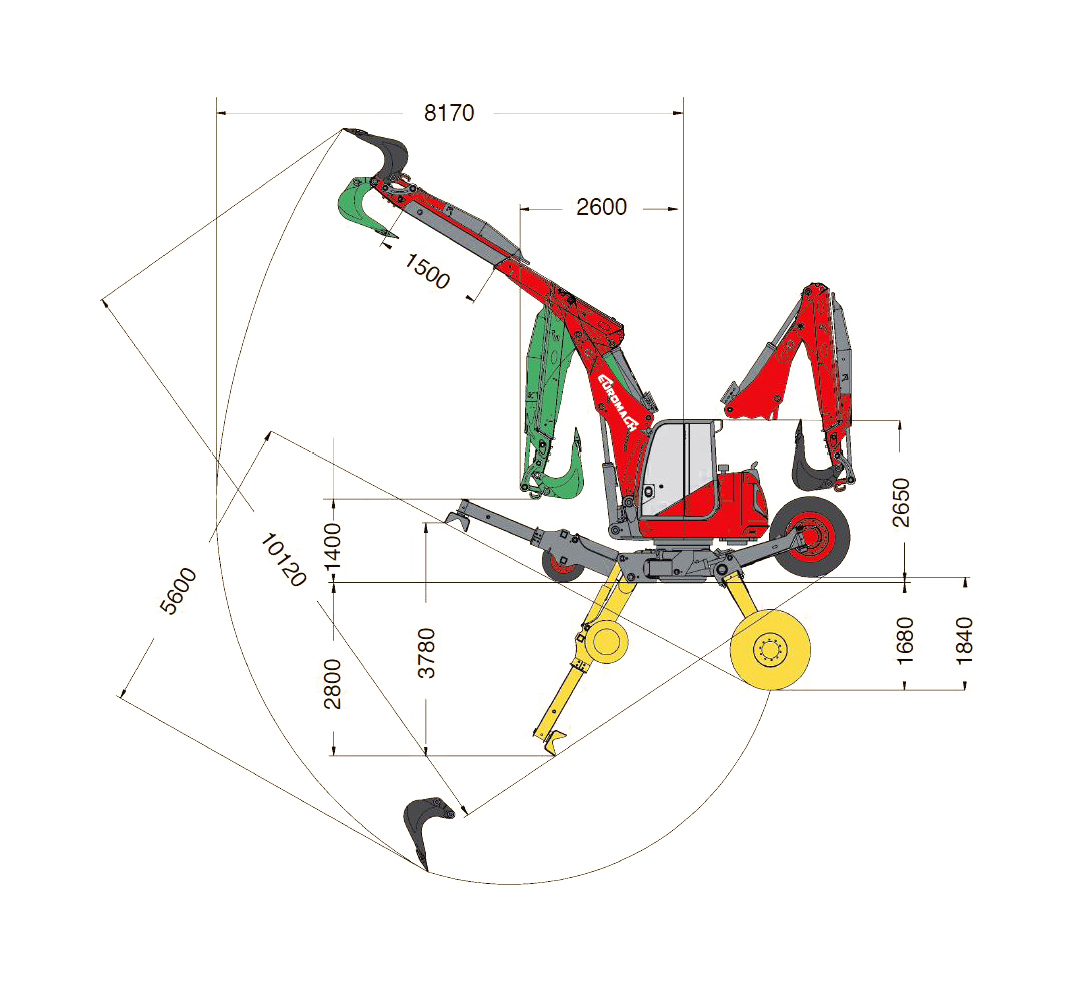

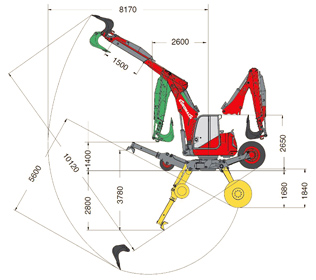

Version C
Long boom with extension of 1,5 m
R955 - Version C
Not stearing framework
Basic configuration for all versions
R955 - Not stearing framework

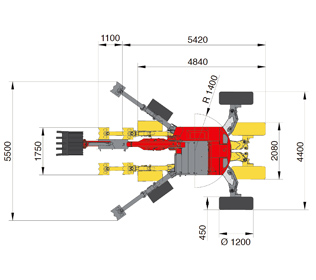

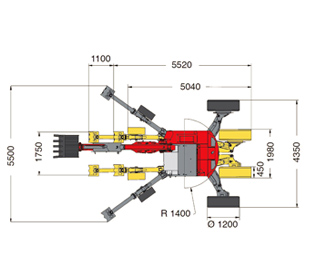

Steering wheels
Optional available for all versions
R955 - Steering wheels

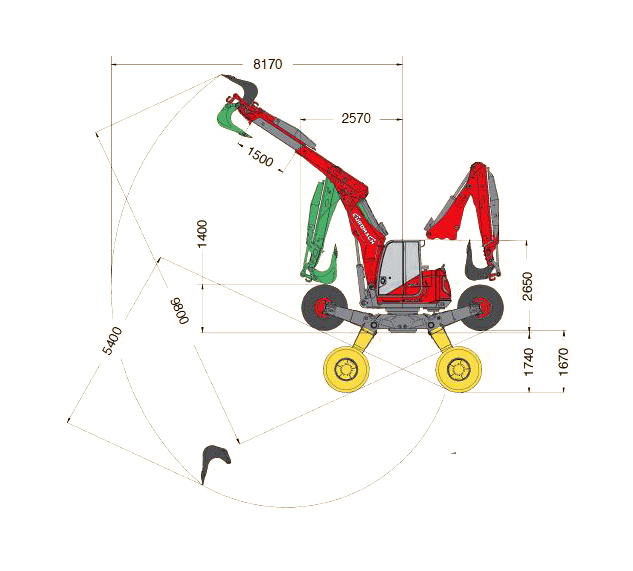

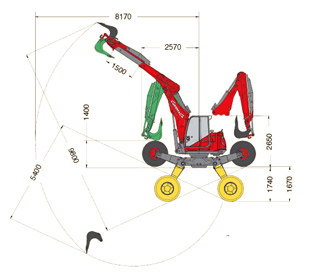

R955 Big Foot - Side view
Extension of 1,5 m
R955 Big Foot - Side view

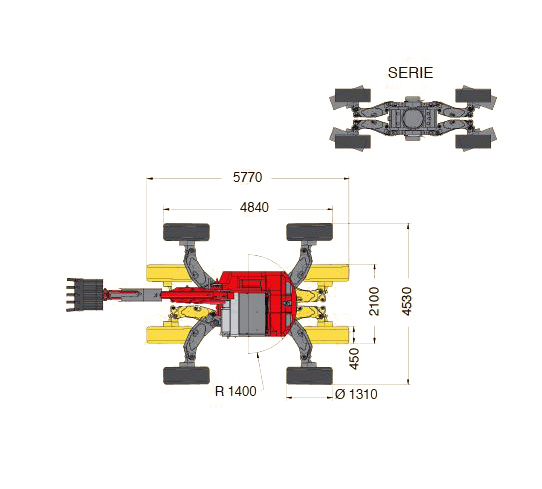

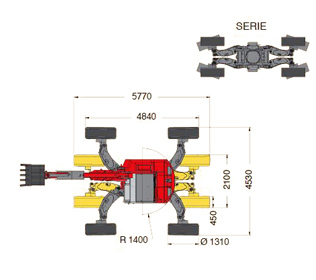

R955 Big Foot - Upper view
4 steering wheels
R955 Big Foot - Upper view

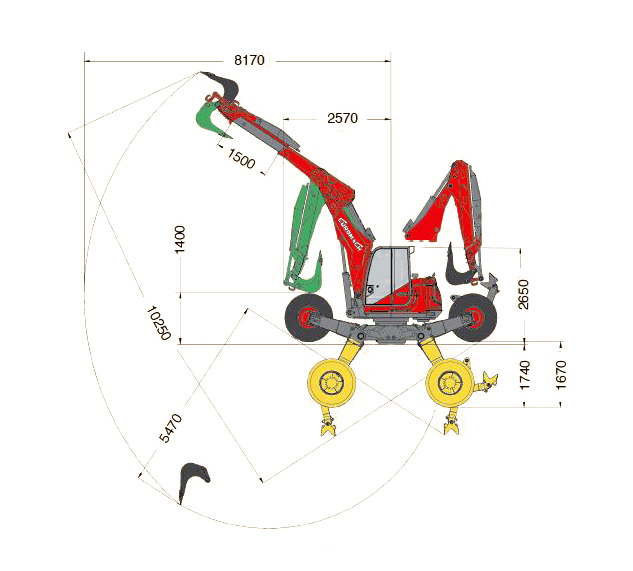

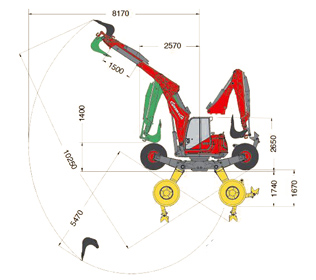

R955 Forester - Side view
Extension of 1,5 m
R955 Forester - Side view

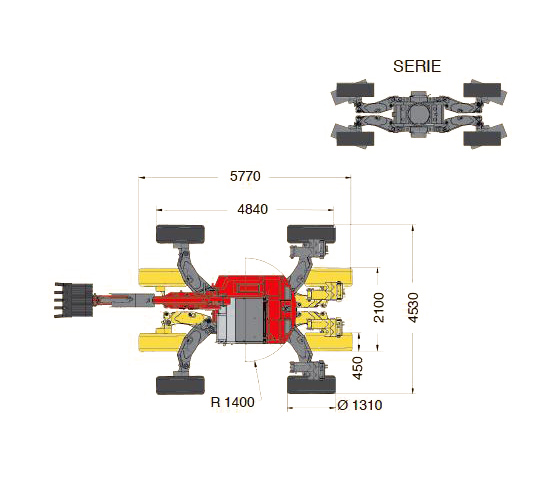

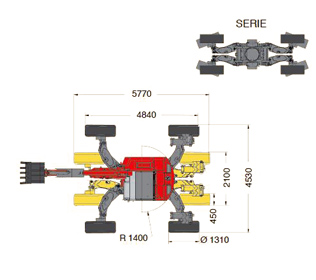

R955 Forester - Upper view
4 steering wheels
R955 Forester - Upper view
Details (All images can be enlarged)

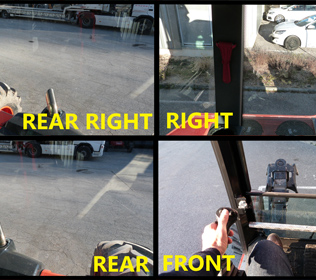

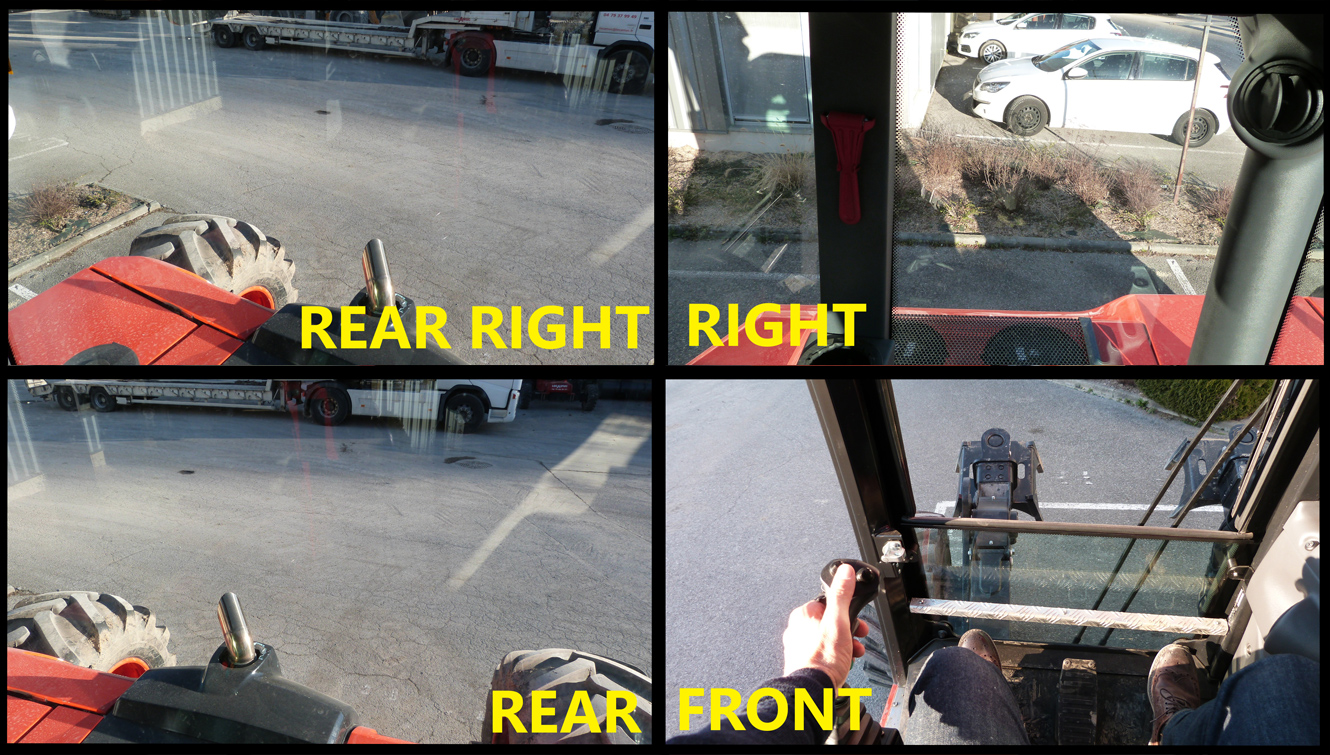

R853 - Visibility from inside the cabin
Visibility from inside the cabin

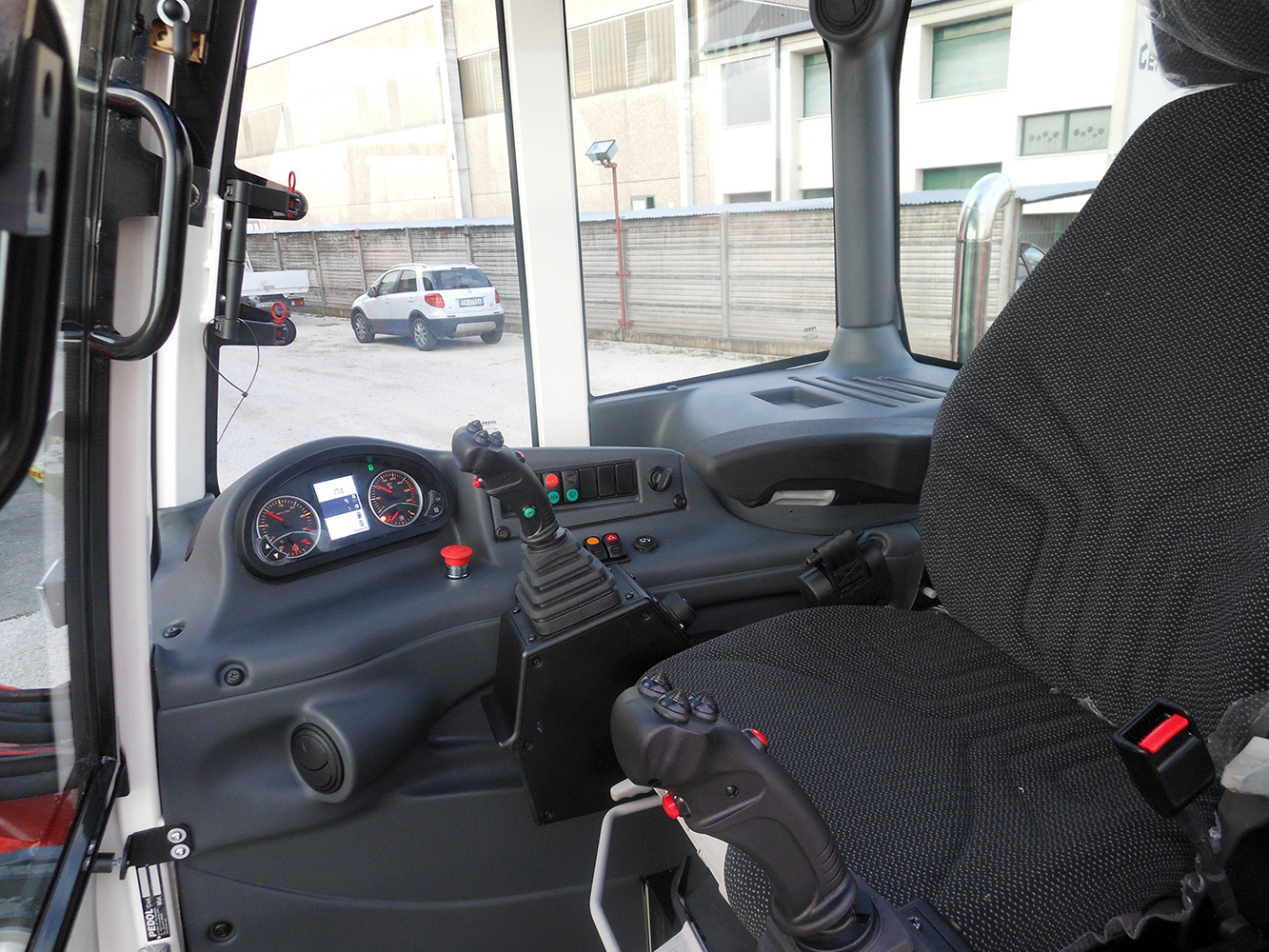

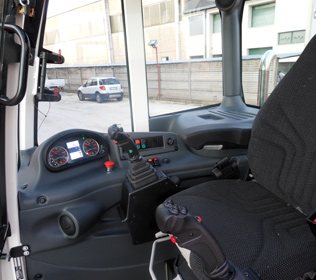

R955 - Inside the cabin
Inside the cabin

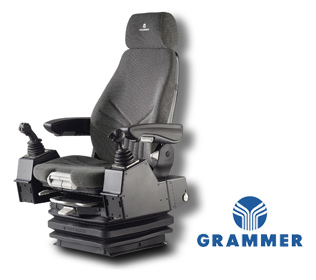

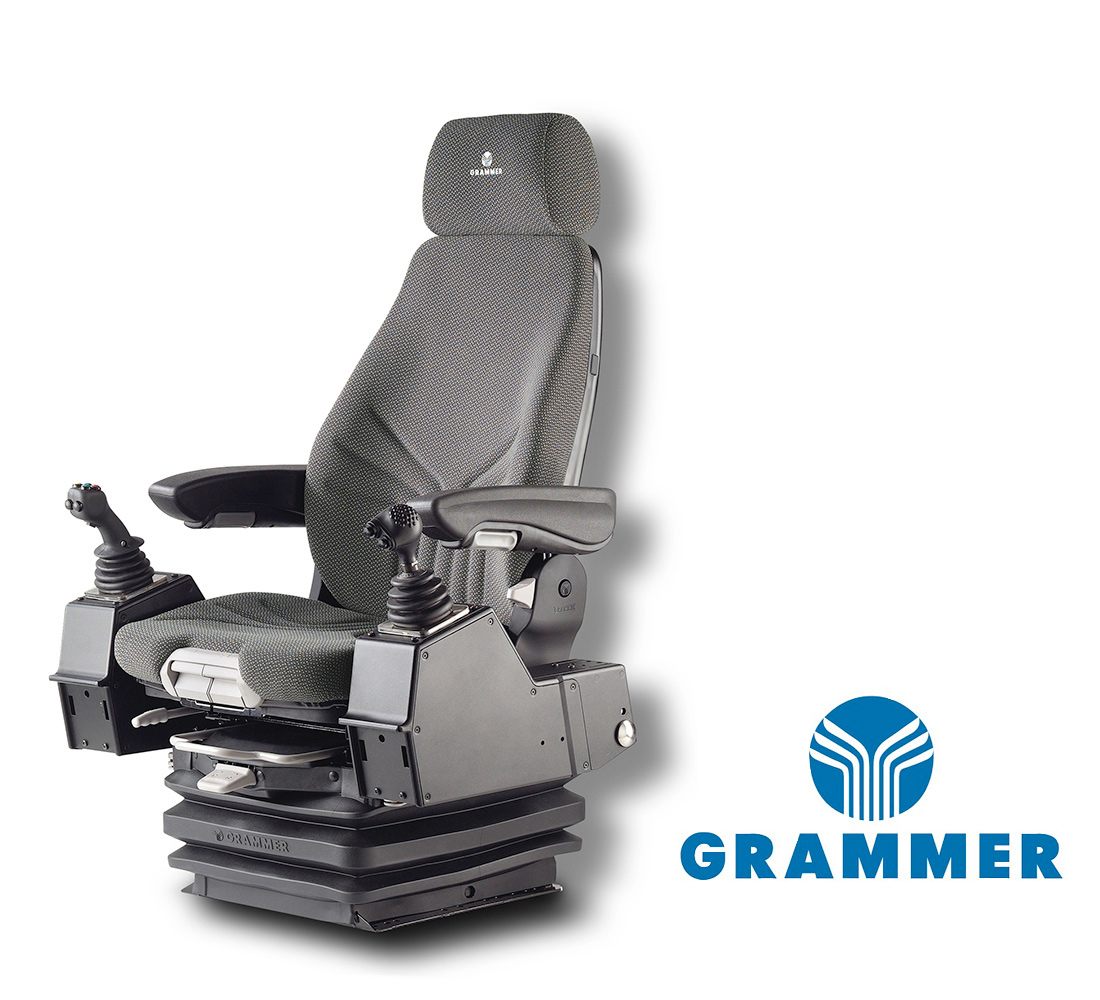

R955 - Grammer seat
Grammer seat

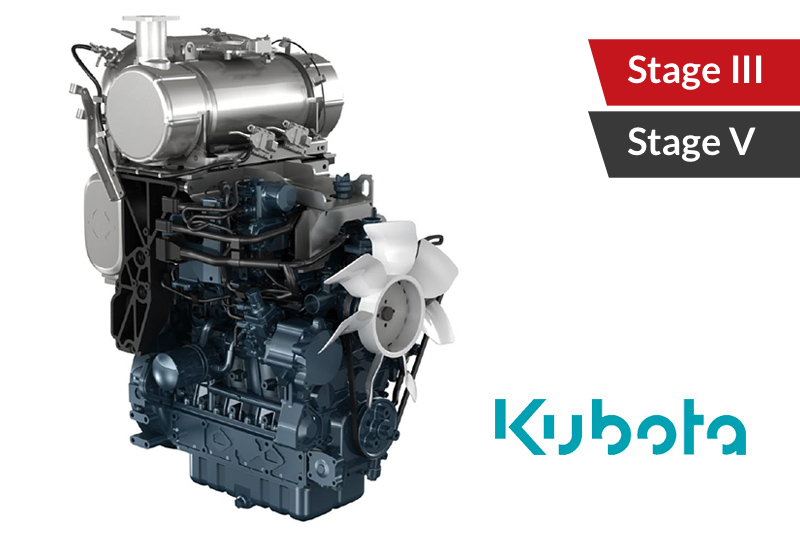

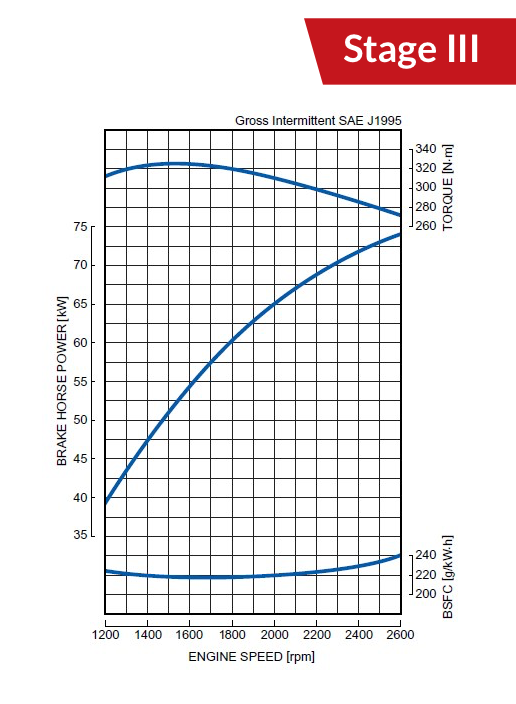

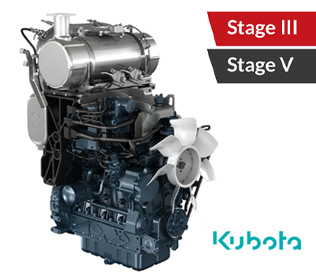

R955 - Kubota V3800 Stage 3B / Stage 4 Motor
Kubota V3800 Stage 3B / Stage 4 Motor

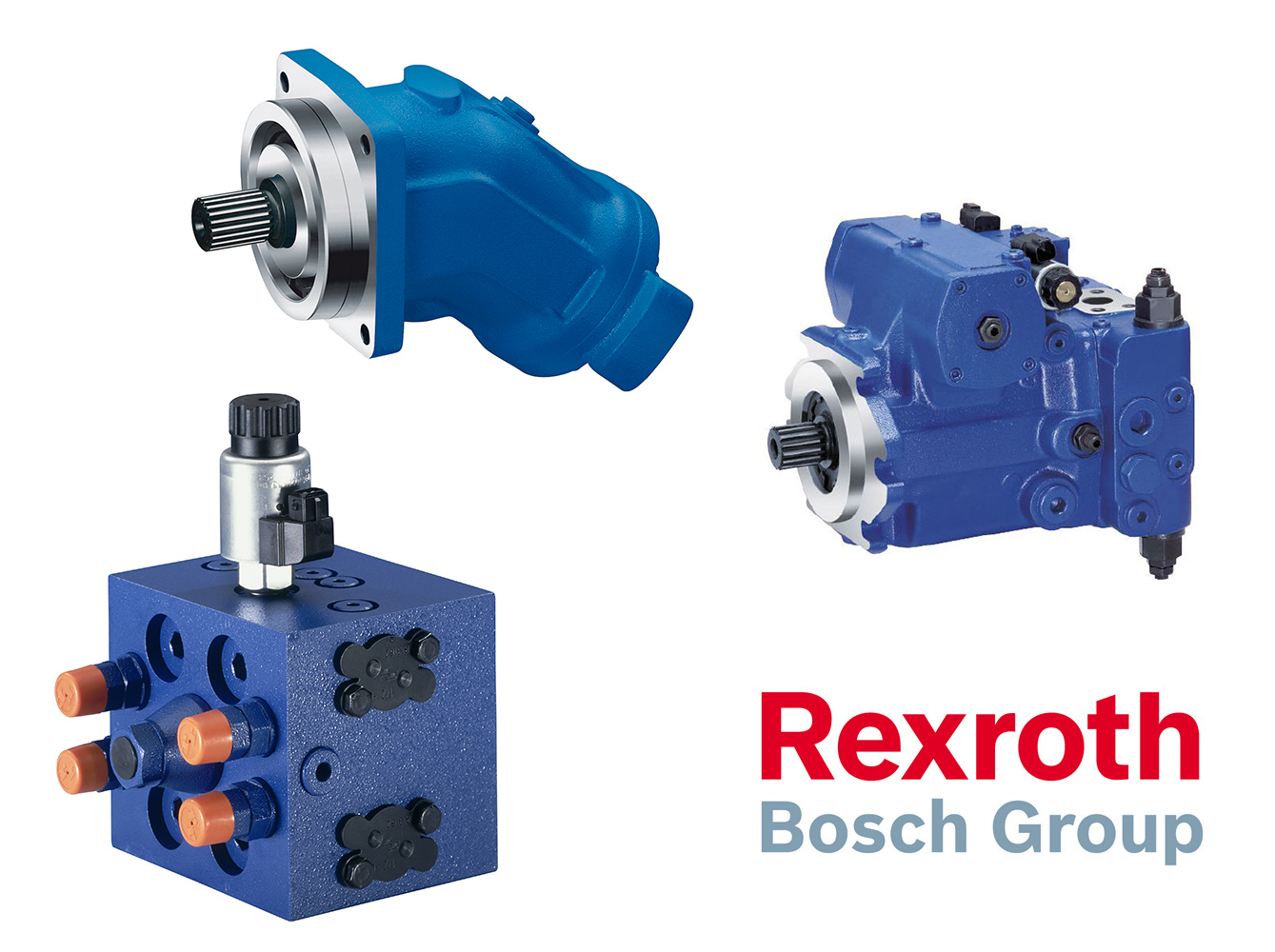

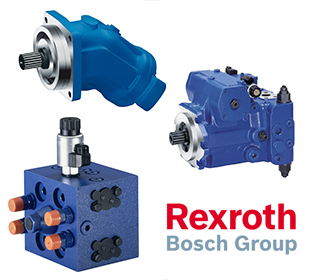

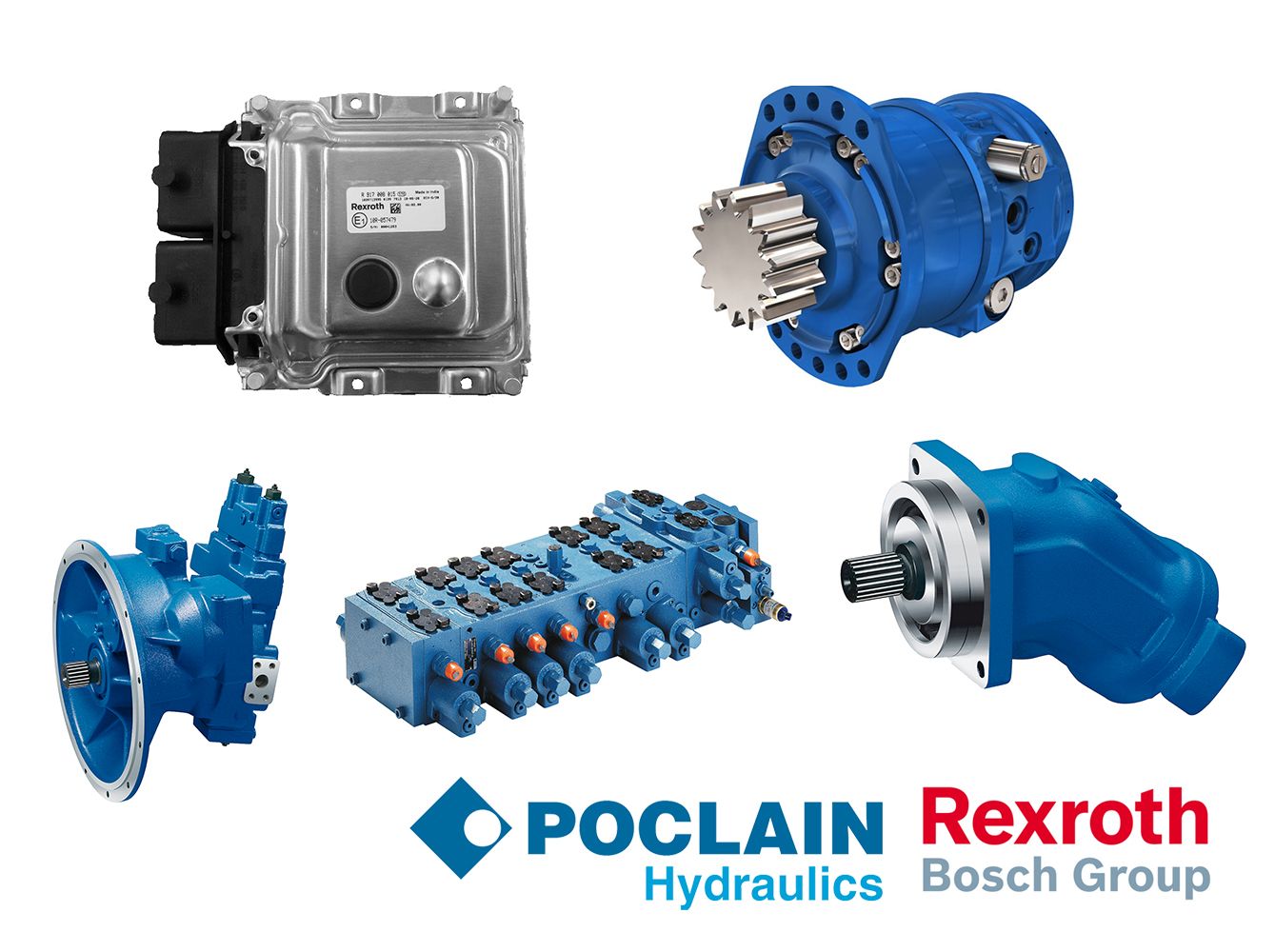

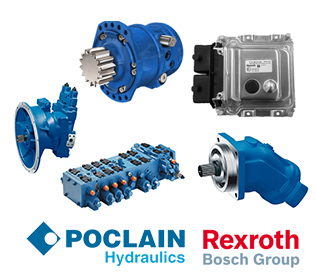

R955 - Hydraulic system of arm Rexroth/Poclain
Hydraulic system of arm Rexroth/Poclain
R955 - Traction system Rexroth
Traction system Rexroth

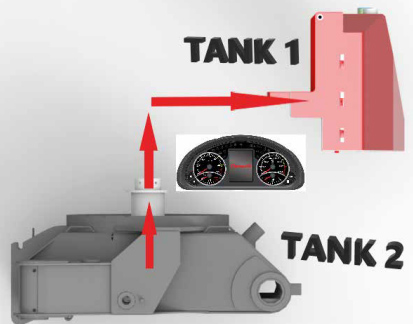

R955 - Automatic pouring
Automatic pouring

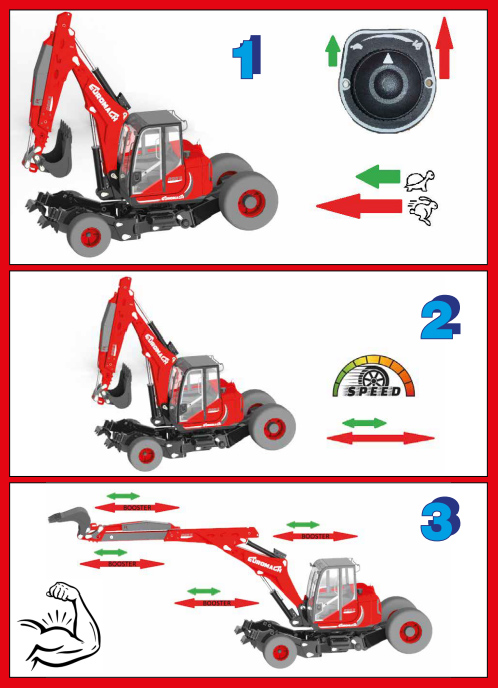

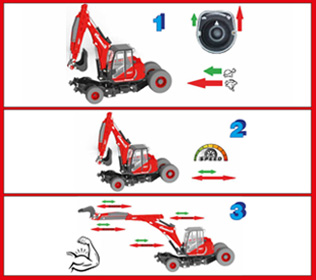

R955 - Control of motor’s acceleration (1), control of traction’s speed (2), control of cylinders’ force (3)
Control of motor’s acceleration (1), control of traction’s speed (2), control of cylinders’ force (3)

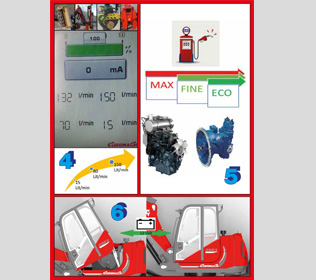

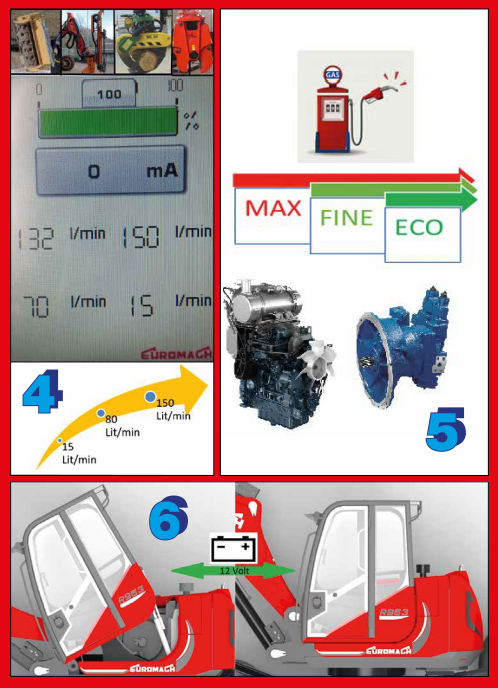

R955 - Memorization of four accessories’ flow (4), three controls of motor’s power (5), electric lift of cabin (6)
Memorization of four accessories’ flow (4), three controls of motor’s power (5), electric lift of cabin (6)

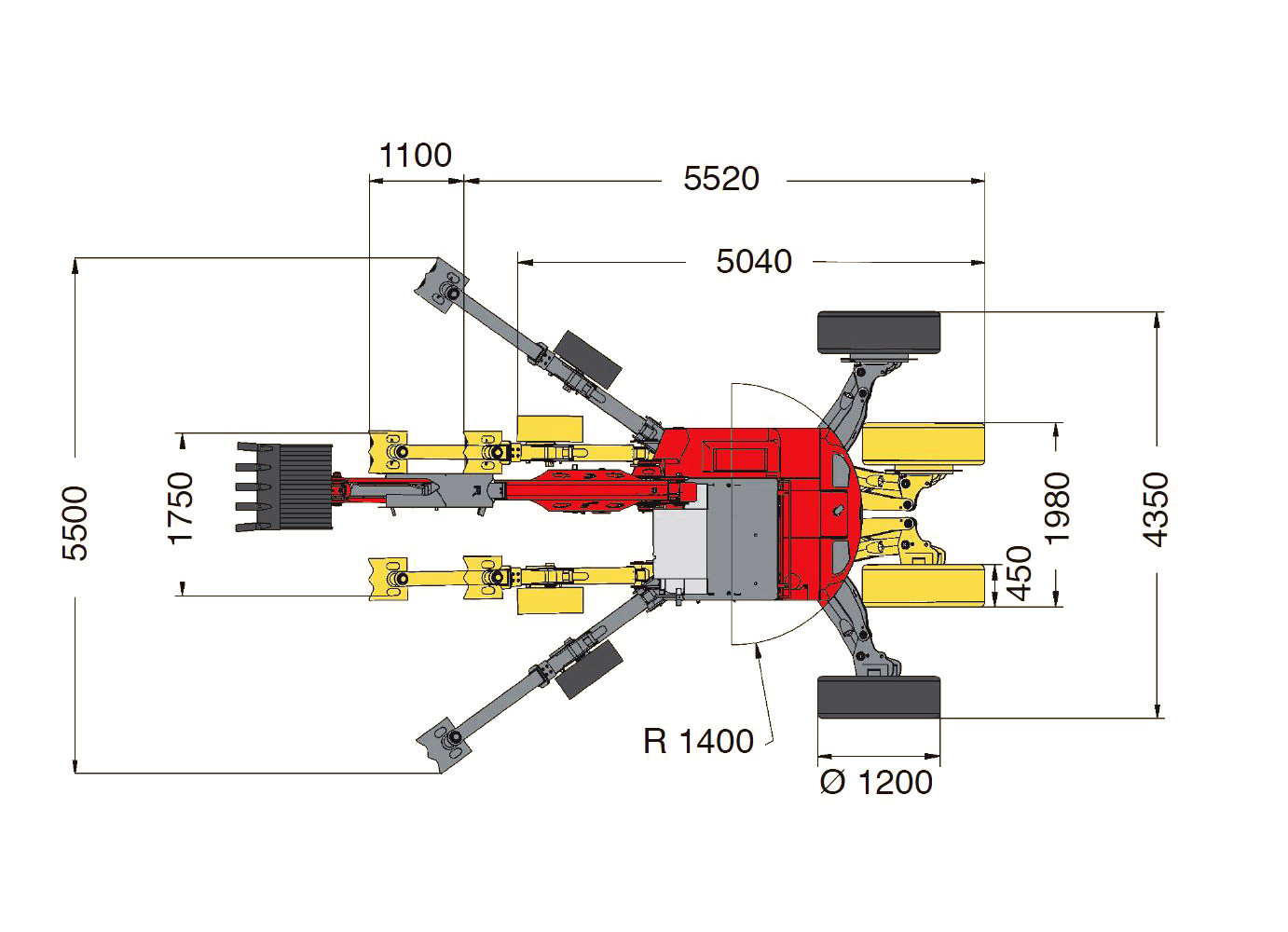

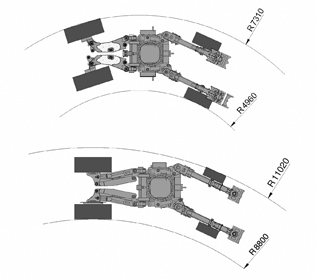

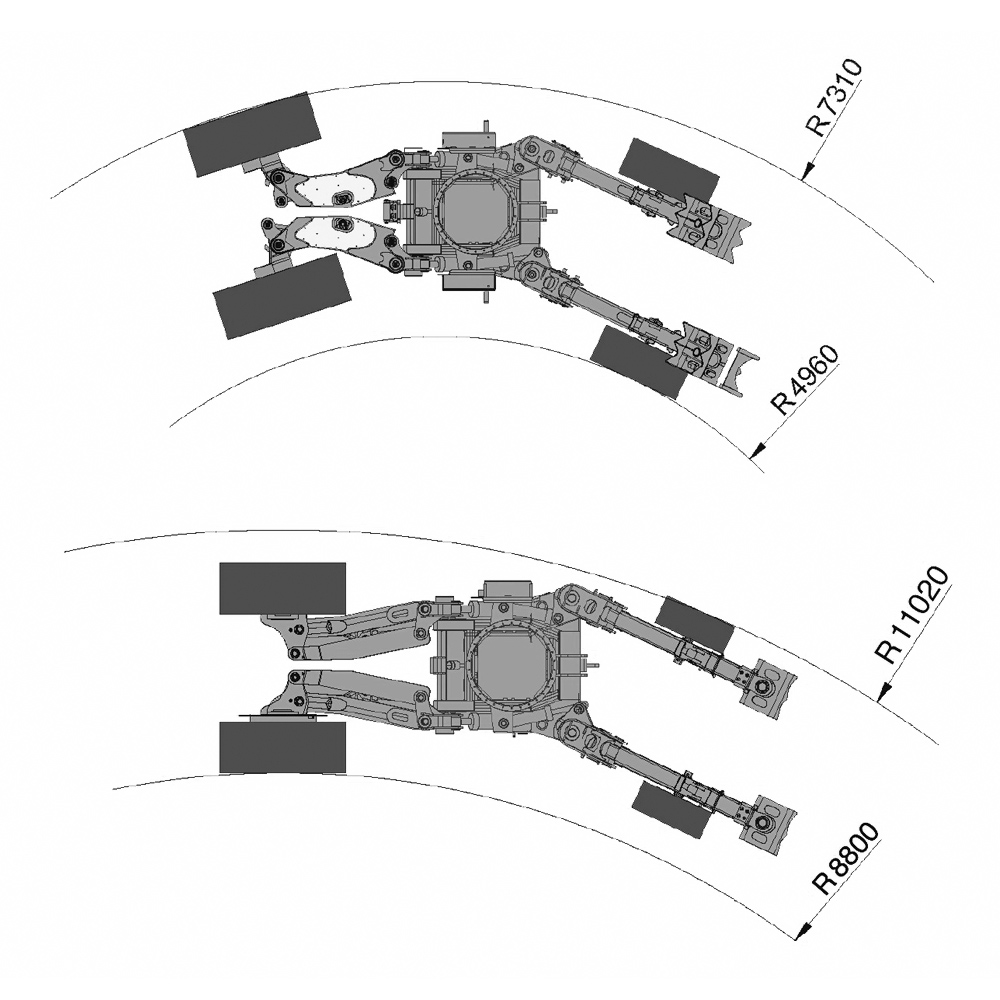

R955 - Bending radius with and without steering wheels
Bending radius with and without steering wheels
Download the brochures with all the technical features
