2500 Mobile

2500 Mobile

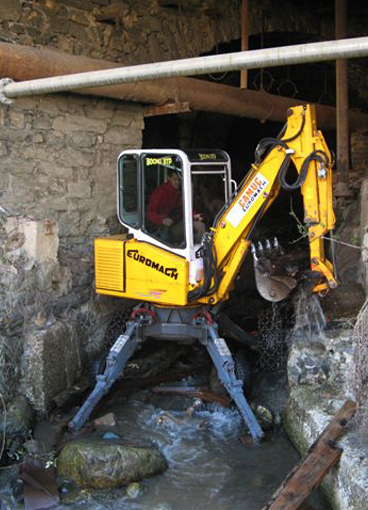

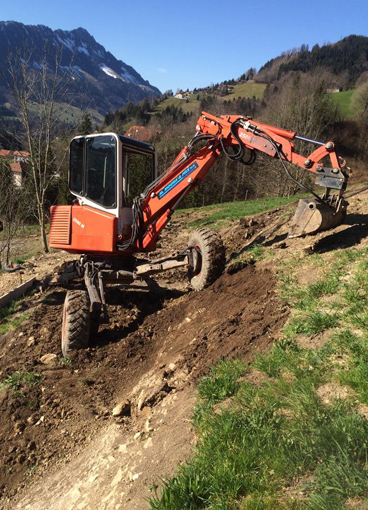

The Euromach 2500 Mobile spider excavator has a limited weight of 2600 Kg and so can be transported by elicopter. It has a Kubota engine of 42 Hp with enough power to install a small forestry mulcher or a small drill. With a gauge of 1150 mm this excavator can easily move in very narrow mountain paths. The heated cabin (air-conditioning is an option) can be temporarily removed when the machine has to work in places with height limitations (for example under a bridge).

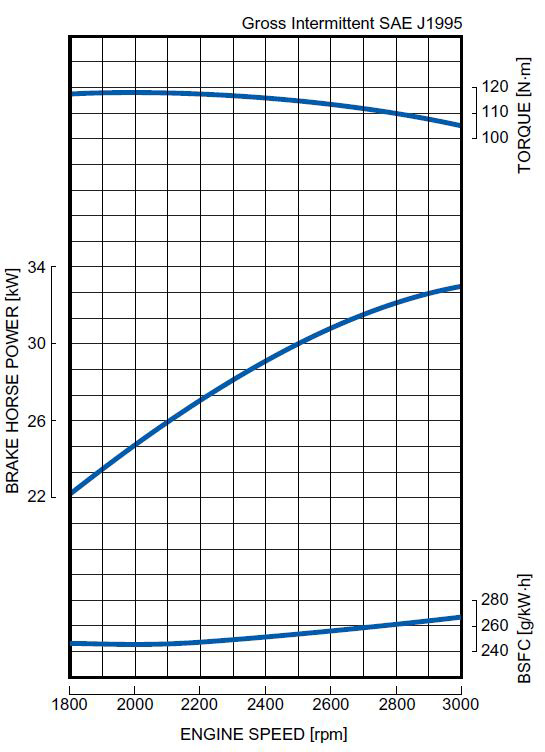

Kubota 1505 TB
Engine:
Kubota
Model: Kubota 1505 TB
Technical features
Operative weight
2600 Kg
Engine's model
Kubota 1505 TB
Engine's type
Water cooled 4 strokes turbo diesel
Engine size
1498 (cc)
Max power
31,3 kW (42,4 Cv)
Potential difference
12 V
Max arm extension
5000 mm
Total pumps flow
86 lit/min
Penetration force
13,6 KN
Break off force
27,3 KN

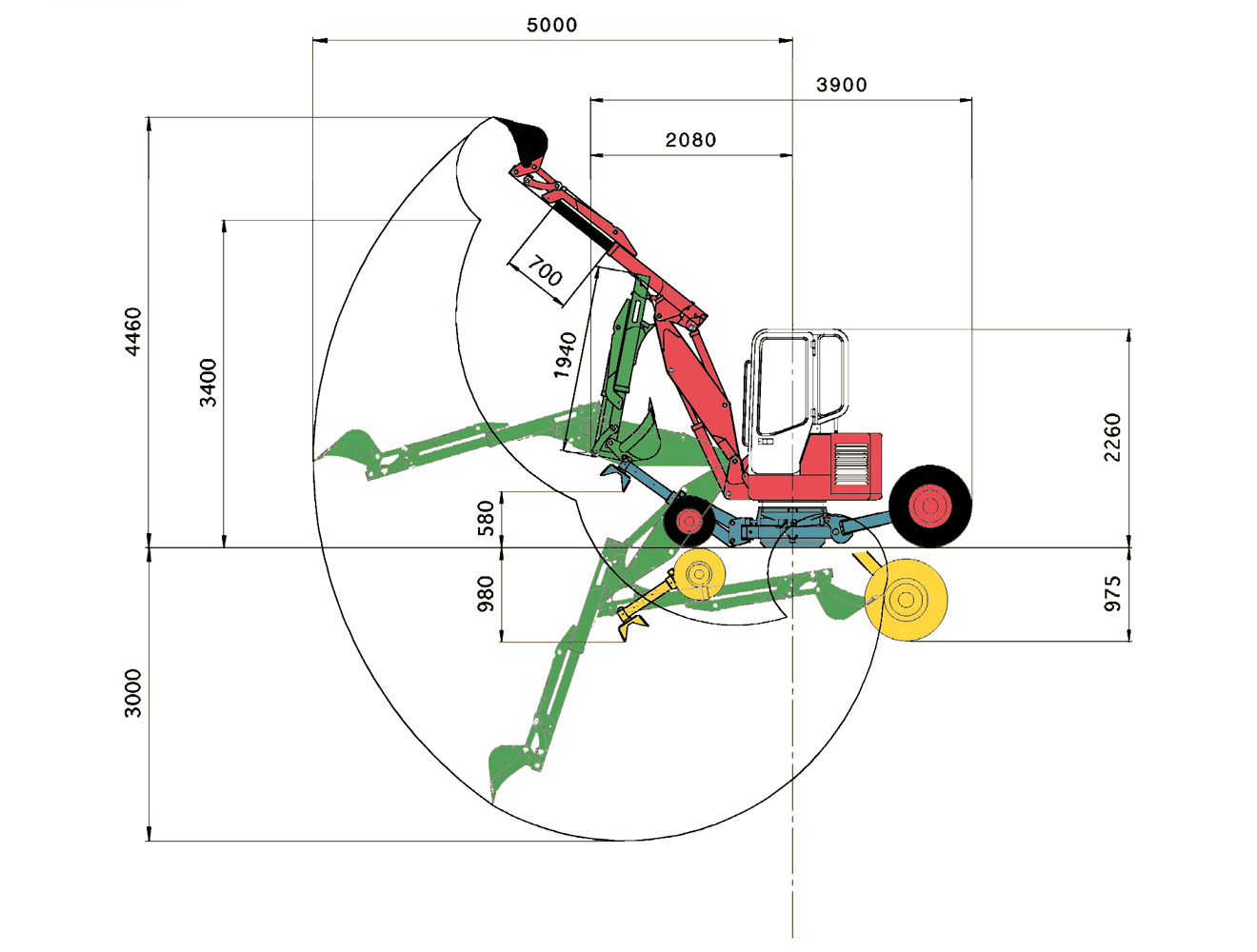

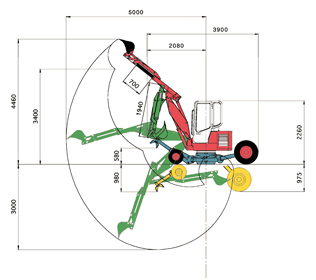

Side view
Extension of 700
2500 Mobile - Side view

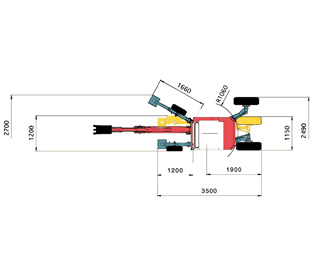

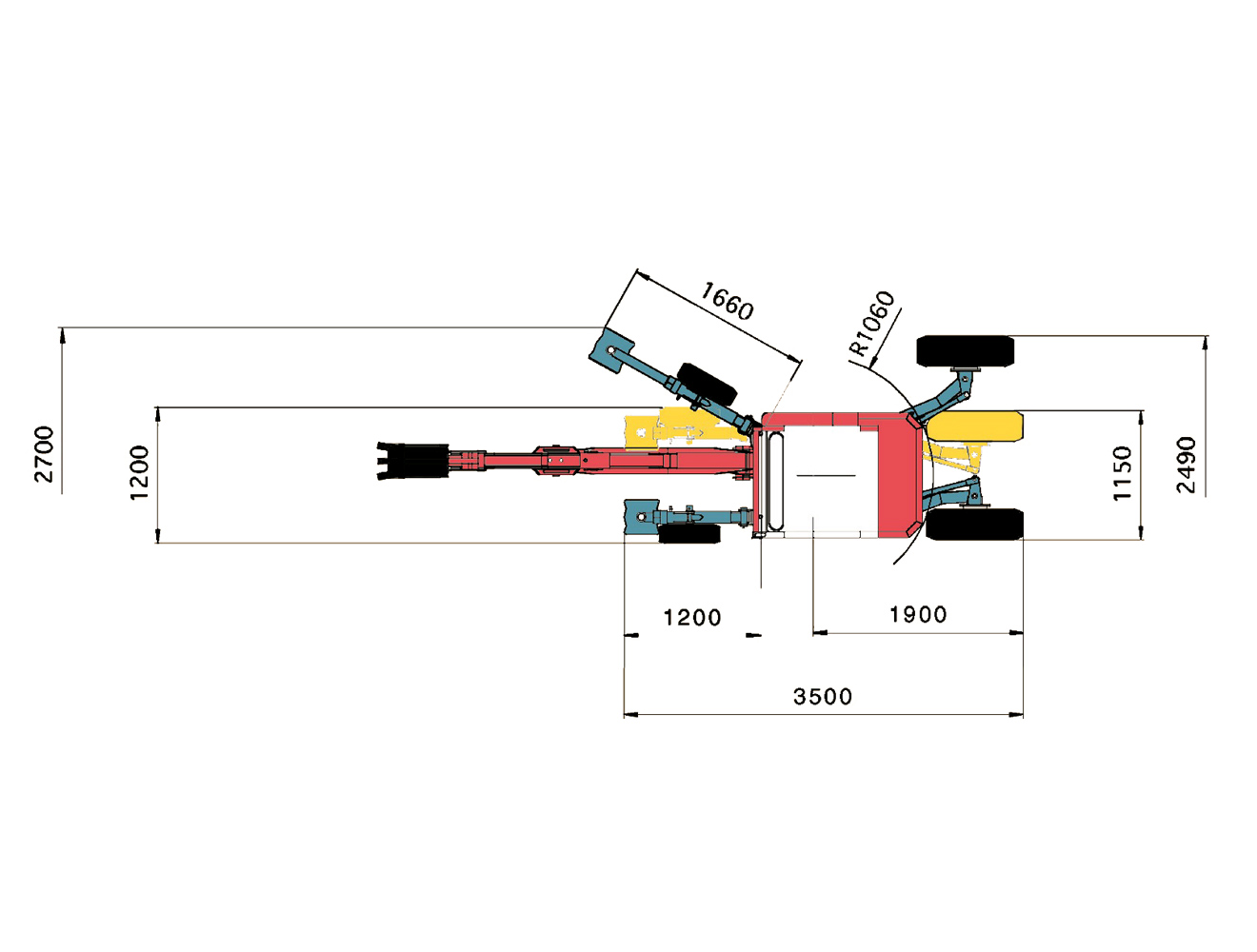

Upper view
Not stearing framework
2500 Mobile - Upper view
Details (All images can be enlarged)

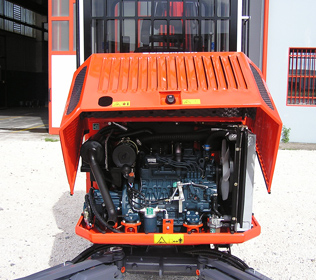

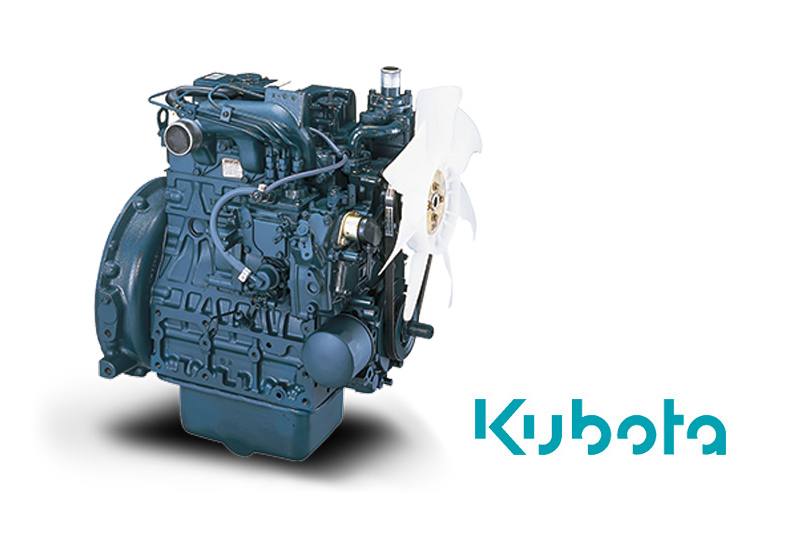

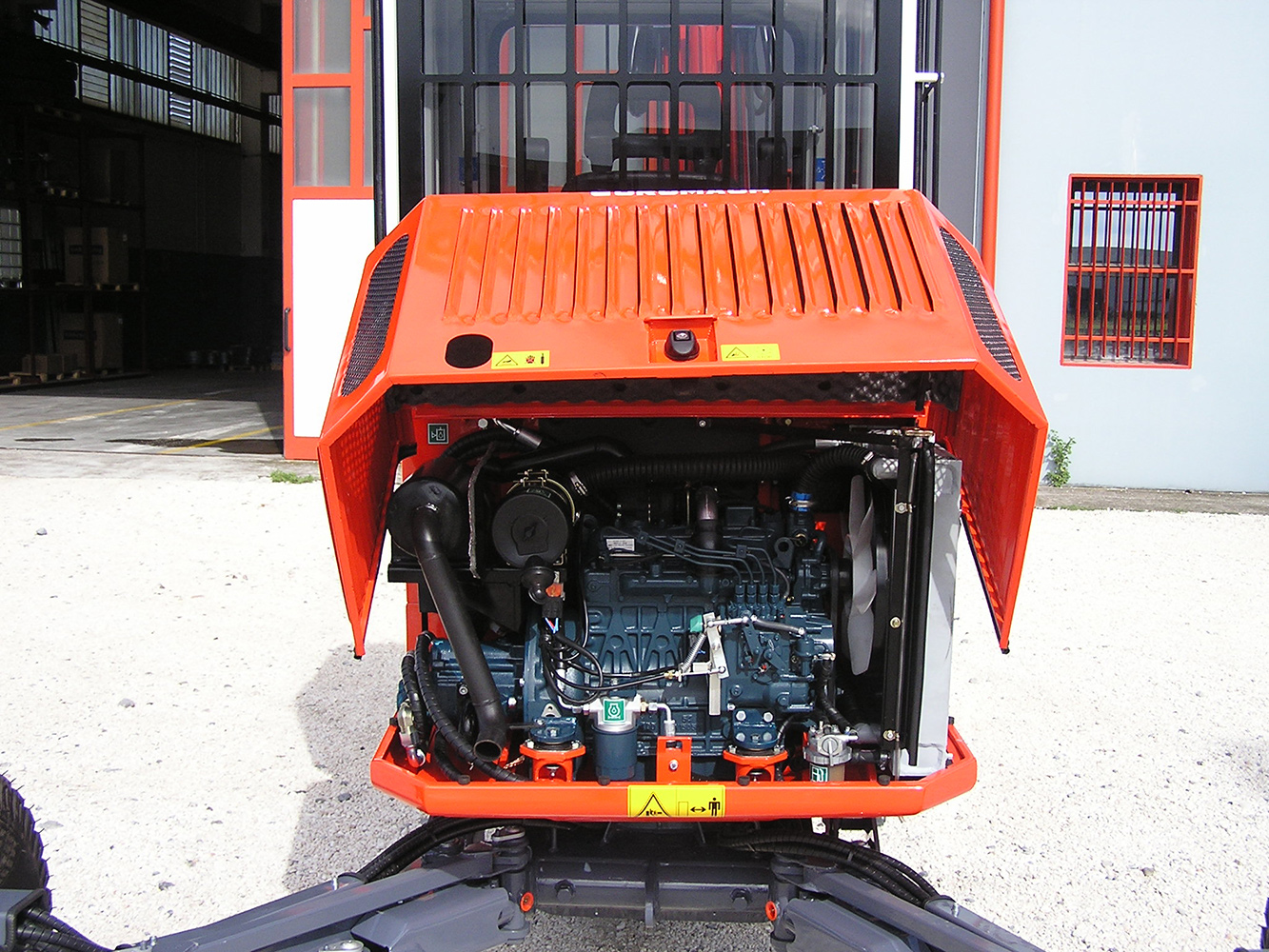

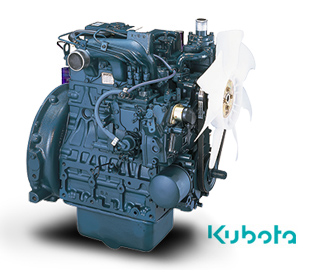

2500 Mobile - Kubota 1505 TB Motor
Kubota 1505 TB Motor
2500 Mobile - Guaranteed accessibility
Guaranteed accessibility

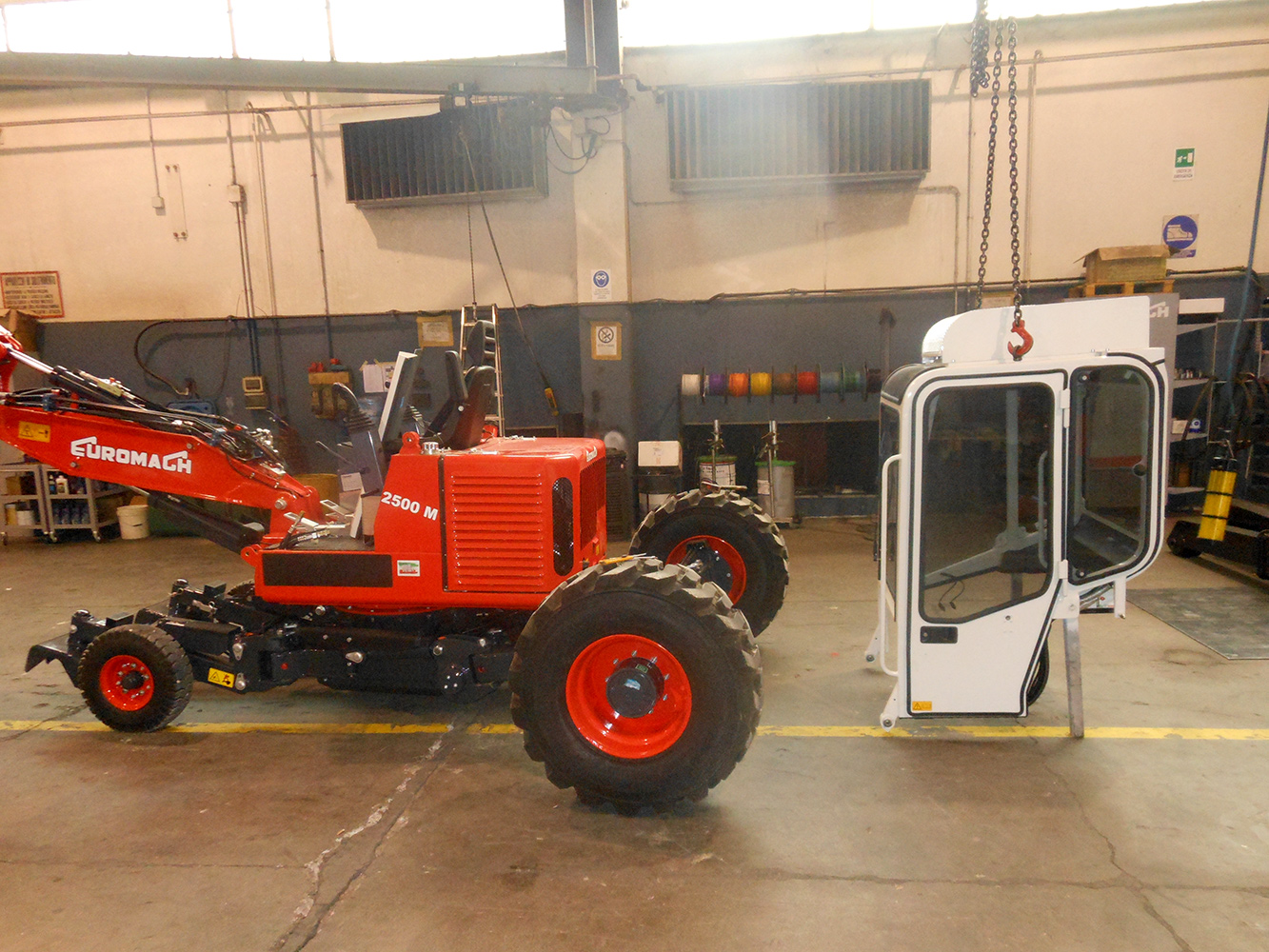

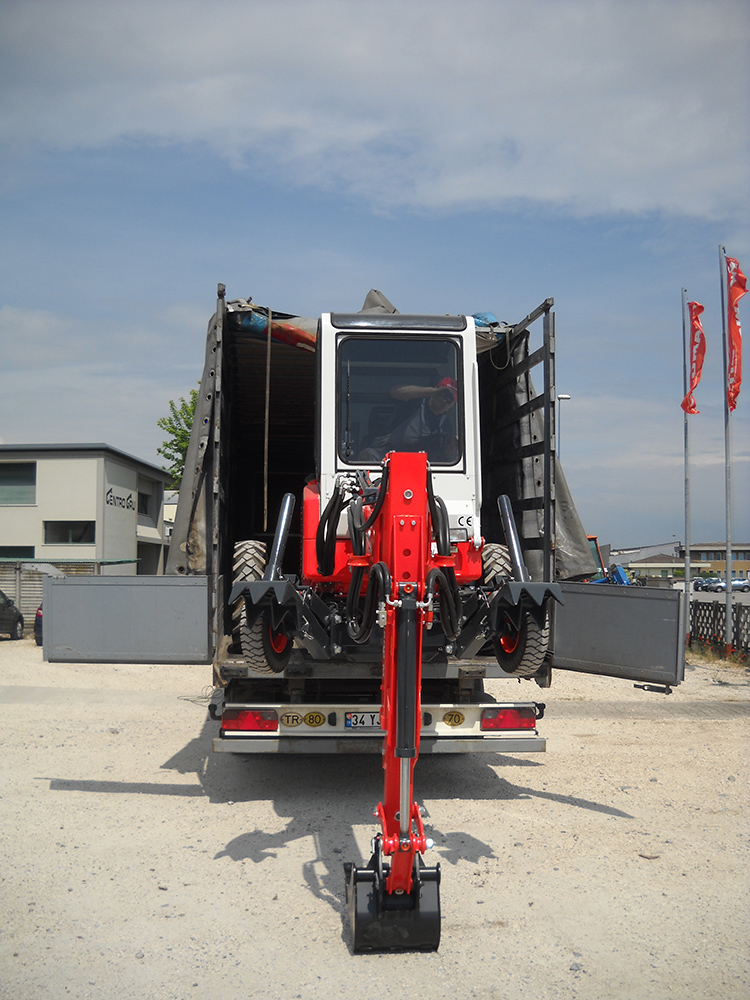

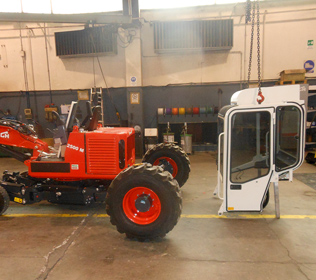

2500 Mobile - The cabin can be totally disassembled
The cabin can be totally disassembled

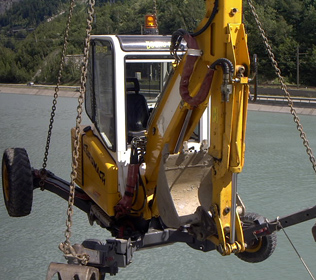

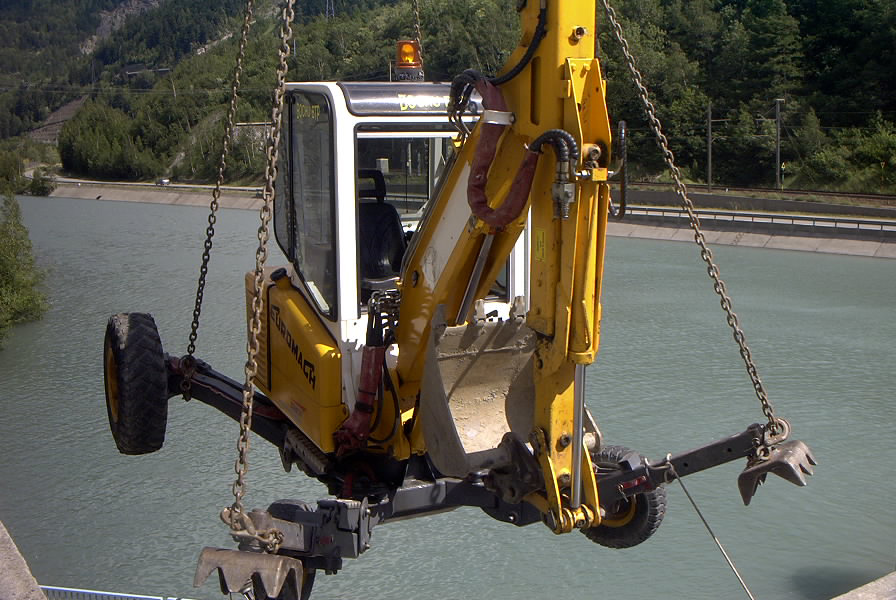

2500 Mobile - Possibility to carry the machine with helicopter
Possibility to carry the machine with helicopter
2500 Mobile - Great reliability
Great reliability

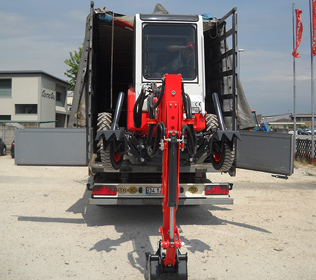

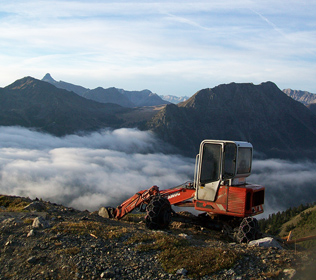

2500 Mobile - Machine's width limited to 1150 mm
Machine's width limited to 1150 mm

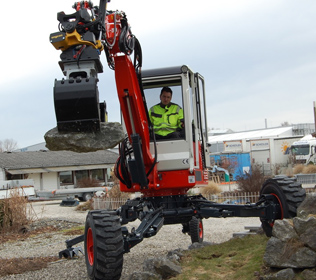

2500 Mobile - Possibility to install many accessories
Possibility to install many accessories
2500 Mobile - Rear motorized wheels
Rear motorized wheels
2500 Mobile - Front legs manually extensible
Front legs manually extensible
Download the brochures with all the technical features
