R25

R25

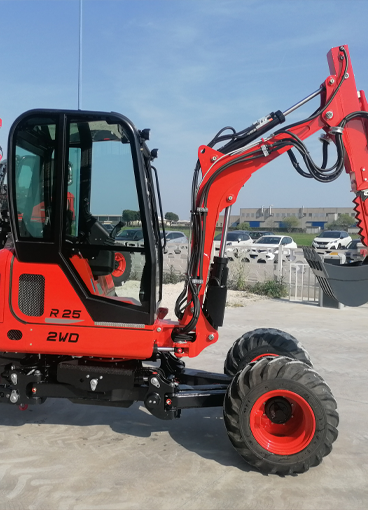

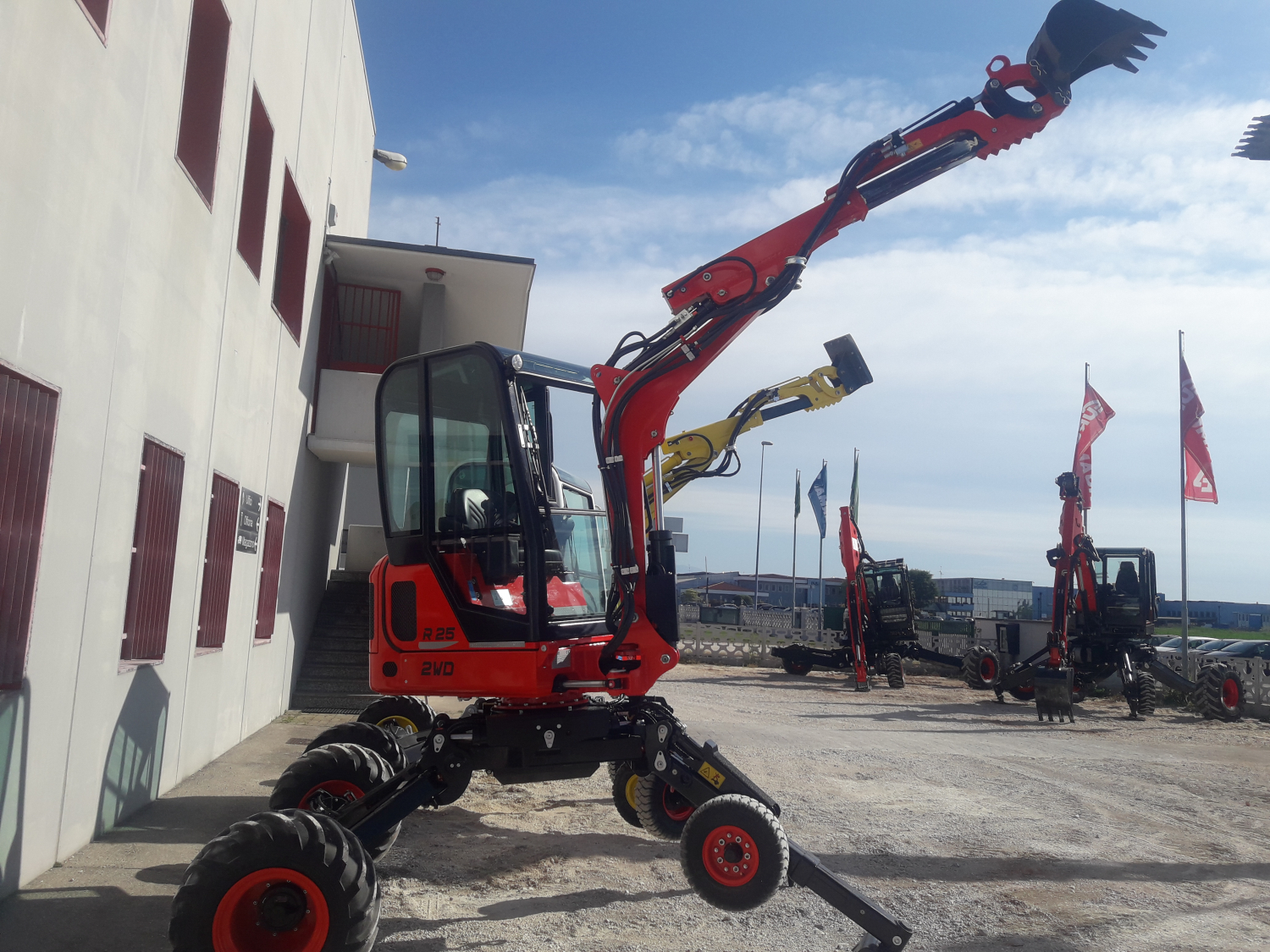

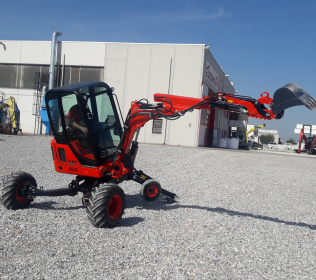

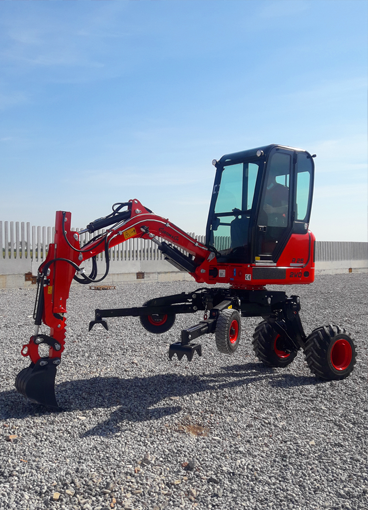

The R25 model is one of the smallest and most compact walking excavators on the market. It was born from the evolution of the mobile 1500 model and includes some new features compared to the previous model. The characteristics that differentiate it from 1500 are:hydraulic extensions of the front legs, standard cabin, manipulators with 2 mini-joysticks with 10 functions. The new R25 also features a new 1300 cm3 engine which makes it more performing. The frame of this very agile spider mini excavator is enclosed within one meter of width, a feature that makes it particularly suitable for carrying out small excavation works in very narrow and difficult environments.
Kubota 1305 B
Engine:
Kubota
Model: Kubota 1305 B
Technical features
Operative weight
2wd (Iso 6016) 2300 Kg
4wd (Iso 6016) 2500 Kg
Engine's model
Kubota 1305 B
Engine's type
Water cooled 4 strokes turbo diesel
Engine size
1305 cm³

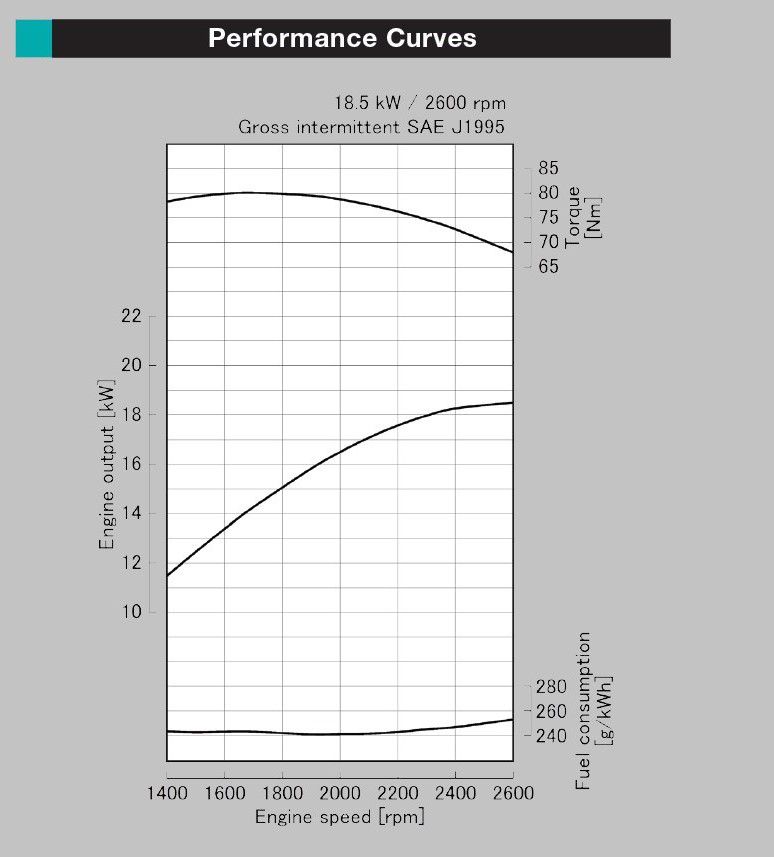

Max power
18,5 kW (25 Cv) ca. 2600 rpm
Potential difference
12 V
Max arm extension
4680 mm
Penetration force
13 KN
Break off force
20 KN

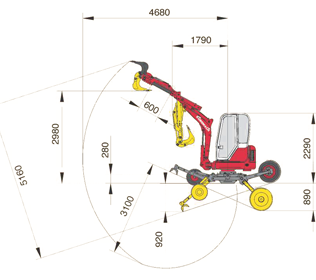

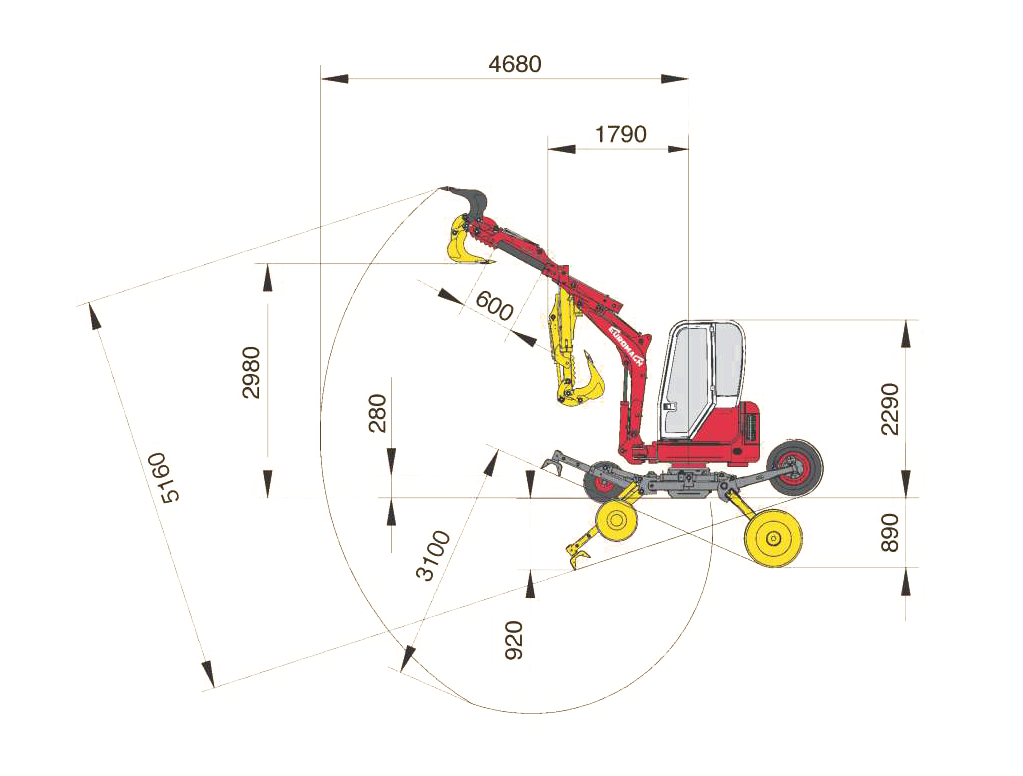

Side view
2WD
R25 - Side view

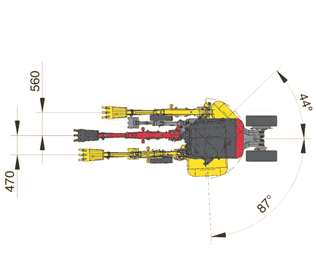

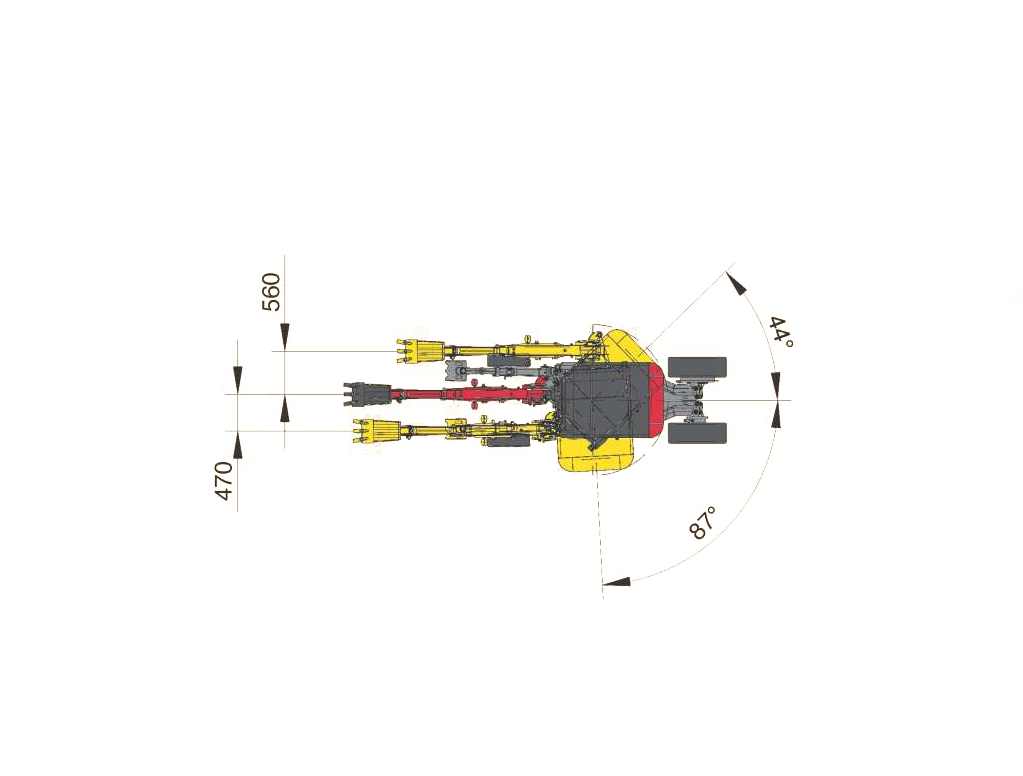

Upper view
2WD
R25 - Side view

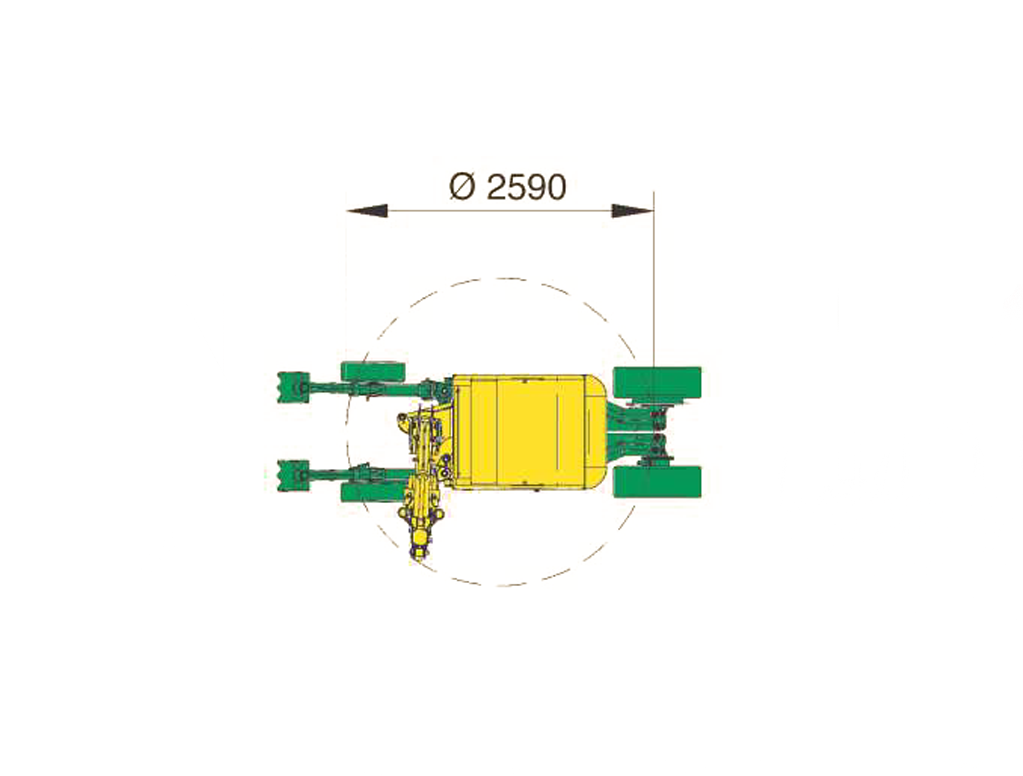

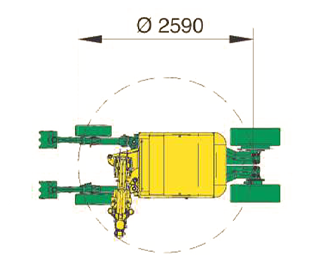

Rotation radius
2WD
R25 - Side view
Side view
4WD
R25 - Side view
Upper view
4WD
R25 - Side view
Details (All images can be enlarged)

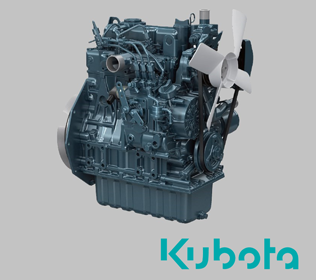

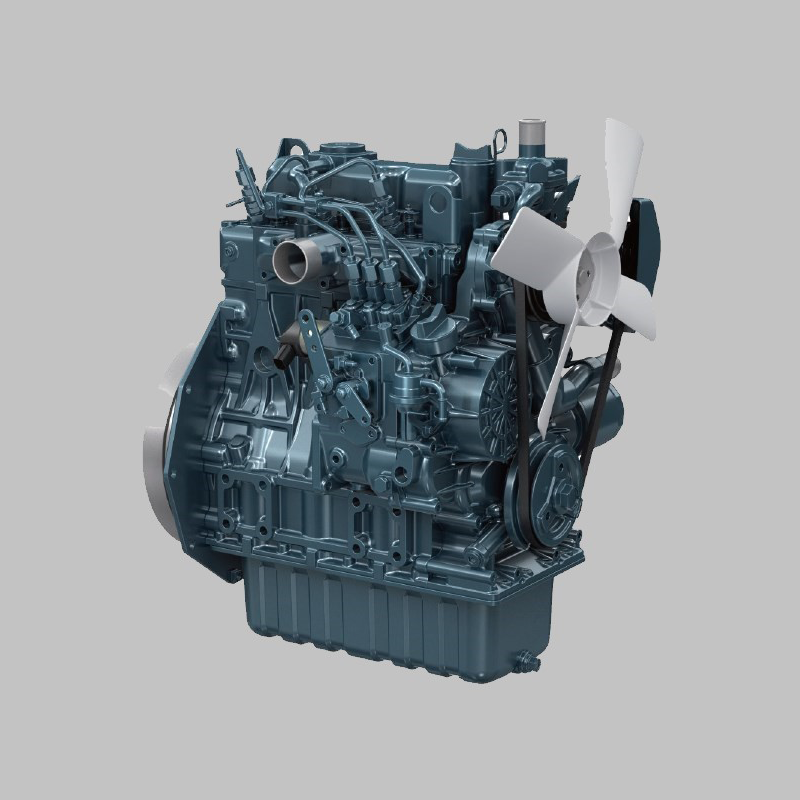

R25 - Kubota Engine Stage V
Kubota Engine Stage V

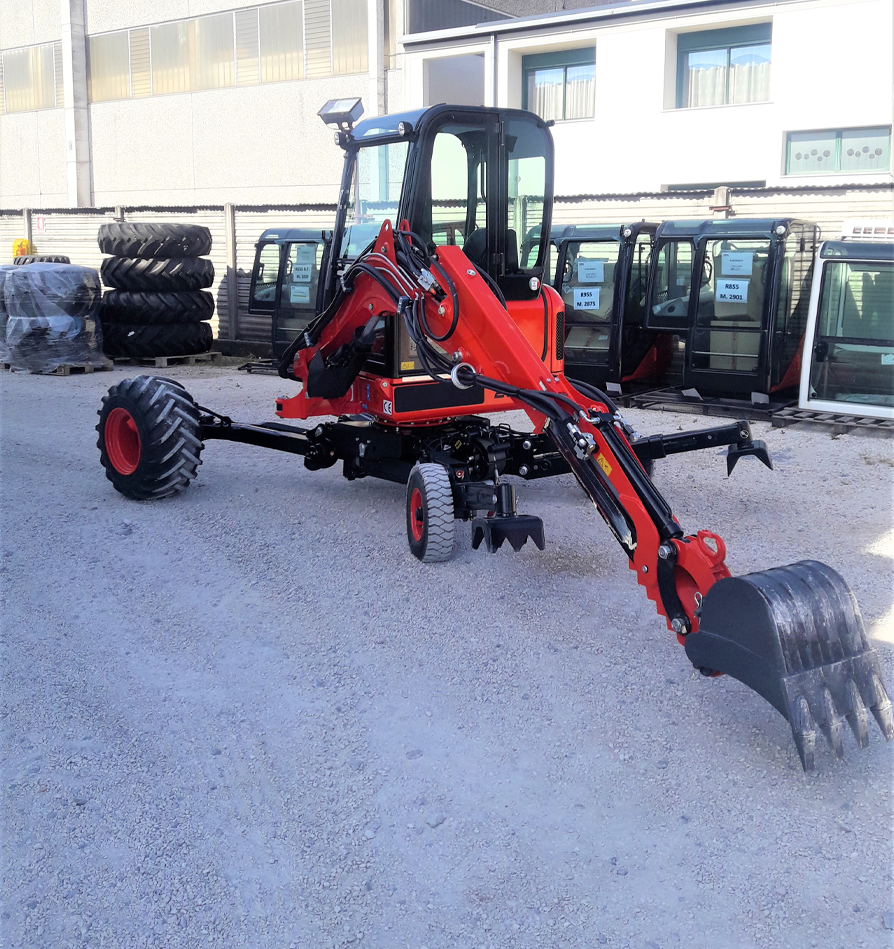

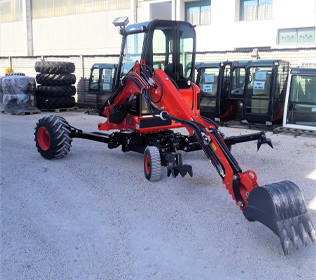

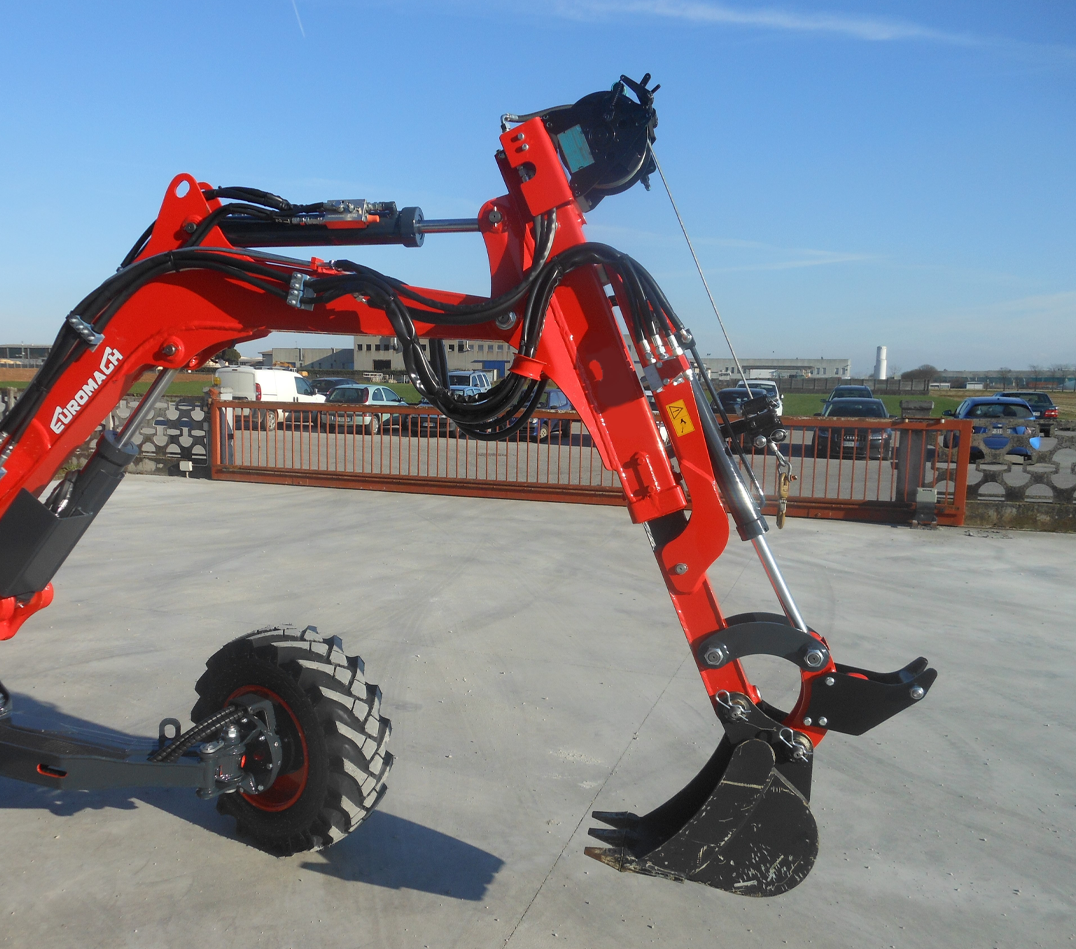

R25 - 90° arm rotation
90° arm rotation

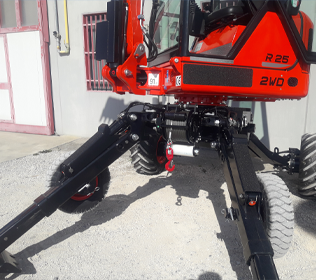

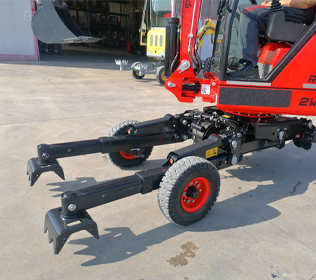

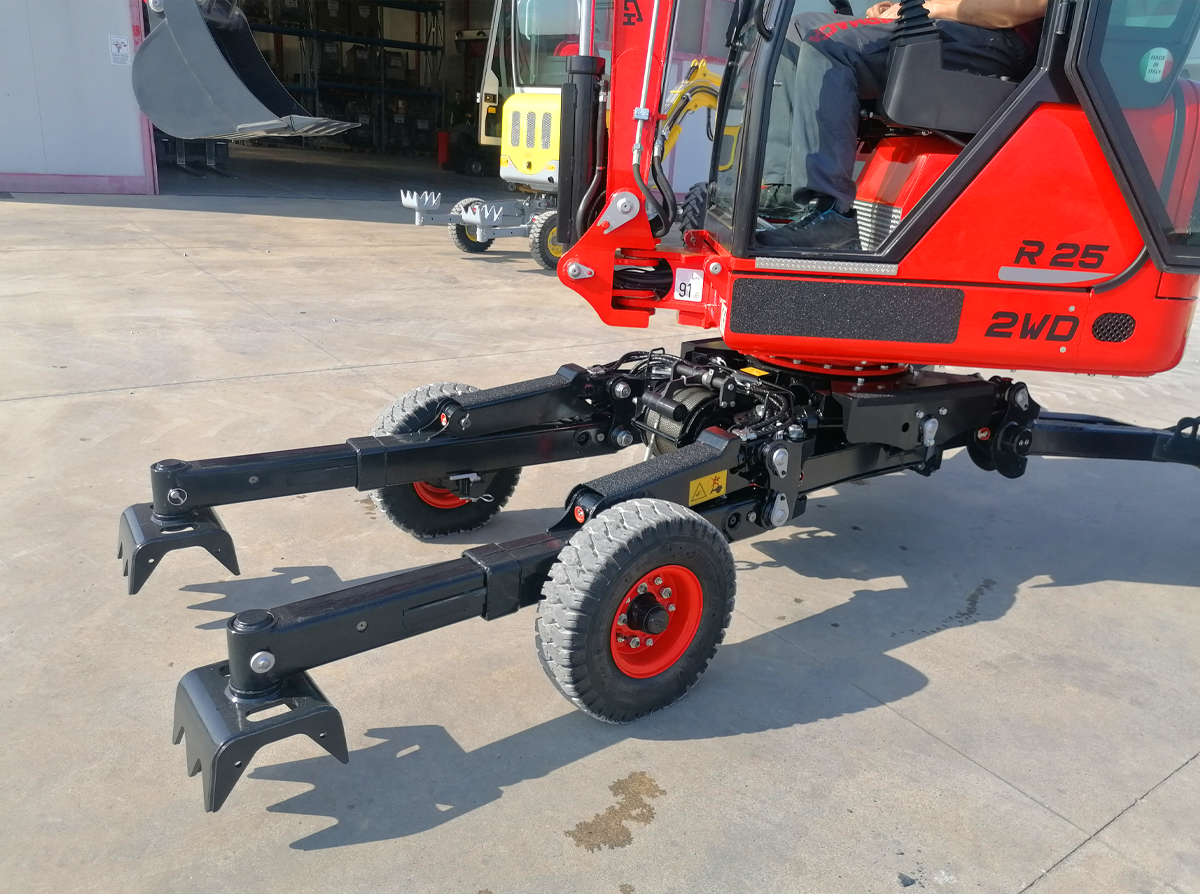

R25 - Hydraulic extensions for front legs
Hydraulic extensions for front legs

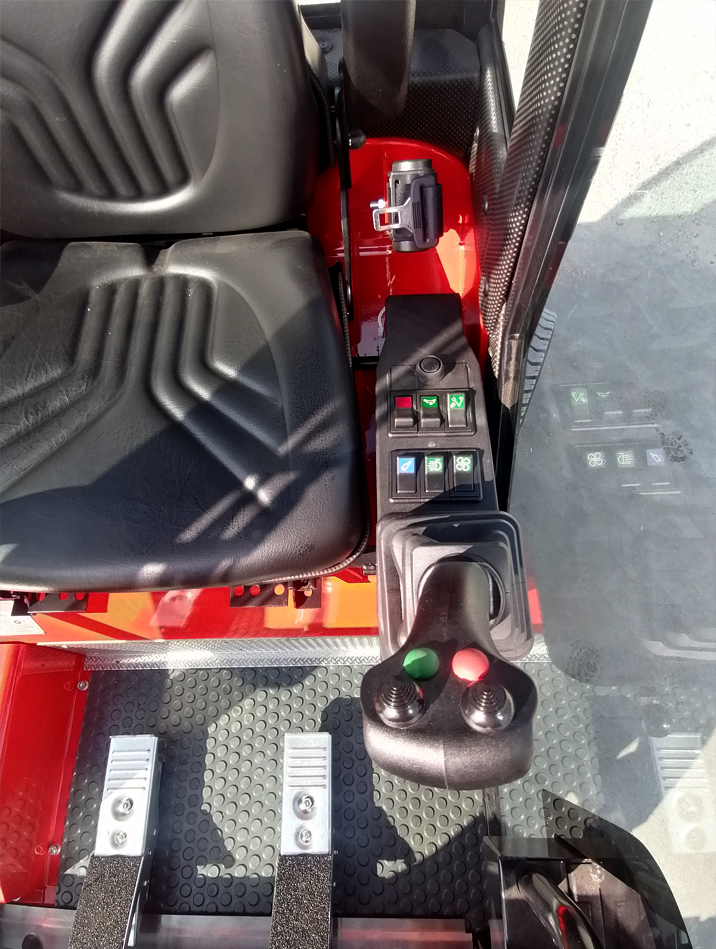

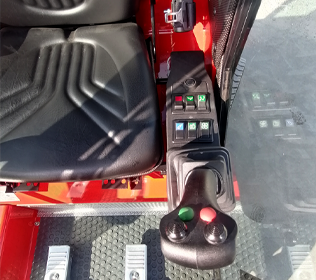

R25 - Manipulators with 2 mini-joysticks
Manipulators with 2 mini-joysticks
R25 - Winch installation on arm
Winch installation on arm

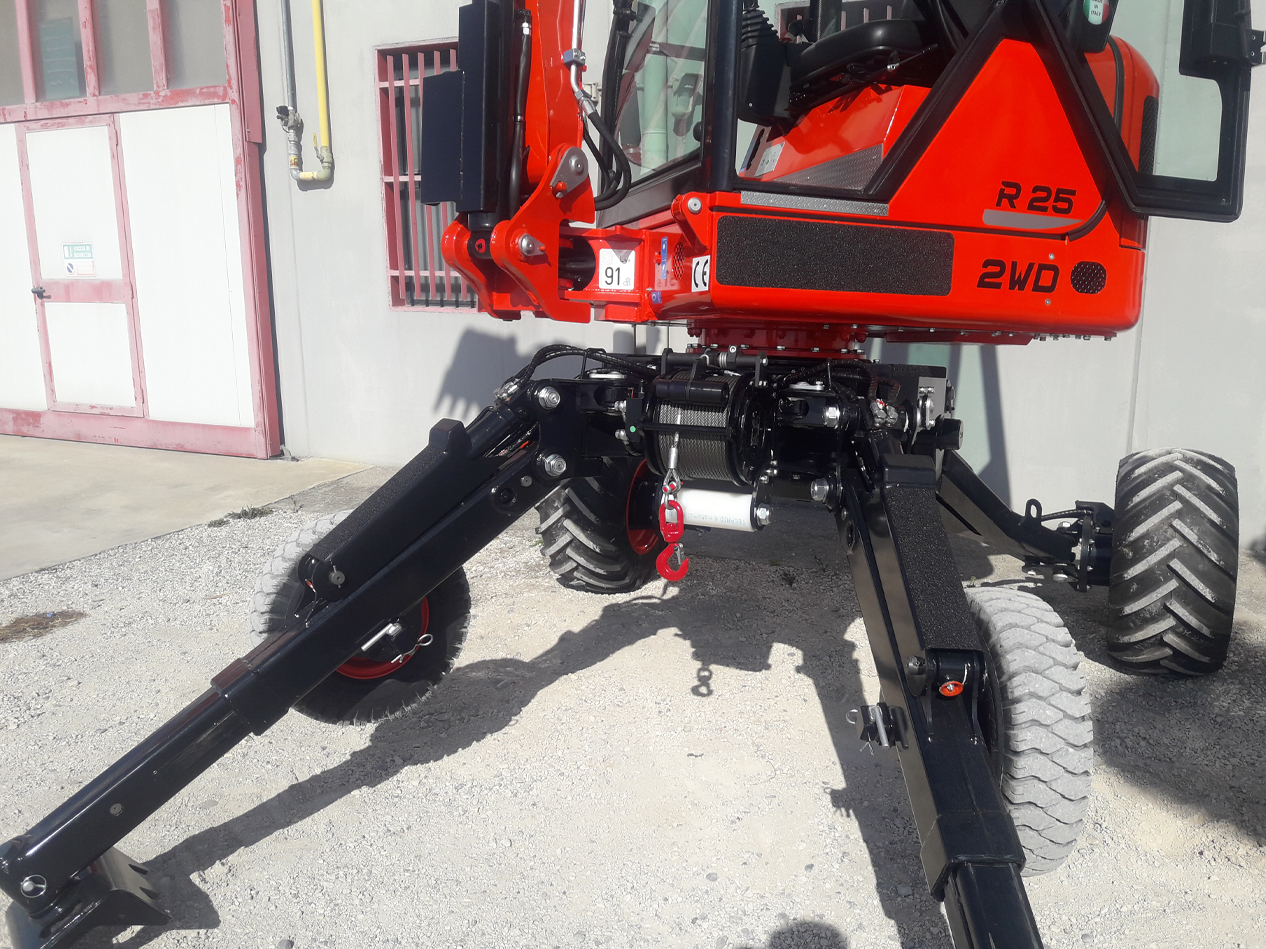

R25 - Winch installation on chassis
Winch installation on chassis
Download the brochures with all the technical features

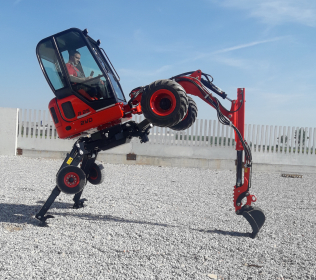

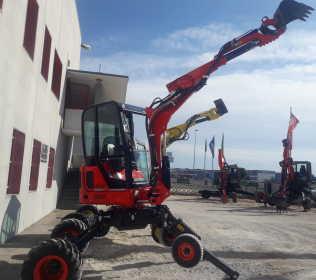

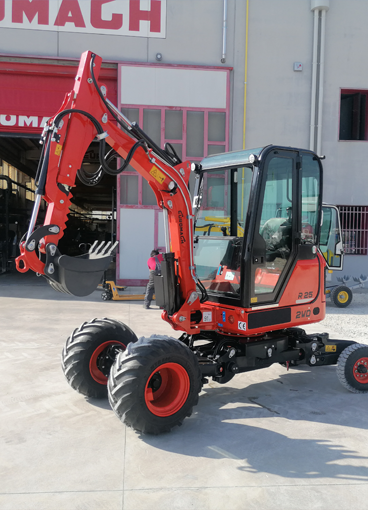

Photogallery (All images can be enlarged)
