R45 Big Foot - Forester

R45 Big Foot - Forester

The R45 Big Foot model was born to fill the requests of operators that use the spider forestry excavator to clean canals borders with mulcher. They need a compact and light machine that has a high power and specific hydraulic systems to operate with mulchers. The name Big Foot derives from its four steering big wheels. The framework has a width of 1400 mm and the weight is about 5500 kg. This model does that jobs that the other machines can't do.

The Forester model has besides two hydraulic paws on the front legs.
Kubota V3307
Engine:
Kubota
Model: Kubota V3307
Technical features
Operative weight
5500 Kg (Big Foot); 5800 Kg (Forester)
Engine's model
Kubota V3307
Engine's type
water cooled 4 cylinders turbo diesel
Engine size
3330 (cc)
Max power
55.4 kW (75 Cv)
Potential difference
12 V
Max arm extension
6050 mm
Total pumps flow
260 lit/min
Penetration force
23 KN
Break off force
31 KN

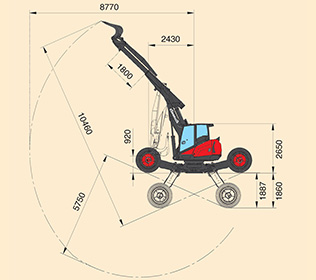

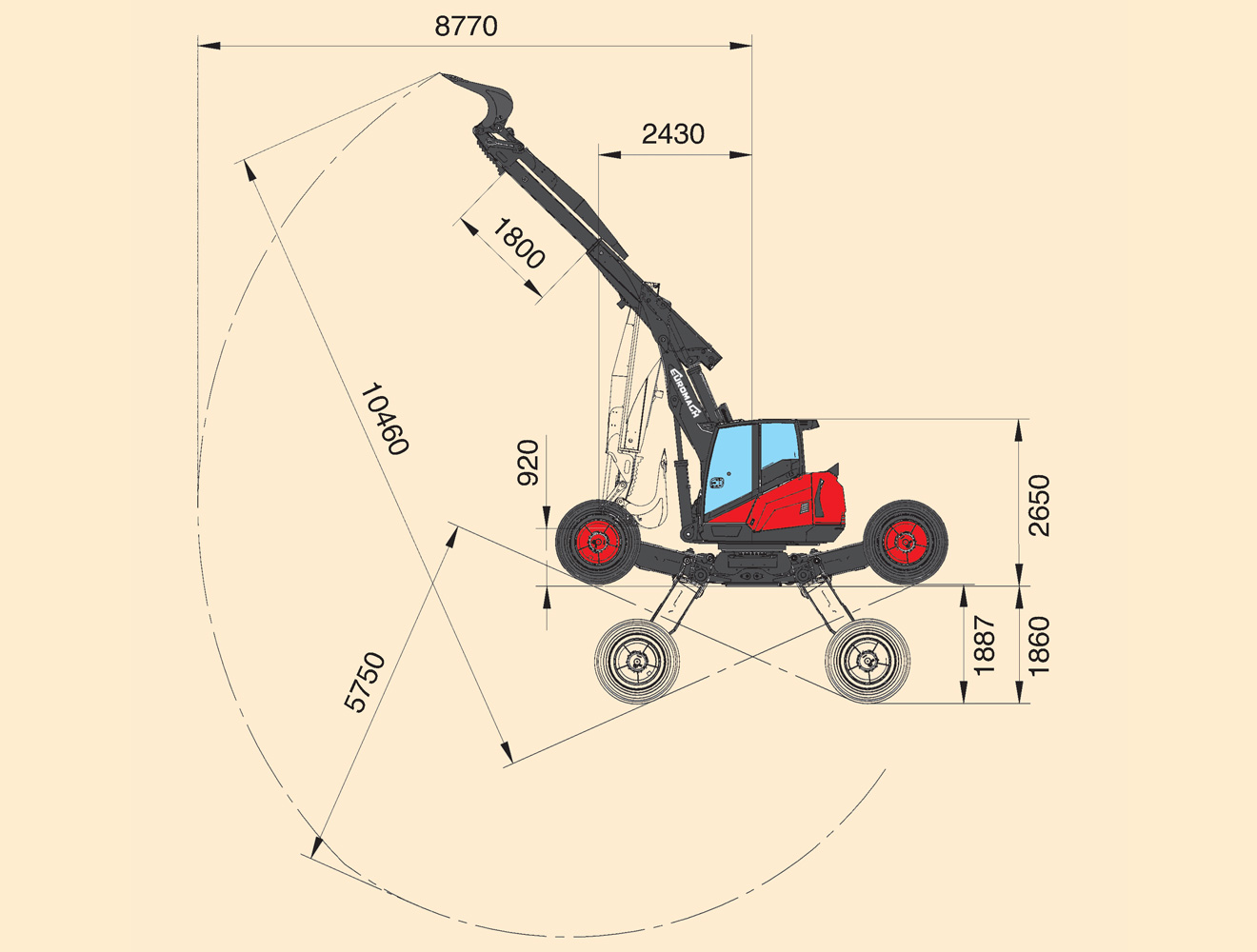

R45 Big Foot - Side view
Extension of 900
R45 Big Foot - Side view

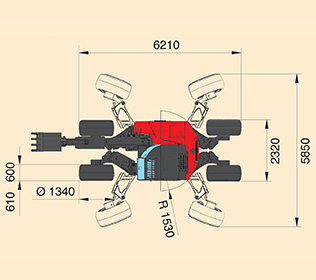

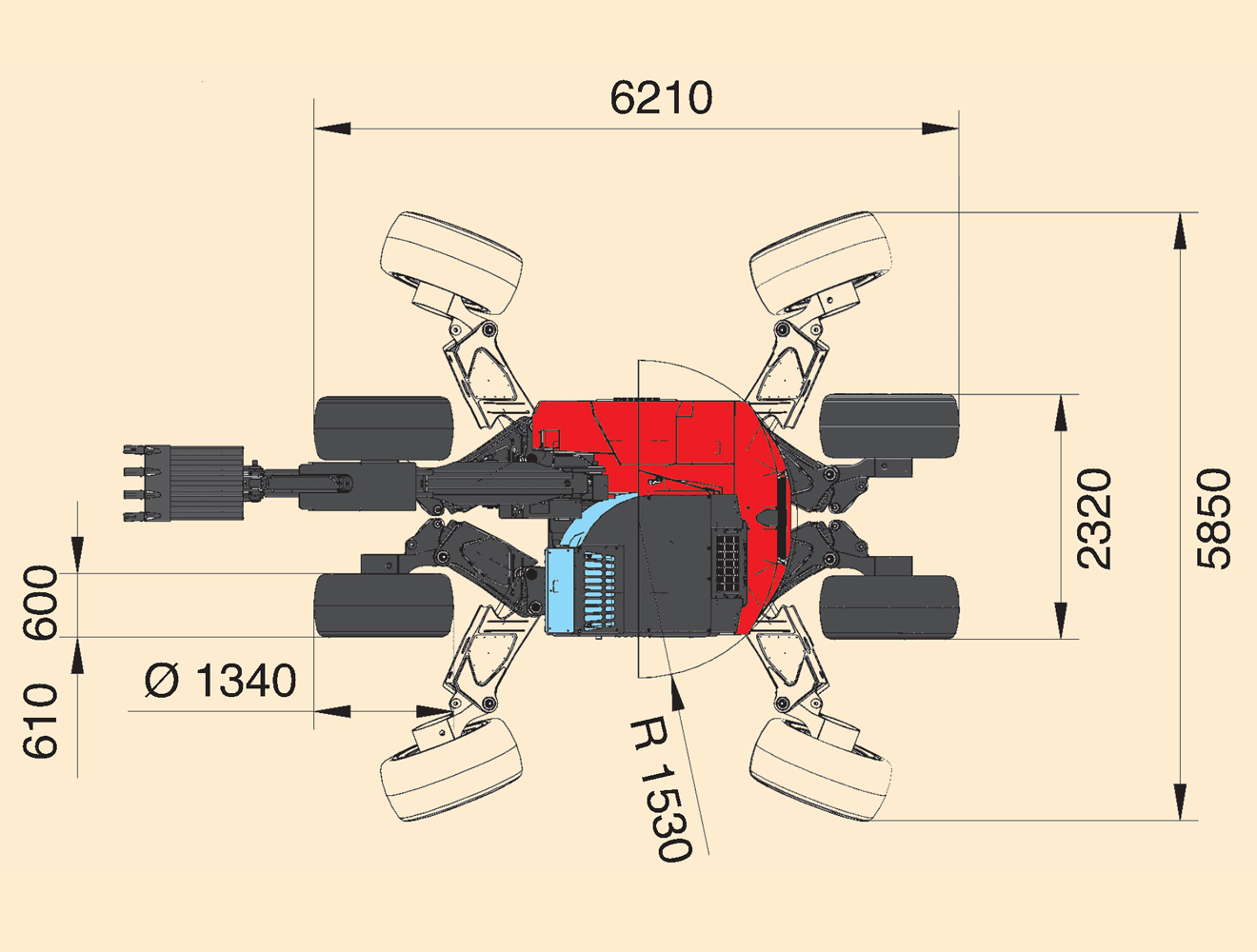

R45 Big Foot - Upper view
Steering wheels
R45 Big Foot - Upper view

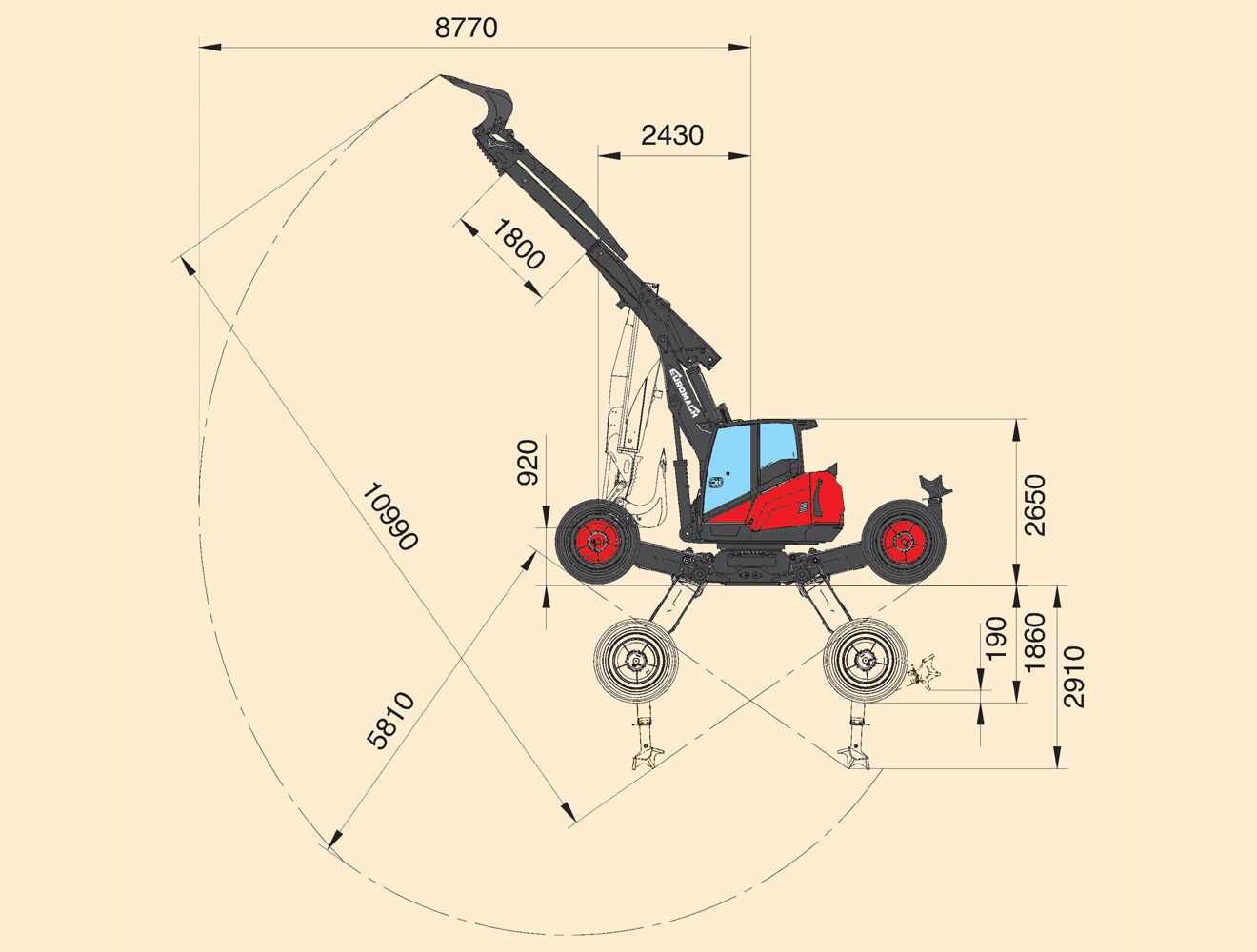

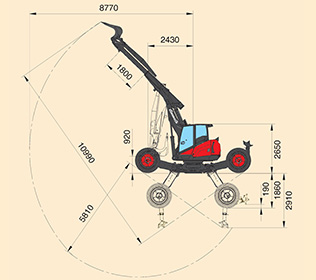

R45 Forester - Side view
Extension of 900
R45 Forester - Side view

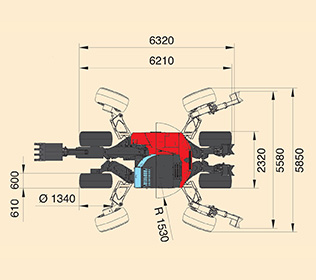

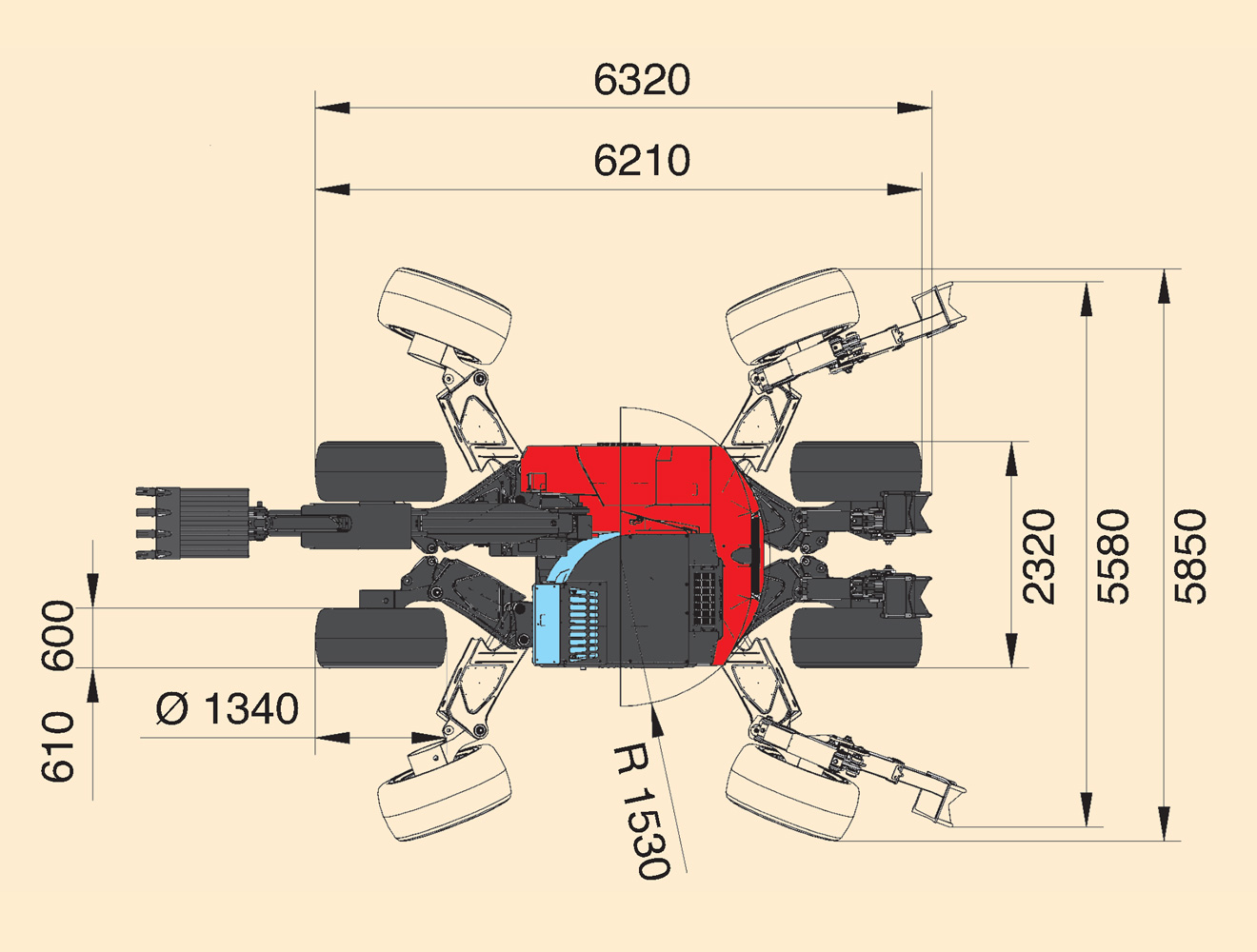

R45 Forester - Upper view
Steering wheels
R45 Forester - Upper view
Details (All images can be enlarged)
R45 Big Foot - Forester - Kubota V3307 Motor
Kubota V3307 Motor
R45 Big Foot - Four big drive wheels
Four big drive wheels
R45 Big Foot - Optimized accessibility
Optimized accessibility
R45 Big Foot  - Differential locking device and four steering wheels
Differential locking device and four steering wheels
R45 Big Foot - New cabin and new bonnets
New cabin and new bonnets
R45 Big Foot - Specific hydraulic systems to operate with mulchers
Specific hydraulic systems to operate with mulchers

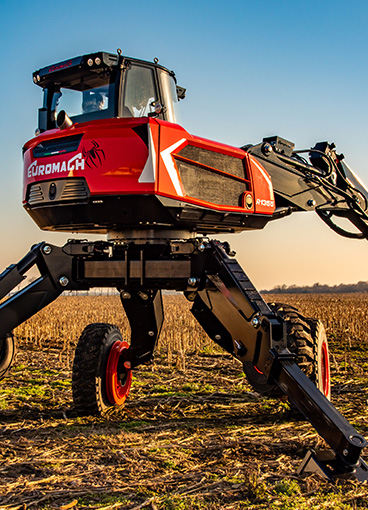

R45 Big Foot Forester - Great compactness
Great compactness
R45 Big Foot Forester - Possibility to install many accessories
Possibility to install many accessories

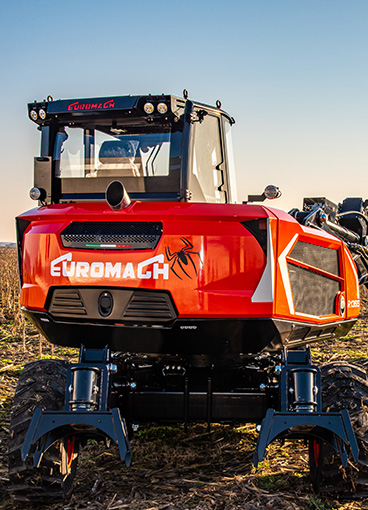

R45 Big Foot Forester - model with stabilizer
Forester model with stabilizer
Download the brochures with all the technical features
