R1355
R1355

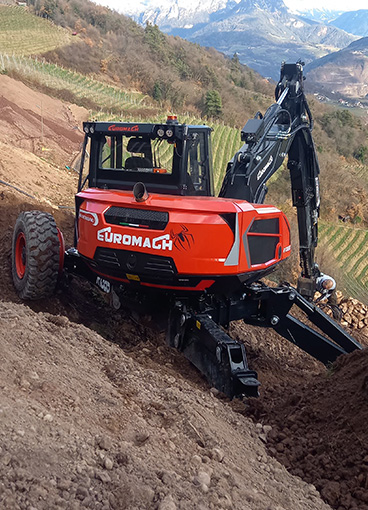

The new Euromach R1355 is the most powerful spider excavator in the world. High performance: Deutz 5.2L – 170 kW (231 Hp) engine, Stage V homologation, with particulate filter and AdBlue. Innovative design: new generation cab, redesigned bonnets and a completely renewed boom. Maximum efficiency: last generation Rexroth Load Sensing’s hydraulic system for higher management. Global flexibility: an engine without particulate filter and AdBlue is available for the extra-EU markets. Power, technology and reliability: the new Euromach R1355 is ready to face any challenge, even the snow.

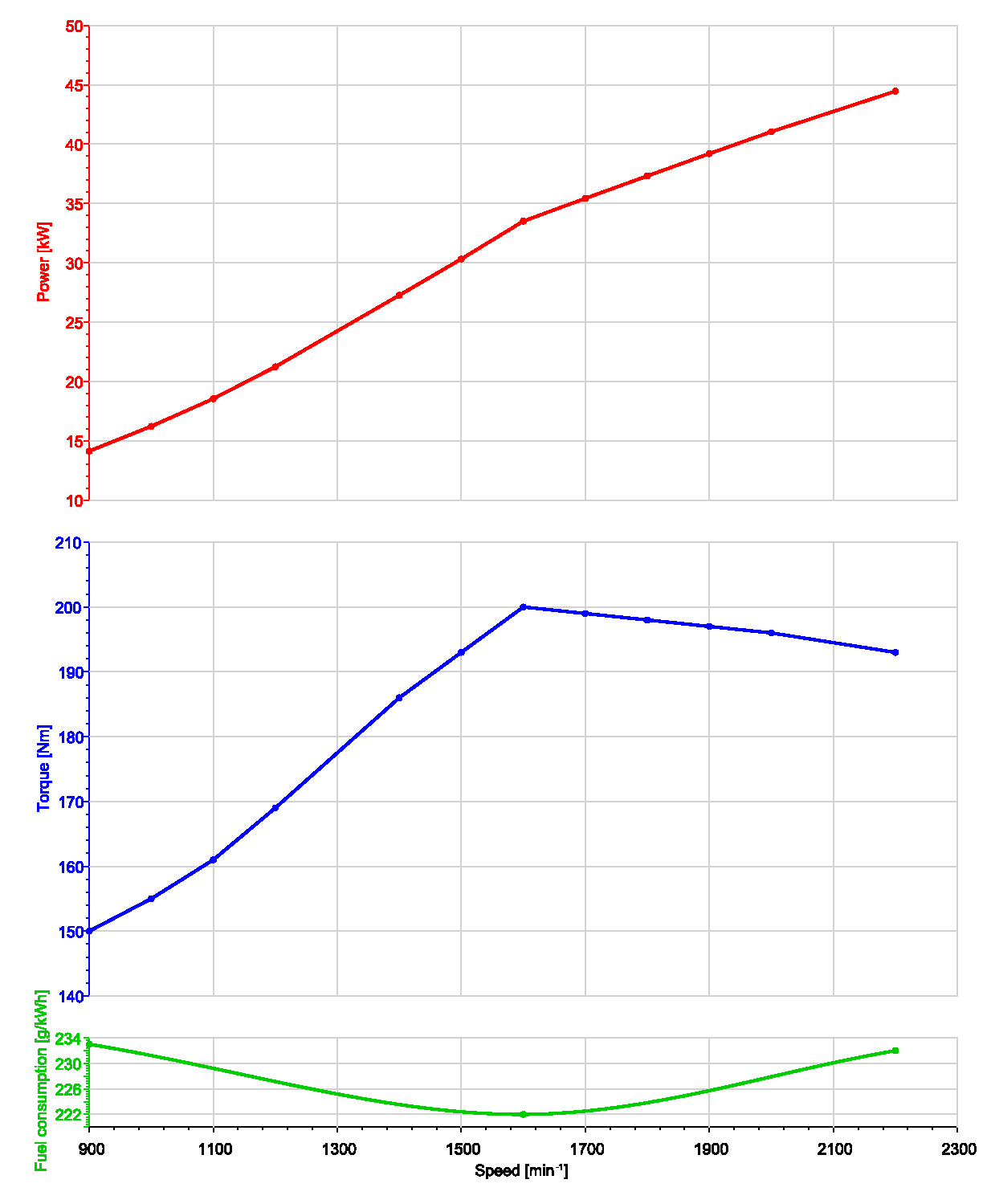

Engine:
Model: Deutz 5200 Stage V with particulate filter and AD BLUE

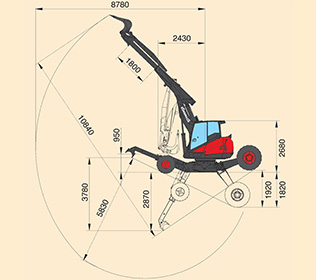

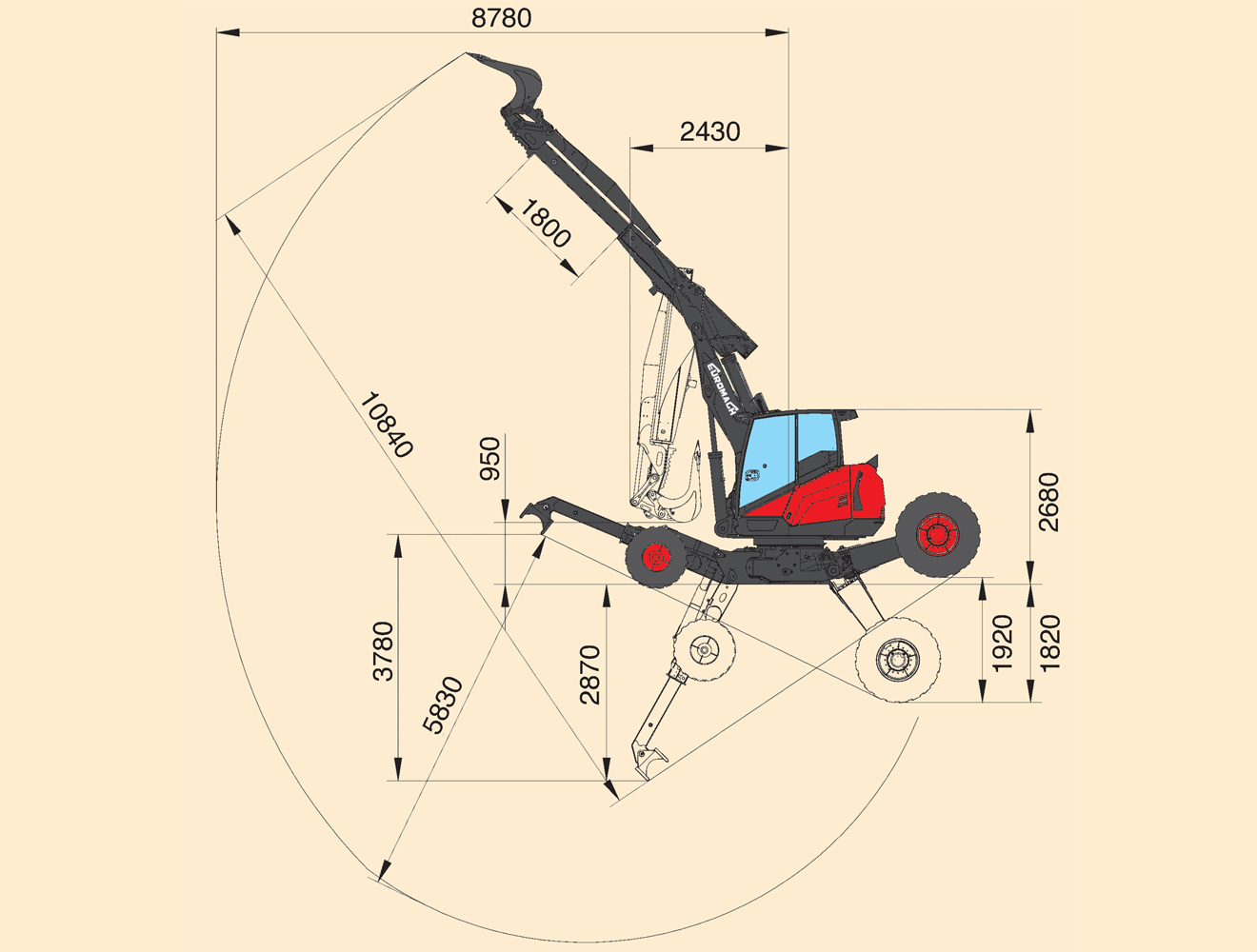

Click on the drawing to enlarge the image
Technical features
Operative weight
from 14.000 Kg to 16.000 Kg
Engine's model
Deutz 5200 Stage V
Engine's type
Diesel four strokes water cooled turbo variable geometric turbine
Engine size
5200 (cc)
Max power
170 Hp (231 KW)
Potential difference
24 V
Max arm extension
8780 mm
Total pumps flow
660 l/min
Penetration force
83 KN
Break off force
110 KN
Details (All images can be enlarged)

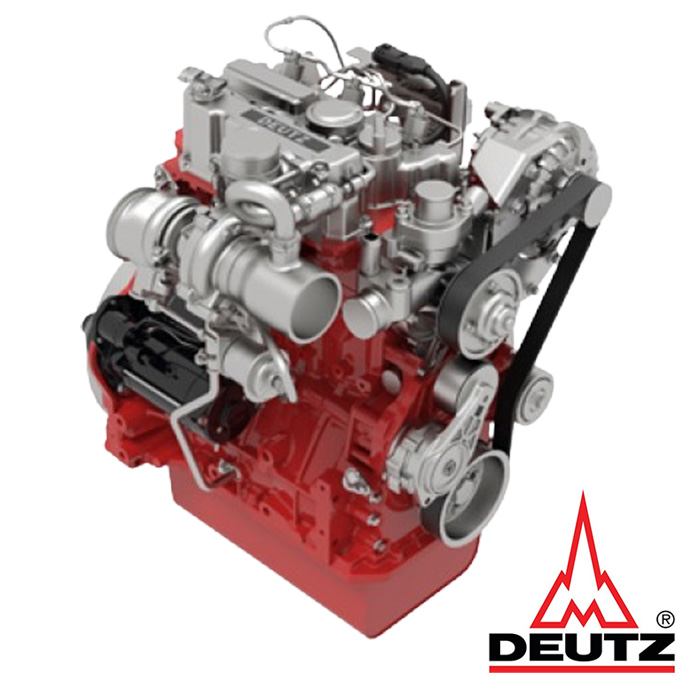

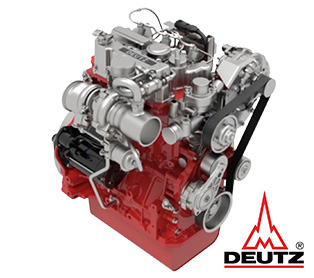

Deutz motor

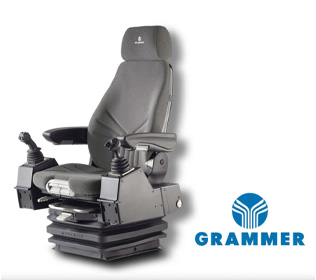

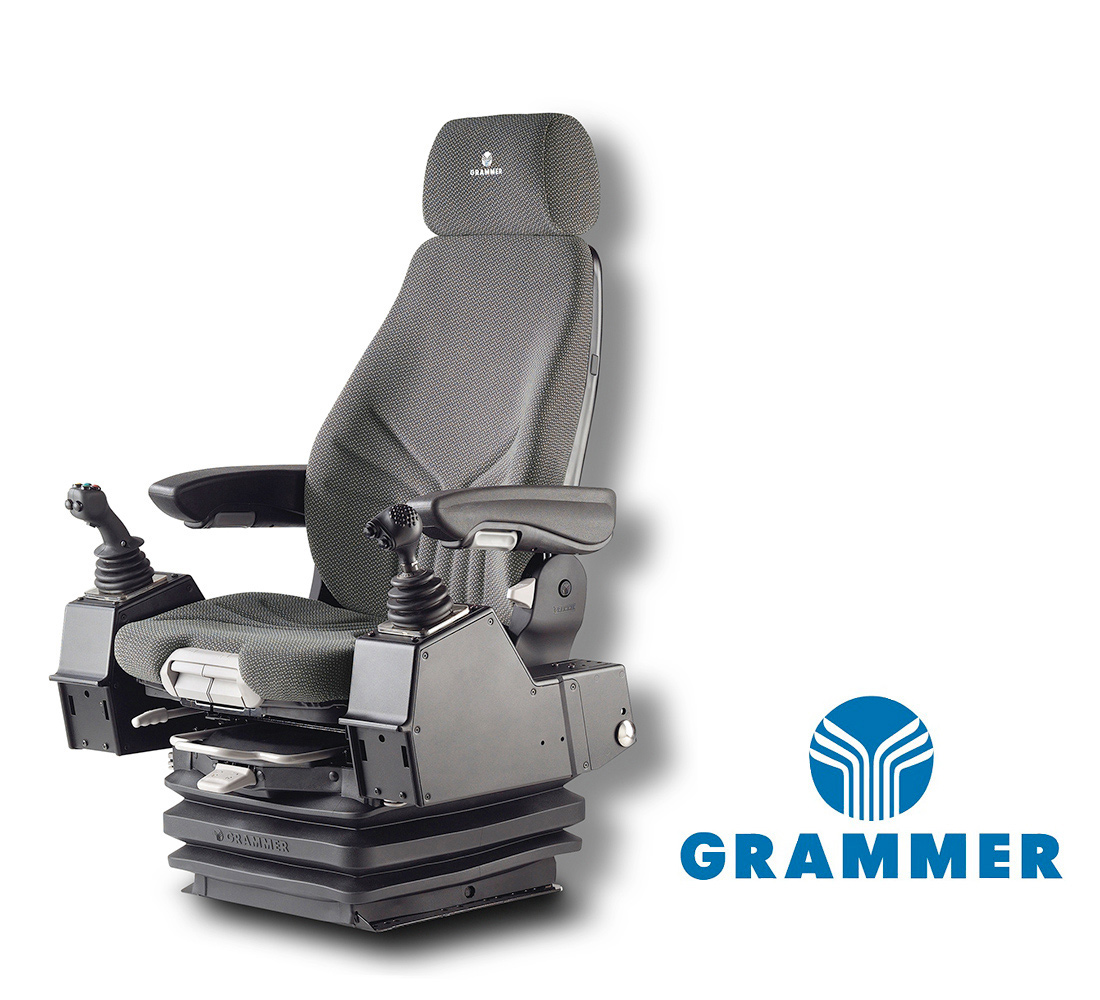

Grammer seat

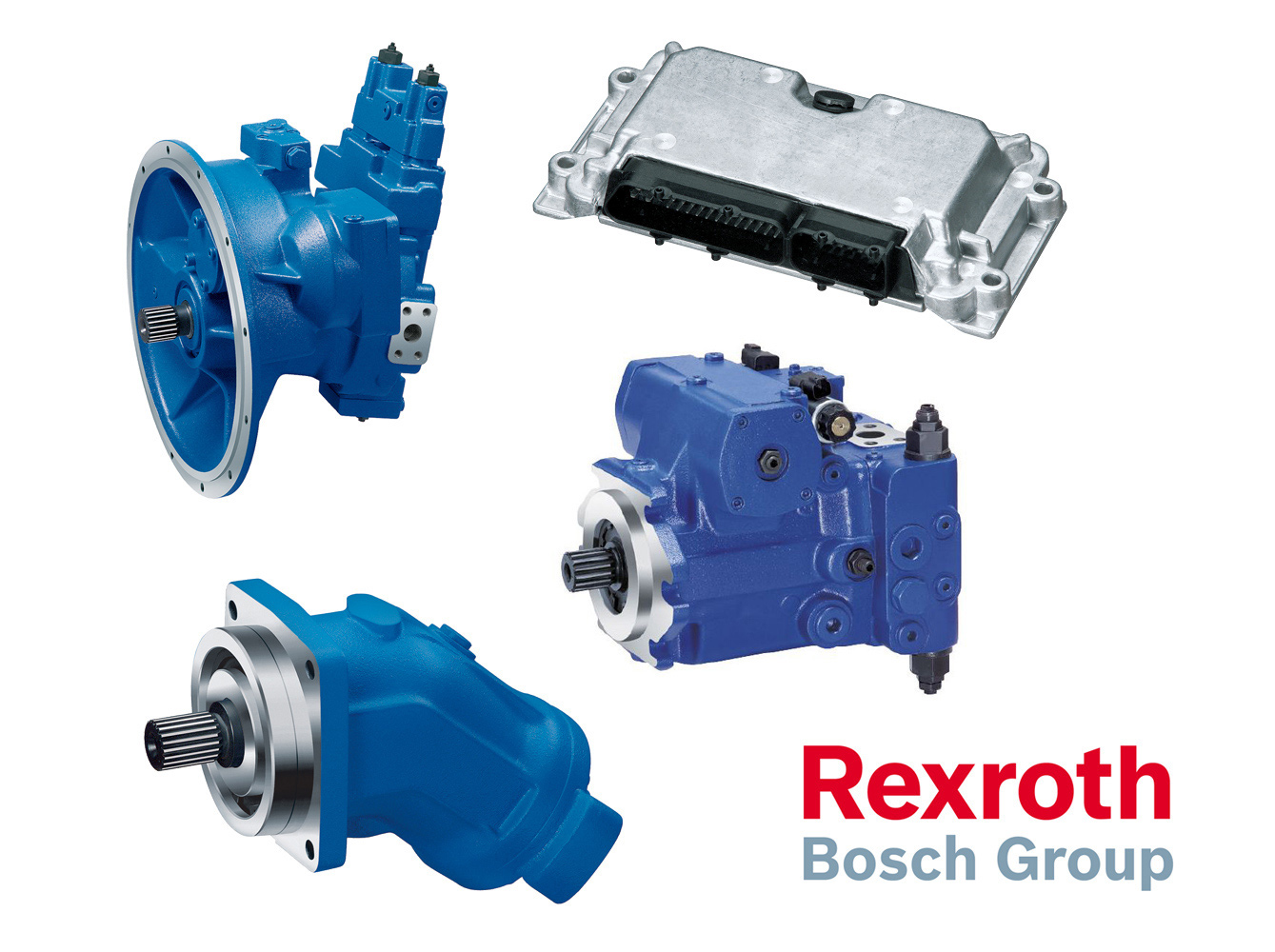

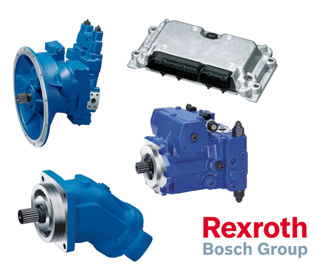

Rexroth components

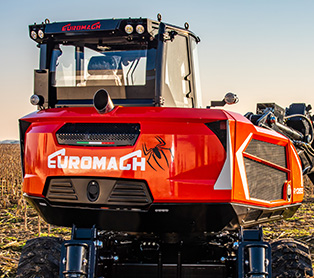

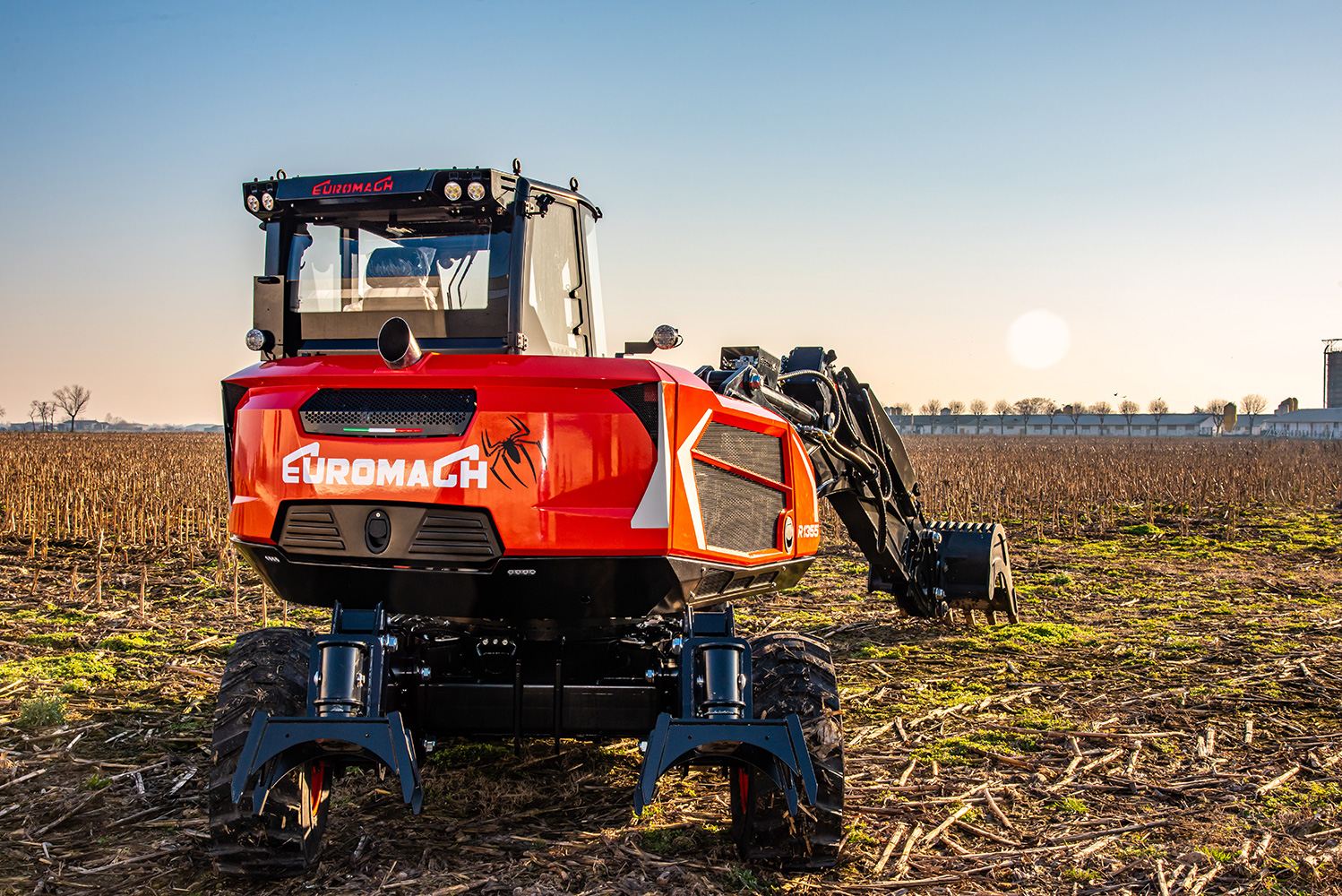

New bonnets

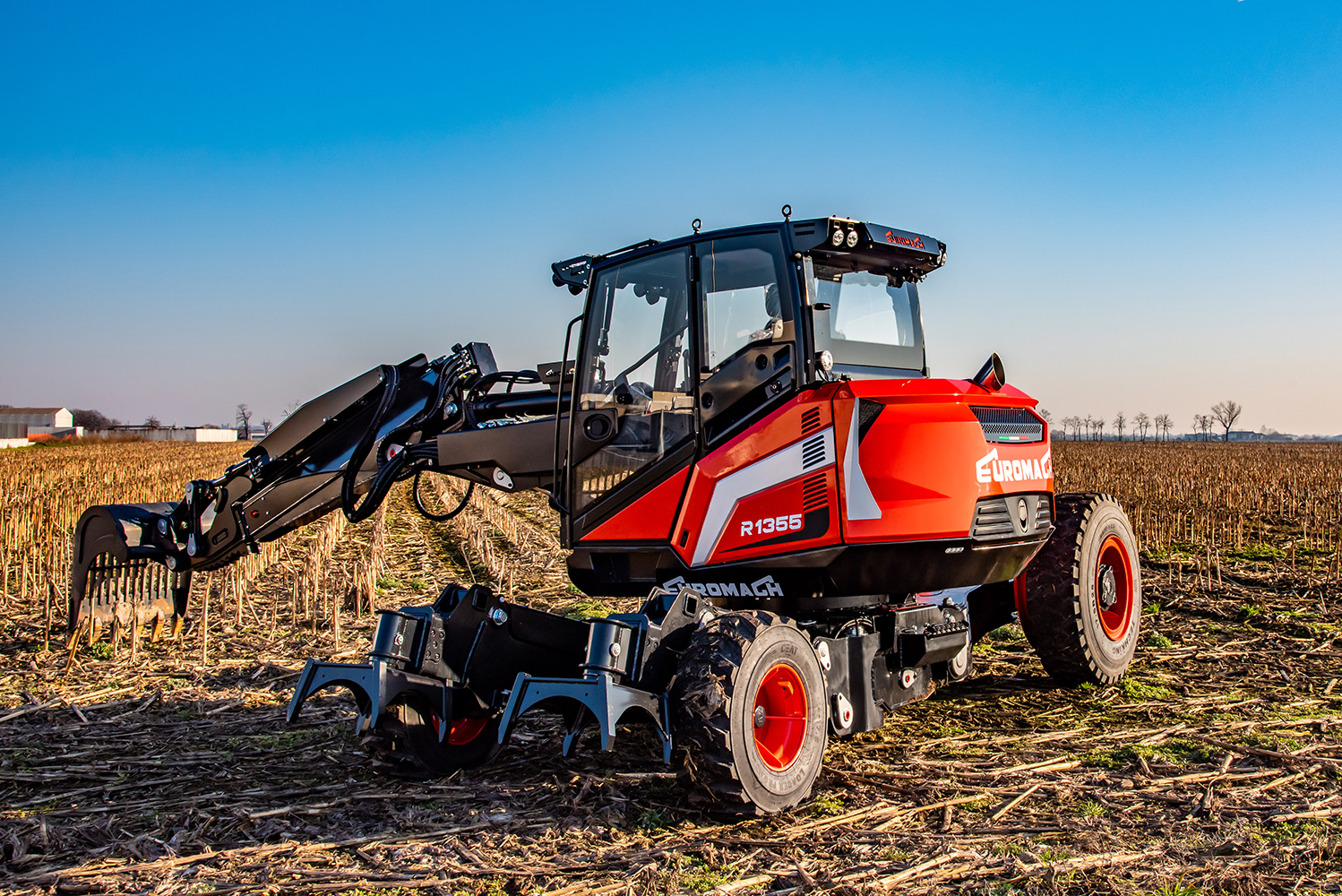

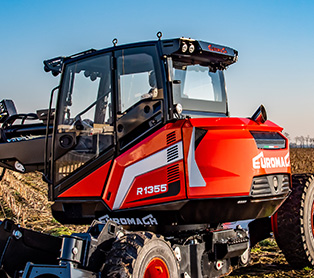

Rops and Fops certified cabin

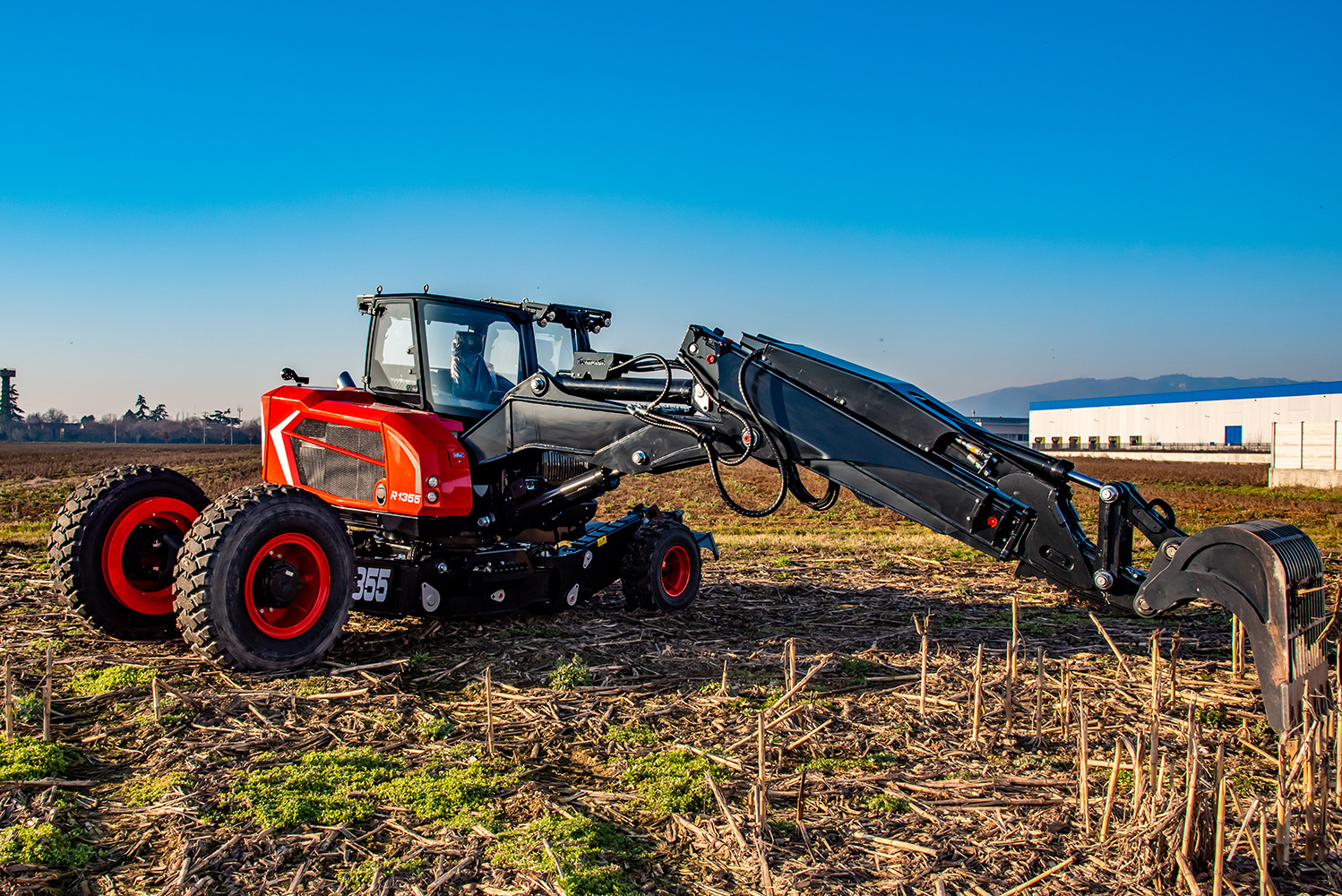

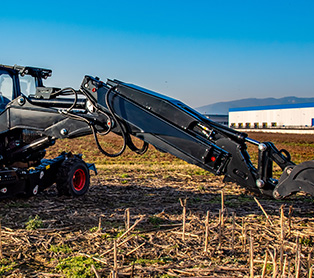

Boom's pipes on the left
Download the brochures with all the technical features

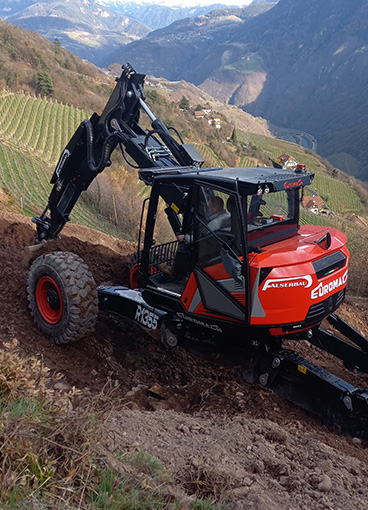

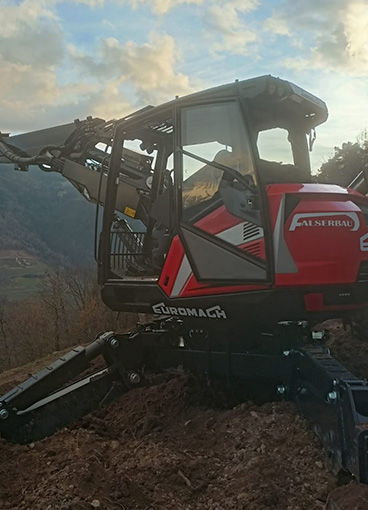

Photogallery (All images can be enlarged)
