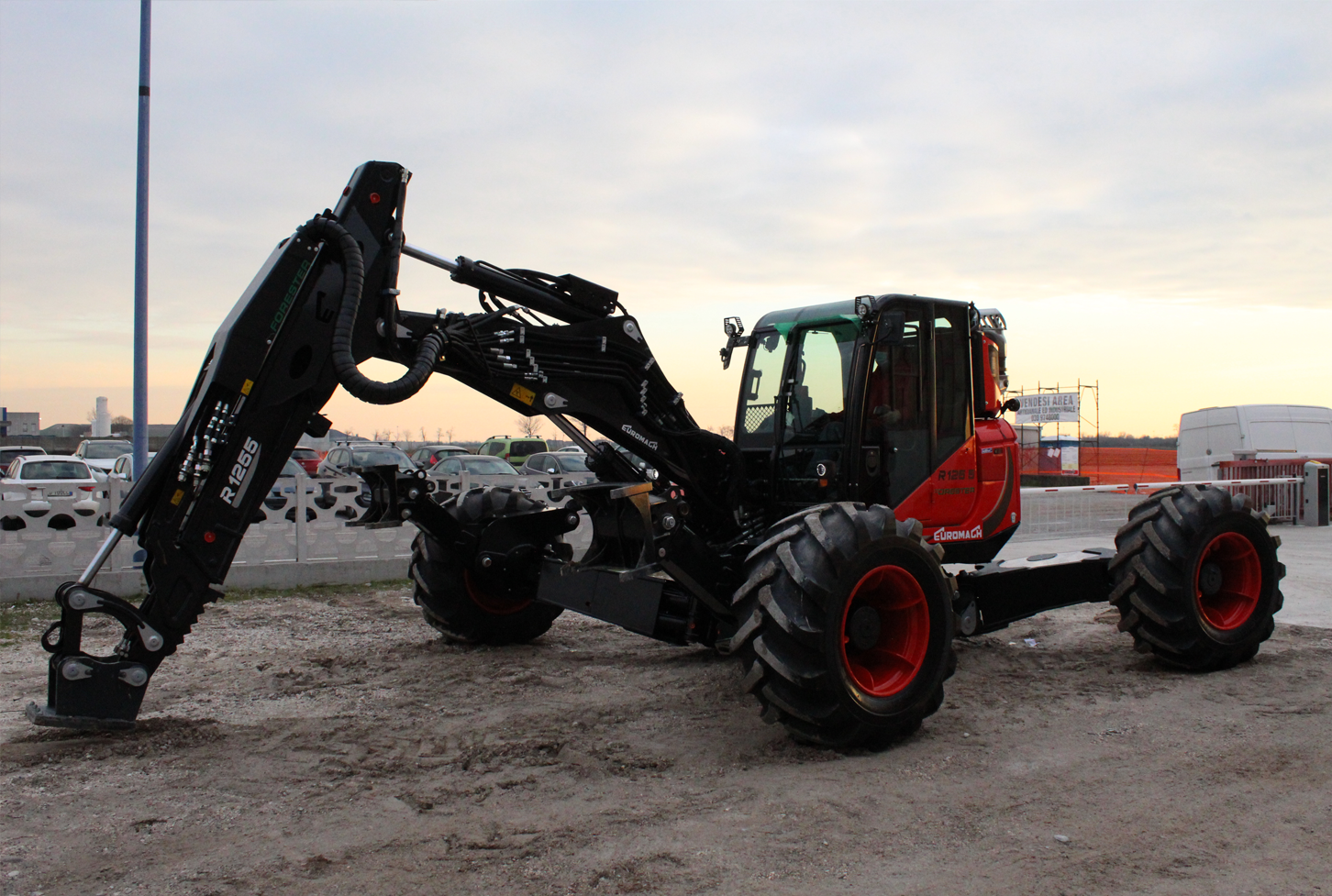

R1255 Big Foot Forester

The model R1255 Big Foot is totally original. As main features it has a great view inside the cabin, compact dimensions, an extraordinary maximum boom's length and a great ratio weight/power. The John Deere engine with 170 hp has a variable geometric turbine. It means a rapid torque and a low consumption/power ratio. Besides the motor has a particulate filter. The hydraulic system permit to install forestry mulchers and heavy accessories. Weight and dimensions of this excavator permit to work in hard places as creeks, ditches and swampy areas. Its symmetric framework has four steering big wheels and has a limited width of 2100 mm; so it's able to work in narrow places. Its hydraulic system has a great performance and a secondary pump only for the traction in a close circuit. The rotation with a hydraulic motor Poclain without gears guarantees a control and a performance that can't be compared with no others.

The Forester model has besides two hydraulic paws (four on double Forester model) on the front legs.
John Deere
Engine:
John Deere
Model: John Deere Stage III / Stage V
Technical features
Operative weight
13000 Kg (Big Foot); 13550 Kg (Forester)
Engine's model
John Deere Stage III / Stage V
Engine's type
Diesel four strokes water cooled Tier 3 B
Engine size
4500 cc
Max power
125 kW (180 Cv)
Potential difference
24 V
Max arm extension
8860 mm
Total pumps flow
480 lit/min
Penetration force
73 KN
Break off force
118 KN

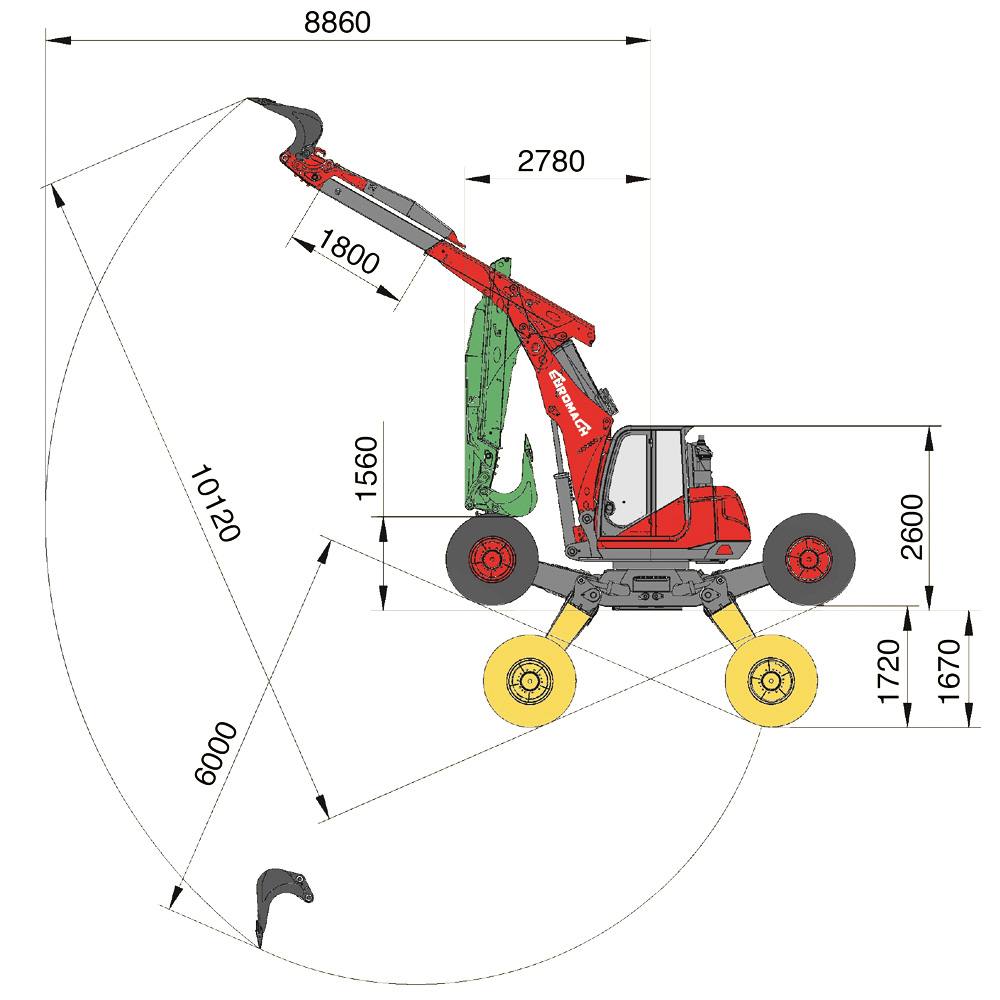

R1255 Big Foot - Side view
Extension of 1,8 m
R1255 Big Foot - Side view

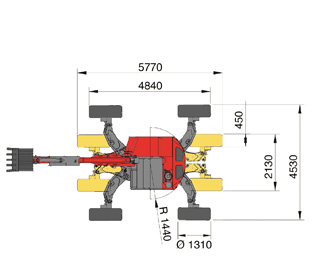

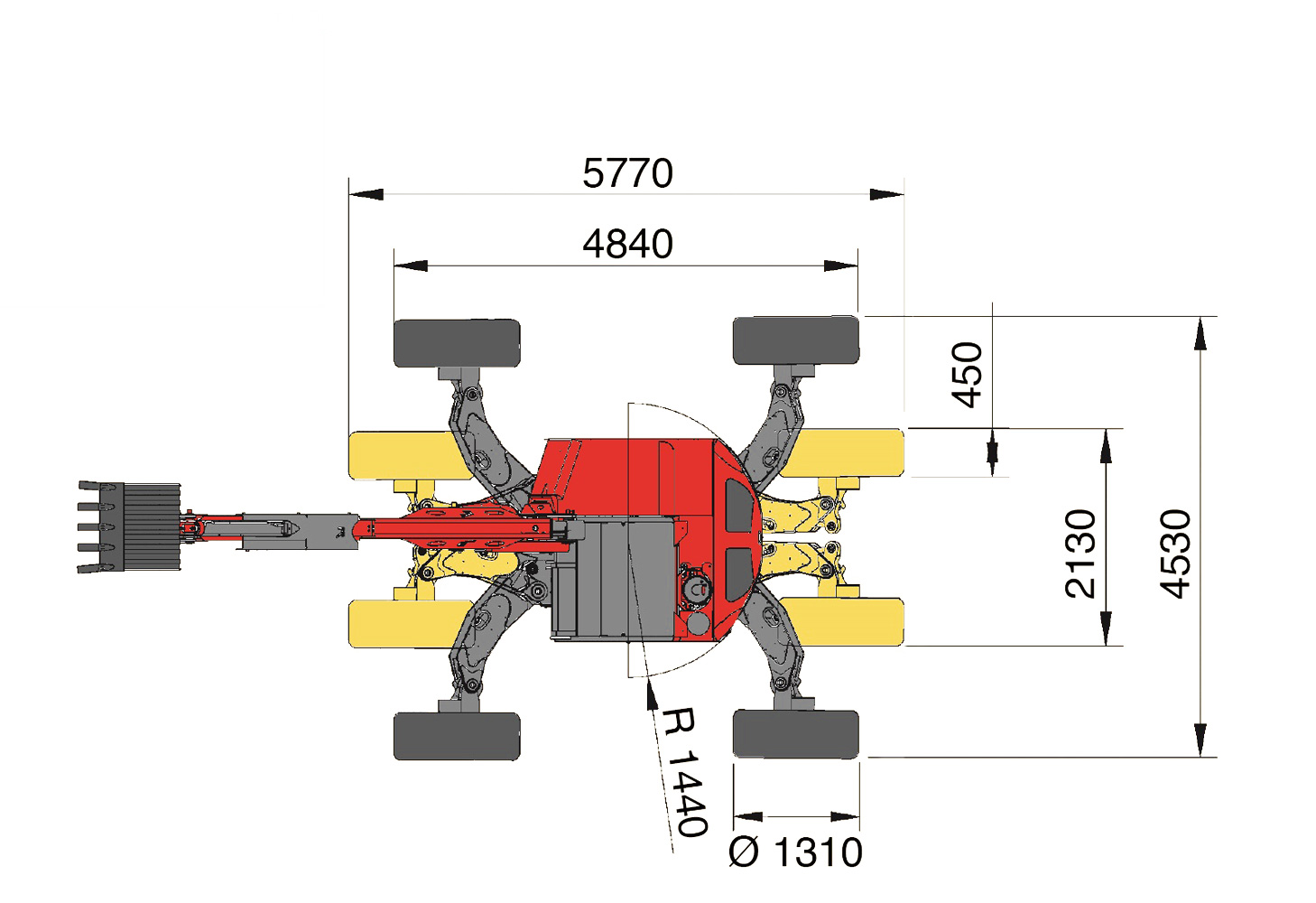

R1255 Big Foot - Upper view
4 steering wheels
R1255 Big Foot - Upper view

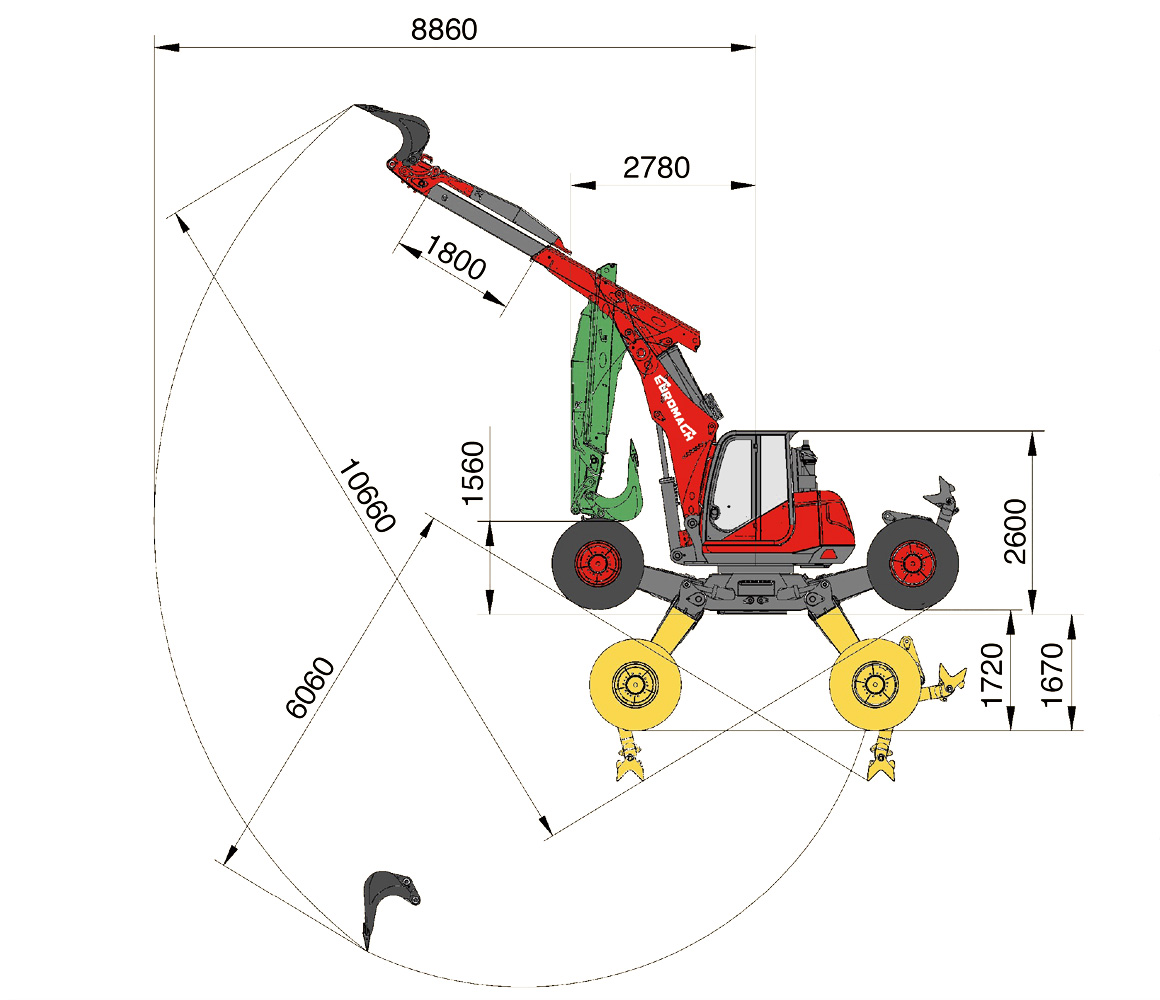

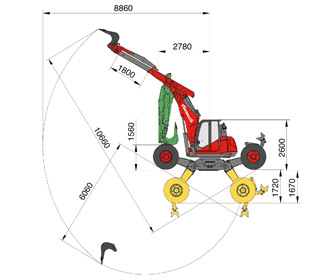

R1255 Forester - Side view
Extension of 1,8 m
R1255 Forester - Side view

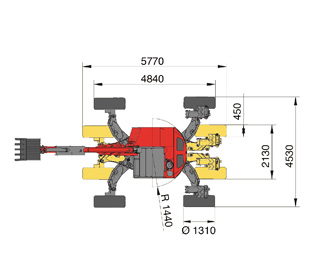

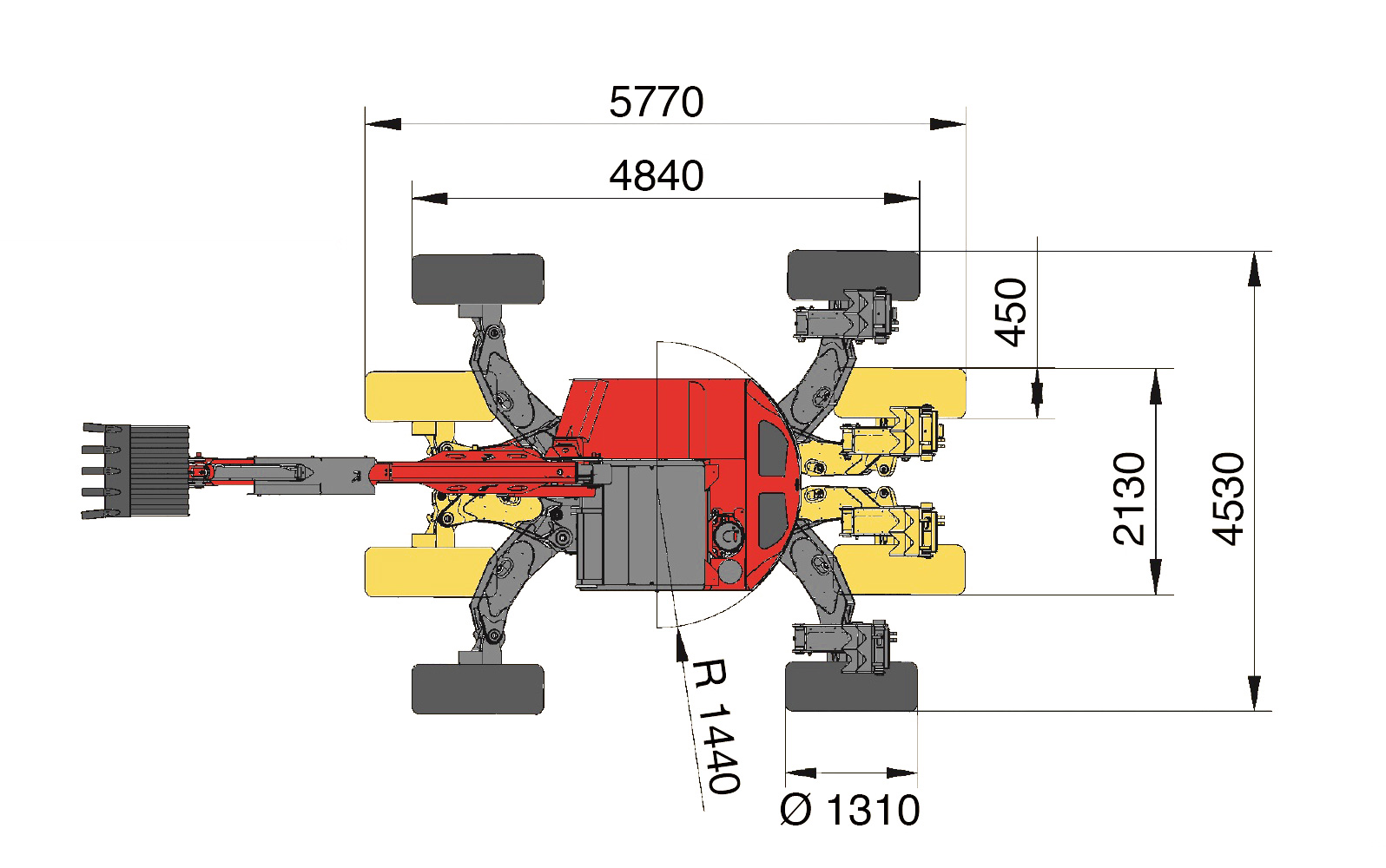

R1255 Forester - Upper view
4 steering wheels
R1255 Forester - Upper view
Details (All images can be enlarged)

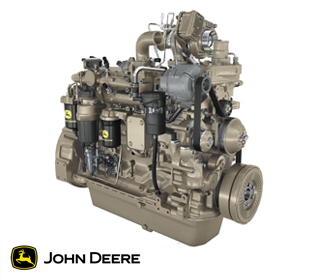

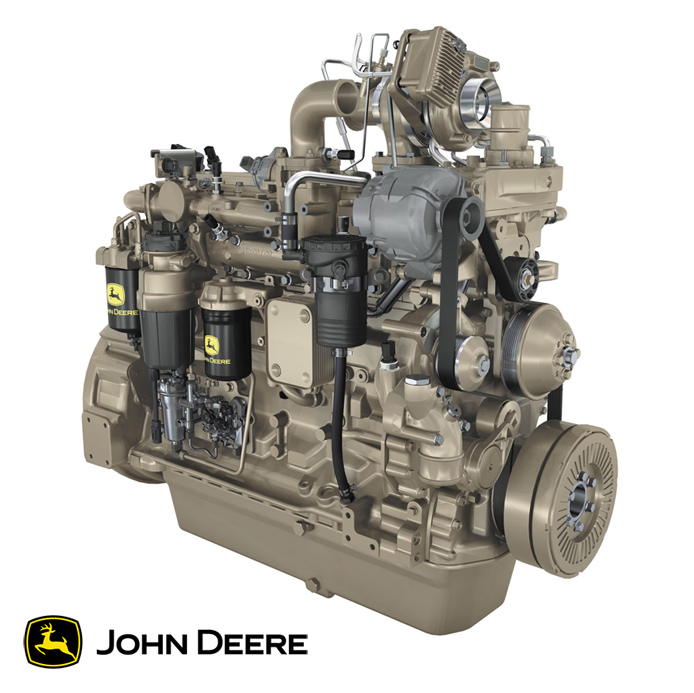

R1255 Big Foot Forester - John Deere Stage III / Stage V
John Deere Stage III / Stage V

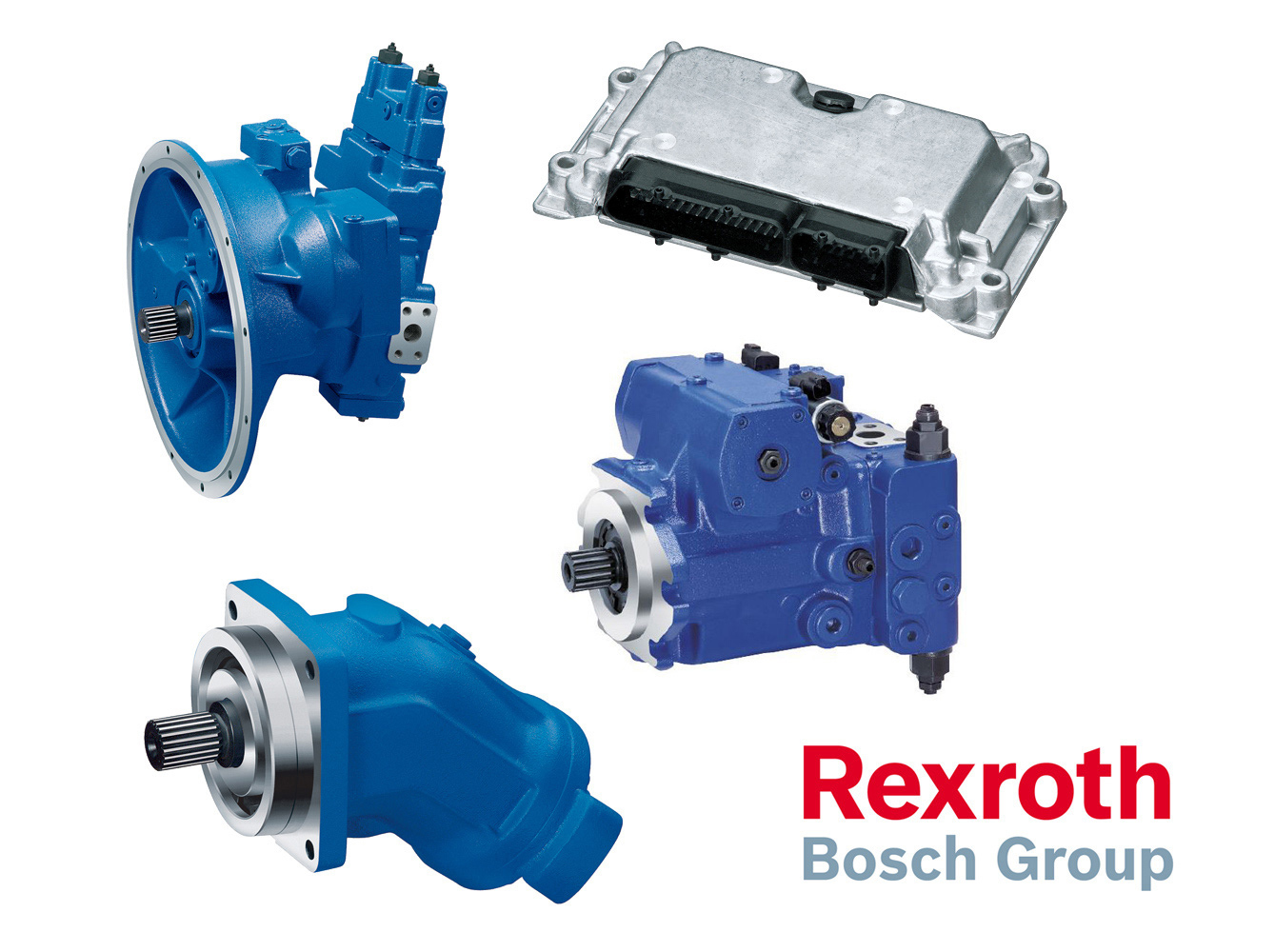

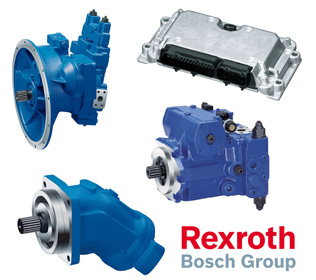

R1255 Big Foot Forester - Rexroth components
Rexroth components
R1255 Big Foot Forester - ROPS and FOPS certified cabin
ROPS and FOPS certified cabin
R1255 Big Foot Forester - Extension of 1,8 m
Extension of 1,8 m
R1255 Big Foot Forester - Suitable for high power request accessories
Suitable for high power request accessories

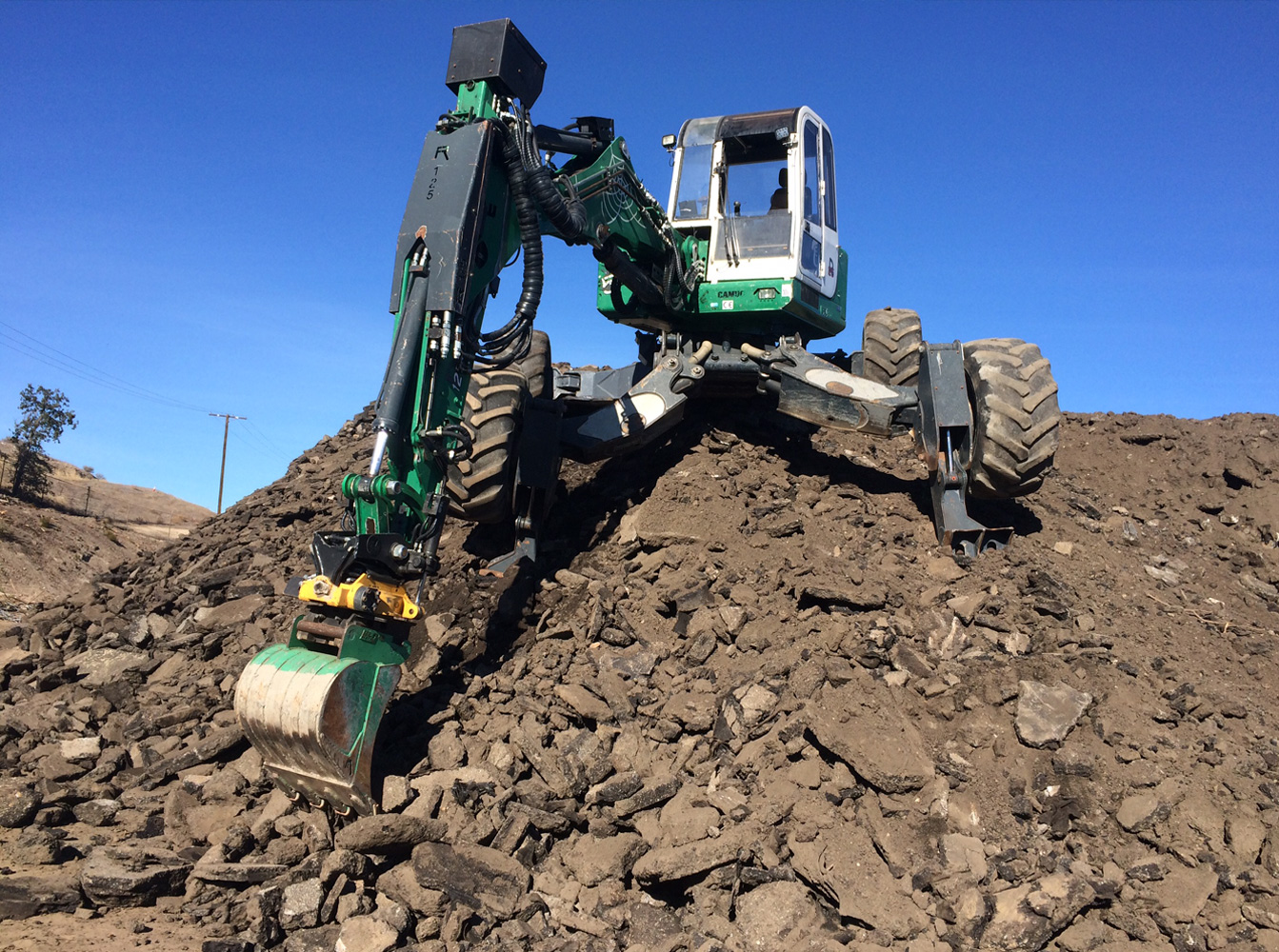

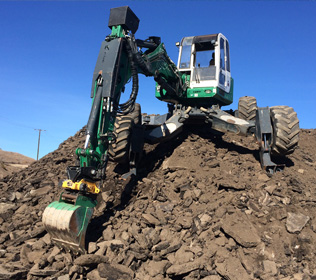

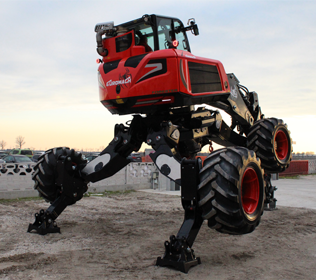

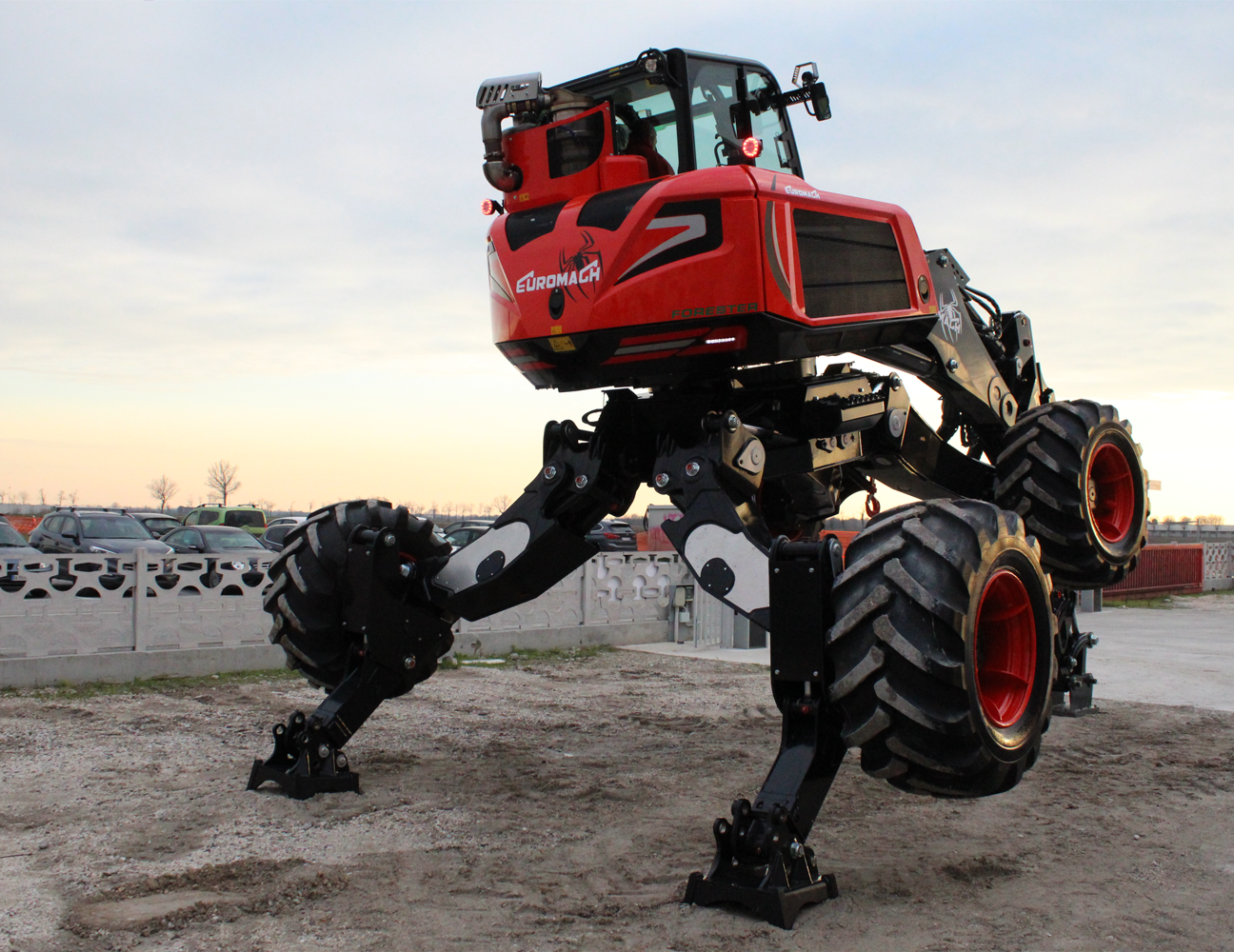

R1255 Big Foot Forester - Paws with hydraulic command
Paws with hydraulic command
R1255 Big Foot Forester - Four steering wheels
Four steering wheels

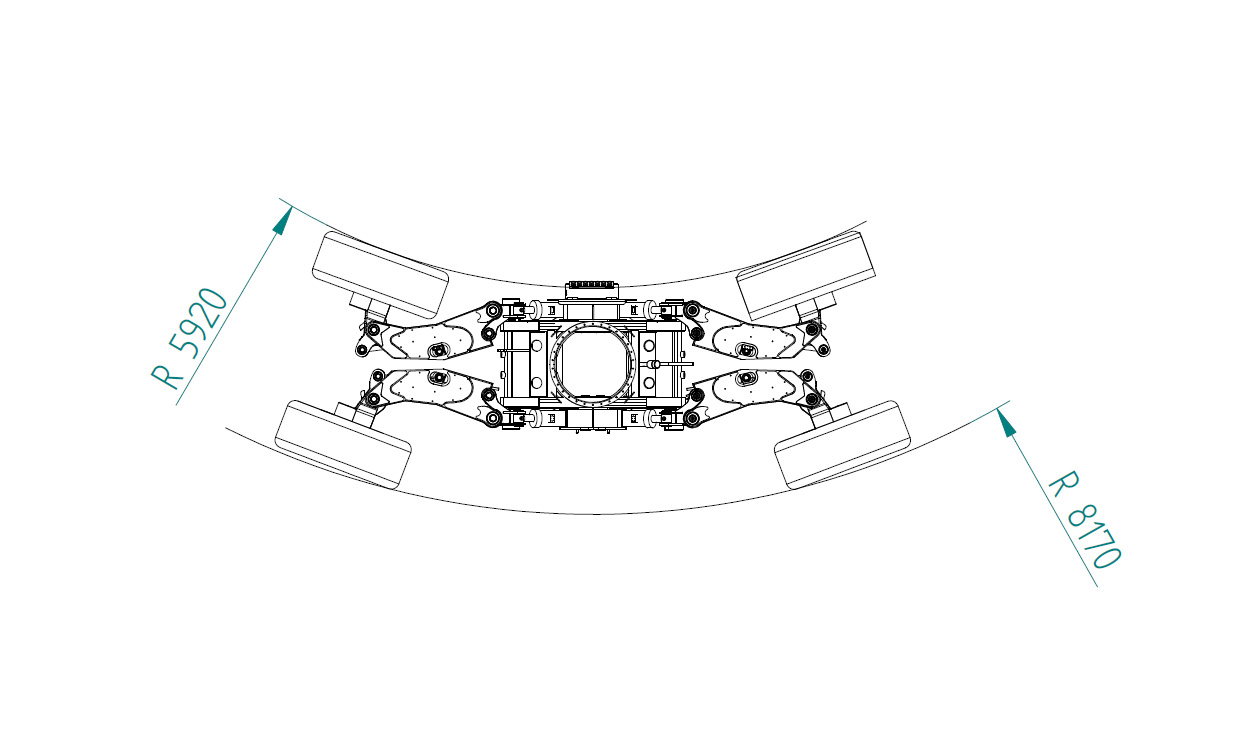

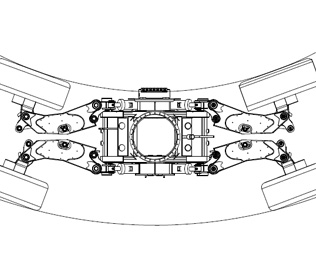

R1255 Big Foot Forester - Bending radius
Bending radius
Download the brochures with all the technical features
