R1055
R1055
The R1055 excavator was born from Euromach’s forty years of experience in construction of articulated excavators; however, it was designed keeping in mind the new costumers needs of these machines and using the latest innovations in field of hearth moving.
The machine was born from a complete reinterpretation of the old models, best integrated with the latest technological innovations.
The main point of the new model is the 3600 cc DEUTZ engine wich develops a power of 105 Kw (142 Hp) in the STAGE V version with FAP + SCR and ADBlue.
However, this new concept maintain the main feature, common to all our models, of extreme compactness of the machine.
The machine was born from a complete reinterpretation of the old models, best integrated with the latest technological innovations.
The main point of the new model is the 3600 cc DEUTZ engine wich develops a power of 105 Kw (142 Hp) in the STAGE V version with FAP + SCR and ADBlue.
However, this new concept maintain the main feature, common to all our models, of extreme compactness of the machine.
Engine:
Model: Deutz TCD 3.6 Stage V / Stage IIIa

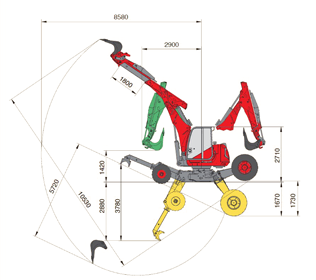

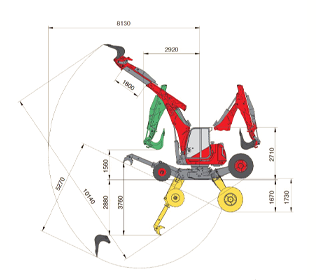

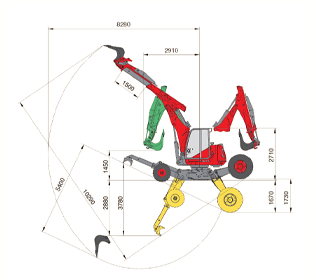

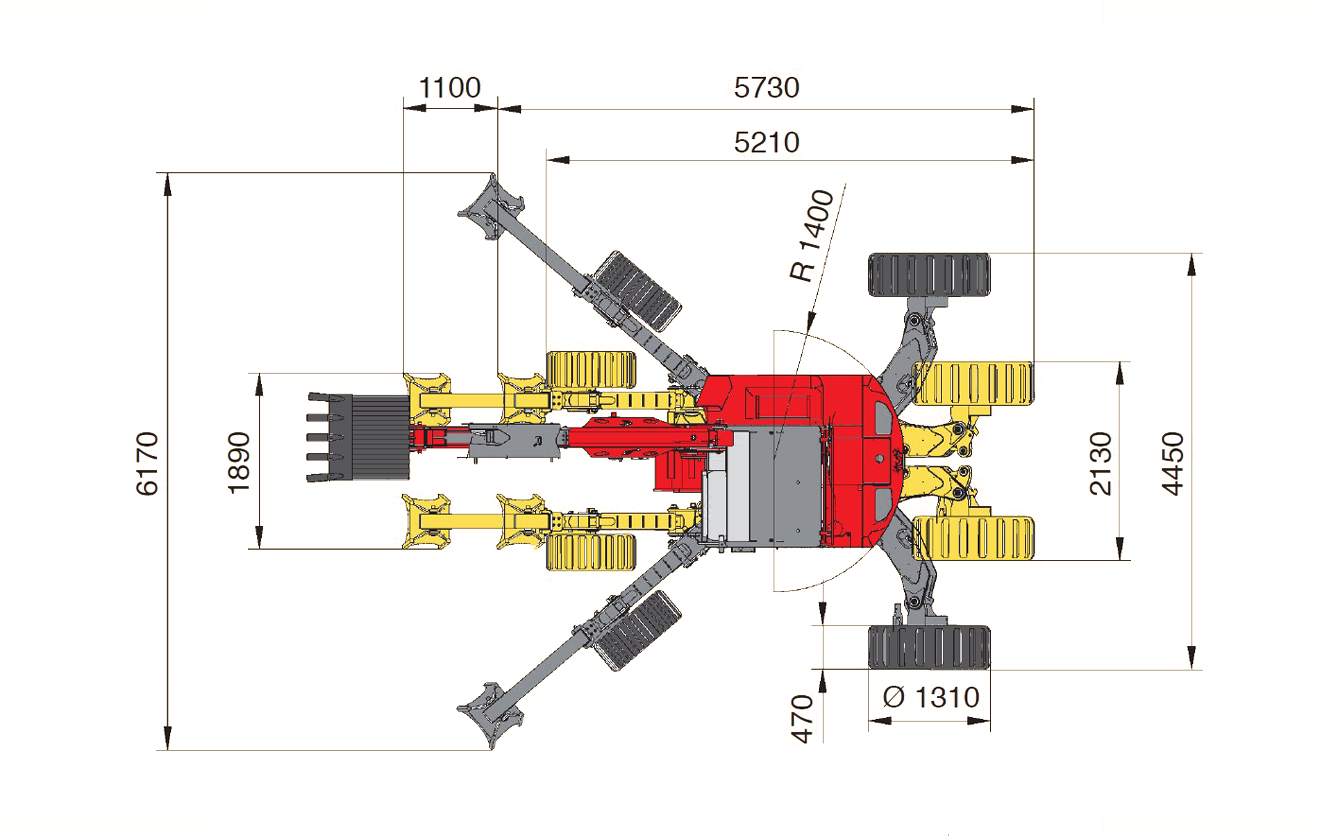

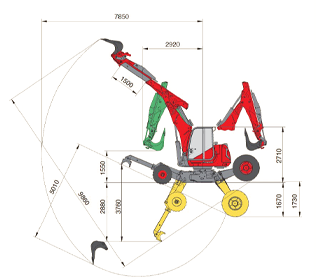

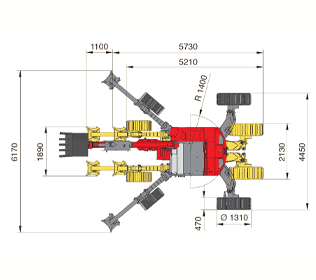

Click on the drawing to enlarge the image
Technical features
Operative weight
starting from 11500 Kg
Engine's model
Deutz TCD 3.6 Stage V / Stage IIIa
Engine's type
Water cooled 4 strokes turbo diesel, Intercooler
Engine size
3600 (cc)
Max power
Stage V > 142 Hp (105 Kw)
Stage IIIa > 134 Hp (100 Kw)
Stage IIIa > 134 Hp (100 Kw)
Potential difference
24 V
Max arm extension

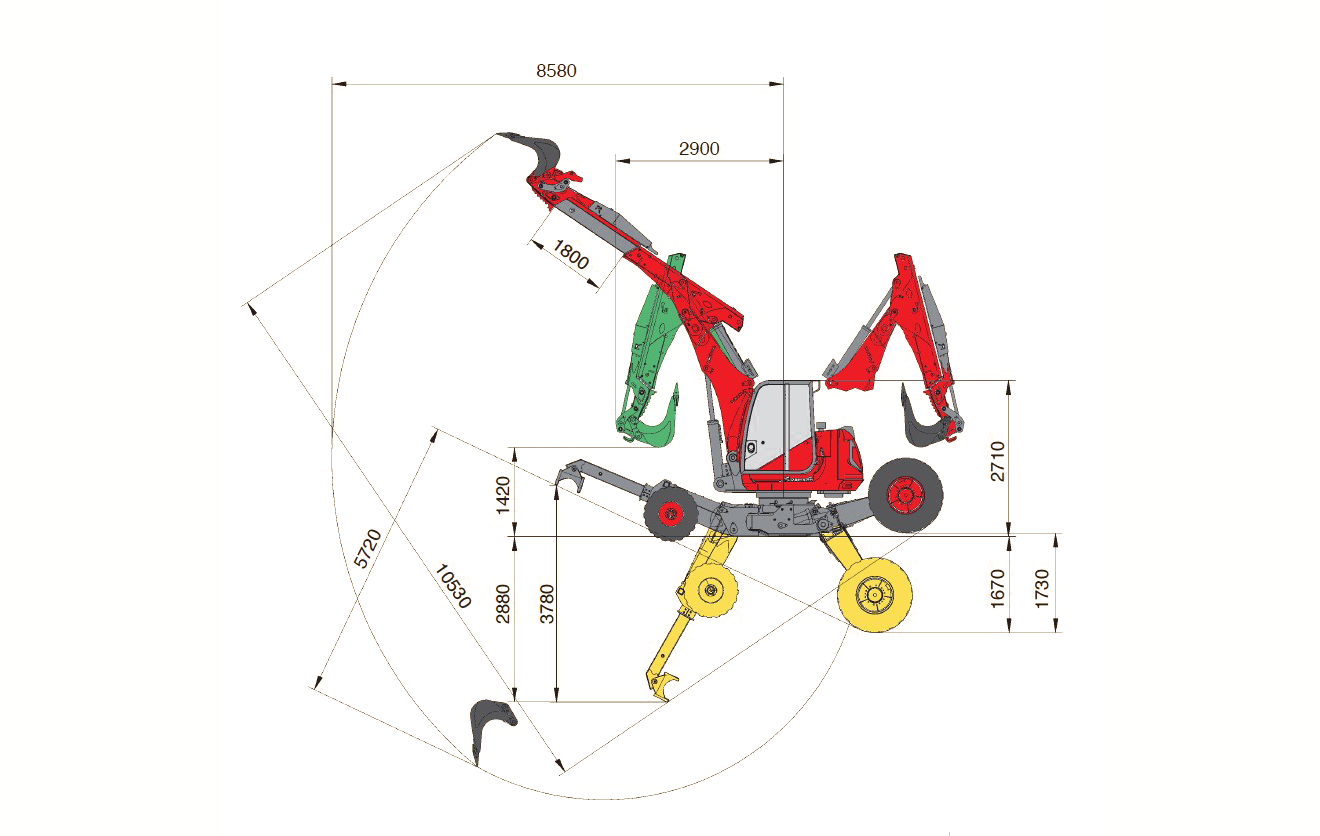

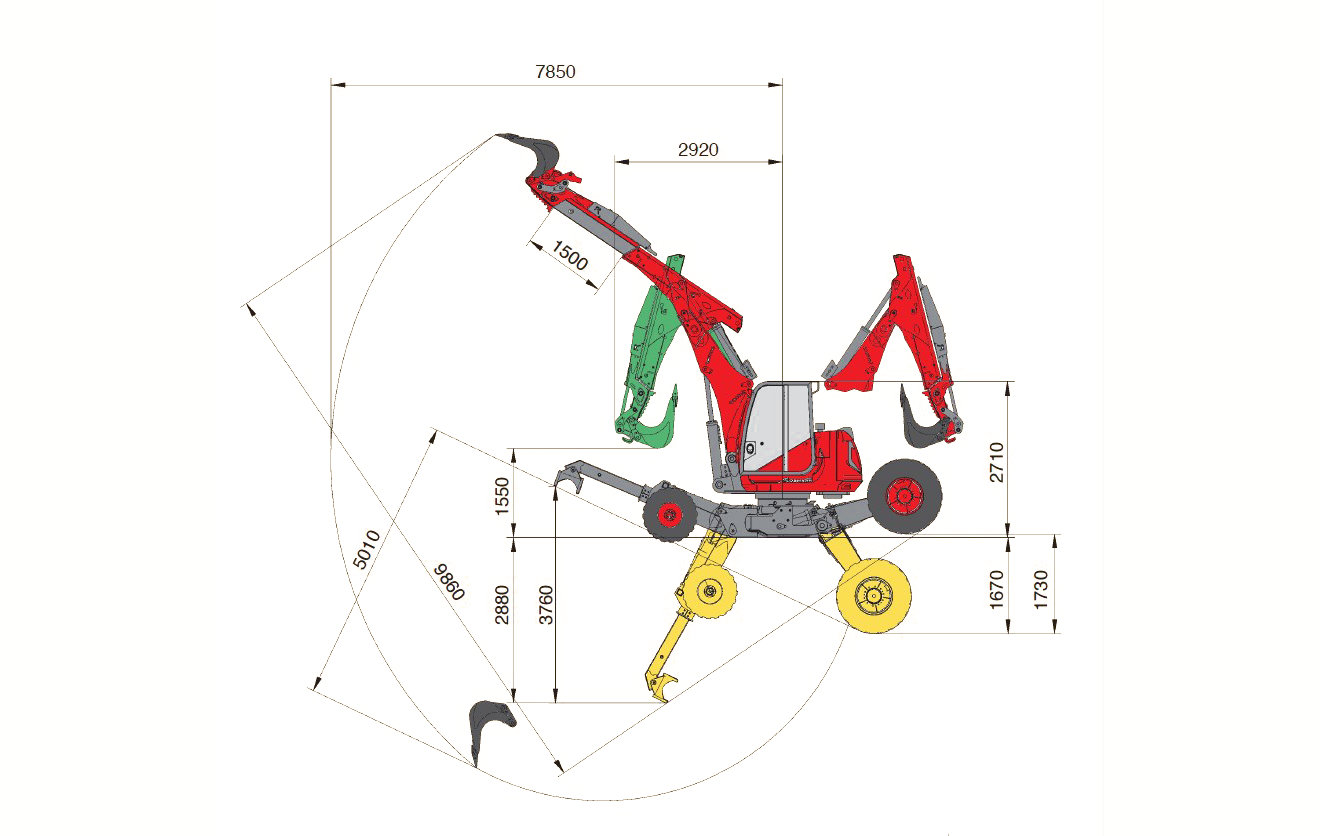

from 7850 mm (version A) to 8580 mm (version D)
Total pumps flow
480 l/min
Penetration force
62 KN
Break off force
110 KN
Details (All images can be enlarged)

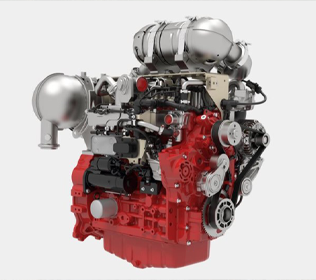

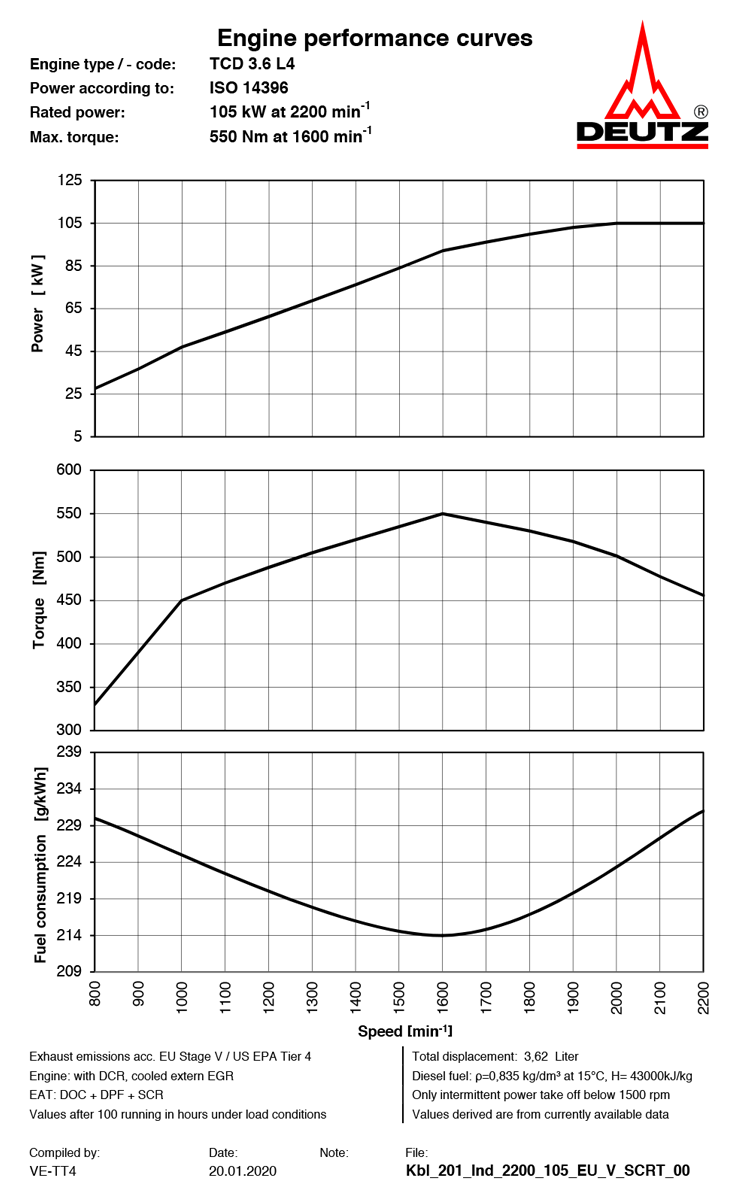

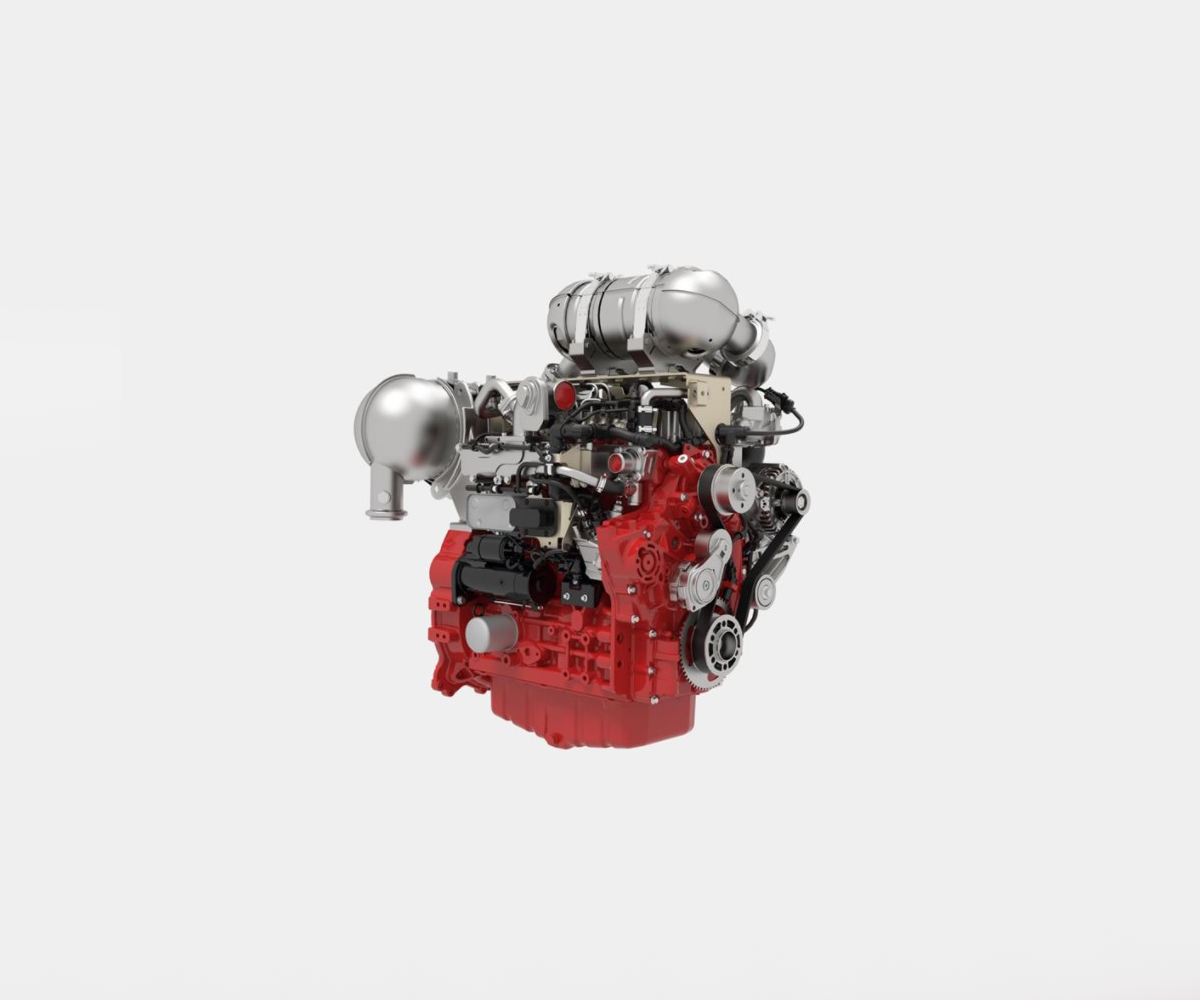

Deutz motor
Rexroth translation system

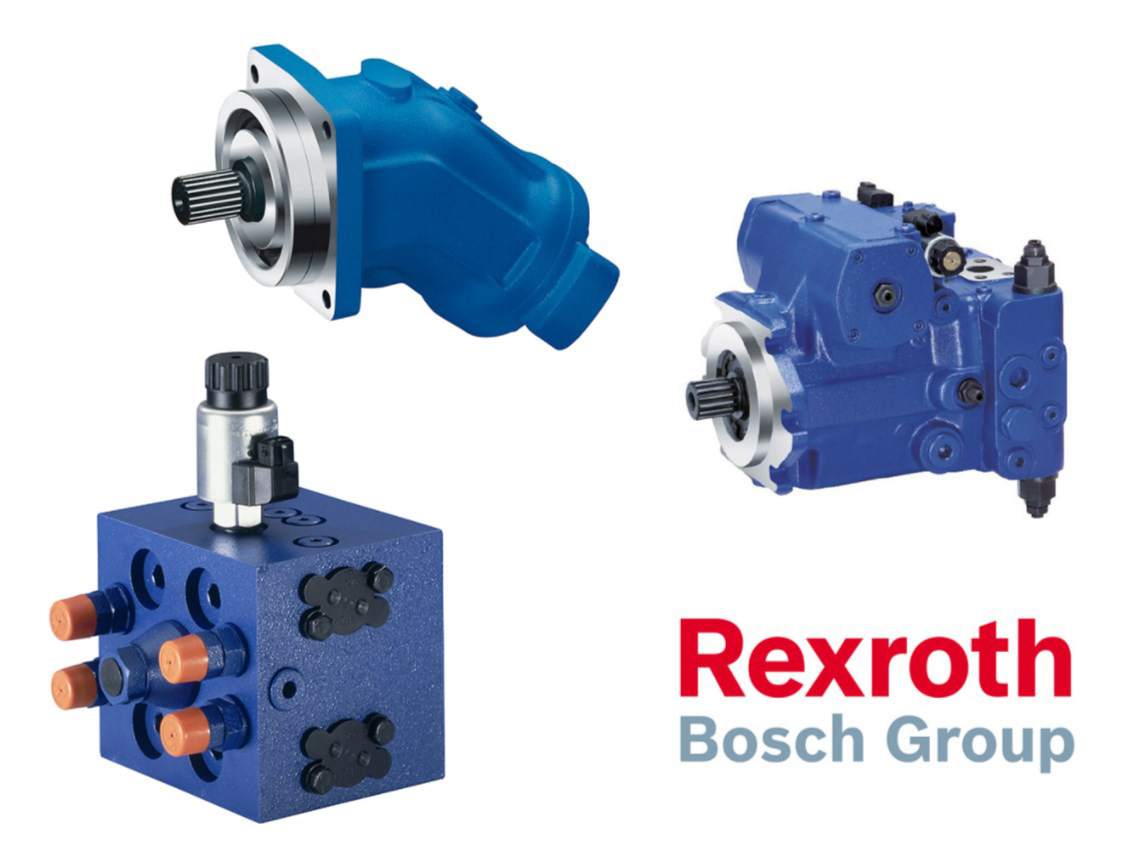

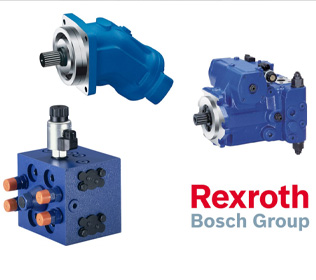

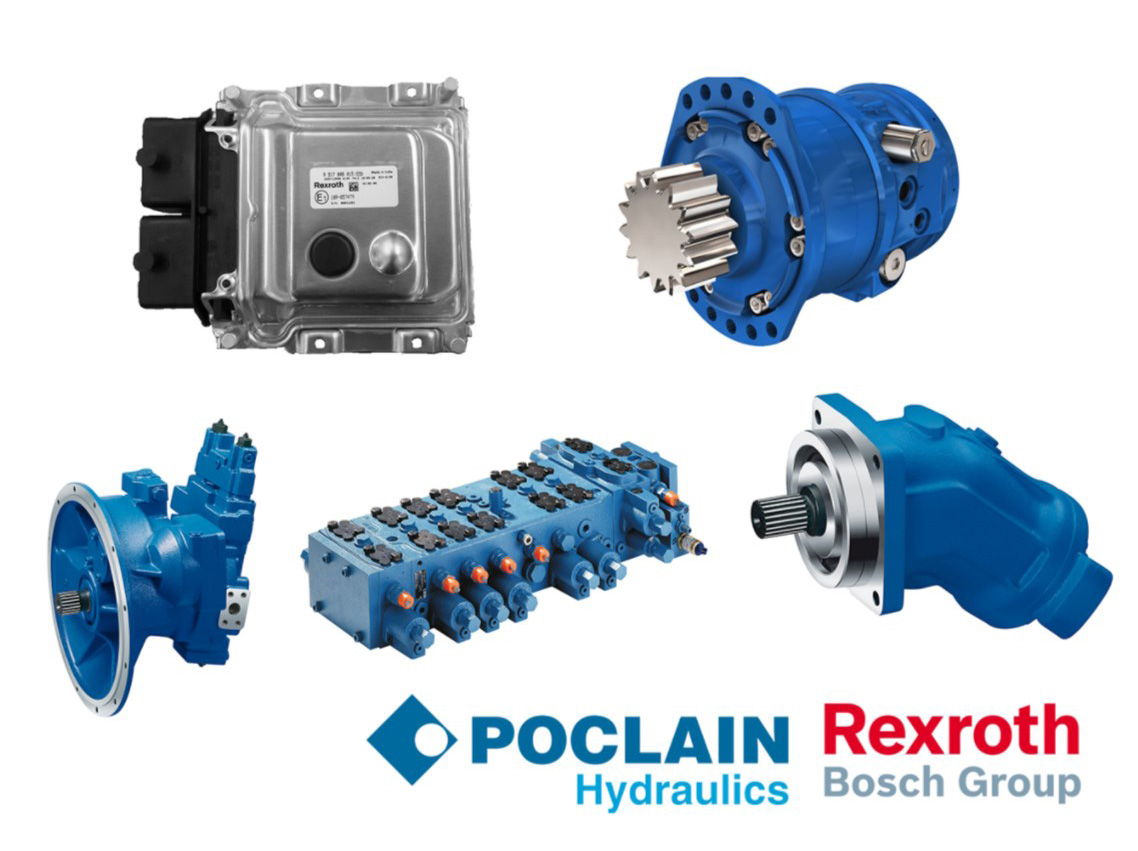

Rexroth components

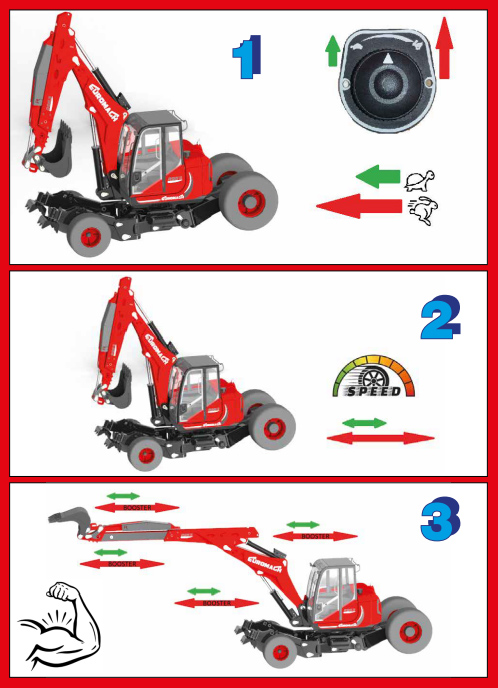

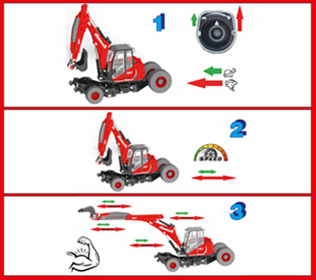

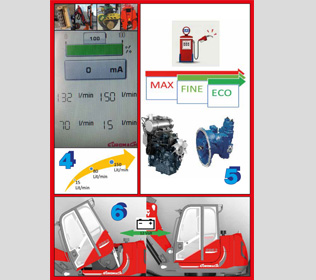

Control of motor’s acceleration (1), control of traction’s speed (2), control of cylinders’ force (3)

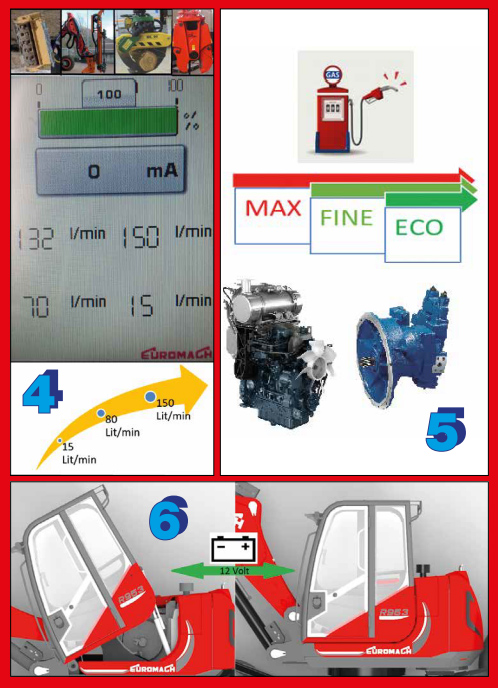

Memorization of four accessories’ flow (4), three controls of motor’s power (5), electric lift of cabin (6)
Download the brochures with all the technical features

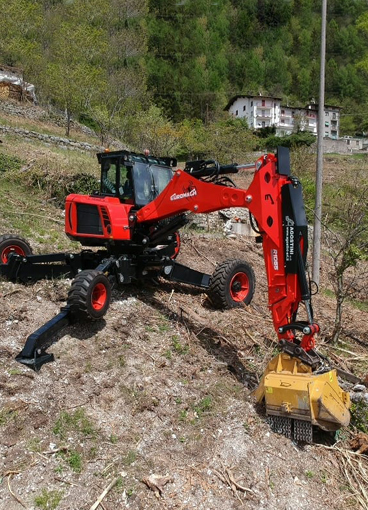

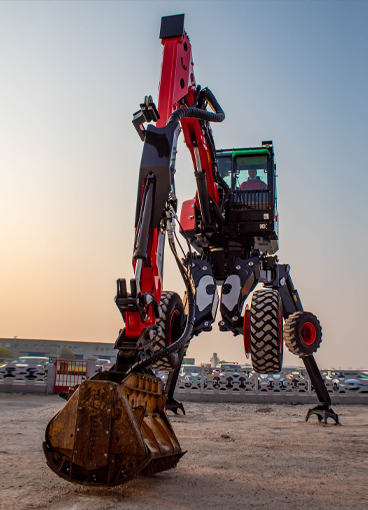

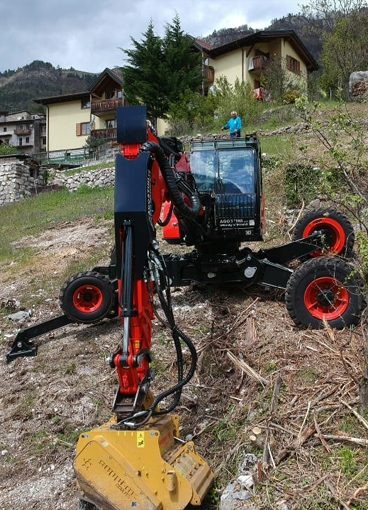

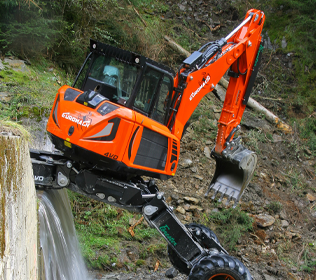

Photogallery (All images can be enlarged)
