R555H Big Foot - Forester

R555H Big Foot - Forester

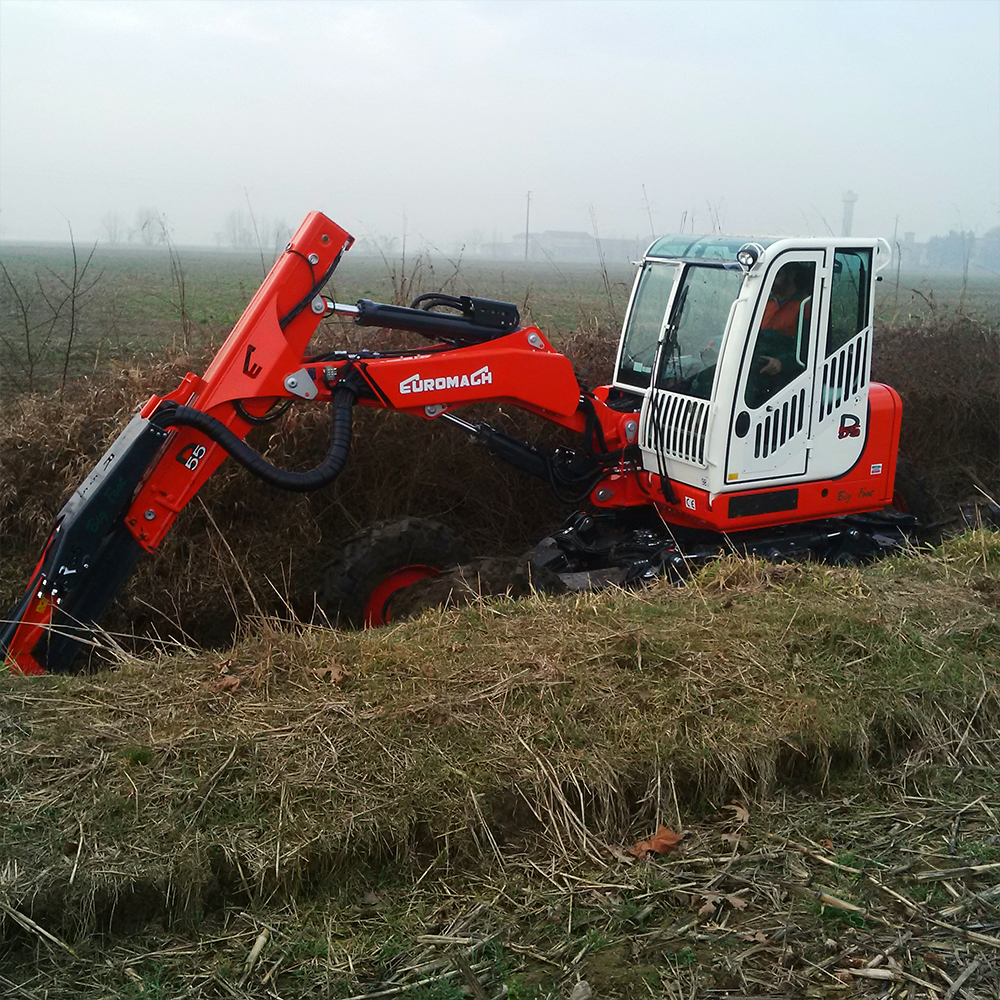

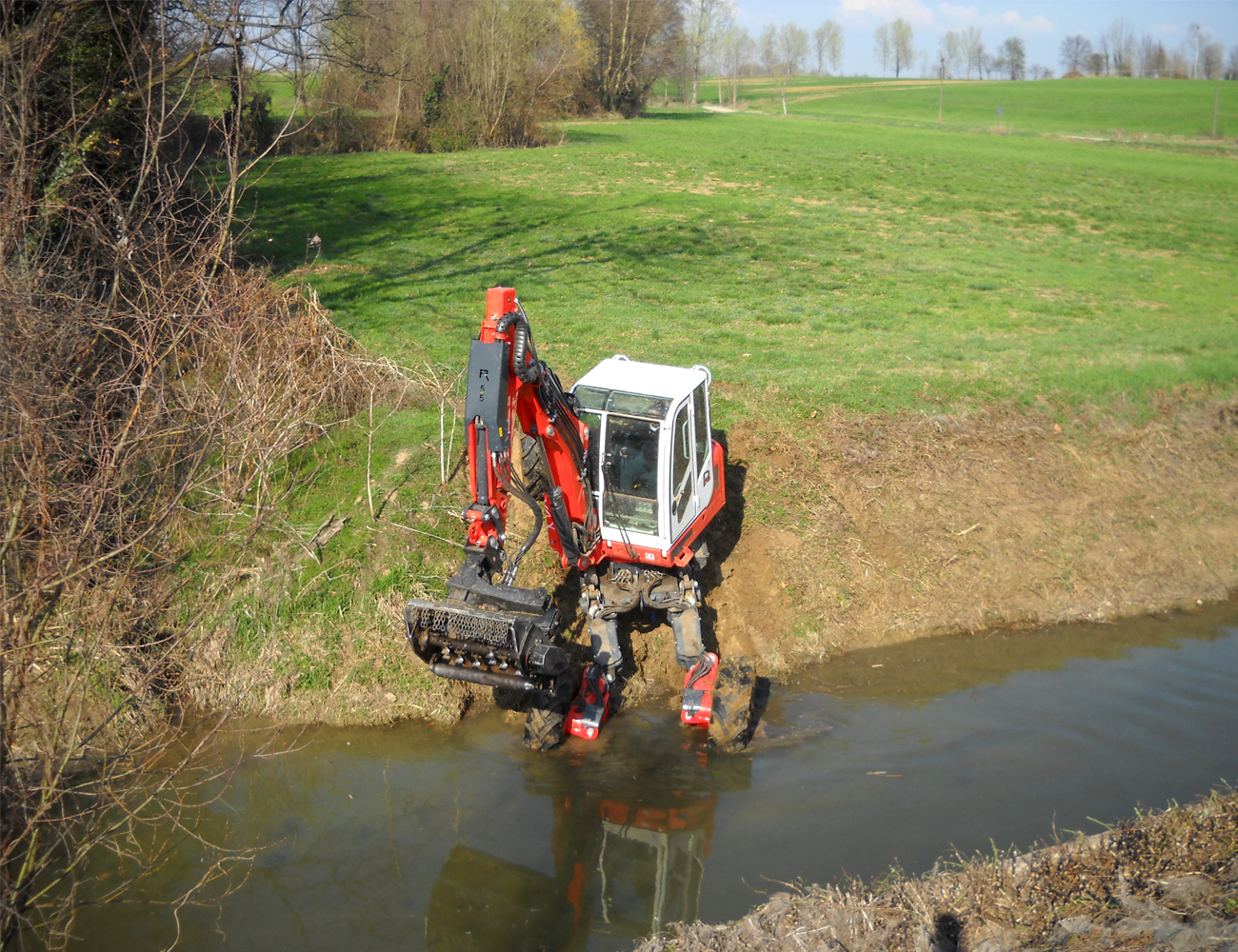

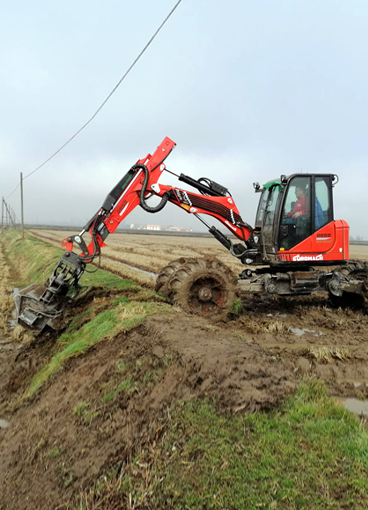

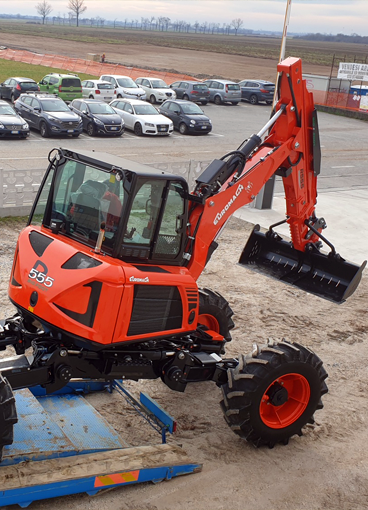

The walking excavator R555H Big Foot is an innovative machine. Its external design guarantees a 360° view. Its main features are: a Kubota engine of 3300 (cc) with 75 hp (particulate filter Tier 3 B included) and an hydraulic system with great performance but without electronic management (simple maintenance and great reliability). This model has a great lift capacity and can use heavy accessories that require high oil flow. This spider excavator can work in mountain areas but also in canals with forestry grapple. Its symmetric framework has four steering big wheels and has a limited width of 1700 mm.

The Forester model has besides two hydraulic paws on the front legs.
Kubota 3307 Tier 3 B with AP filter
Engine:
Kubota
Model: Kubota 3307 Tier 3 B with AP filter
Technical features
Operative weight
8350 Kg (Big Foot); 8900 Kg (Forester)
Engine's model
Kubota 3307 Tier 3 B with particulate filter
Engine's type
Water cooled 4 strokes turbo diesel
Engine size
3331 (cc)
Max power
55.4 kW (75.3 Cv)
Potential difference
12 V
Max arm extension
7280 mm
Total pumps flow
260 lit/min
Penetration force
47 KN
Break off force
67 KN

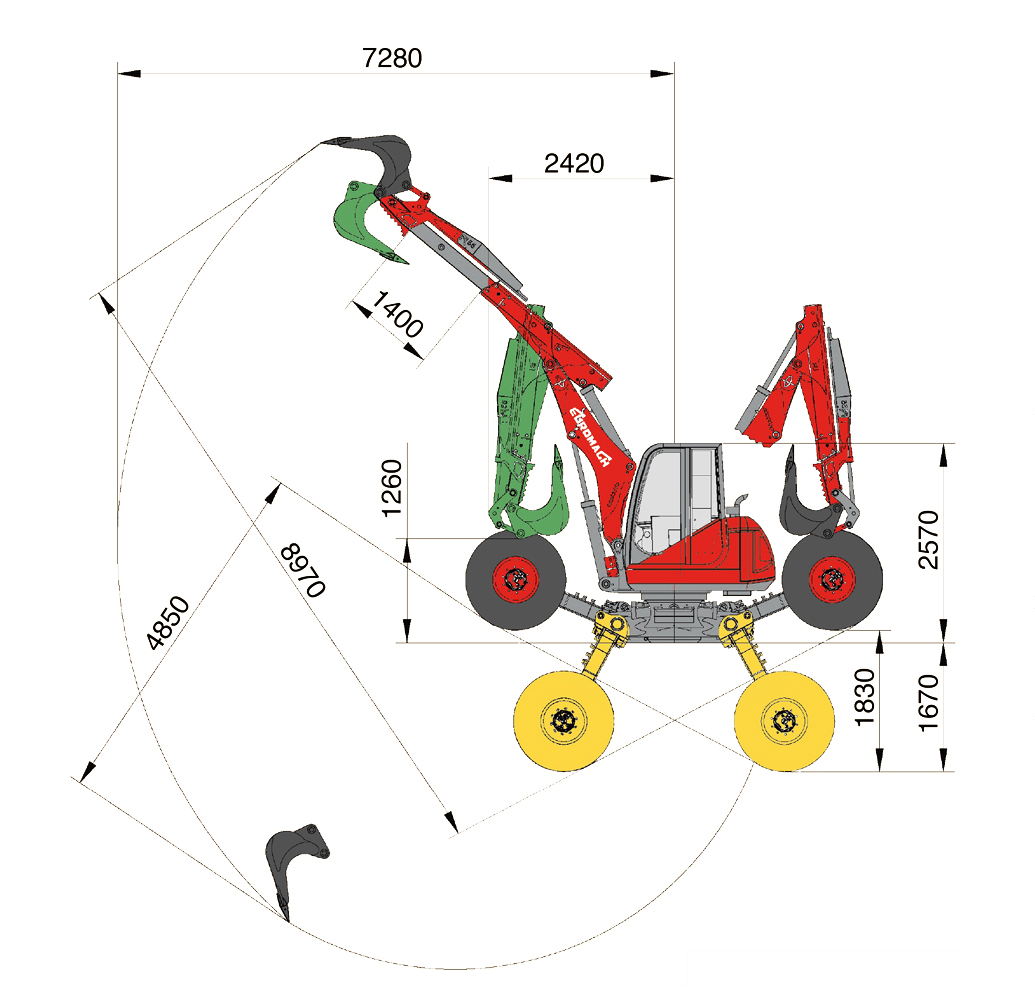

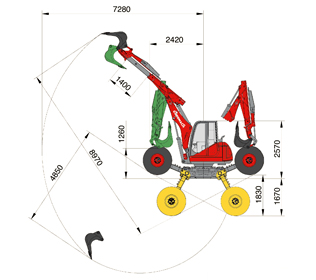

R555H Big Foot - Side view
Extension of 1,4 m
R555H Big Foot - Side view

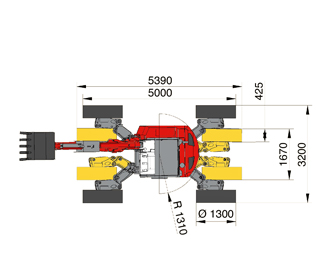

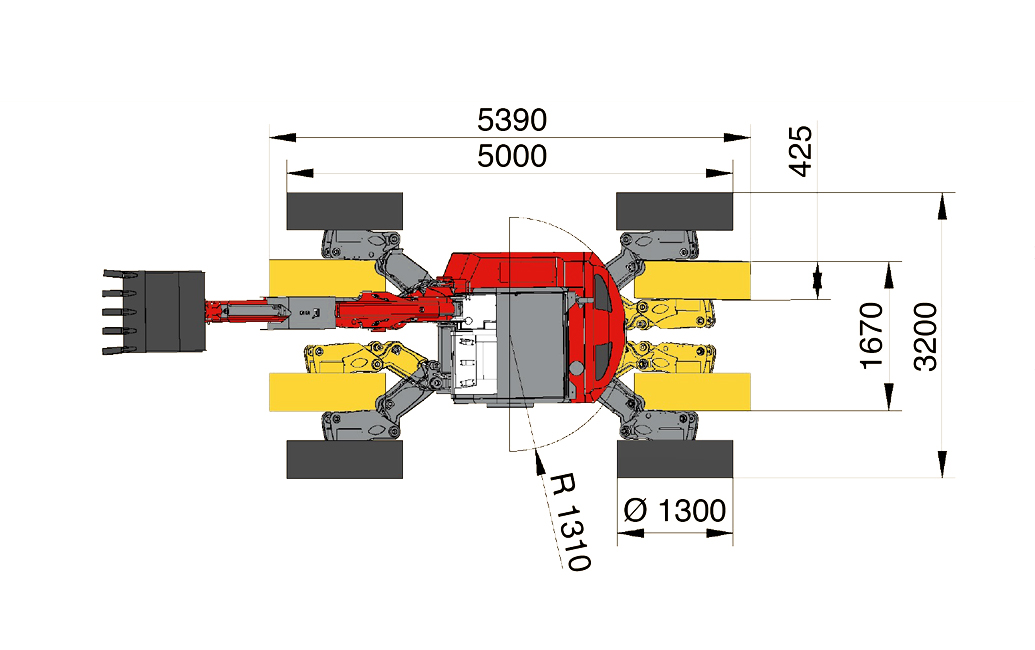

R555H Big Foot - Upper view
4 steering wheels
R555H Big Foot - Upper view

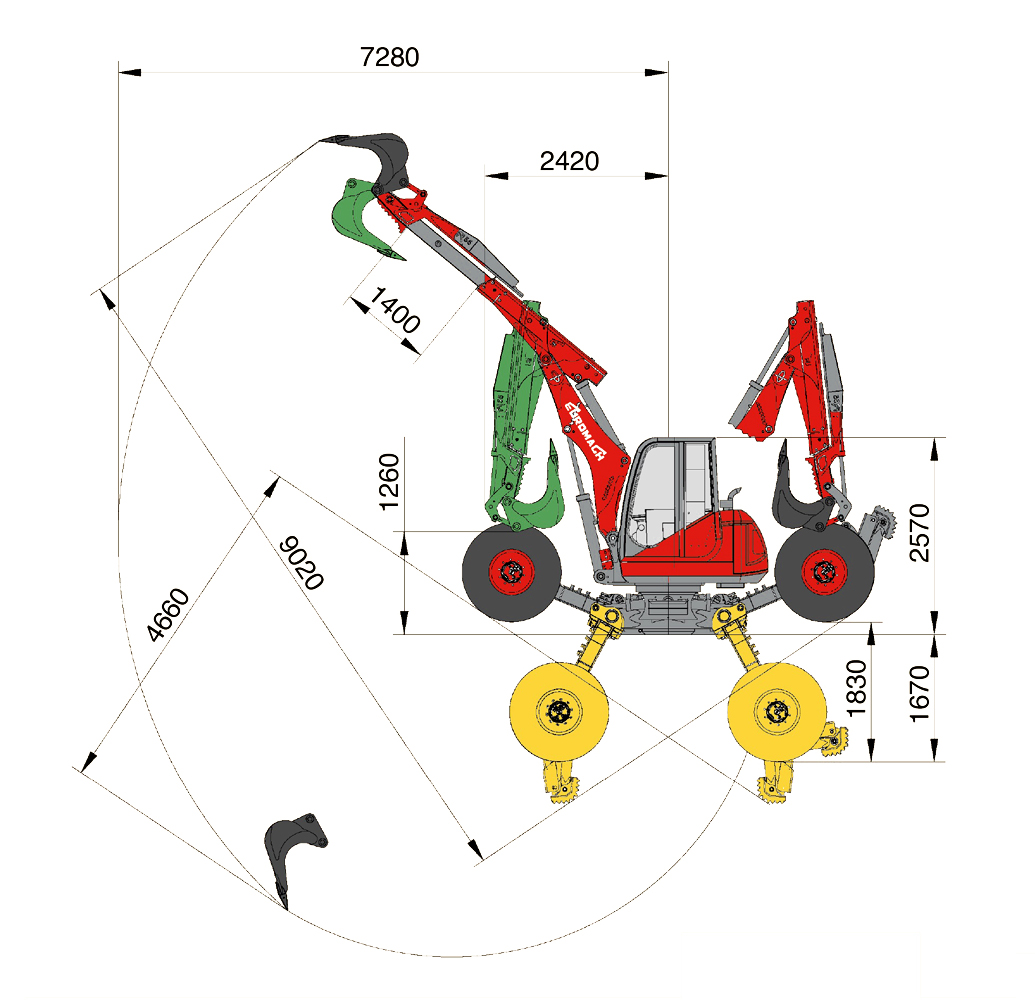

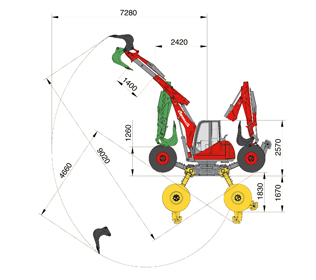

R555H Forester - Side view
Extension of 1,4 m
R555H Forester - Side view

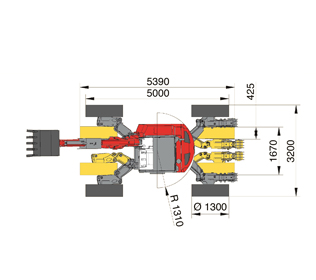

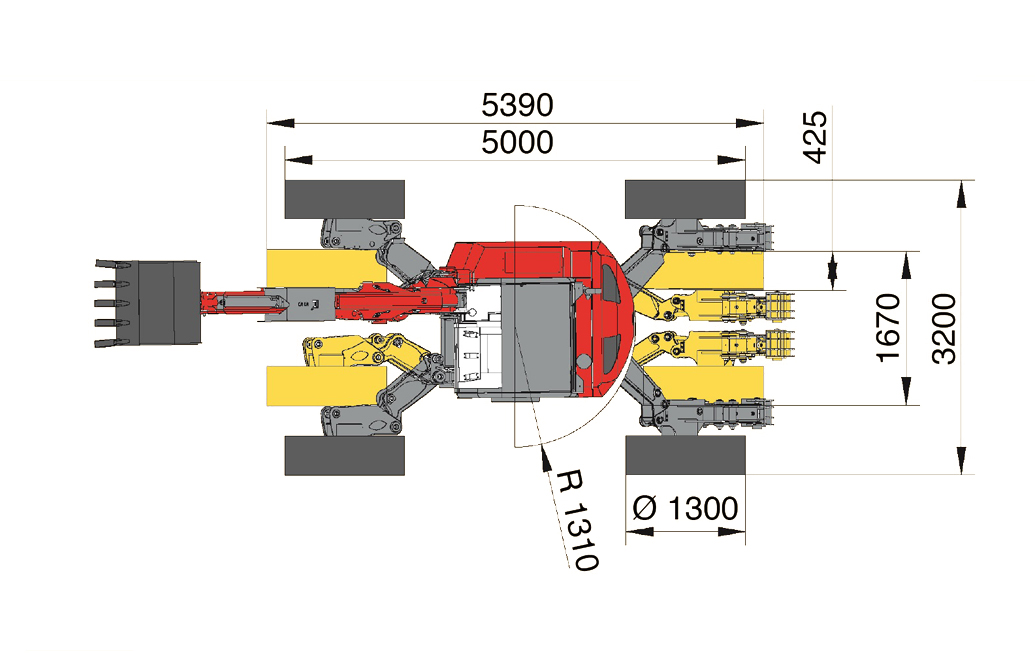

R555H Forester - Upper view
4 steering wheels + 2 hydraulic paws
R555H Forester - Side view
Details (All images can be enlarged)

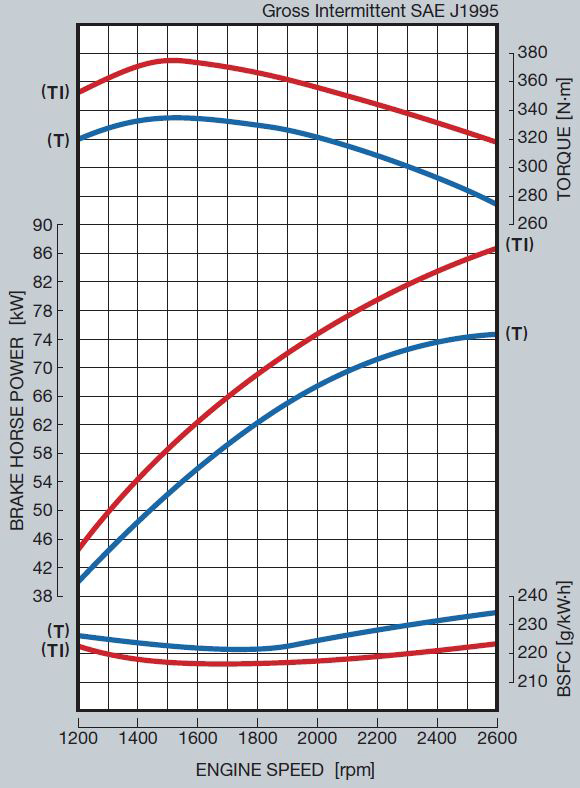

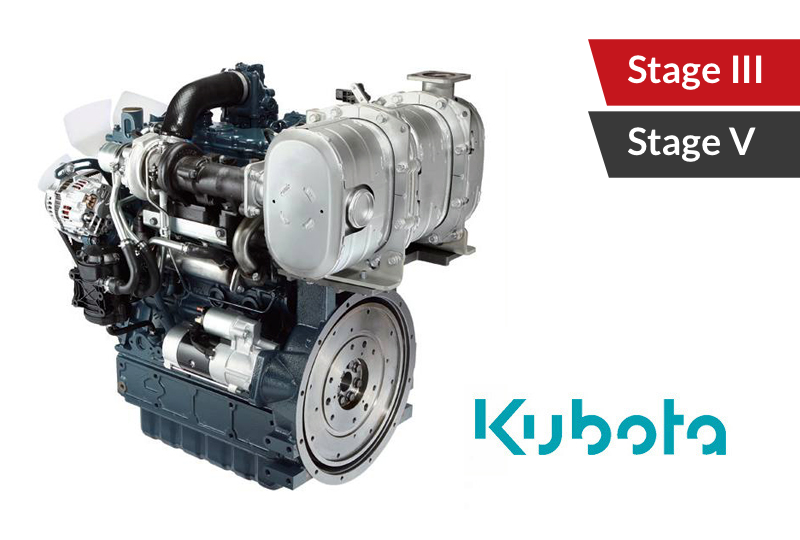

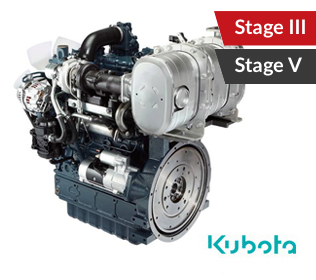

Kubota 3307 Tier 3 B with AP filter
Kubota 3307 Tier 3 B with particulate filter

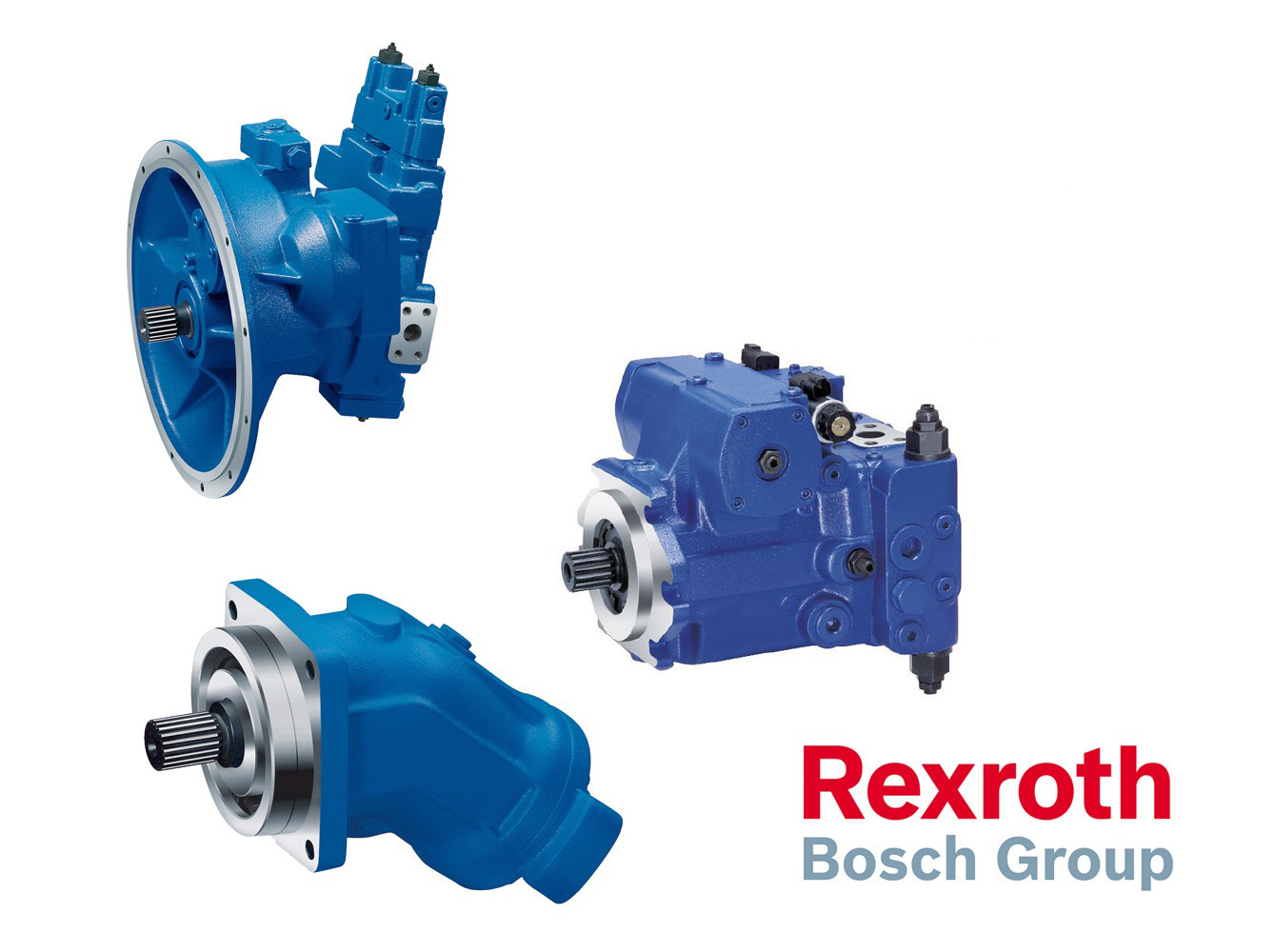

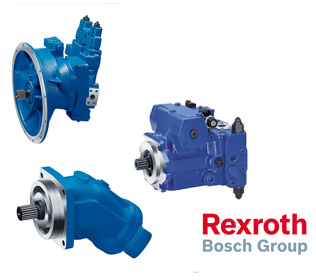

Rexroth components
Rexroth components
R555H Big Foot Forester - ROPS and FOPS certified cabin
ROPS and FOPS certified cabin

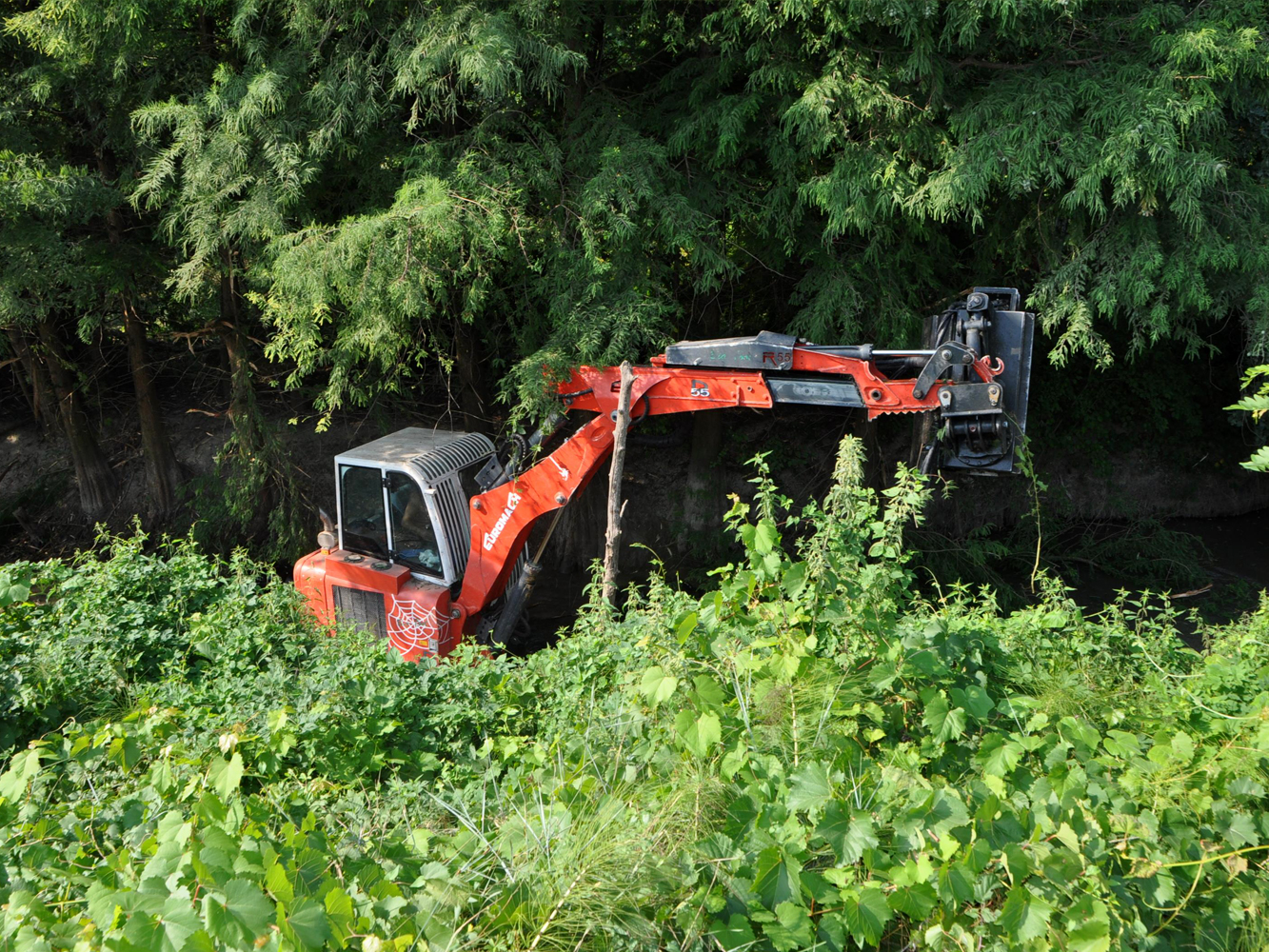

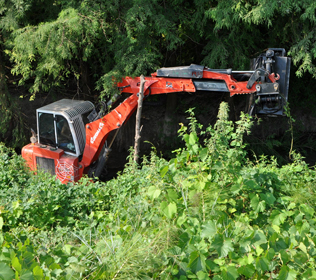

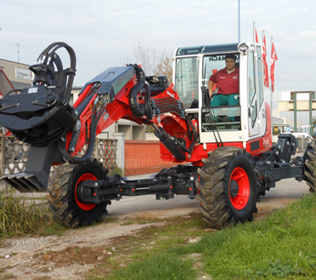

R555H Big Foot Forester - Possibility to install many accessories
Possibility to install many accessories

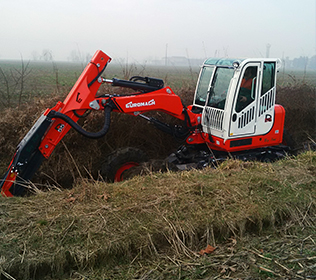

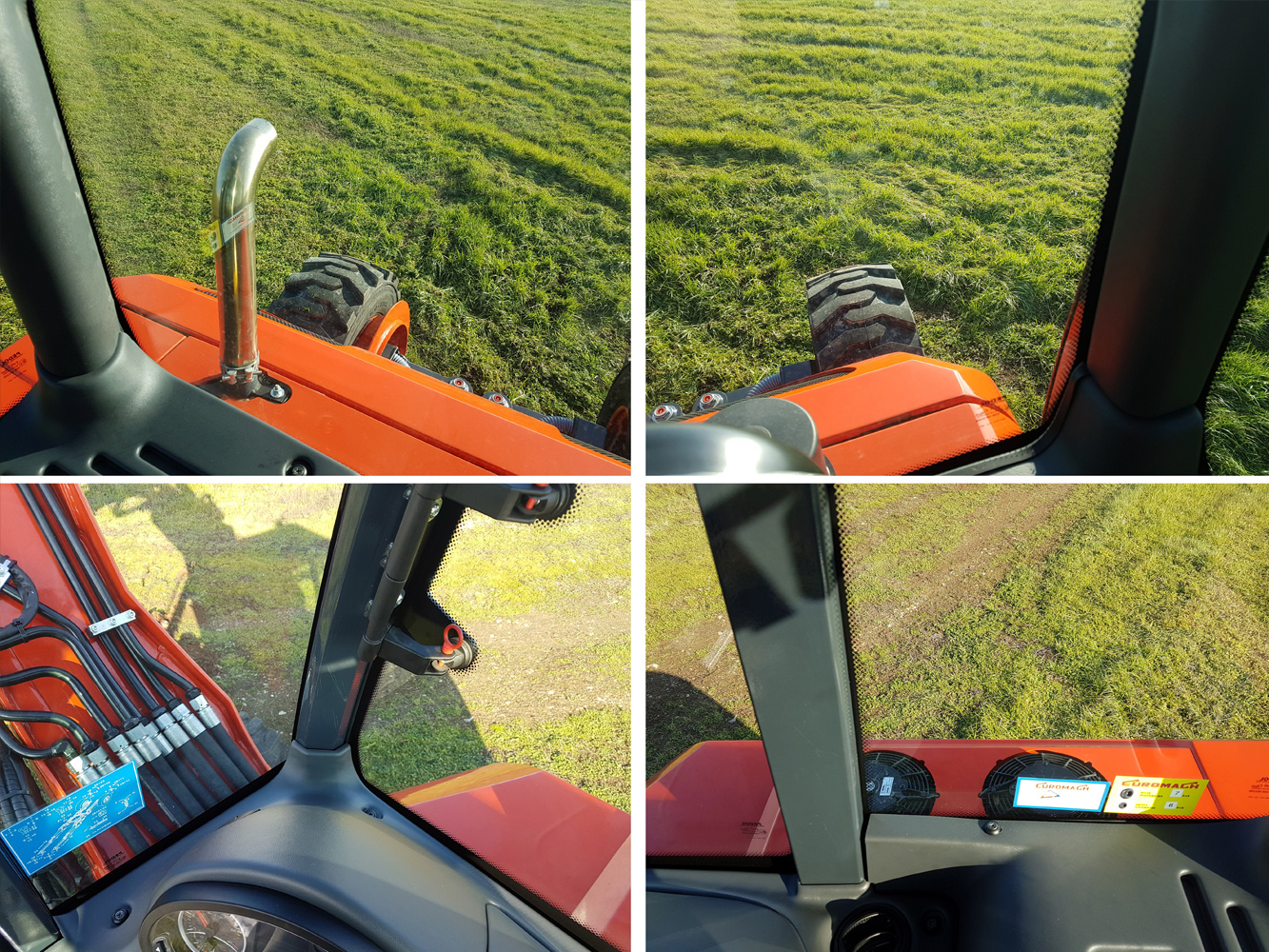

R555H Big Foot Forester - Great view
Great view
R555H Big Foot Forester - 4 ruote motrici sterzanti
four steering wheels
R555H Big Foot Forester - Boom's pipes on the left
Boom's pipes on the left

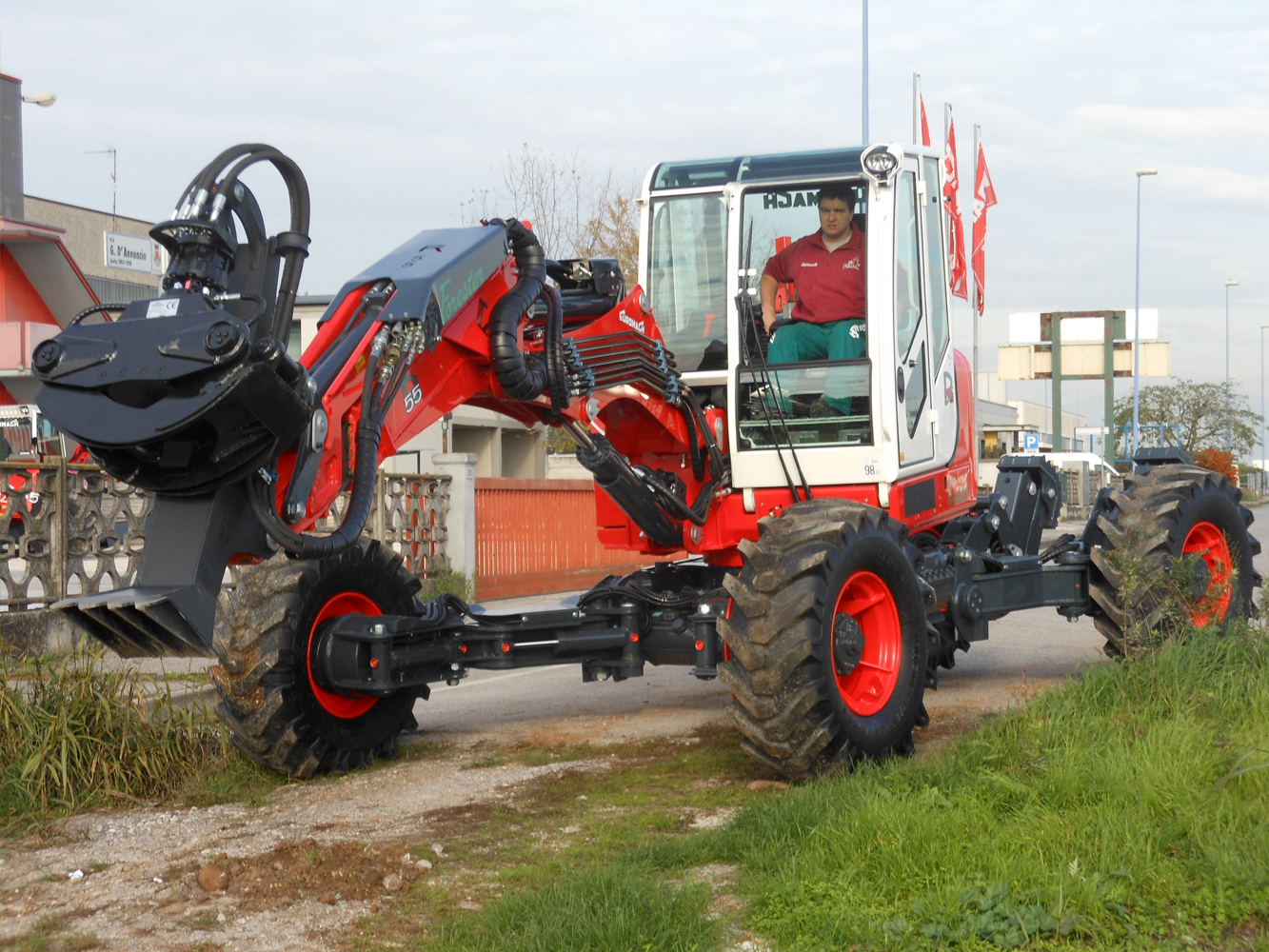

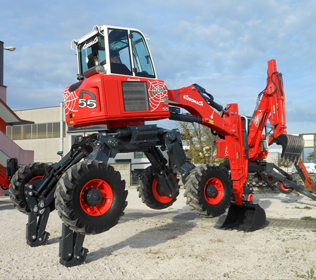

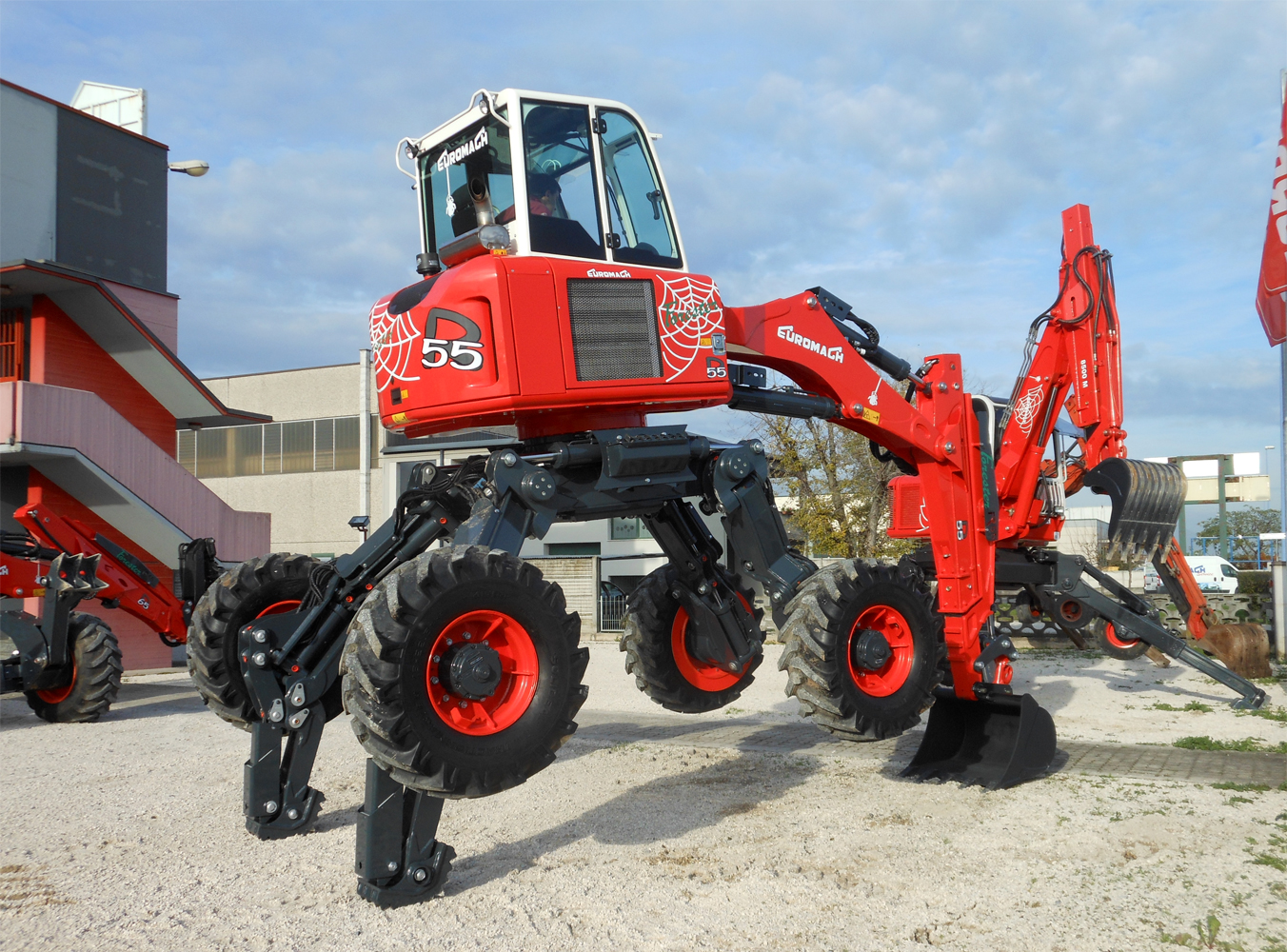

R555H Big Foot Forester - Hydraulic front legs (Forester model)
Hydraulic front legs (Forester model)

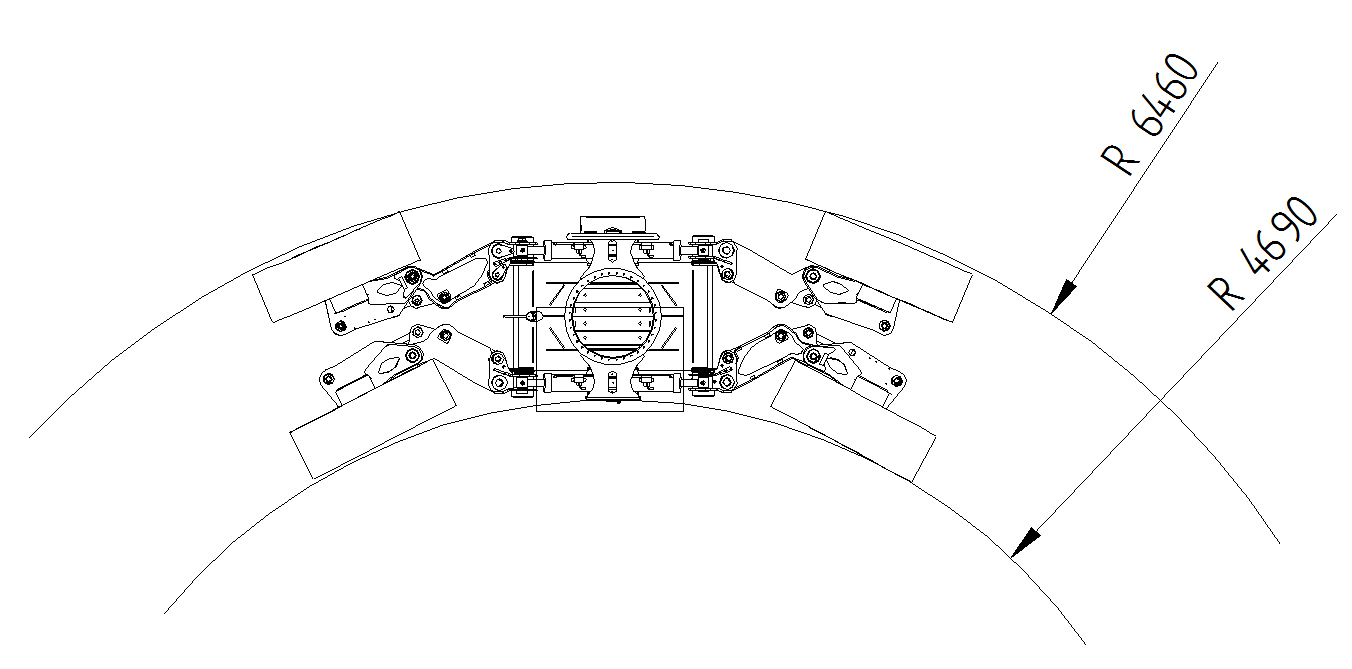

R555H Big Foot Forester - Bending radius
Bending radius
Download the brochures with all the technical features
