R65 SP Big Foot - Forester
R65 SP Big Foot - Forester

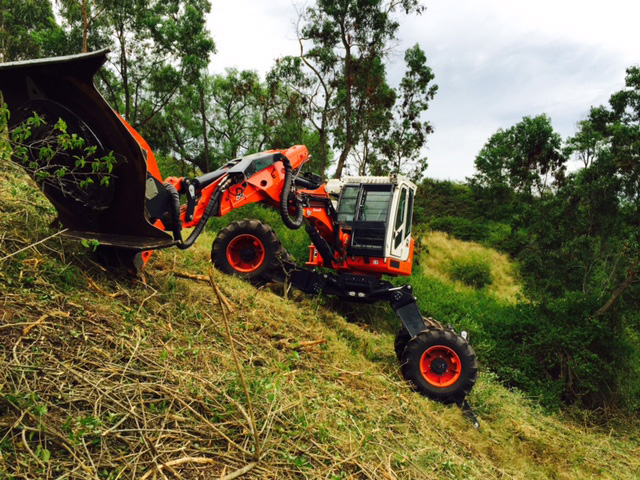

The forestry excavator R65 Big Foot has four steering wheels; each of them has a hydraulic motor and the same size. The machine fits to work in forestry zones and in canals with much mud. The motor doesn't have a particulate filter and so the machine can be sold only outside the EU market. Thanks to a high hydraulic power and a great lift force, on this walking excavator you can install any accessory present on the market. It's also possible to have, as extra (Forest model), two hydraulic paws. In this way it's easier to work in presence of slope.
The double Forester hat four hydraulic paws instead two. The others features are the same.
The double Forester hat four hydraulic paws instead two. The others features are the same.

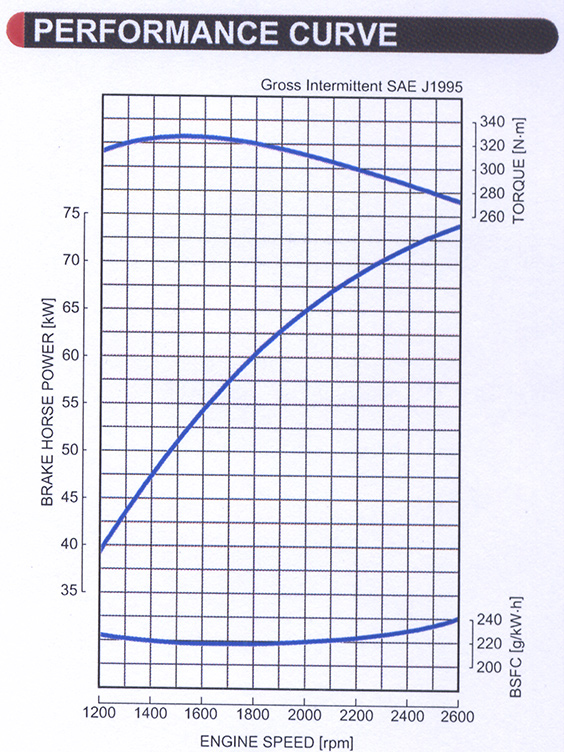

Engine:
Model: Kubota 3800 Tier 3 A

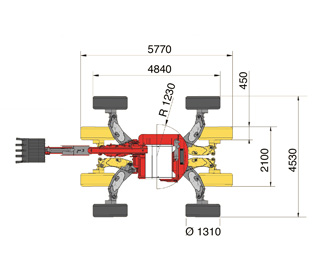

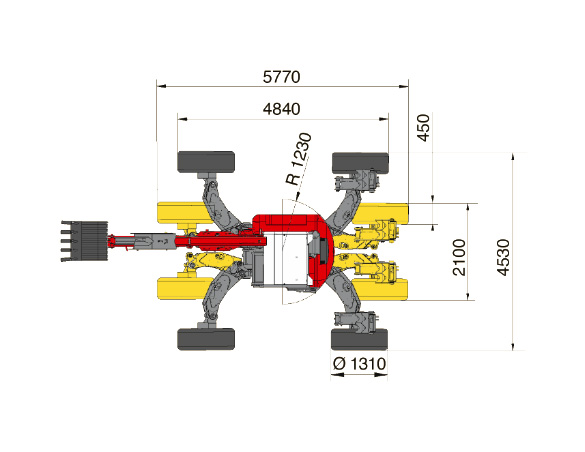

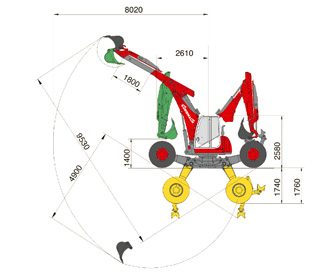

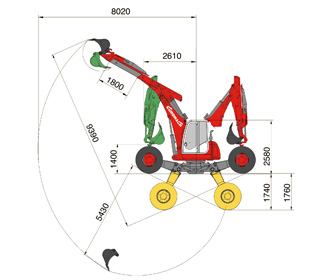

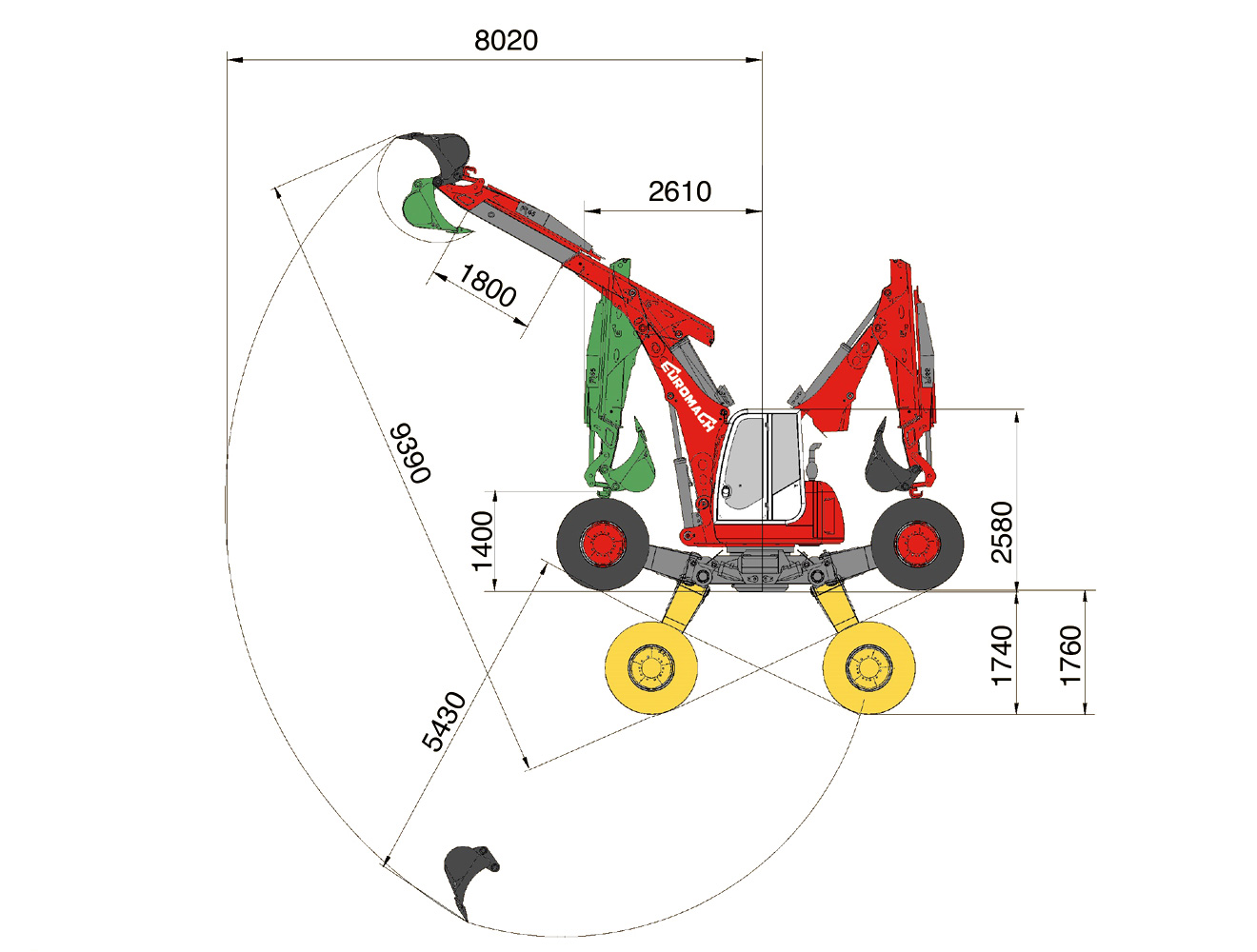

Click on the drawing to enlarge the image
Technical features
Operative weight
10.000 Kg (Big Foot); 11.000 Kg (Forester)
Engine's model
Kubota 3800 Tier 3 A
Engine's type
Water cooled 4 strokes turbo diesel
Engine size
3769 (cc)
Max power
100 Cv (74 KW)
Potential difference
12 V

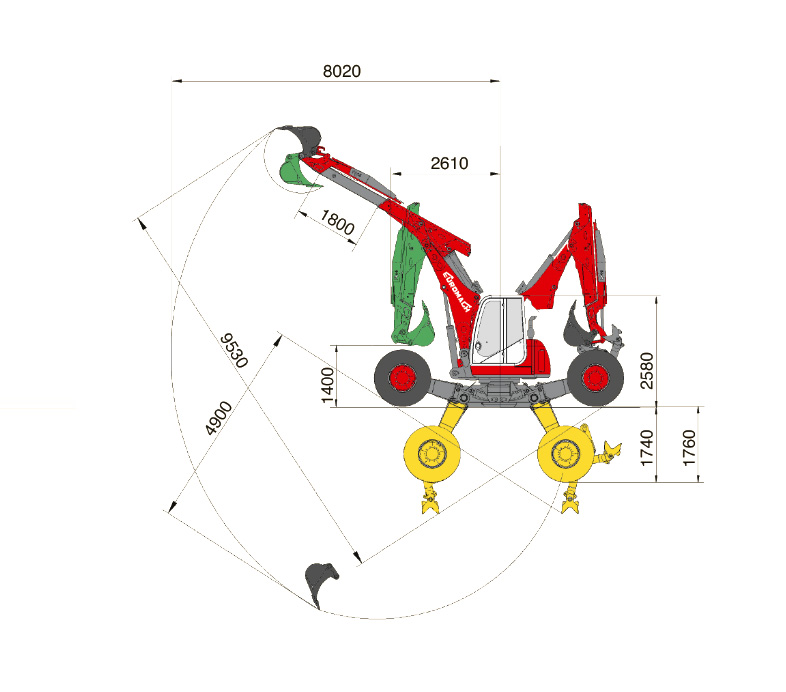

Max arm extension
8020 mm
Total pumps flow
275 lit/min
Penetration force
65 KN
Break off force
84 KN
Details (All images can be enlarged)

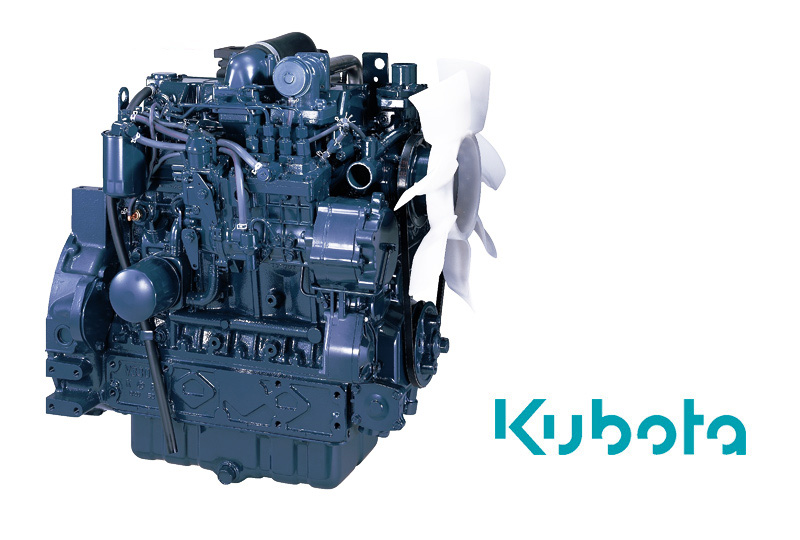

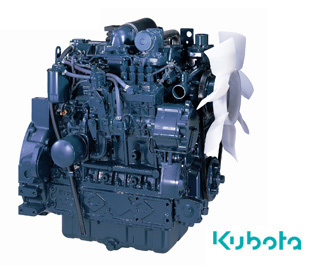

Kubota 3800 Tier 3 A Motor

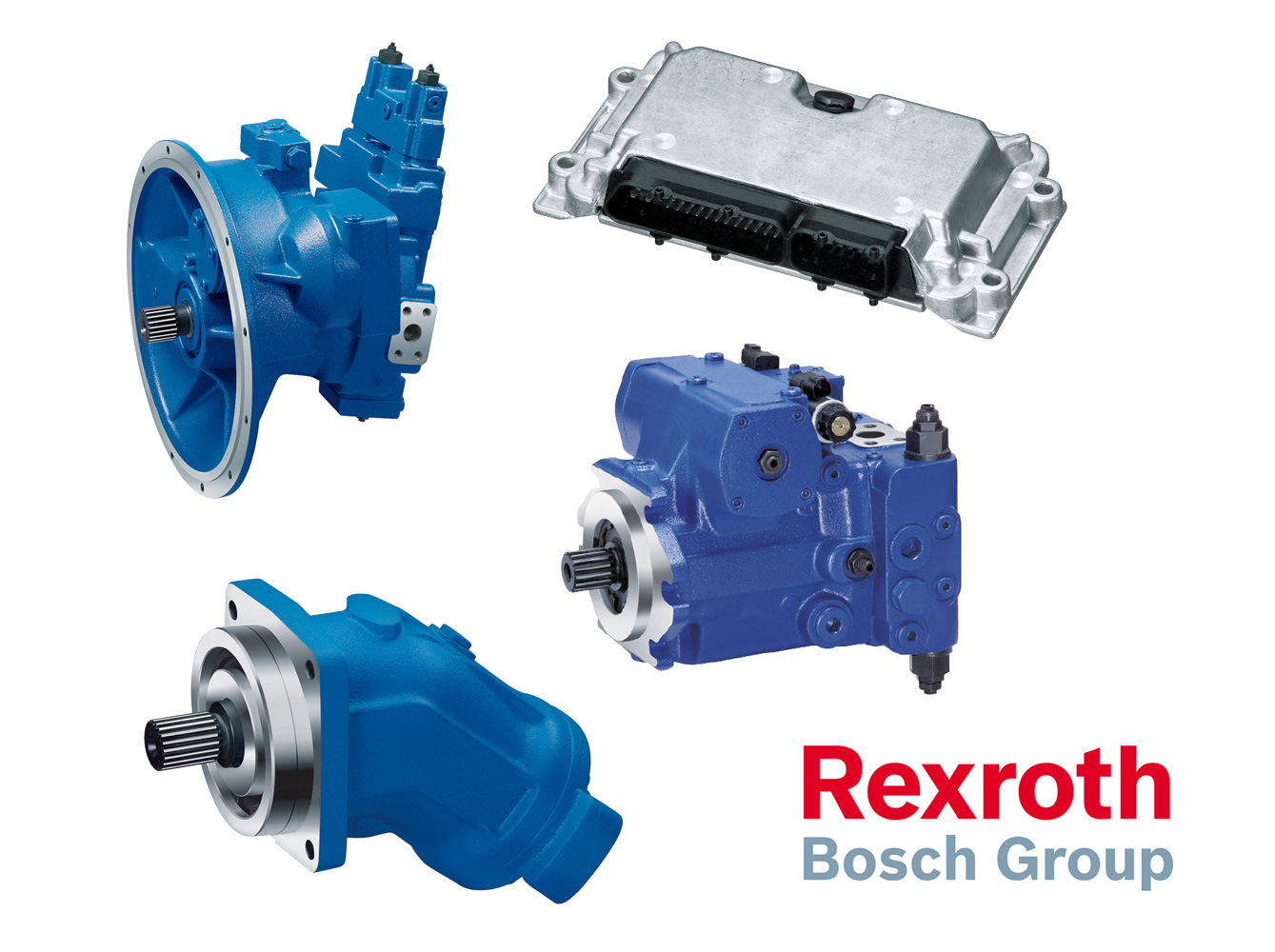

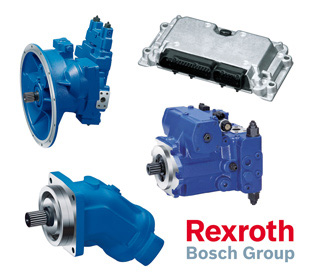

Rexroth components

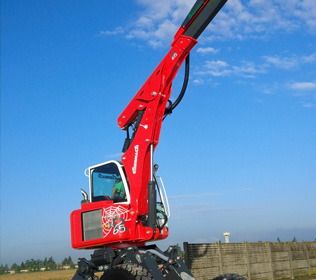

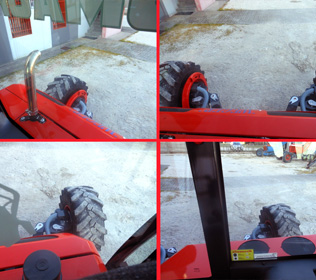

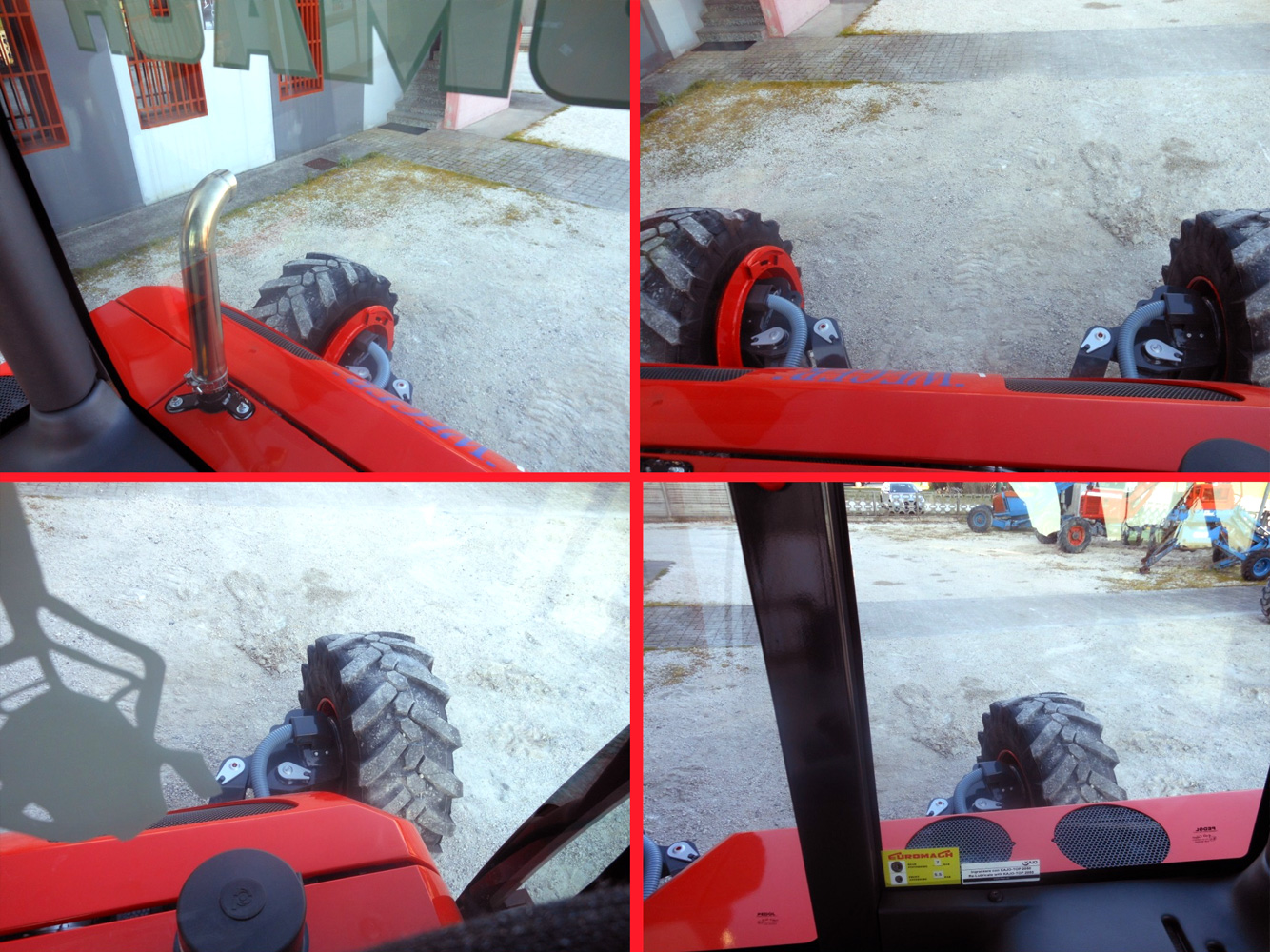

Great view
Great power
Four steering wheels

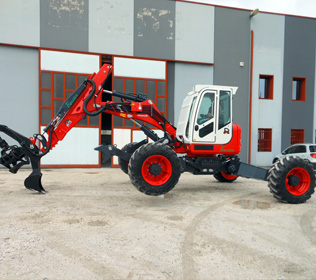

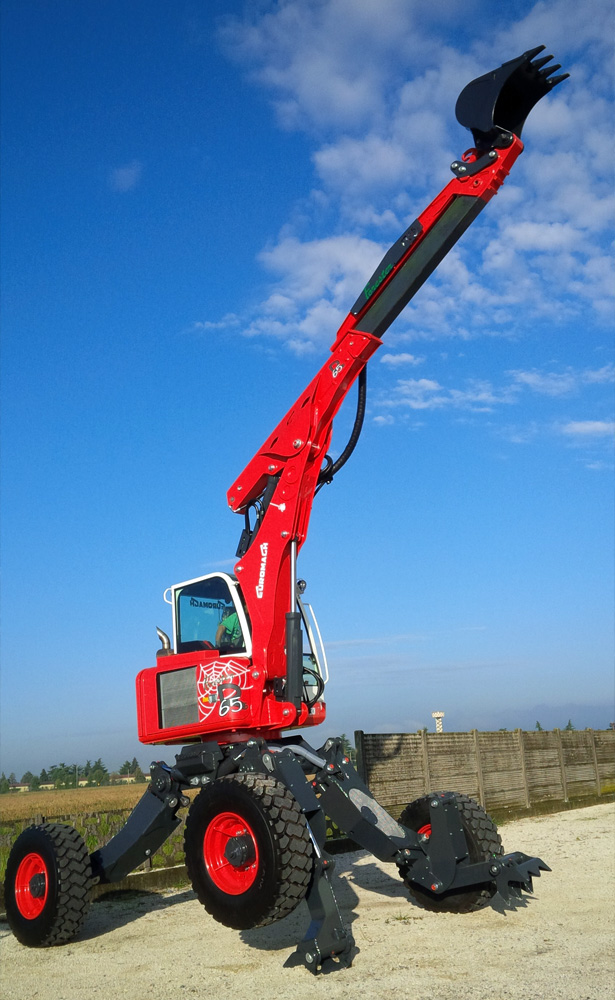

Extension of 1,8 m

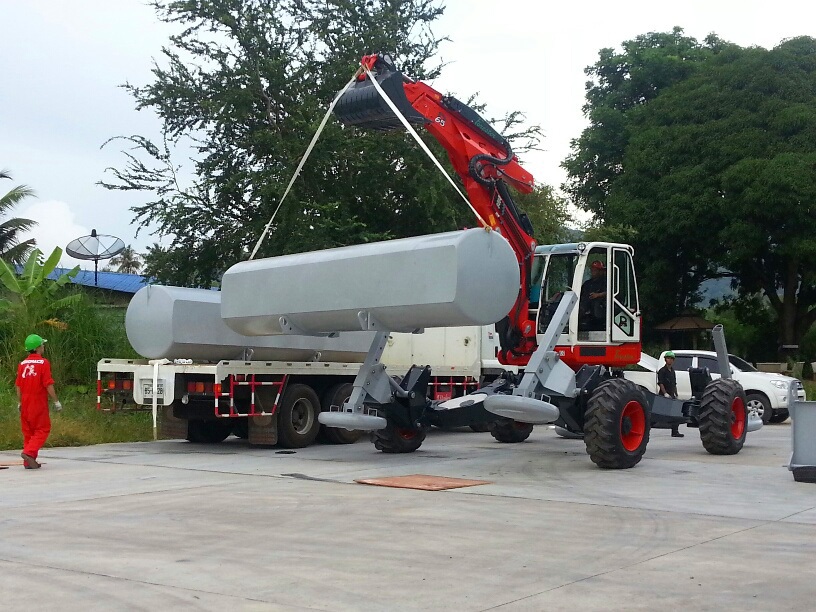

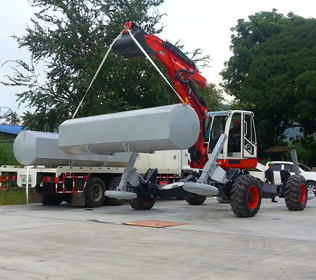

Possibility to install many accessories

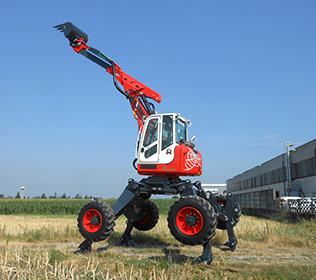

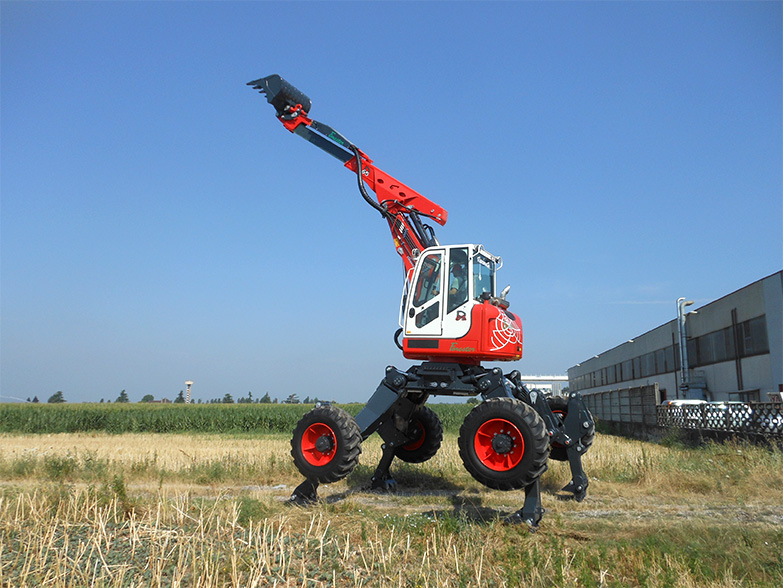

Front and rear stabilizers (Double Forester model)

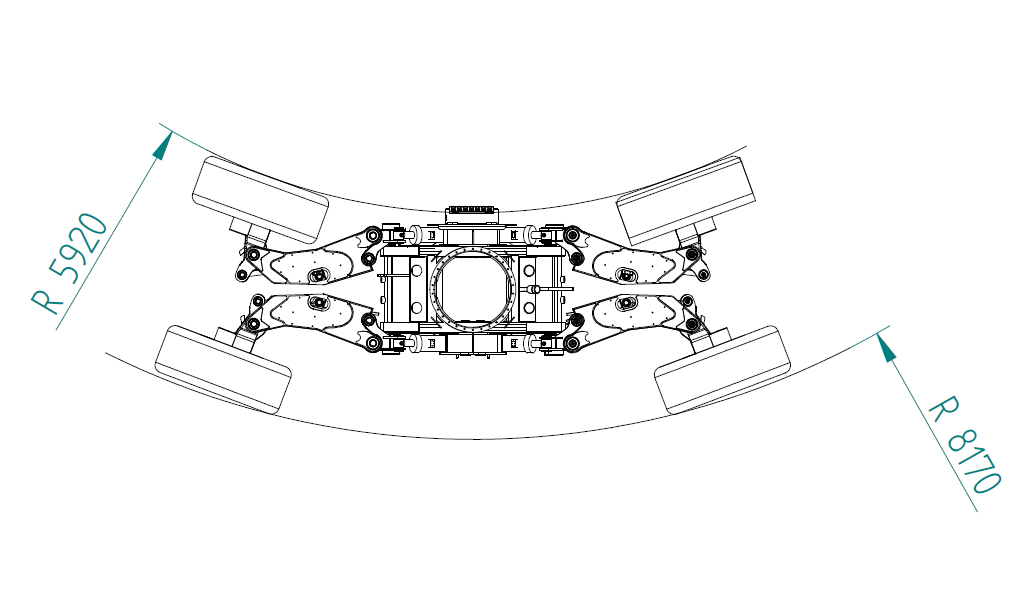

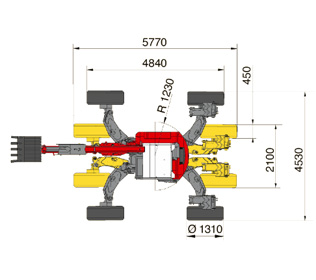

Bending radius
Download the brochures with all the technical features

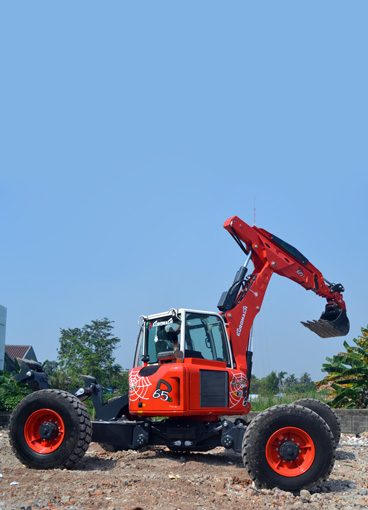

Photogallery (All images can be enlarged)
